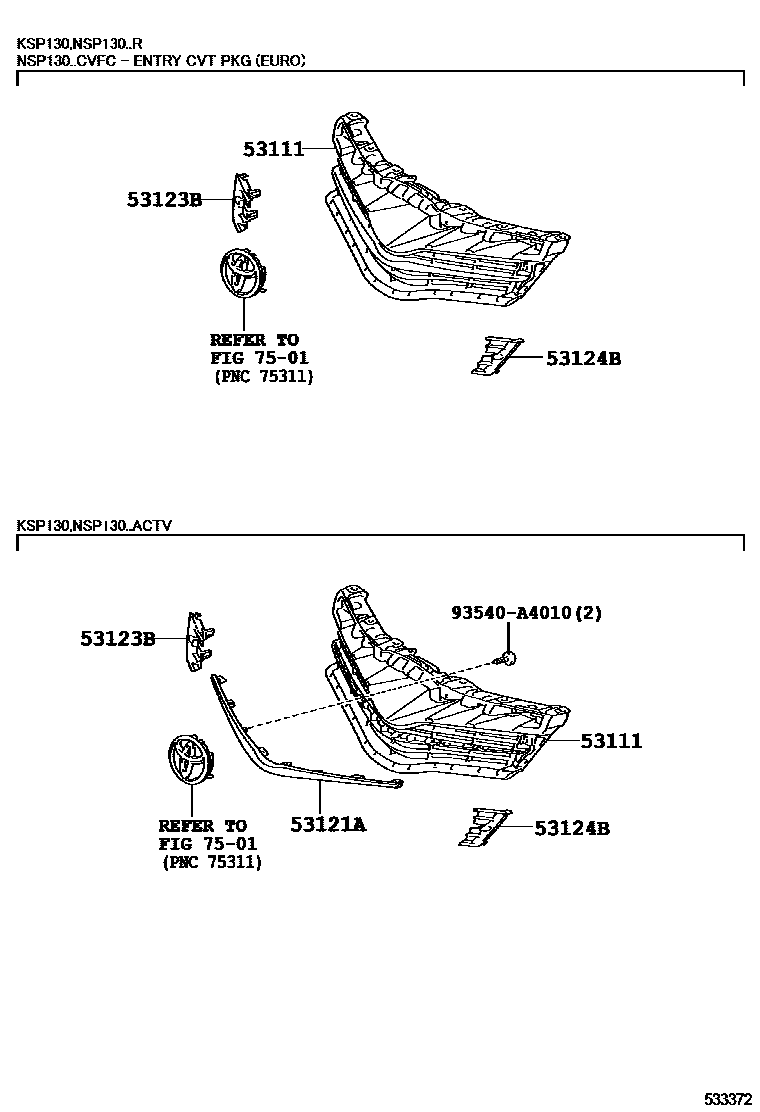

Toyota YARIS radiator grille — Figure 5301
Toyota YARIS EPC diagram 5301, radiator grille, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53111-52500 · 53111-52620 |
| 53121A | Radiator grille protection strip | 53121-52130 |
| 53123B | Protective strip on the right side of the radiator grille | 53123-52030 |
| 53124B | Radiator grille left protective strip | 53124-52030 |
