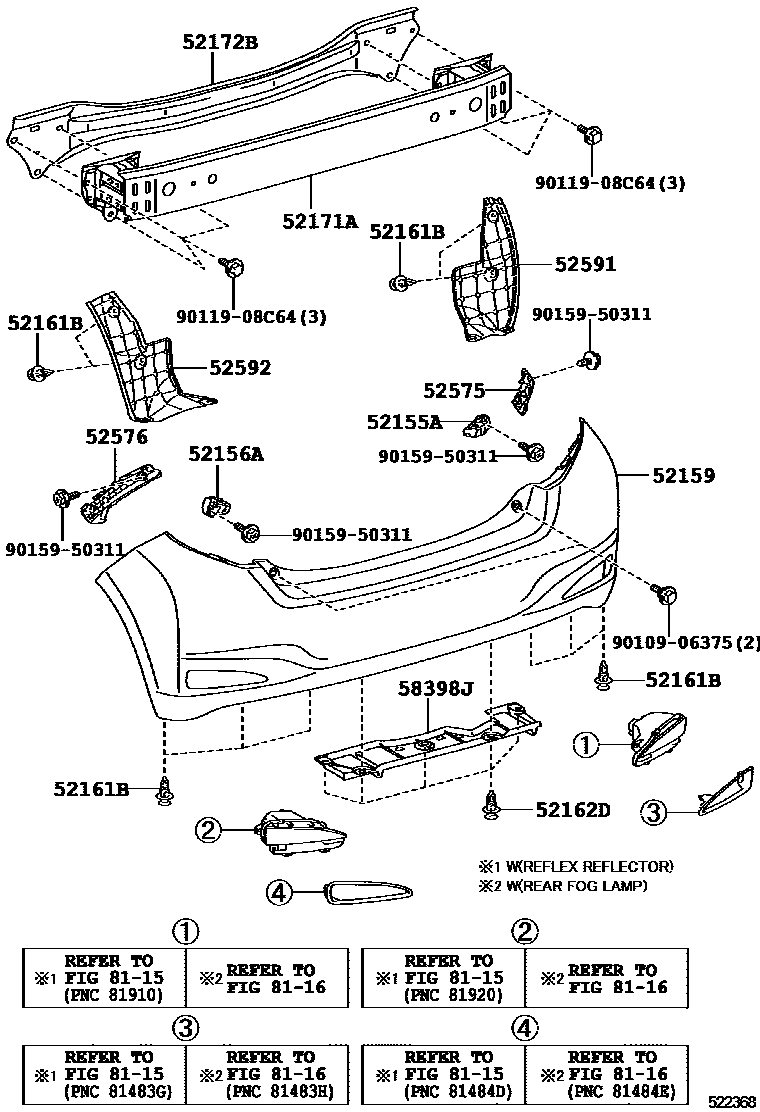

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-52120 |
| 52156A | Rear bumper left bracket | 52156-52120 |
| 52159 | rear bumper cover | 52159-52965 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-52150 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-52020 |
| 52575 | Rear bumper right side fixing bracket | 52575-52170 · 52575-52171 |
| 52576 | Rear bumper left side fixing bracket | 52576-52150 · 52576-52151 |
| 52591 | Rear bumper right seal | 52591-52300 |
| 52592 | Rear bumper left seal | 52592-52290 |
| 58398J | No. 1 floor under cover | 58398-52070 · 58398-52080 |
