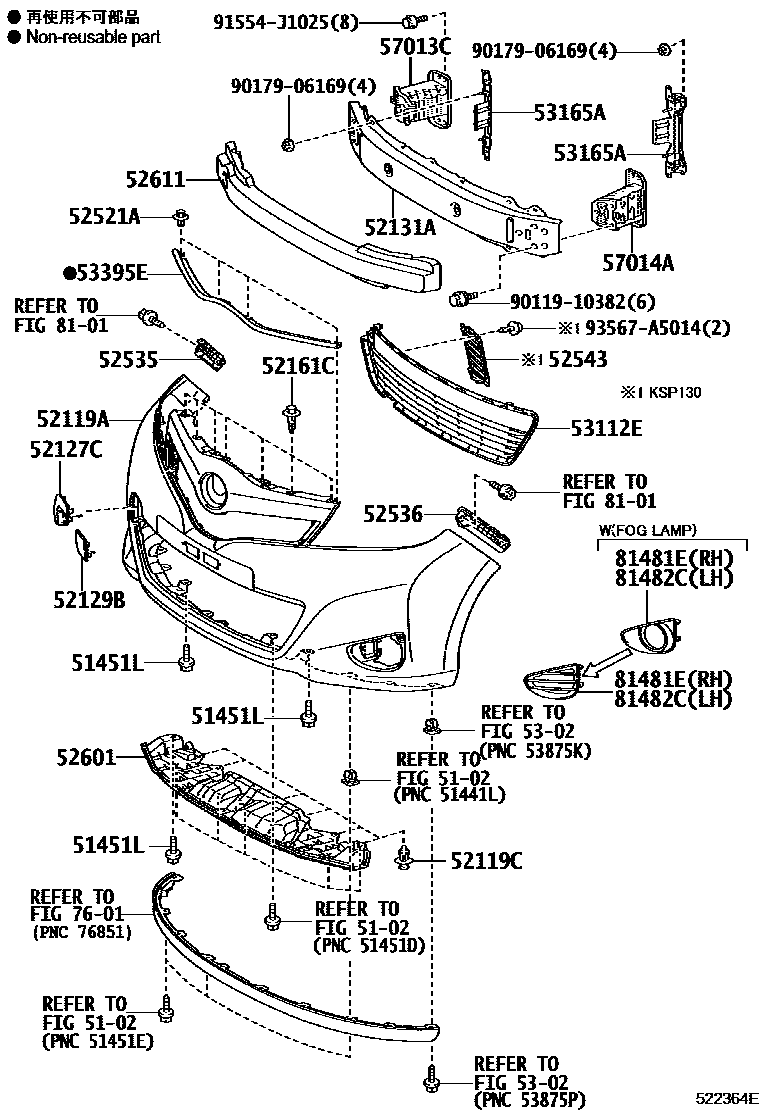

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451L | BOULON, NO.1 | 90119-06767 |
| 52119A | front bumper cover | 52119-52965 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-10216 |
| 52127C | Front bumper hole cover | 52127-52931 |
| 52129B | Front bumper lower cover | 52129-52090 |
| 52131A | Front bumper reinforcement | 52131-52250 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-52110 · 52535-52111 |
| 52536 | Front bumper left fixed bracket | 52536-52080 · 52536-52081 |
| 52543 | Front bumper right seal | 52543-52030 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-52010 · 52601-52020 |
| 52611 | front bumper energy absorber | 52611-52090 |
| 53112E | No. 1 radiator lower grille | 53112-52260 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52060 |
| 53395E | Engine cover to front end plate seal | 53395-52040 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-52010 · 57013-52011 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-52010 |
| 81481E | Right fog light cover | 81481-52360 · 81481-52380 |
| 81482C | Left fog light cover | 81482-52300 · 81482-52320 |
