Toyota YARIS Spare tire rack — Figure 5104

Toyota YARIS EPC diagram 5104, Spare tire rack, with 1 images and 2 PNC and OE references.

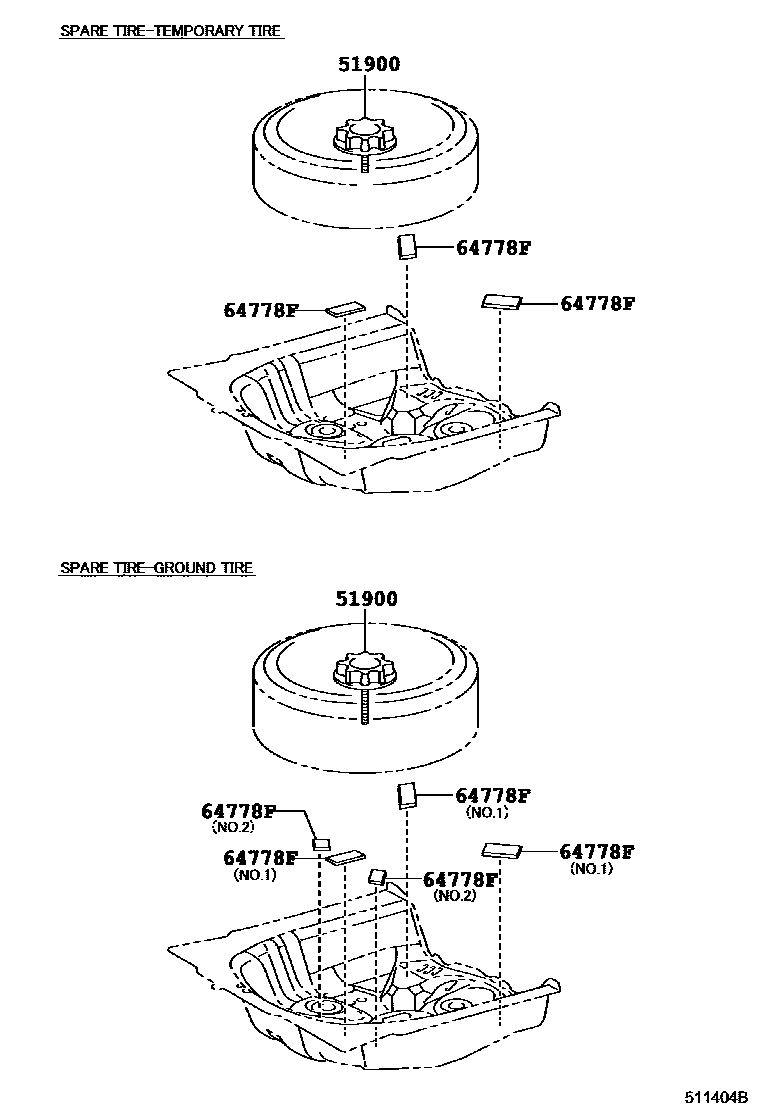

Toyota YARIS Spare tire rack EPC diagram — 511404B
Spare tire rack — 511404B (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
51900Spare tire rack assembly51931-22040 · 51931-24010
64778FSpare tire protection device64778-52110 · 64778-52150
