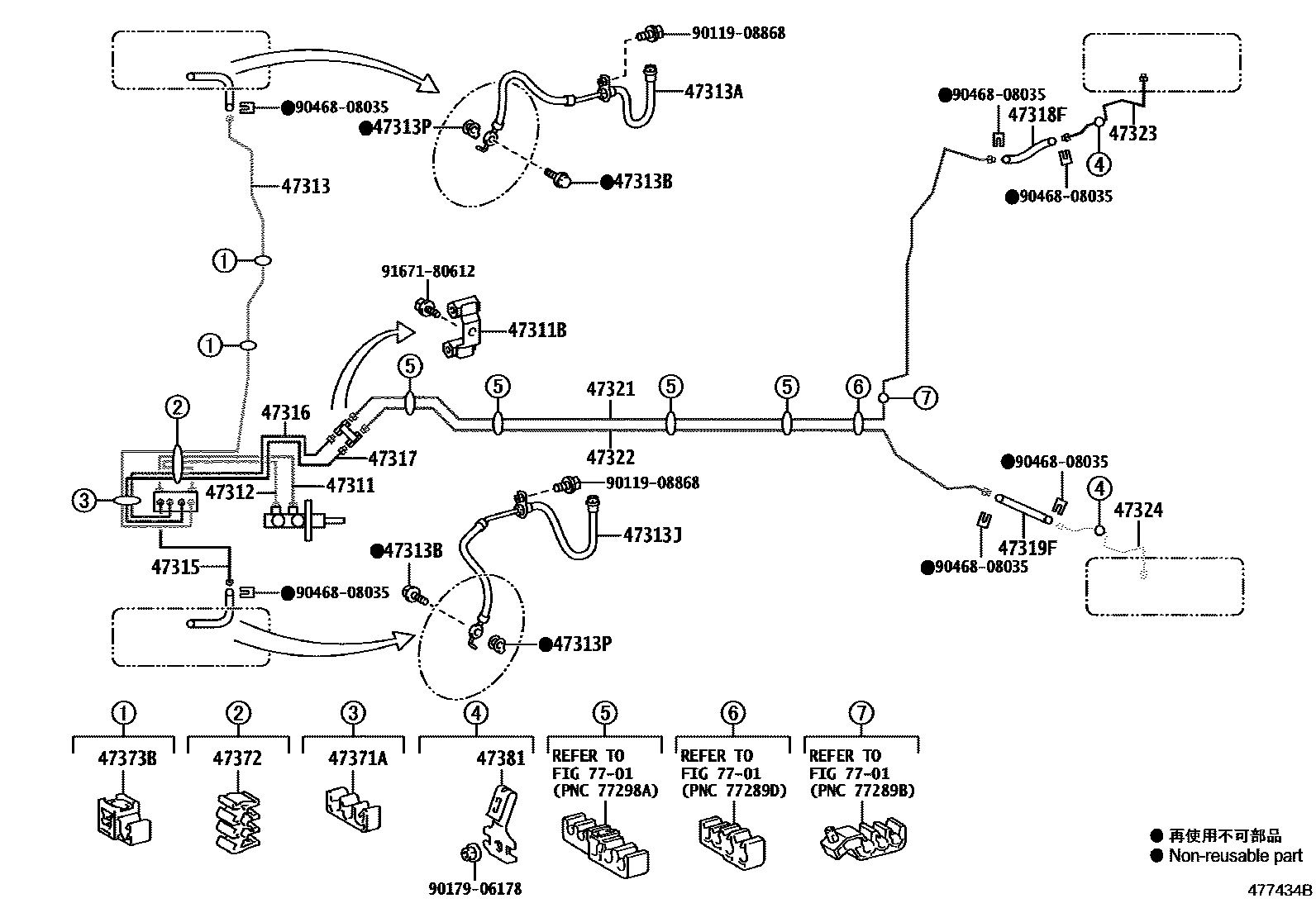

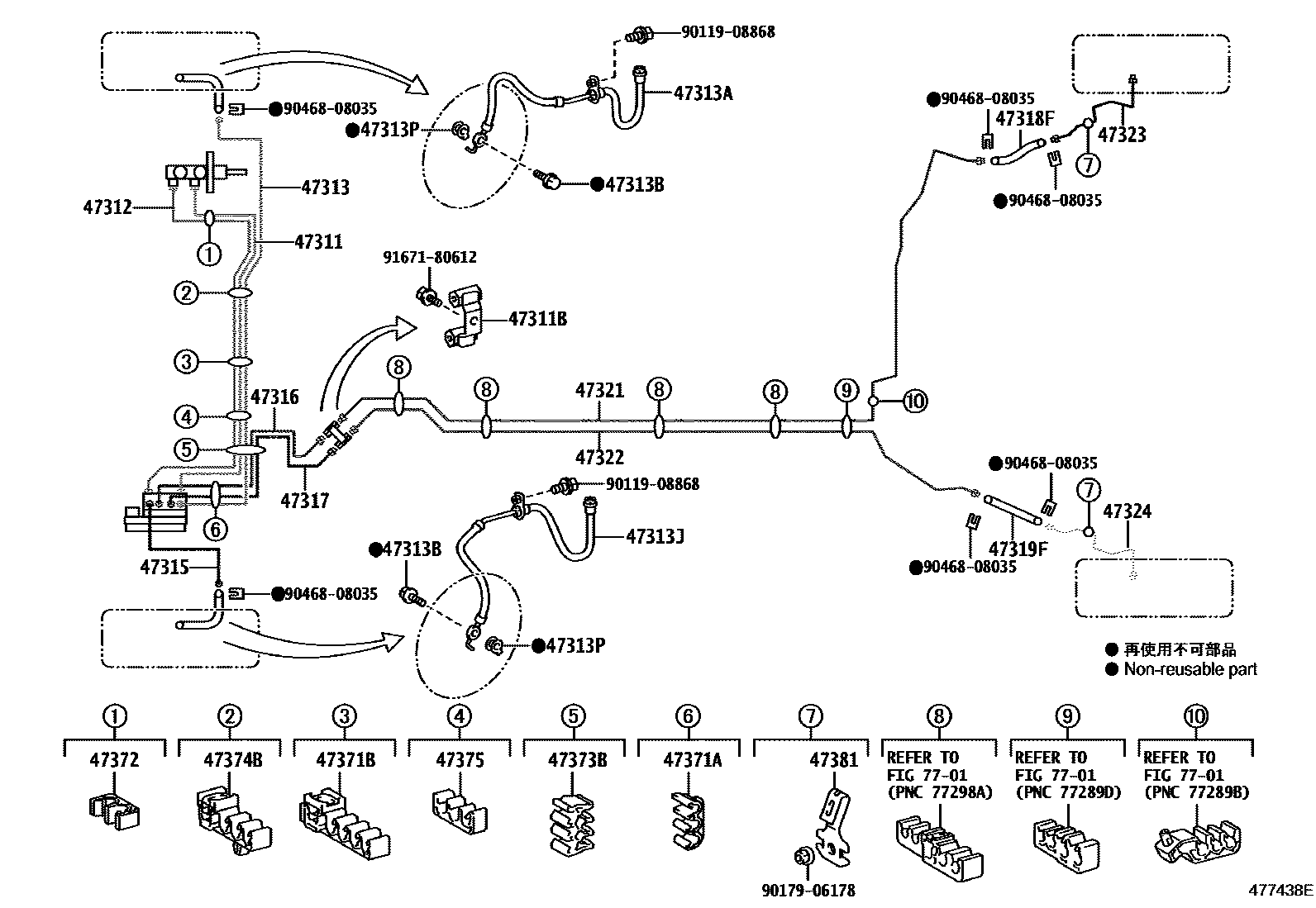

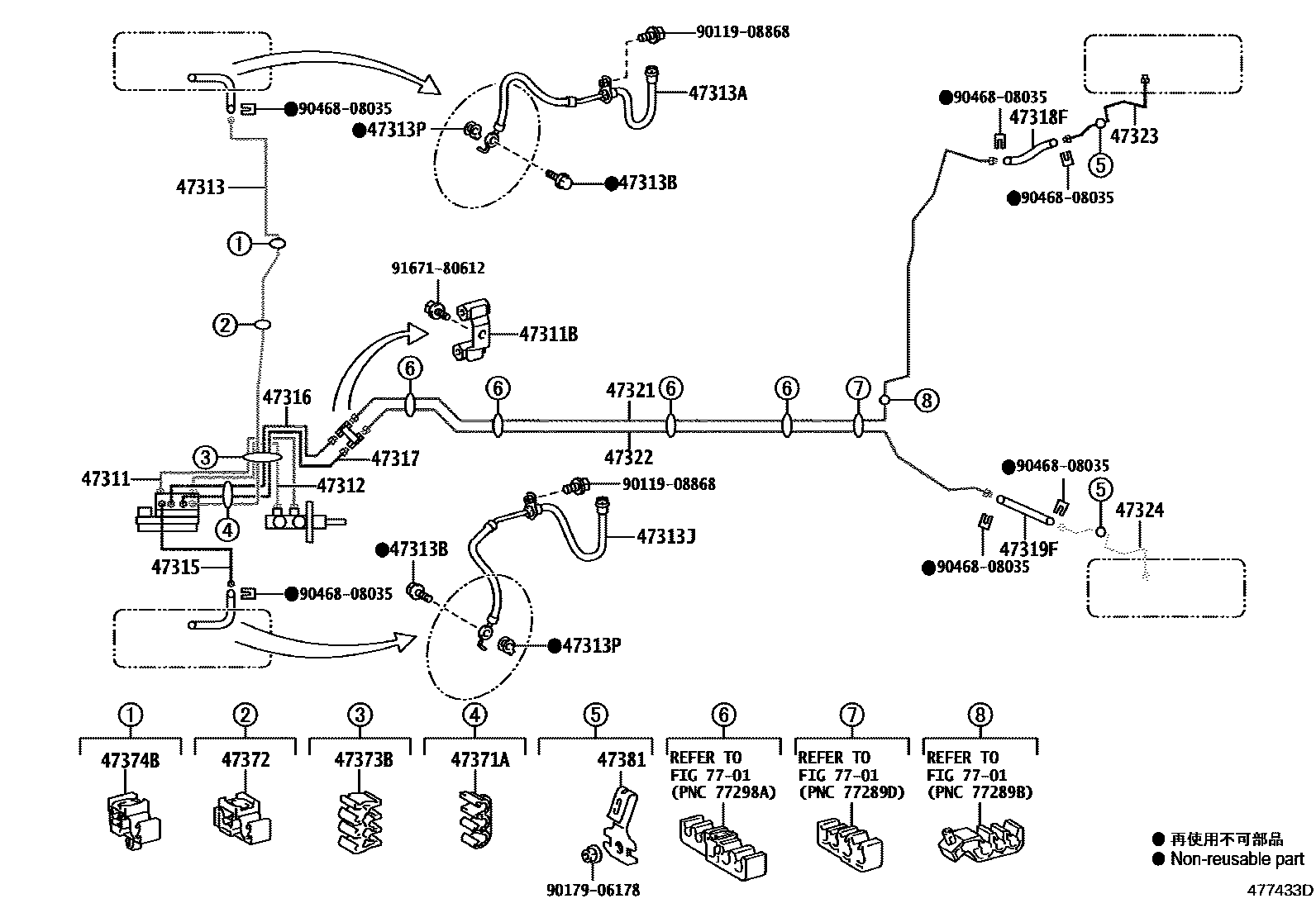

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

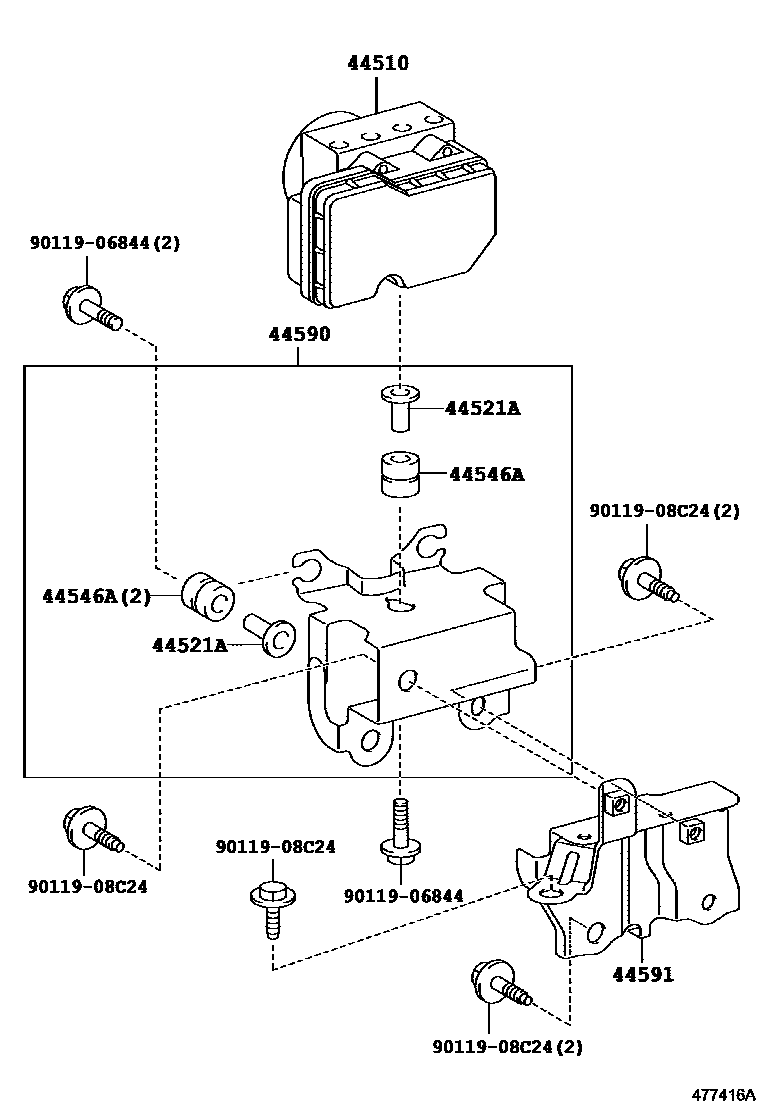

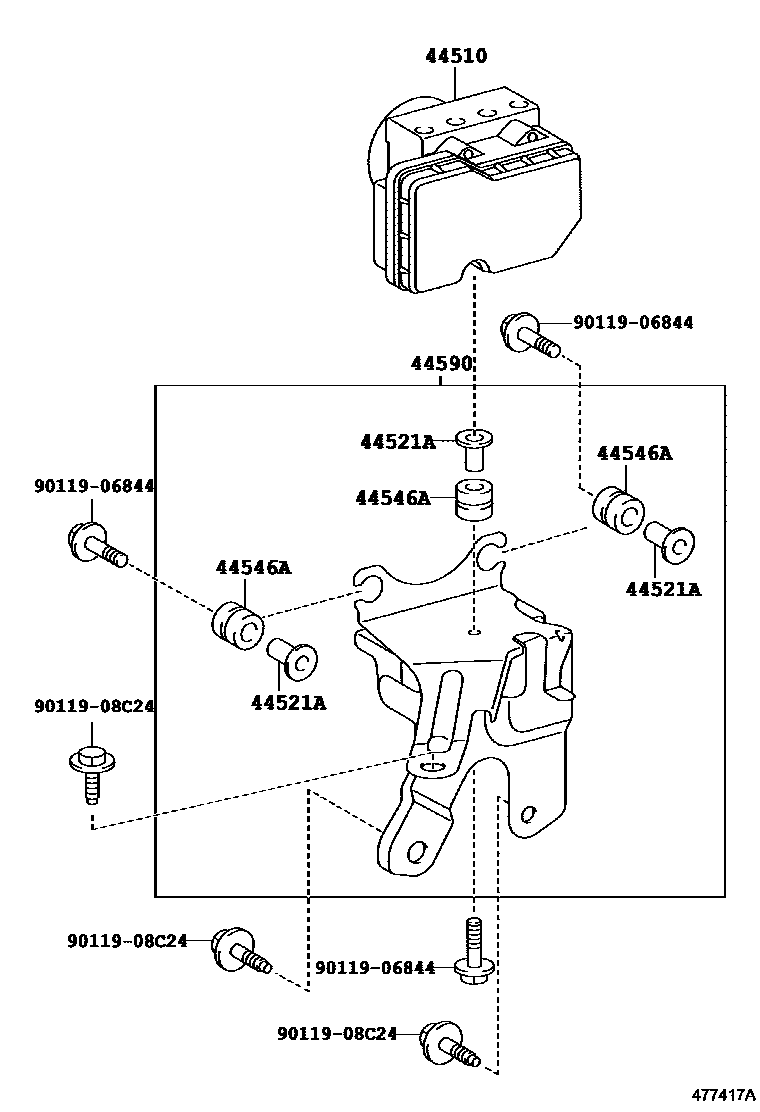

| 44510 | brake actuator assembly | 44050-52B80 · 44050-52B90 · 44050-52C00 · 44050-52C10 · 44050-52C70 · 44050-52F50 · 44050-52F60 · 44050-52F80 · 44050-52J10 · 44050-52J20 |
| 44521A | COLLIER, BOITIER ACTIONNEUR FREIN, NO.1 | 44521-12050 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-52210 · 44590-52230 · 44590-52240 |
| 44591 | No. 1 brake actuator bracket | 44591-52120 |
| 47311 | No. 1 front brake pipe | 47311-52480 · 47311-52570 · 47311-52590 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47312 | No. 2 front brake pipe | 47312-52440 · 47312-52530 · 47312-52550 |
| 47313 | No. 3 front brake pipe | 47313-52230 · 47313-52250 · 47313-52290 |
| 47313A | No. 1 front flexible hose | 90947-02E07 · 90947-02G34 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E08 · 90947-02G35 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-52210 · 47315-52230 · 47315-52250 |
| 47316 | No. 6 front brake pipe | 47316-52190 · 47316-52200 · 47316-52250 |
| 47317 | No. 7 front brake pipe | 47317-52190 · 47317-52200 · 47317-52250 |
| 47318F | Right rear flexible hose | 90947-02E09 · 90947-02H31 |
| 47319F | Left rear flexible hose | 90947-02E10 · 90947-02H32 |
| 47321 | No. 1 rear brake pipe | 47321-52340 · 47321-52341 |
| 47322 | No. 2 rear brake pipe | 47322-52320 · 47322-52321 |
| 47323 | No. 3 rear brake pipe | 47323-52100 · 47323-52130 · 47323-52131 |
| 47324 | No. 4 rear brake pipe | 47324-52090 · 47324-52120 · 47324-52121 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00868 |
| 47371B | No. 6 brake pipe clamp | 90949-01D85 |
| 47372 | No. 2 brake pipe clamp | 90464-00899 · 90464-00925 · 90949-01D86 |
| 47373B | No. 3 brake pipe clamp | 90464-00925 · 90949-01D18 |
| 47374B | No. 4 brake pipe clamp | 90949-01D82 · 90949-01D84 |
| 47375 | No. 5 brake pipe clamp | 90464-00929 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
