Toyota YARIS 制动助力器和真空管 — Figure 4703

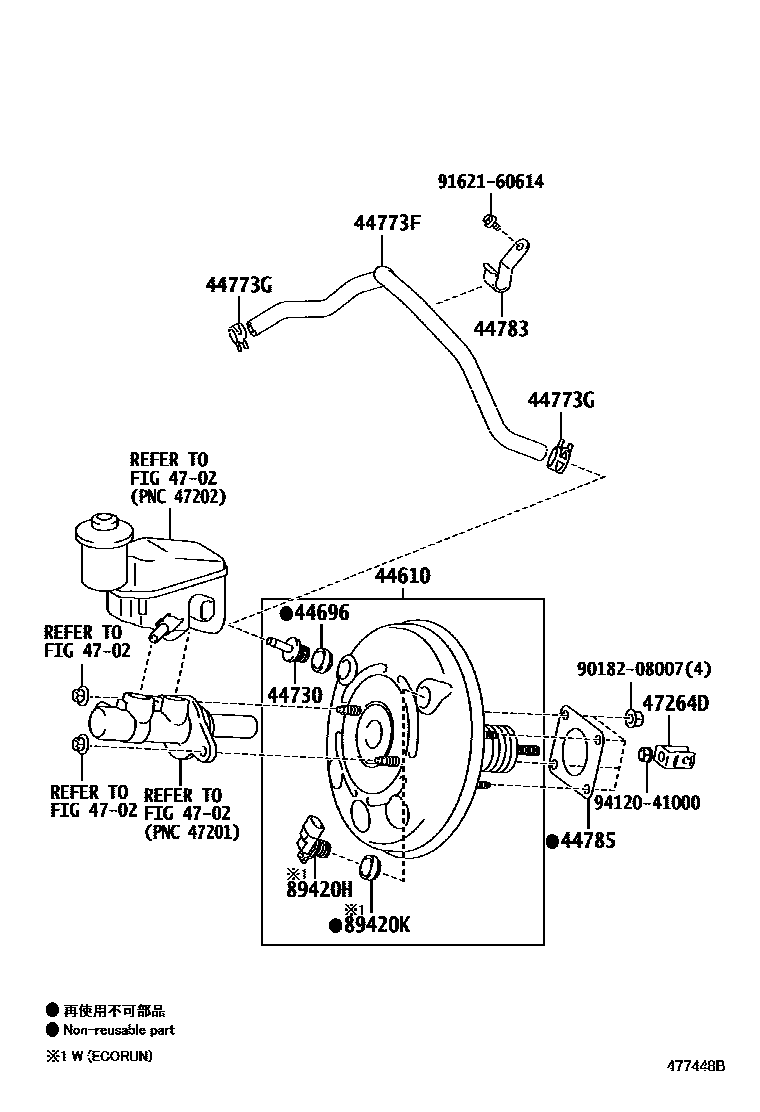

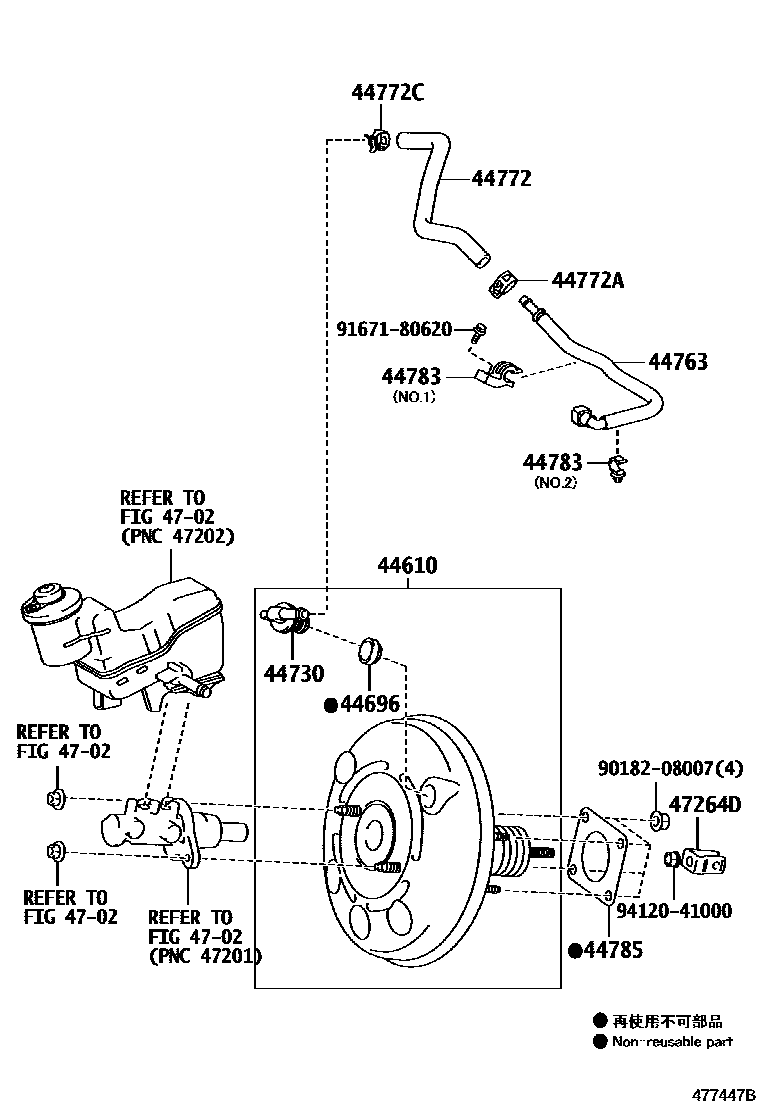

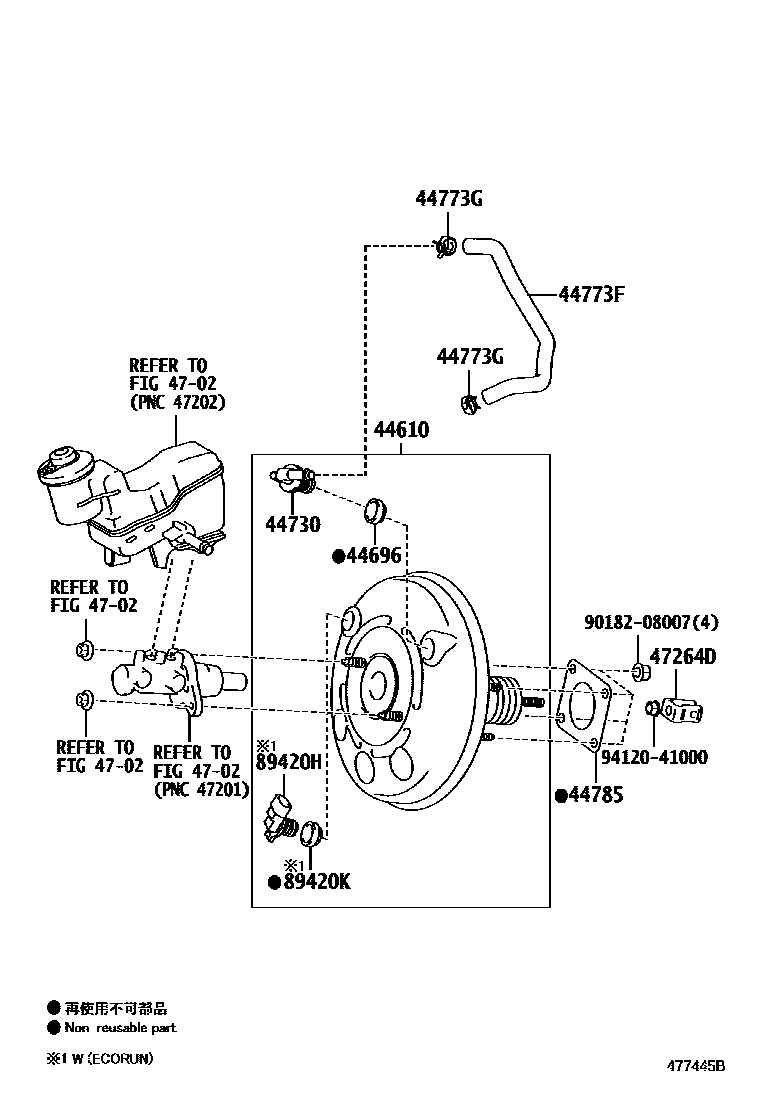

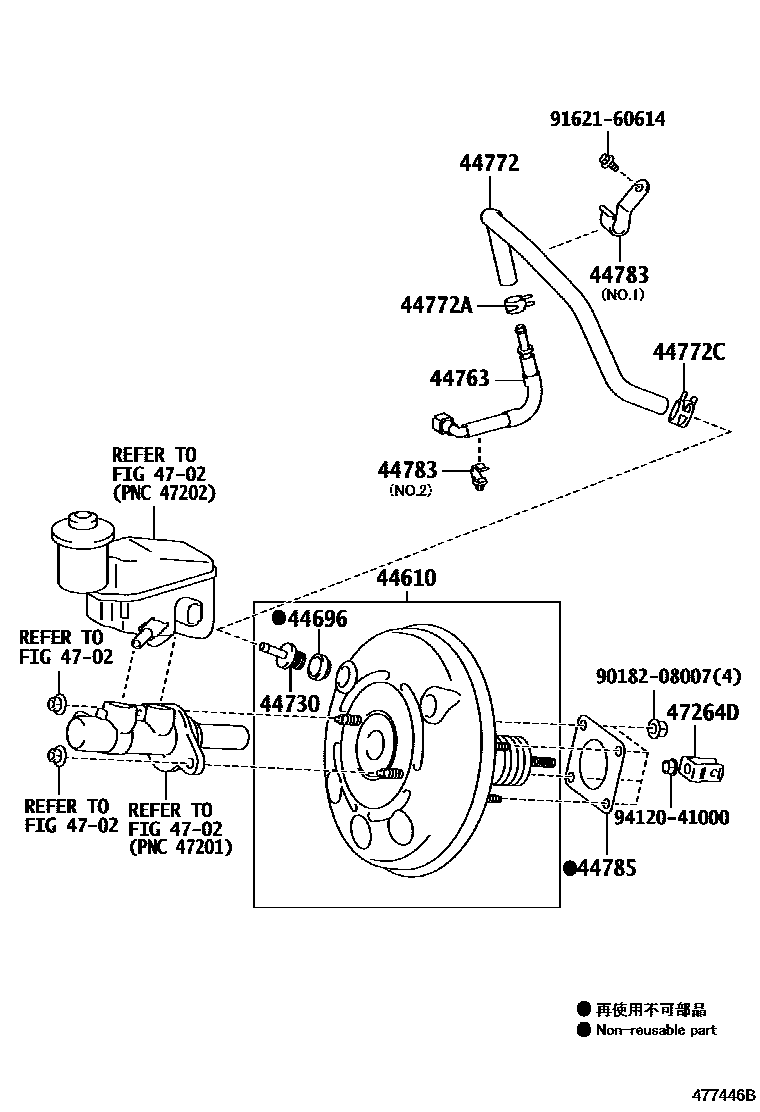

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-52A90 · 44610-52B50 · 44610-52E30 · 44610-52E40 · 44610-52E50 · 44610-52E60 · 44610-52E70 · 44610-52E80 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20170 · 44730-60070 |
| 44763 | booster vacuum tube | 44763-52040 · 44763-52130 |
| 44772 | Hoses (check valve to connector tube) | 44772-52130 · 44772-52160 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-52240 · 44773-52250 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44783 | Vacuum hose clamp | 44783-52070 · 44783-70010 · 44783-70020 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-52040 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
| 89420K | OEILLET, CAPTEUR DE DEPRESSION | 90480-24439 |
