Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.

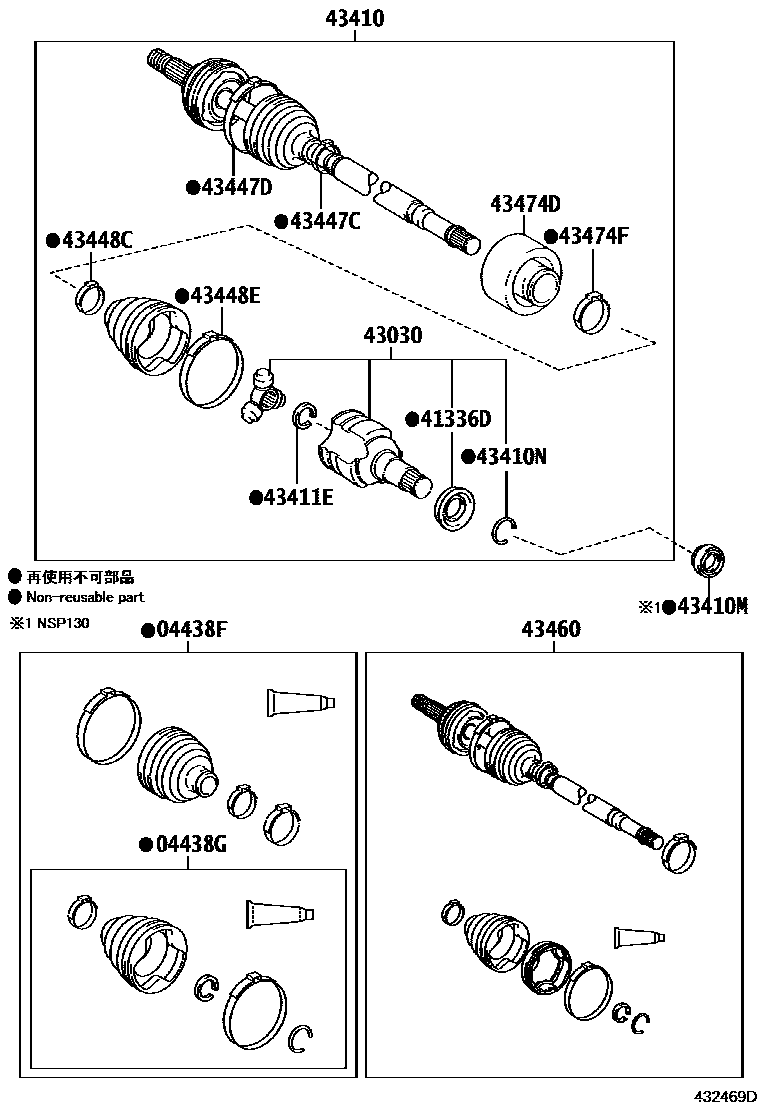

Toyota YARIS Front Drive Shaft EPC diagram — 432469D
Front Drive Shaft — 432469D (201108 – 999999)

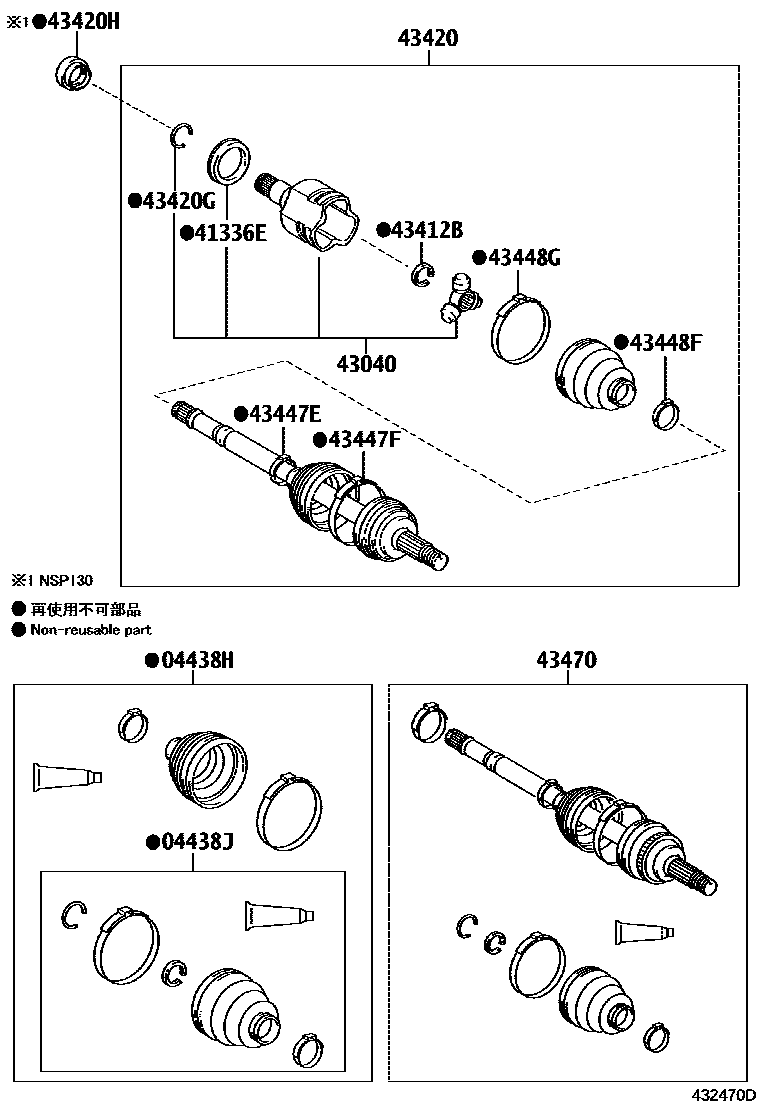

Toyota YARIS Front Drive Shaft EPC diagram — 432470D
Front Drive Shaft — 432470D (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D310 · 04427-0D320
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D050
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-0D310 · 04427-0D320
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0D050
41336DRight front driveshaft dust cover41336-0H010
41336ELeft front driveshaft dust cover41336-0H010
43030Right front drive shaft inner universal joint assembly43403-0D061
43040Left front drive shaft inner universal joint assembly43403-0D061
43410Right front driveshaft assembly43410-0D292 · 43410-0D341
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-34038 · 90311-34041
43410NHole snap ring (for right front driveshaft)90080-52056
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-0D090
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-0D090
43420Left front drive shaft assembly43420-0D322 · 43420-0D390
43420GHole snap ring (for left front driveshaft)90080-52056
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-34022 · 90311-34042
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0D260 · 42345-0D440
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0D250 · 42345-0D430
43447EClamp (for left front axle outer universal joint dust cover)42345-0D260 · 42345-0D440
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0D250 · 42345-0D430
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0D210
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0D200
43448FClamp (for left front axle inner universal joint dust cover)42345-0D210
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0D200
43460Right front outer drive universal joint shaft assembly43460-09U60 · 43460-09V30
43470Left front outer drive universal joint shaft assembly43470-8Z008 · 43470-8Z031
43474DRight front driveshaft shock absorber43474-0D170 · 43474-0D190
43474FClamp (for right front driveshaft shock absorber)42345-0D720 · 42345-0D830
