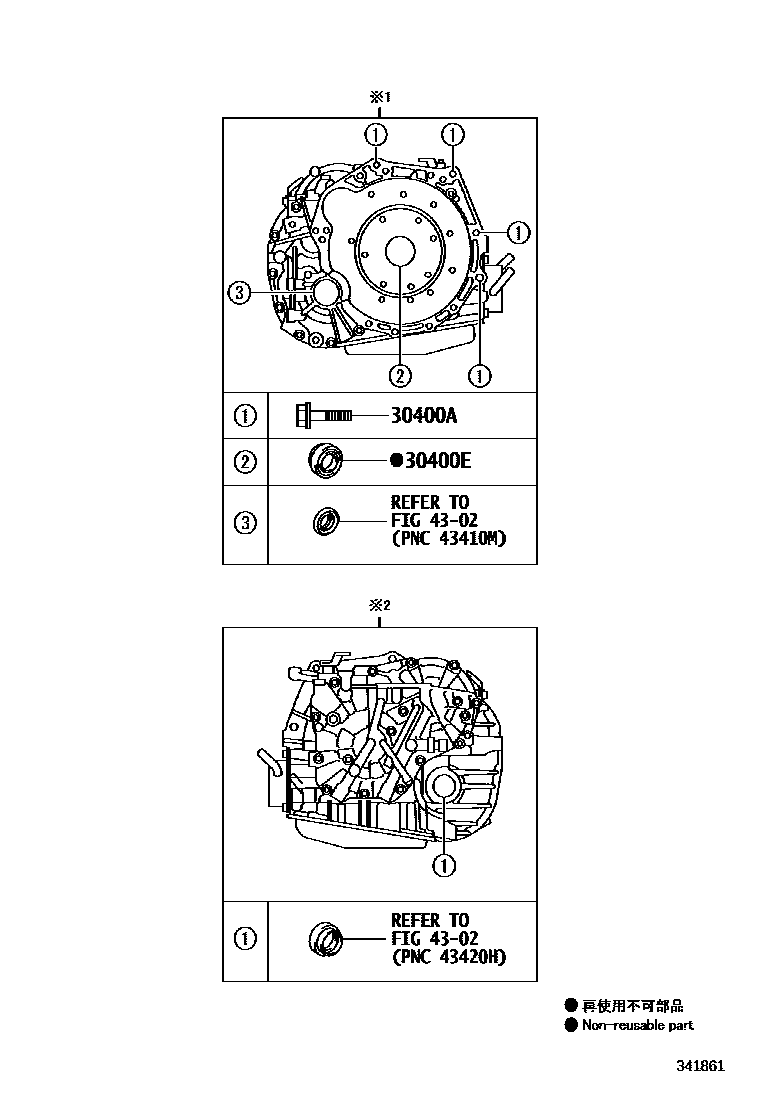

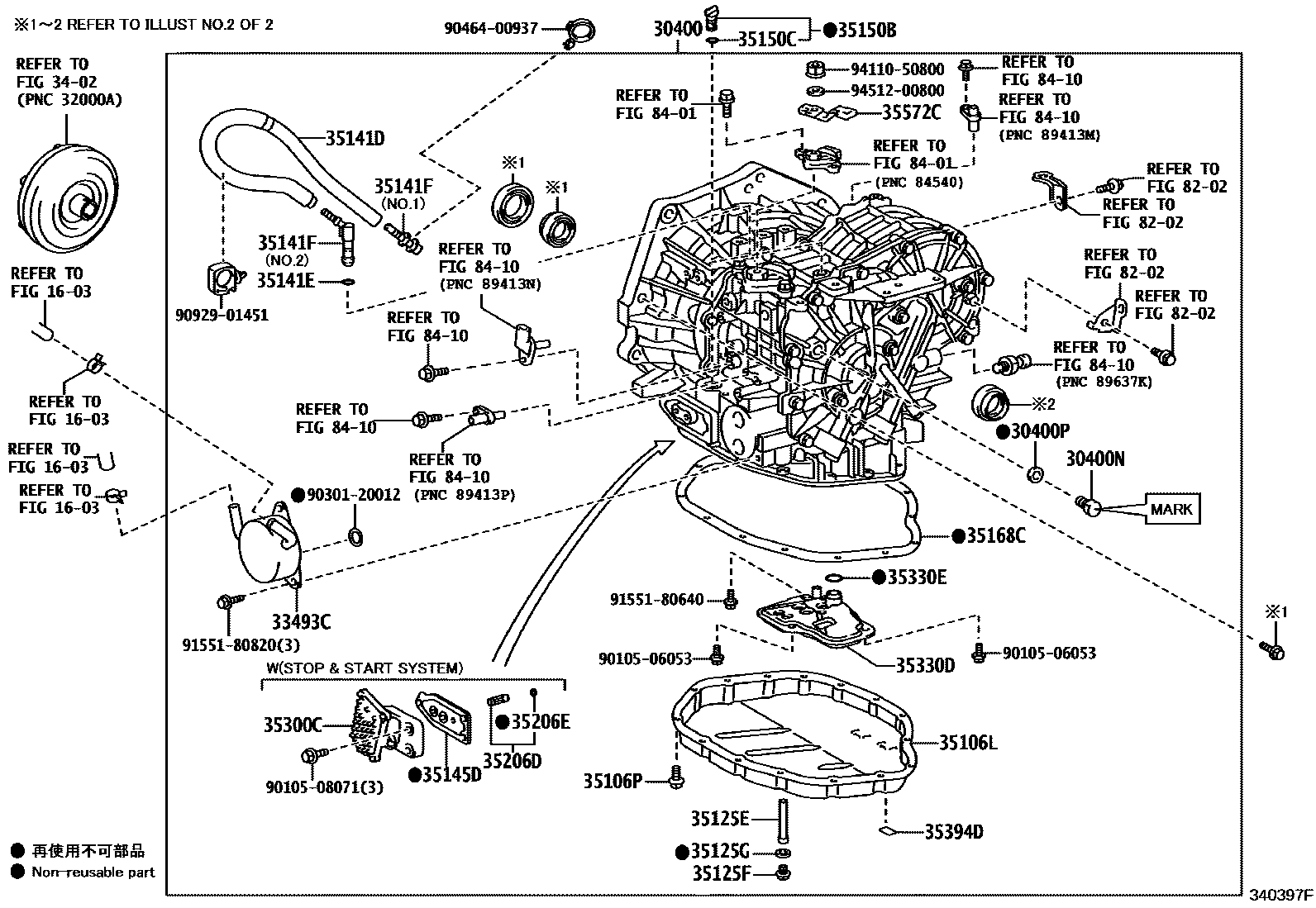

Toyota YARIS 传动桥总成(CVT) — Figure 3401
Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30400 | Continuously variable transmission axle assembly | 30400-52340 · 30400-52341 · 30400-52350 · 30400-52351 |
| 30400A | Bolts (for securing transaxle and engine) | 91552-81245 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-42039 |
| 30400N | BOUCHON, REMPLISSAGE(CVT) | 90341-18061 · 90341-18077 |
| 30400P | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(CVT) | 90430-18008 |
| 33493C | Transmission oil cooler | 33493-52030 |
| 35106L | Transmission axle oil pan sub-assembly (CVT) | 35106-52090 |
| 35106P | Bolts (for transaxle oil pan) | 90119-06173 |
| 35125E | TUYAU, TROP-PLEIN(CVT) | 35125-52200 |
| 35125F | BOUCHON, TROP-PLEIN(CVT) | 90341-12034 |
| 35125G | JOINT ETANCHEITE, BOUCHON TROP-PLEIN(CVT) | 90430-12008 |
| 35141D | Hoses (for breather plug) | 35121-52030 |
| 35141E | O-ring (for breather plug) | 90301-08015 |
| 35141F | No. 1 vent plug (CVT) | 90930-03149 · 90930-03209 |
| 35145D | Transmission axle housing gasket | 35145-52020 |
| 35150B | gearbox plug assembly | 35150-44010 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35168C | Transaxle oil pan gasket (CVT) | 35168-52030 |
| 35206D | SOUS-ENS. SOUPAPE, VERIFICATION, NO.1 | 35206-52020 |
| 35206E | JOINT, TORIQUE(POUR SOUS-ENS. SOUPAPE ANTI-RETOUR NO.1) | 90301-08015 |
| 35300C | ENSEMBLE POMPE, HUILE AVEC MOTEUR | 35300-52021 |
| 35330D | ENSEMBLE CREPINE | 35330-52060 |
| 35330E | JOINT, TORIQUE (POUR CREPINE) | 90301-22014 |
| 35394D | Oil filter magnet (CVT) | 35394-48010 |
| 35572C | transmission control lever | 35572-52070 |
