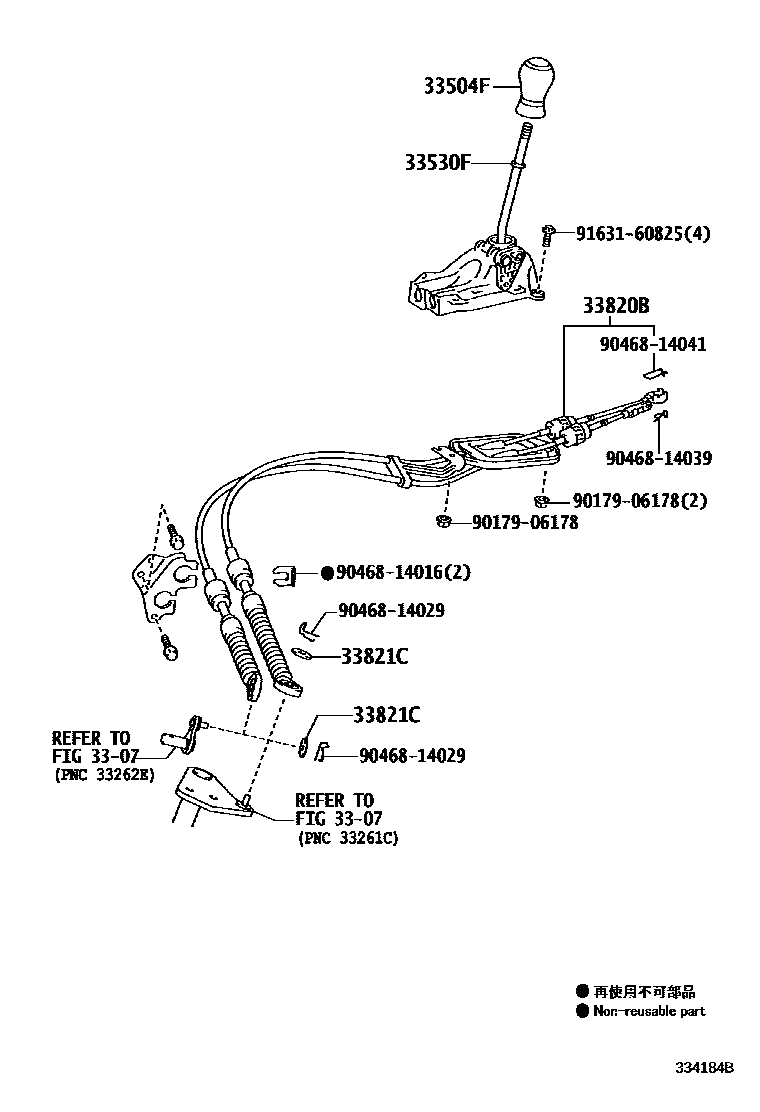

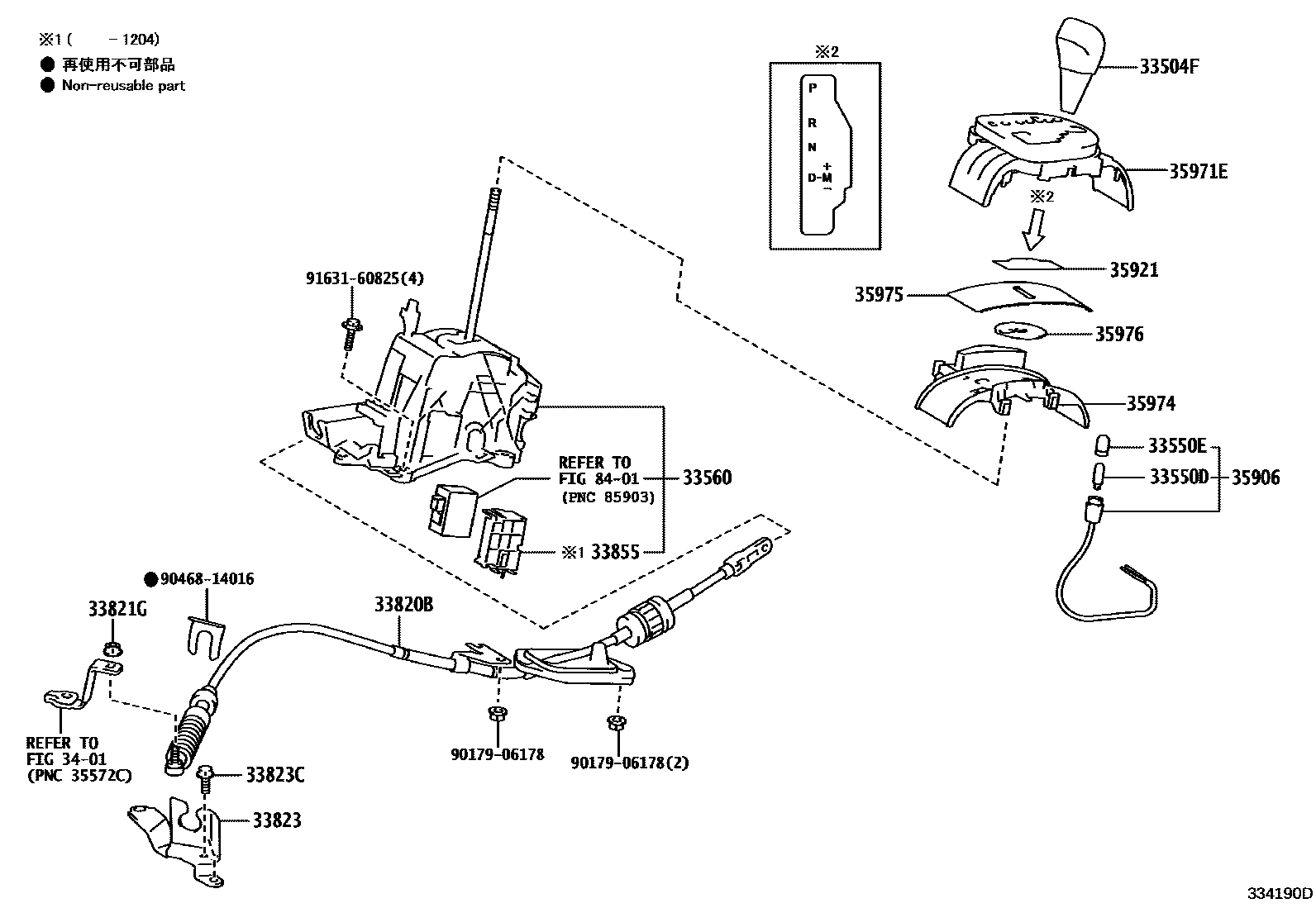

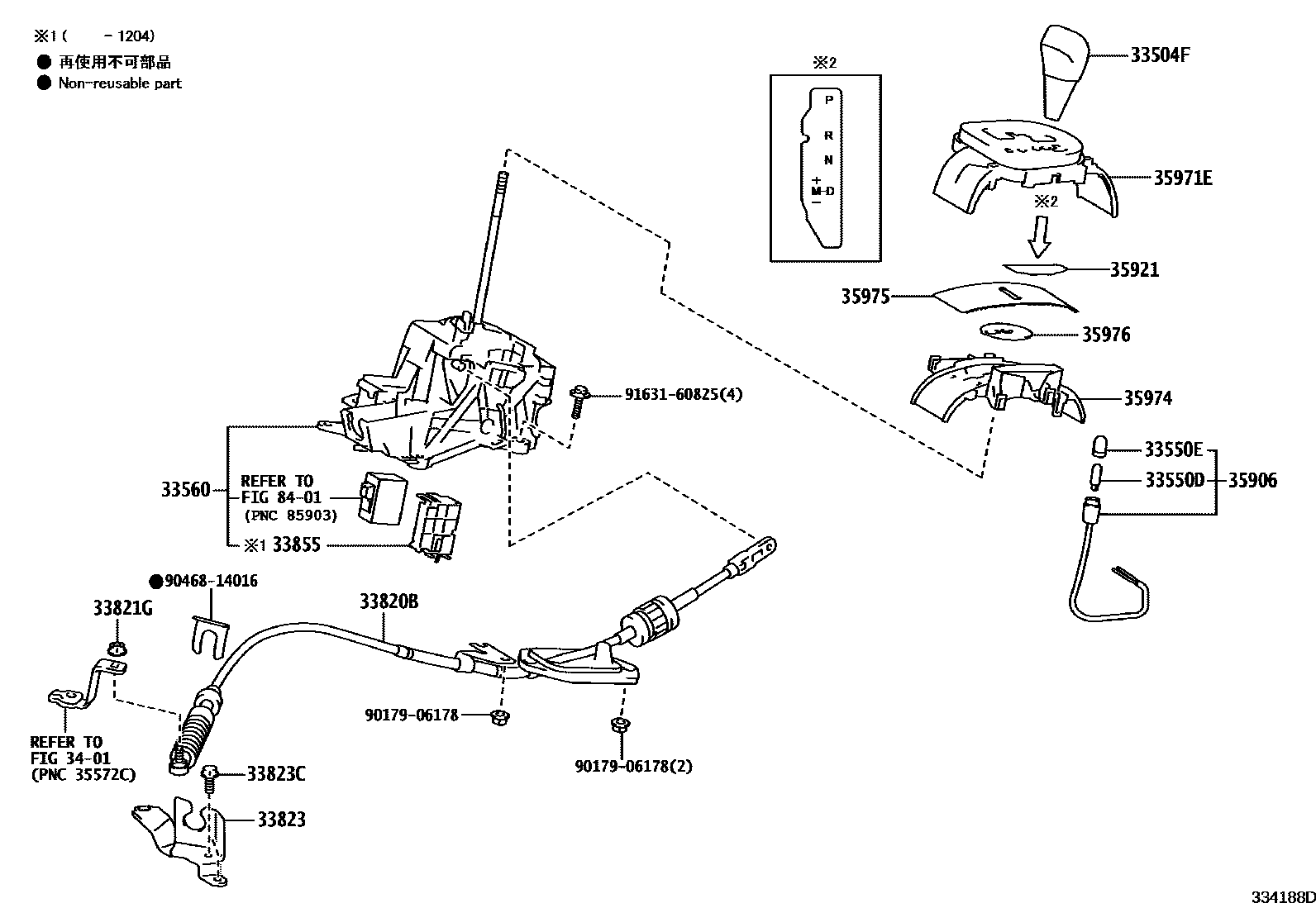

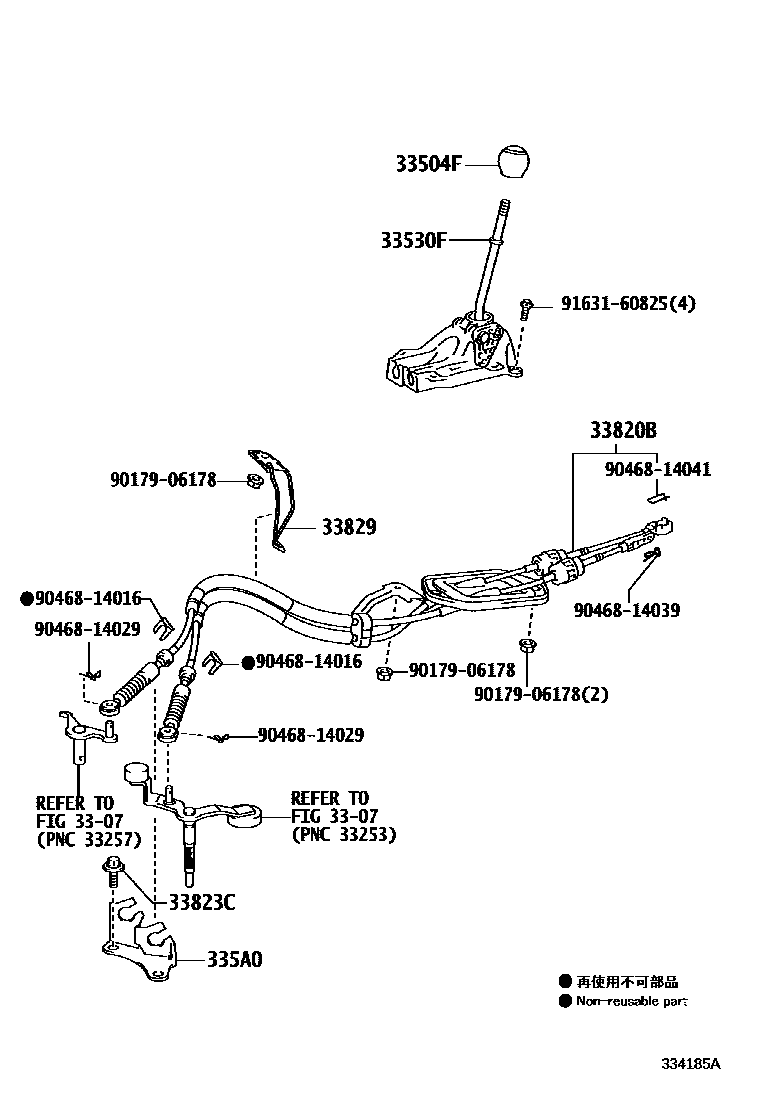

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33530F | Shift lever assembly (for floor shift) | 33530-52210 · 33530-52260 |
| 33550D | position indicator light bulb | 35955-74010 |
| 33550E | position indicator cover | 35956-52010 |
| 33560 | Shift lock control unit assembly | 33560-52430 · 33560-52431 · 33560-52440 · 33560-52441 |
| 335A0 | Control cable bracket assembly | 335A0-52010 |
| 33820B | Transmission control cable assembly | 33820-52430 · 33820-52650 · 33820-52750 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-52100 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 91611-B0816 |
| 33829 | Transmission control cable bracket | 33829-52092 |
| 33855 | Shift lock unit cover | 33855-52020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-52150 · 35906-52160 |
| 35921 | control position indicator board | 35921-52140 · 35921-52150 |
| 35971E | position indicator housing | 35971-52480 · 35971-52490 |
| 35974 | Position indicator light lower shell | 35974-52050 · 35974-52060 |
| 35975 | Slide cover (for position indicator light) | 35975-52140 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-52140 |
