Toyota YARIS 离合器踏板和挠性软管 — Figure 3102
Toyota YARIS EPC diagram 3102, 离合器踏板和挠性软管, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

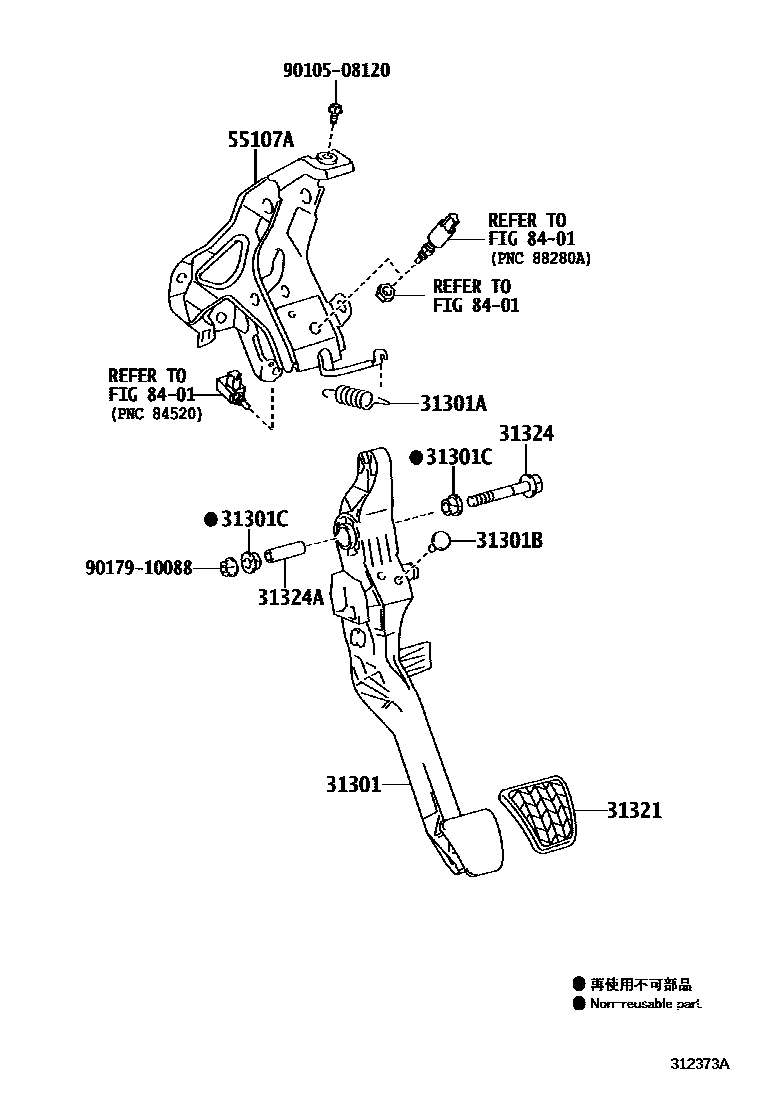

| 31301 | Clutch pedal sub-assembly | 31301-52150 · 31311-52050 |
| 31301A | Spring (for clutch pedal) | 90507-14047 · 90507-14055 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 91112-61025 |
| 31301J | Nut (for clutch pedal stop) | 90170-10017 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31322 | clutch pedal block | 31322-52010 |
| 31324 | clutch pedal shaft | 90105-10444 · 90105-10563 |
| 31324A | clutch pedal collar | 90387-10003 · 90387-10004 |

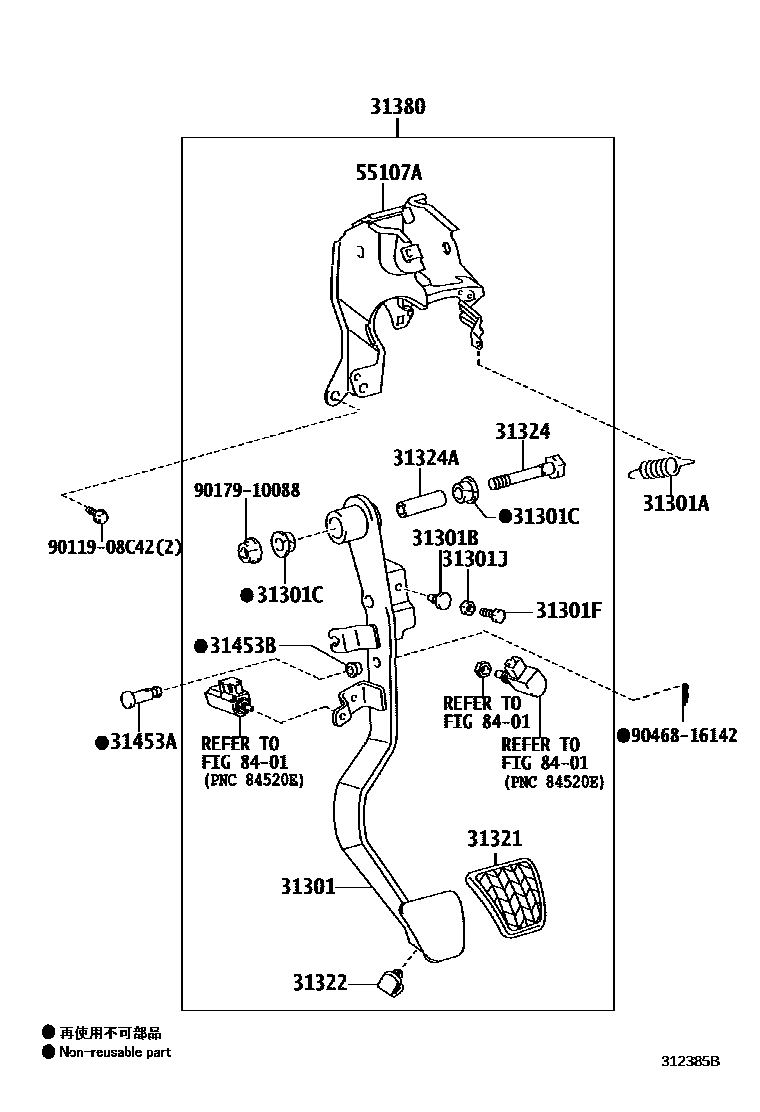

| 31380 | Pedal bracket assembly | 31380-52340 |

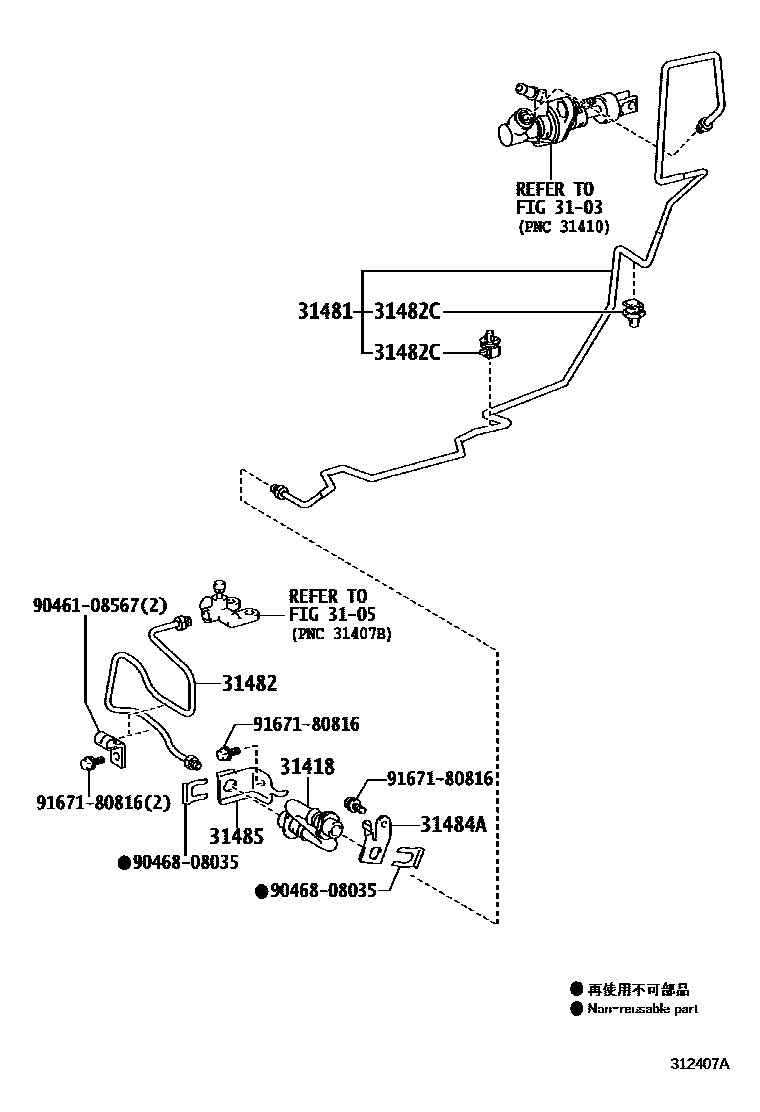

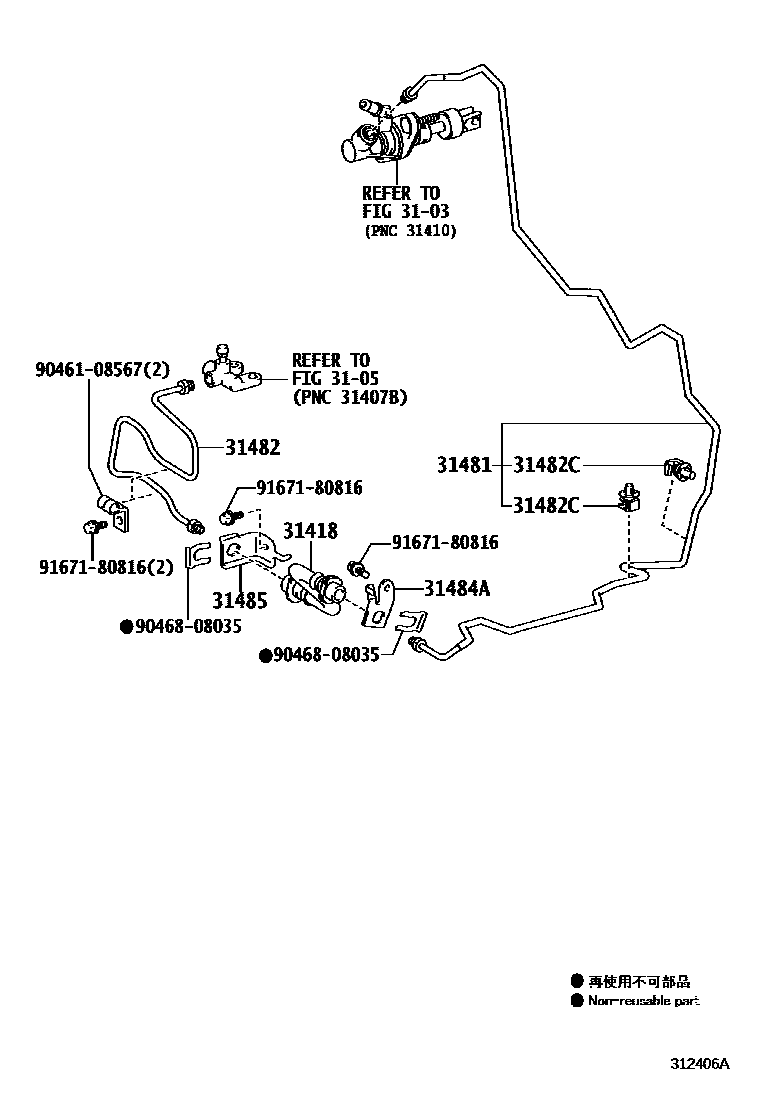

| 31418 | clutch hose | 90947-02G28 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |

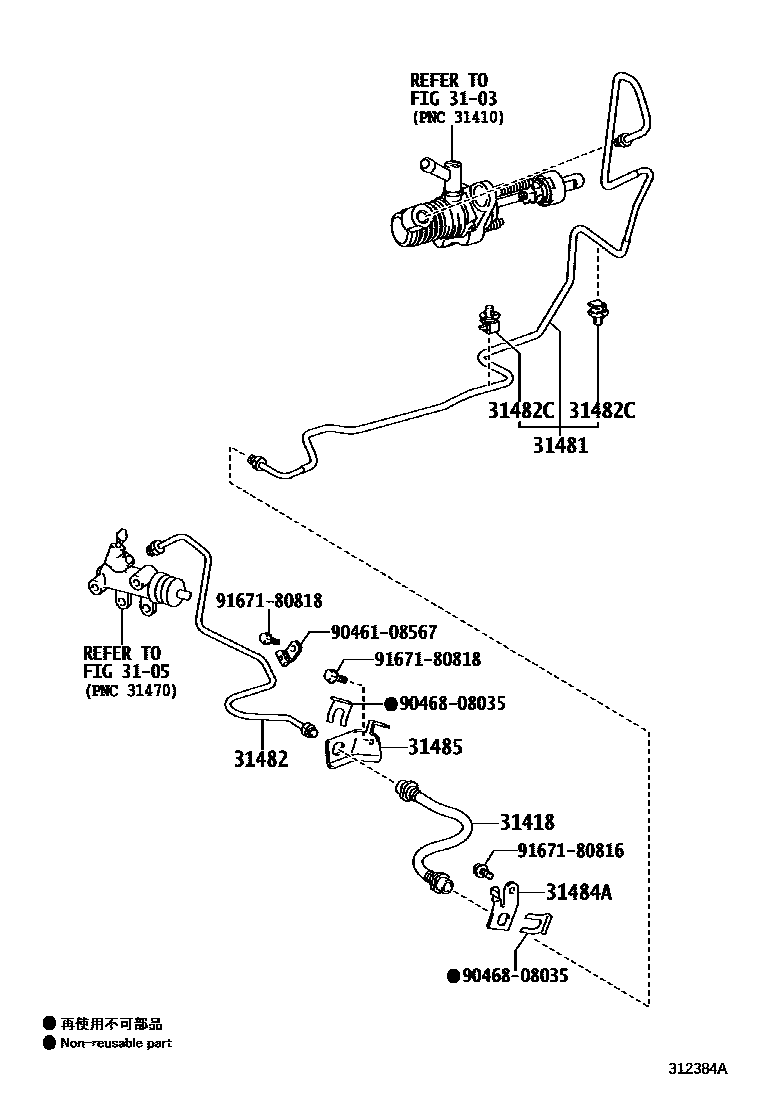

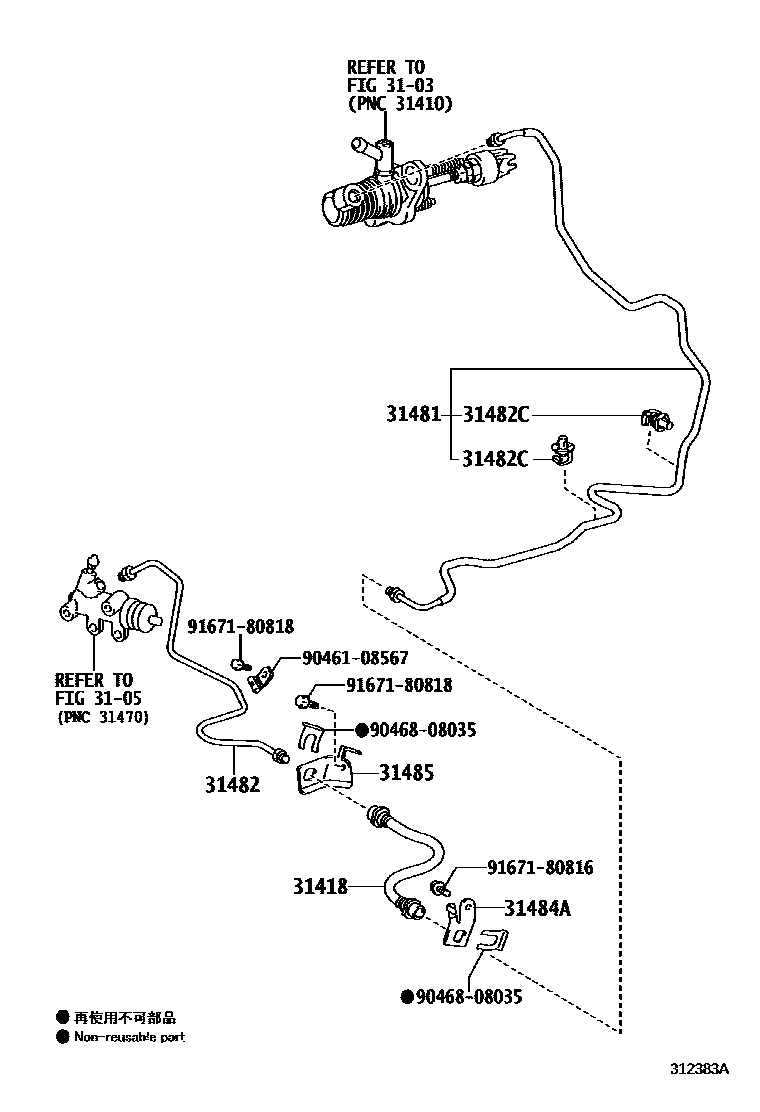

| 31481 | Clutch master cylinder to flexible hose pipe | 31481-52110 · 31481-52120 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-52080 · 31482-52130 |
| 31482C | Clamp (for clutch tube) | 90949-01D17 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-52090 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-52100 · 31484-52160 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-52210 · 55107-52240 |
