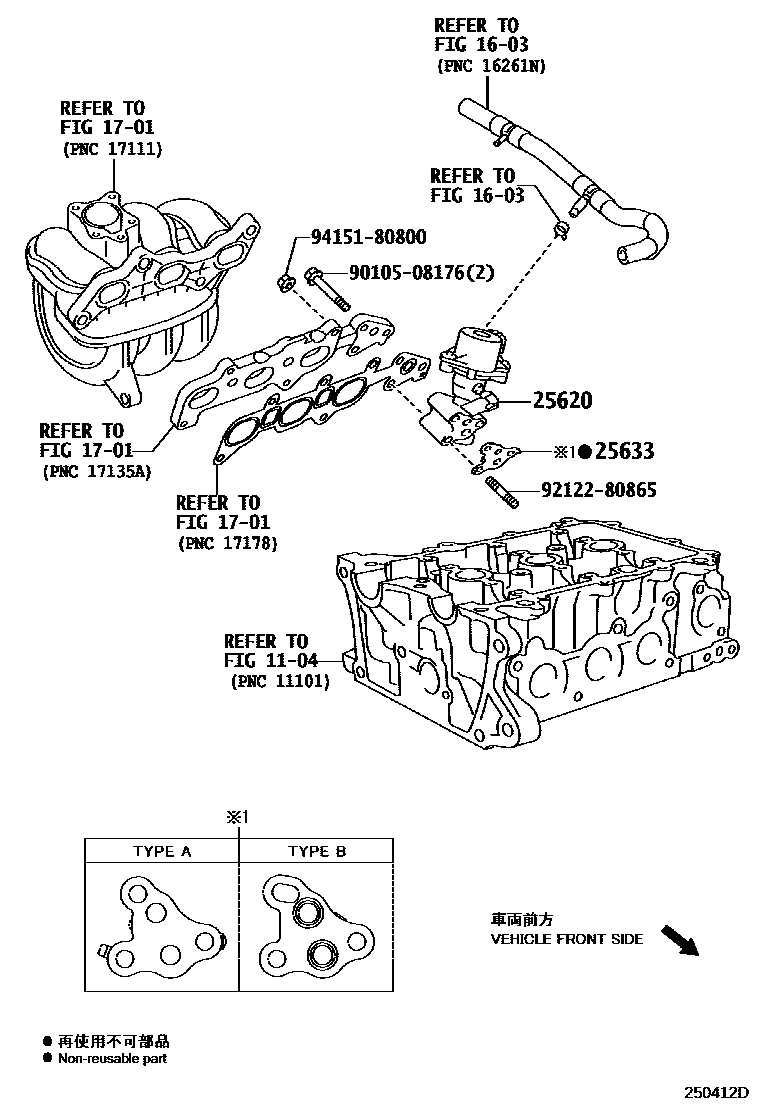

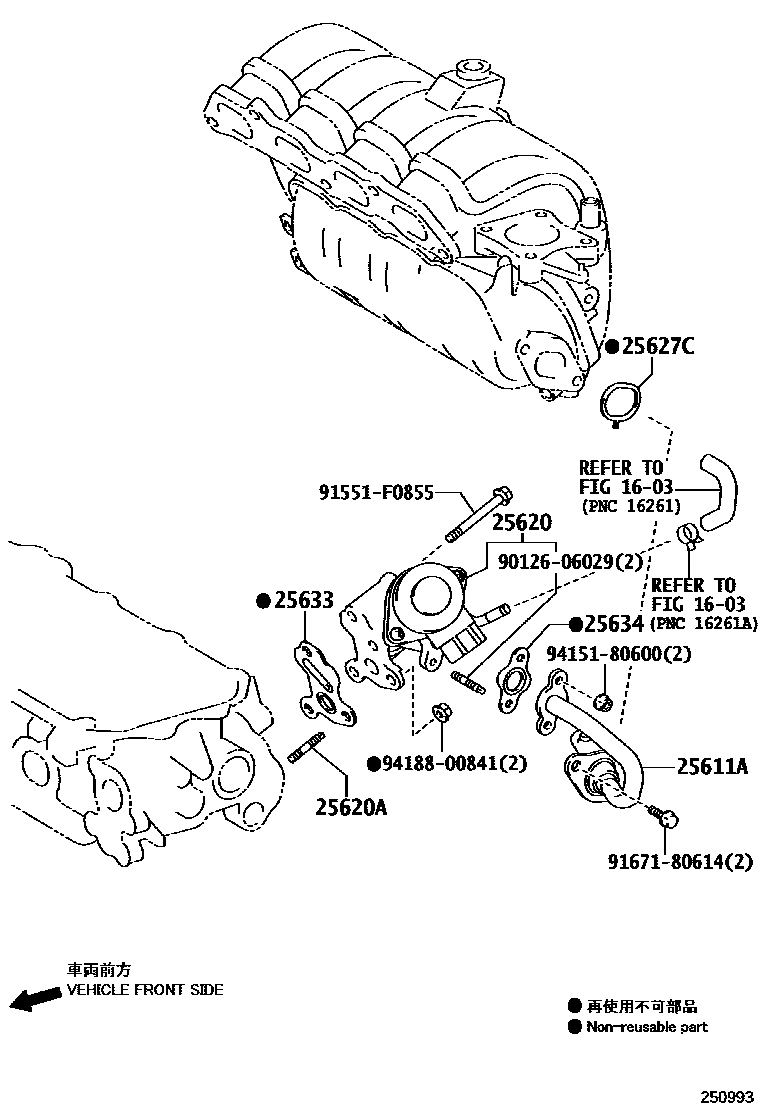

Toyota YARIS 废气再循环系统 — Figure 2501
Toyota YARIS EPC diagram 2501, 废气再循环系统, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25611A | No. 1 EGR tube | 25611-47011 |
| 25620 | EGR valve assembly | 25620-40020 · 25620-47020 |
| 25620A | Stud bolts (for EGR valve) | 90126-08063 |
| 25627C | Gasket (for No. 2 EGR tube) | 25629-47010 |
| 25633 | EGR valve gasket | 25633-40020 · 25633-47010 |
| 25634 | EGR tube gasket | 25634-47010 |
