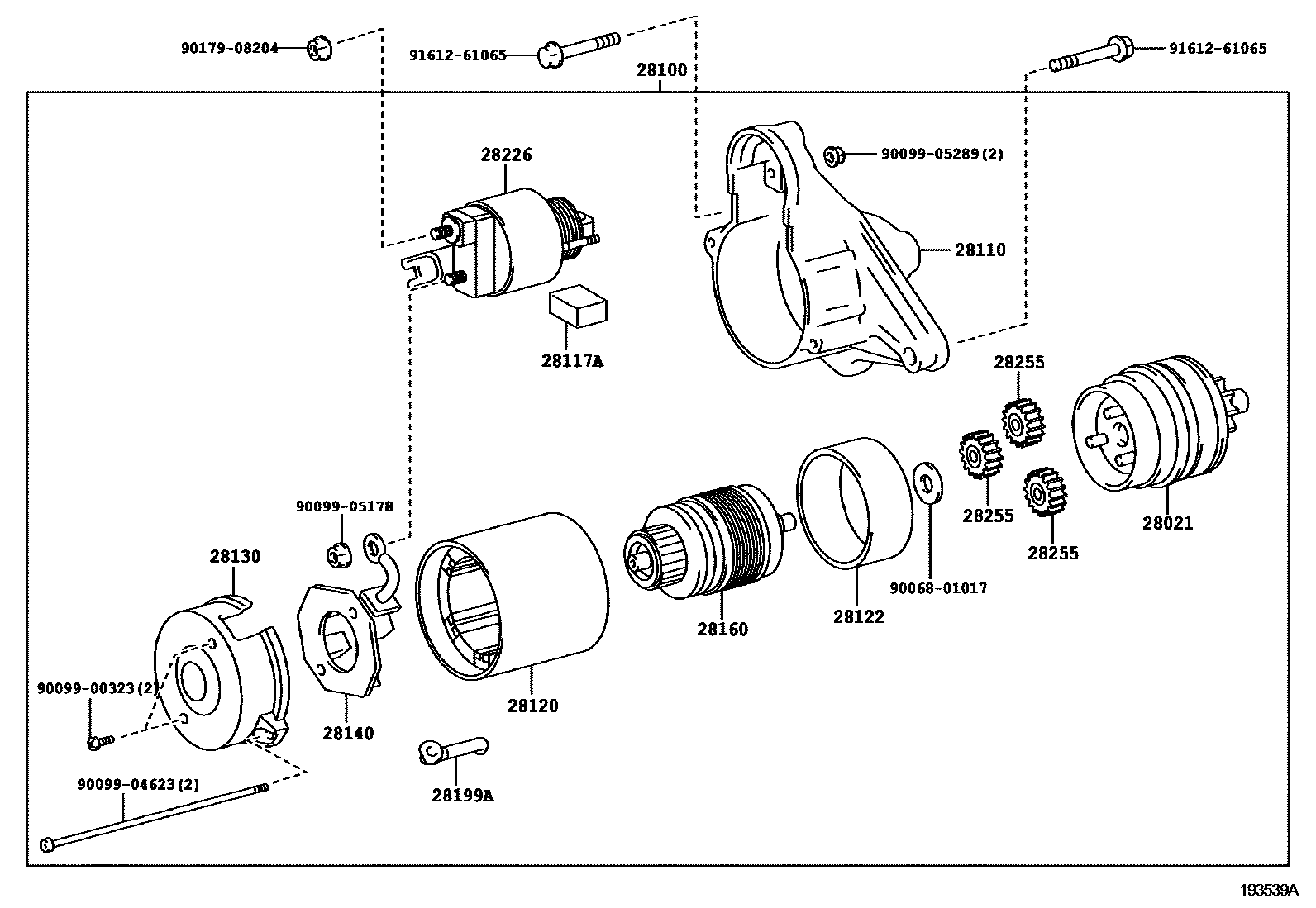

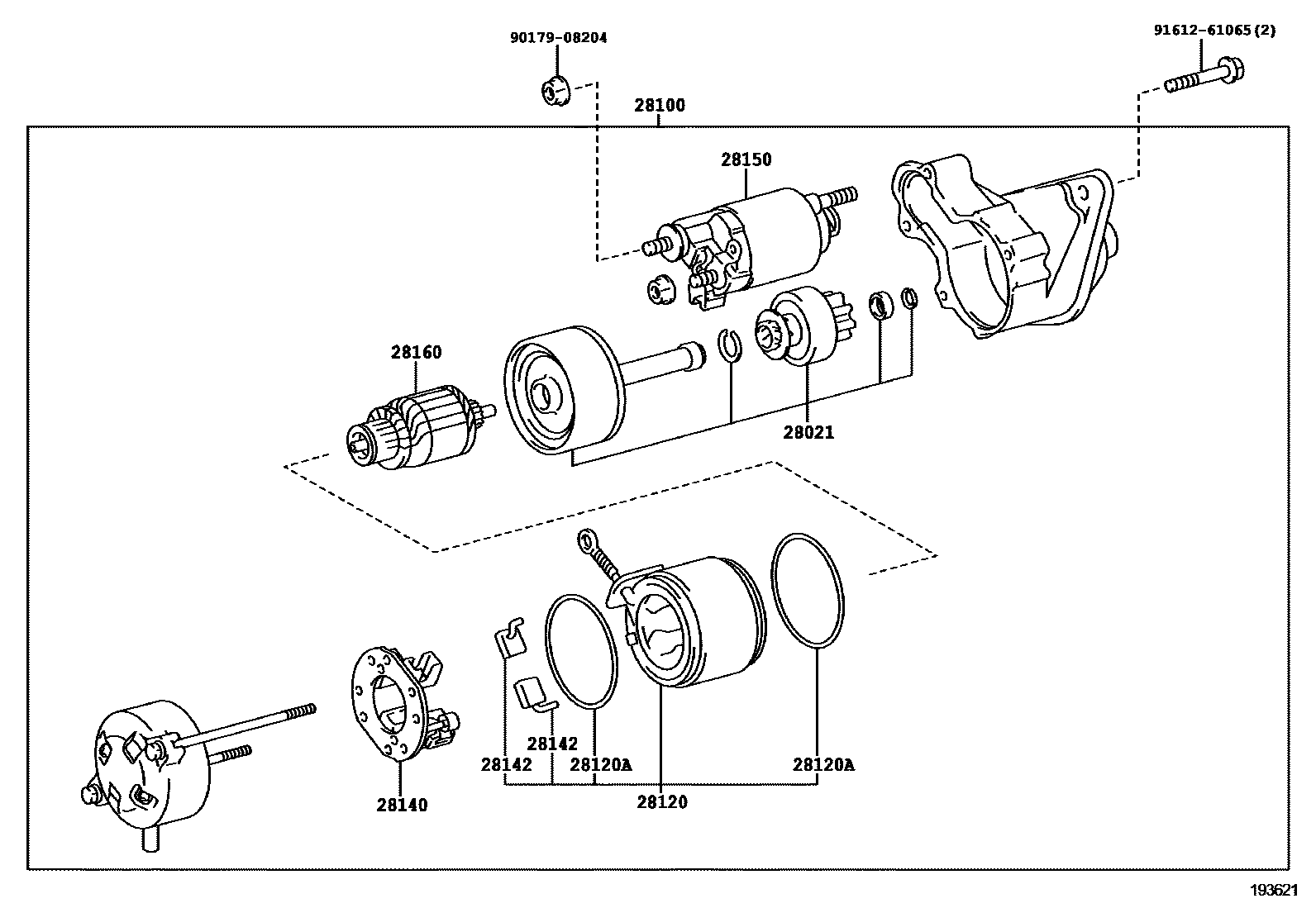

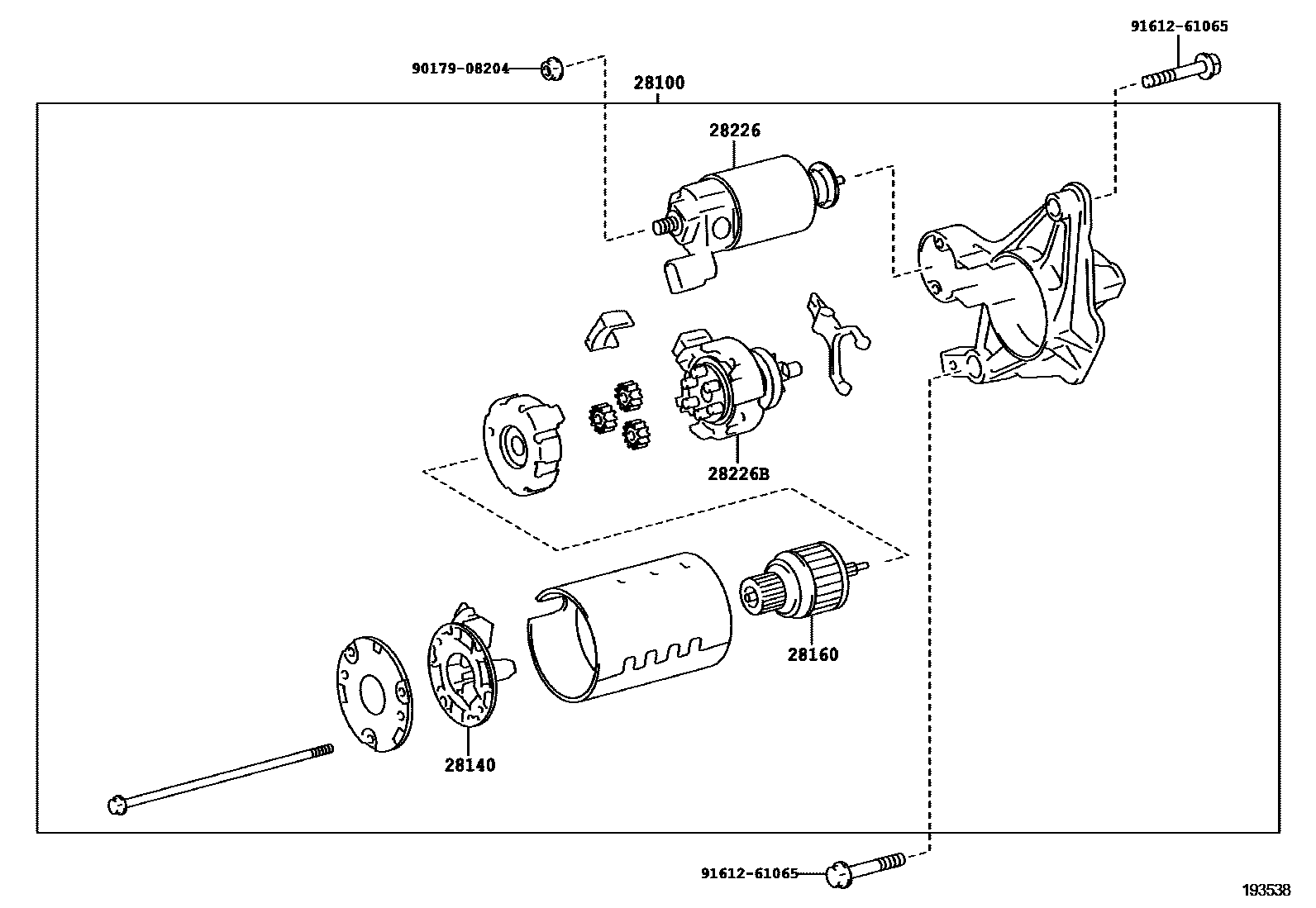

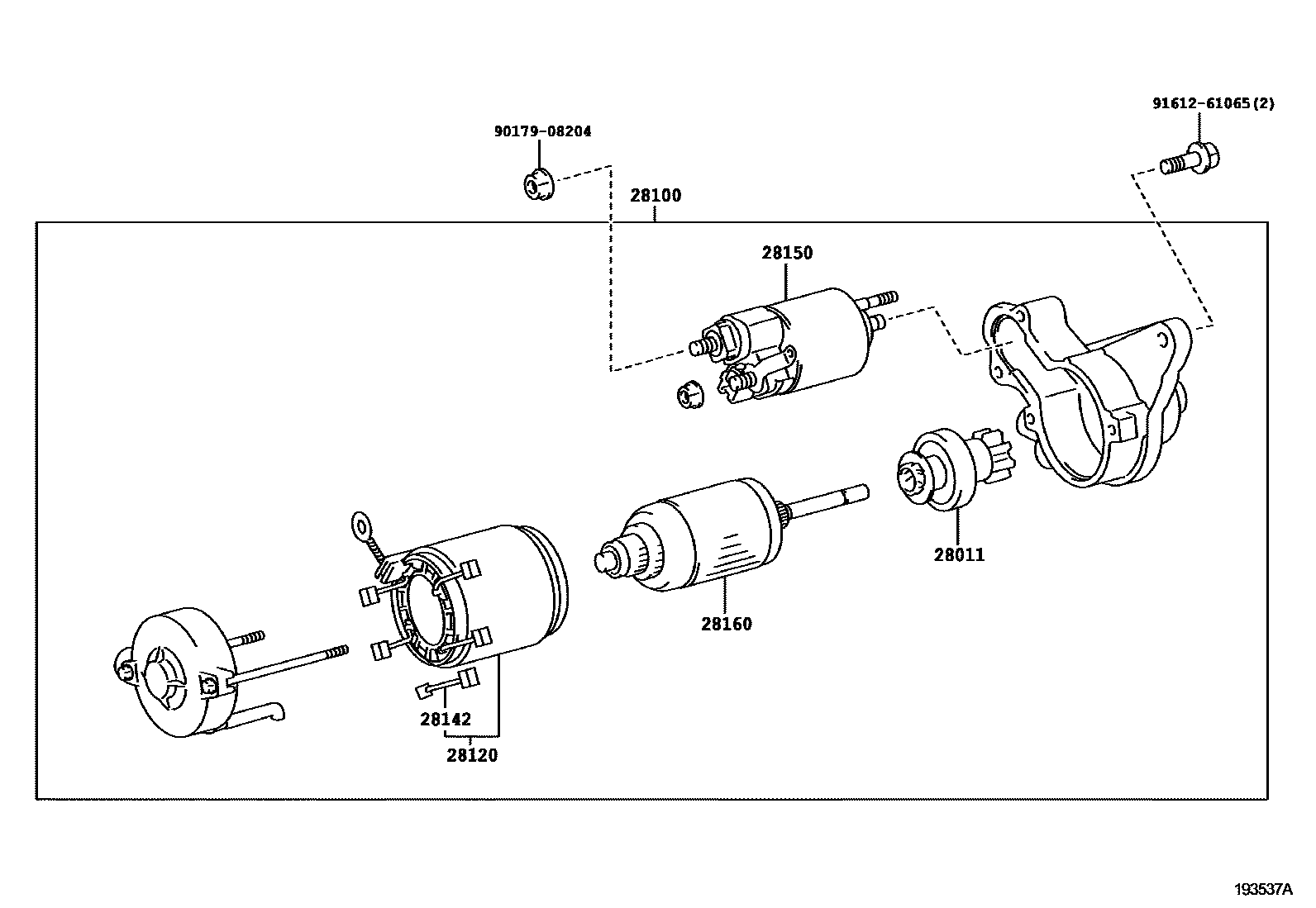

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-40070 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-23030 · 28021-47110 |
| 28100 | Starter assembly | 28100-40071 · 28100-40140 · 28100-47170 · 28100-47180 · 28100-47190 |
| 28110 | Starter drive end housing assembly | 28110-47191 |
| 28117A | Rubber seal | 28117-47110 |
| 28120 | Starter yoke assembly | 28120-40120 · 28120-40140 · 28120-47110 |
| 28120A | O-ring (for starter yoke) | 90099-14092 |
| 28122 | isolation collar | 28122-47110 |
| 28130 | Starter commutator end frame assembly | 28130-47110 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-47110 · 28140-70020 |
| 28142 | starter brush | 28142-10020 · 28142-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-21020 · 28150-40070 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-21080 · 28160-40070 · 28160-70050 · 28180-47110 |
| 28199A | Starter dust protection device | 28199-31090 |
| 28226 | battery terminal starter assembly | 28226-21080 · 28226-47190 |
| 28226B | starter magnetic switch | 28226-47170 |
| 28255 | Planetary gear | 28255-47110 |
