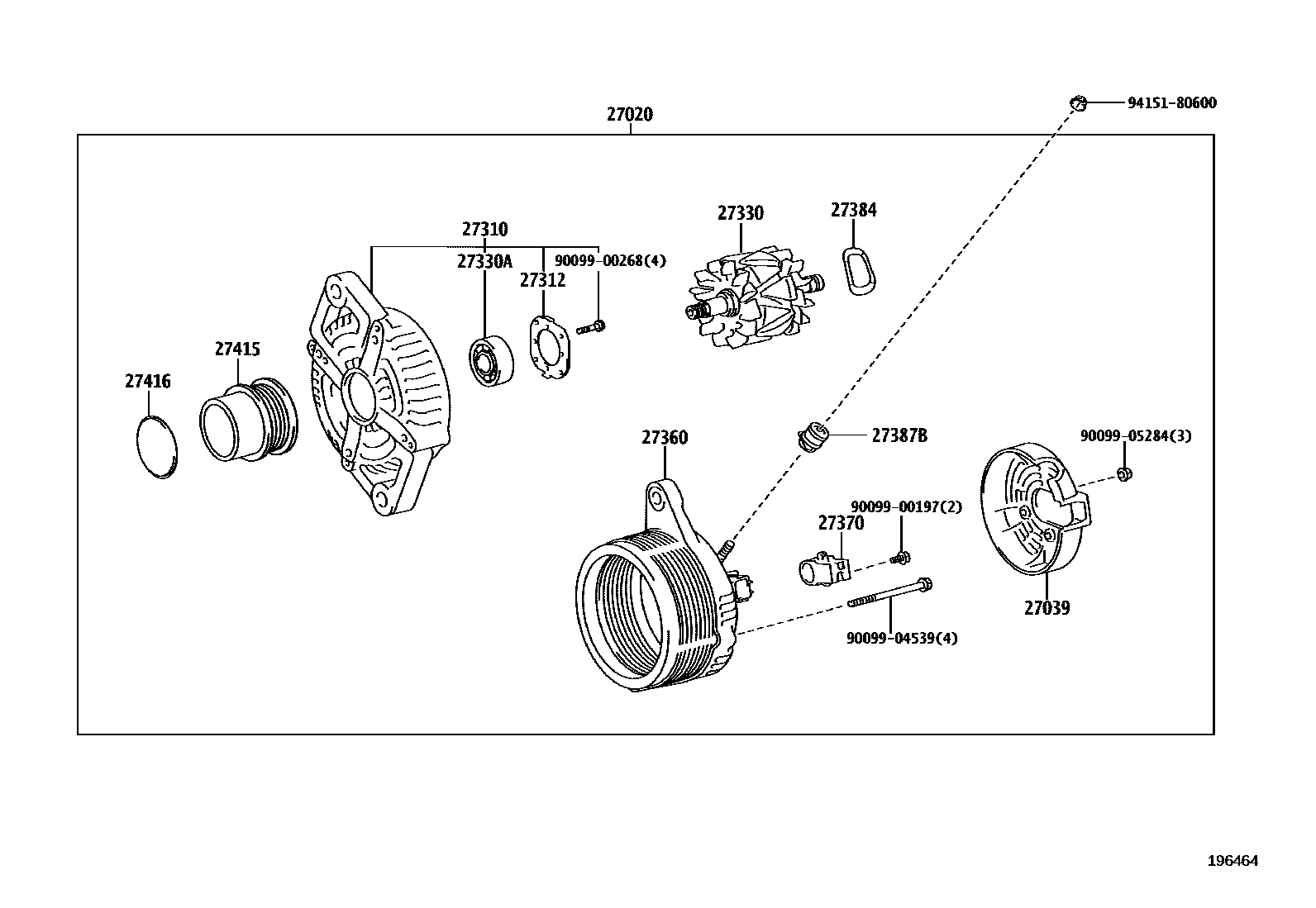

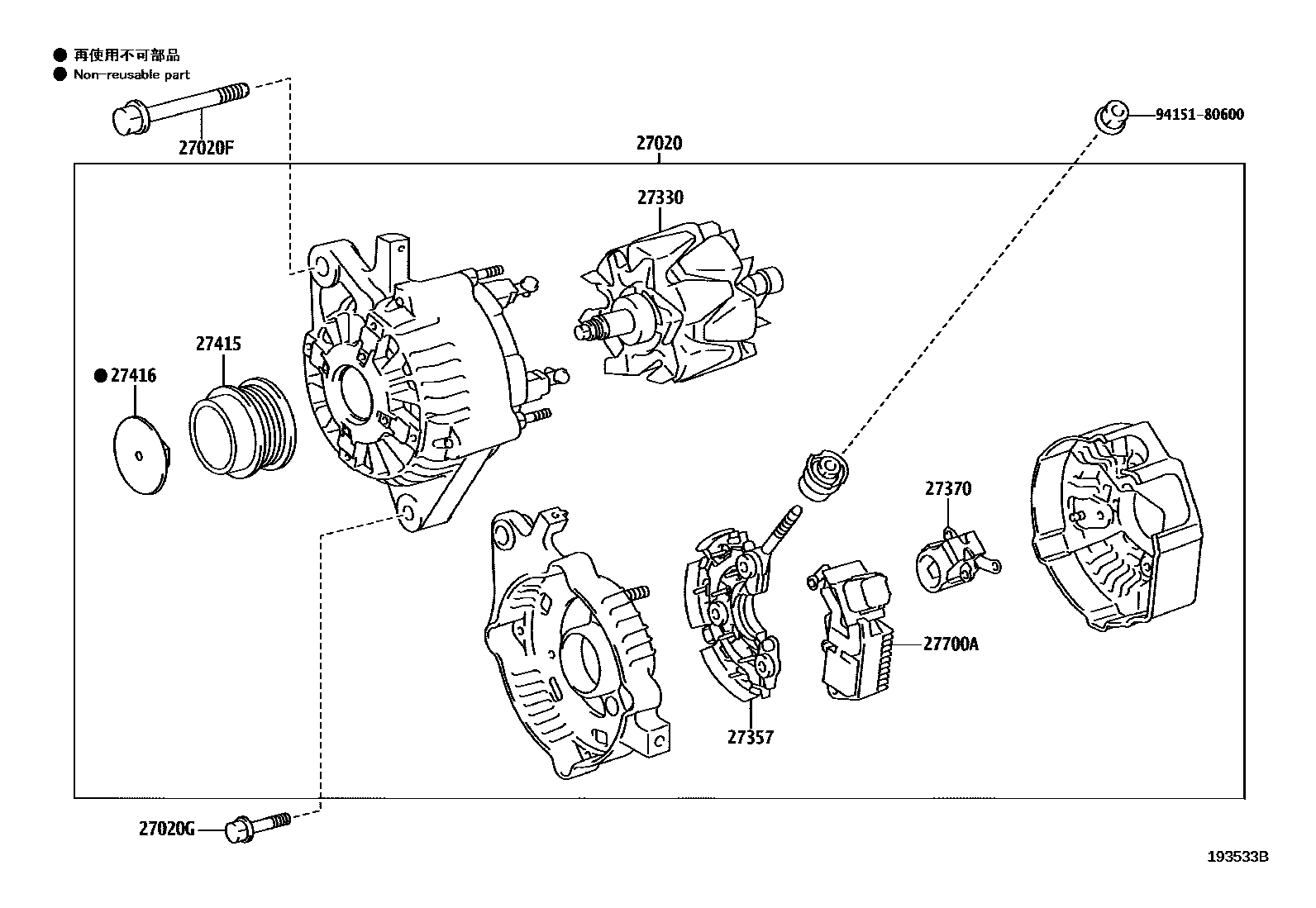

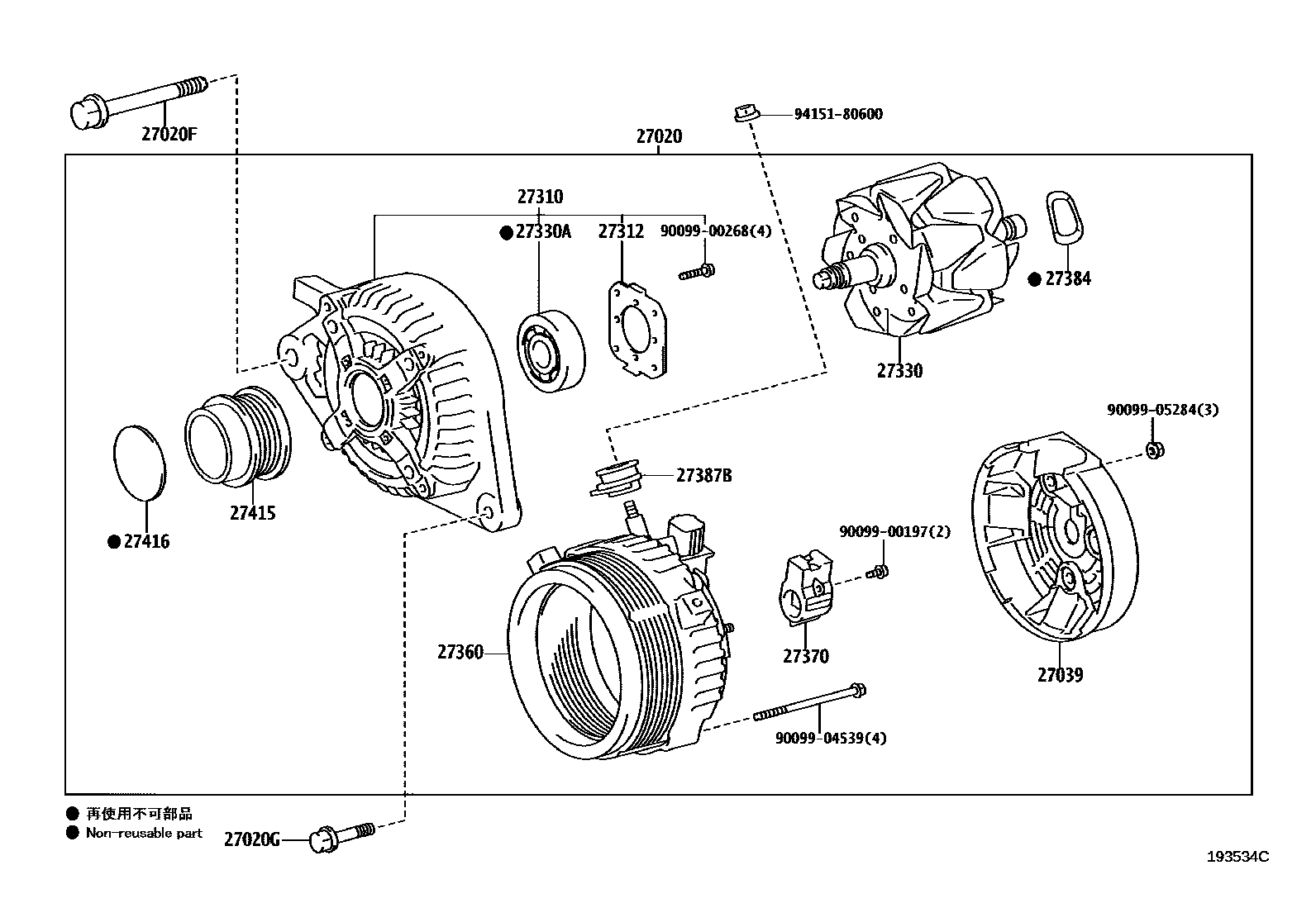

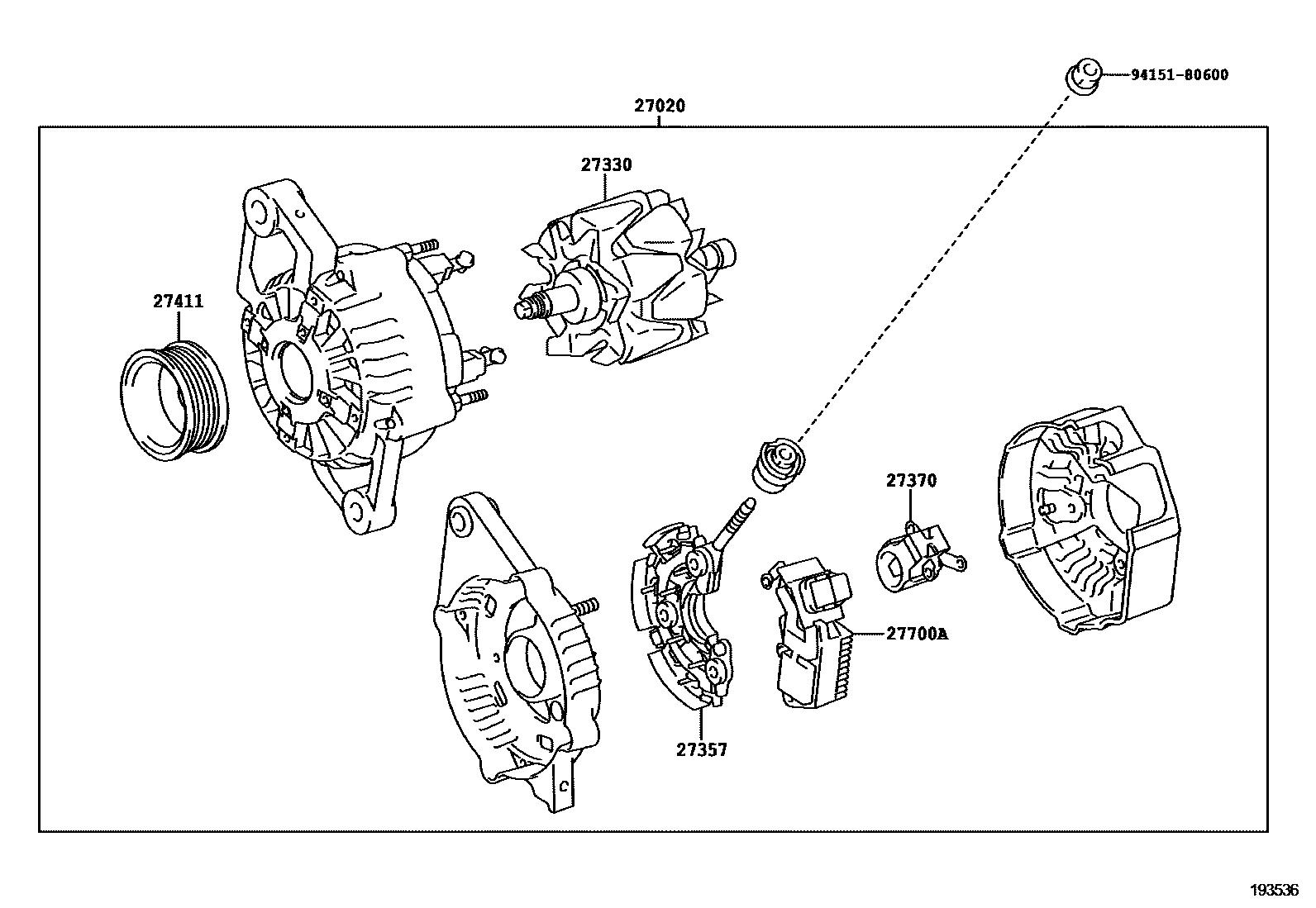

Toyota YARIS Alternator — Figure 1903
Toyota YARIS EPC diagram 1903, Alternator, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-40090 · 27060-40100 · 27060-47120 · 27060-47130 · 27060-47140 · 27060-47150 |
| 27020F | Bolt No. 1 (for generator) | 90105-10075 |
| 27020G | Bolt No. 2 (for generator) | 91551-80840 |
| 27039 | Alternator Rear End Cover | 27039-31390 |
| 27310 | Alternator Drive End Frame Assembly | 27310-40100 · 27310-47140 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-23130 · 27330-30070 · 27330-30130 |
| 27330A | Bearings (for generator rotor) | 90099-10223 |
| 27357 | Generator rectifier frame | 27357-22200 · 27357-47170 |
| 27360 | Alternator Stator Coil Assembly | 27360-40160 · 27360-47250 · 27360-47270 |
| 27370 | Alternator Brush Holder Assembly | 27370-23120 · 27370-31220 |
| 27384 | Washer | 27384-50030 |
| 27387B | Generator terminal insulation pad | 27387-20130 |
| 27411 | Alternator Pulley | 27411-40080 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W031 · 27415-0Y050 · 27415-0Y051 · 27415-0Y060 |
| 27416 | Generator pulley cover | 27416-0W020 · 27416-0W050 |
| 27700A | Generator voltage regulator assembly | 27700-33030 |
