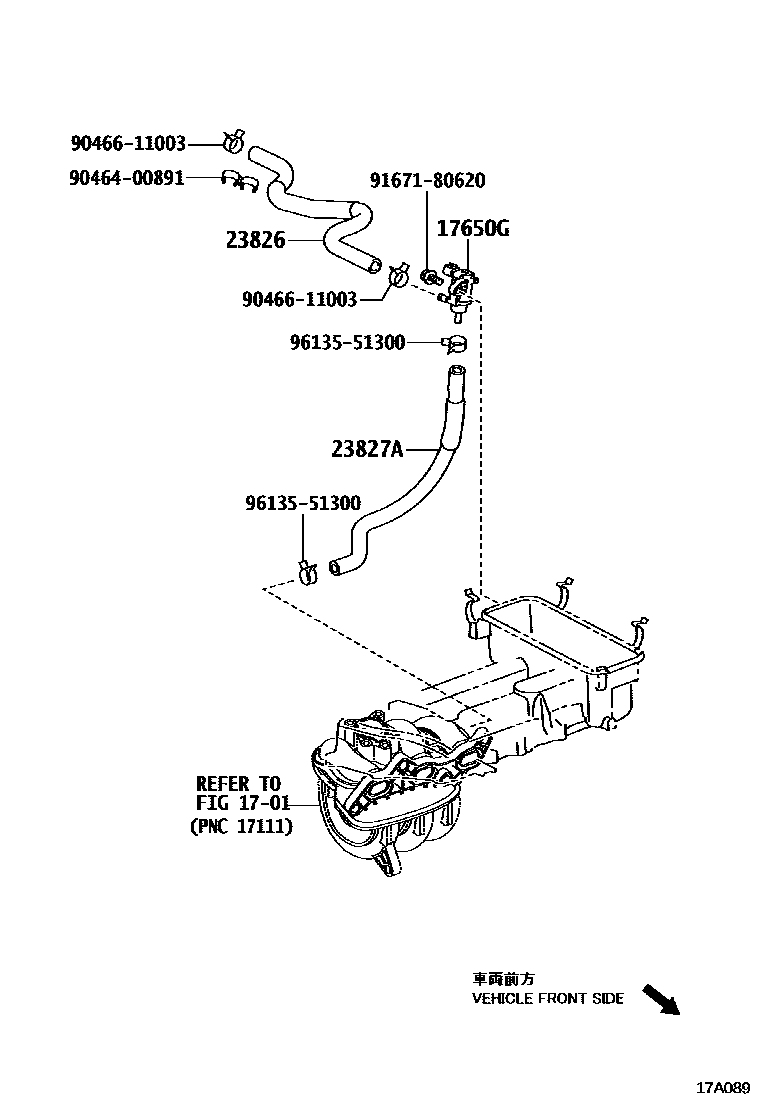

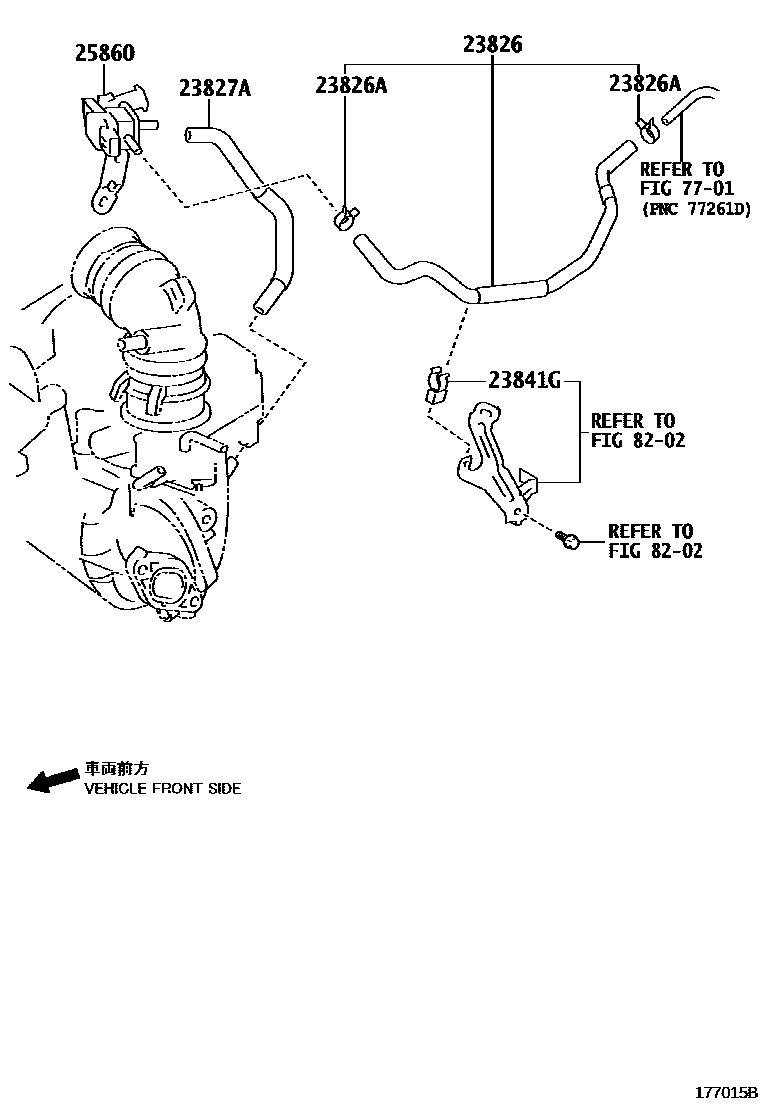

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12280 |
| 23826 | No. 1 fuel vapor supply hose | 23826-40010 · 23826-47030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 |
| 23827A | No. 2 fuel vapor supply hose | 23827-40011 · 23827-47030 |
| 23841G | fuel hose clamp | 23847-47010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-47020 |
