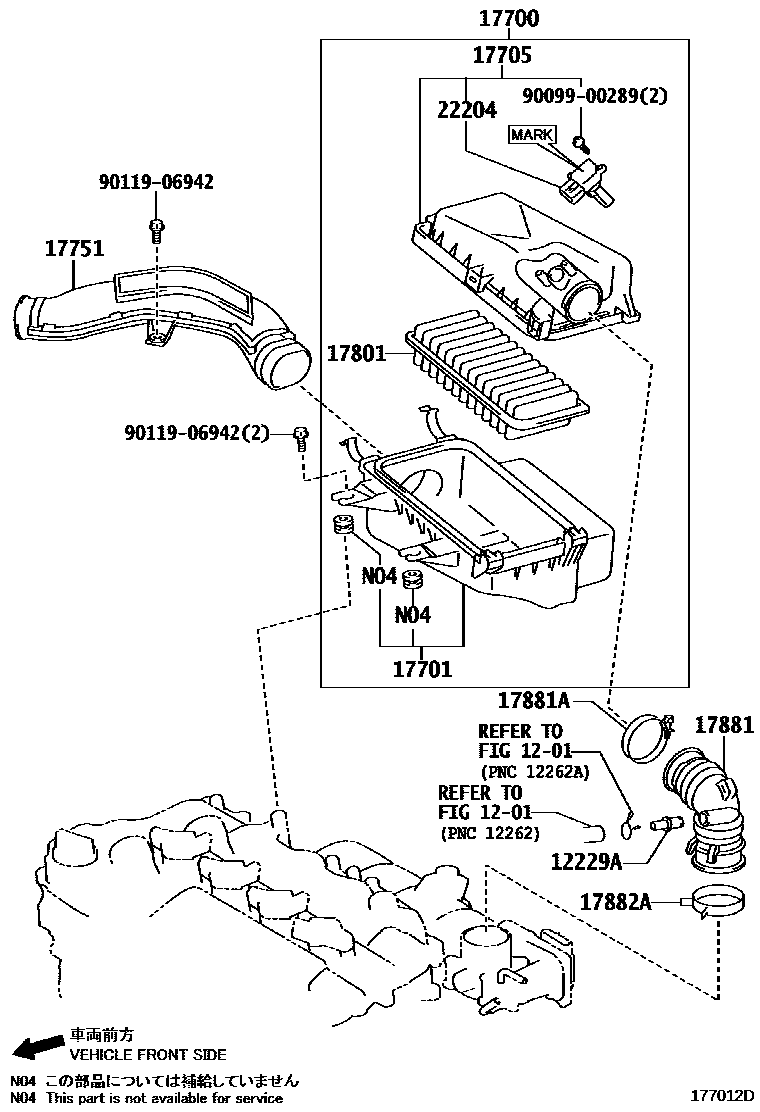

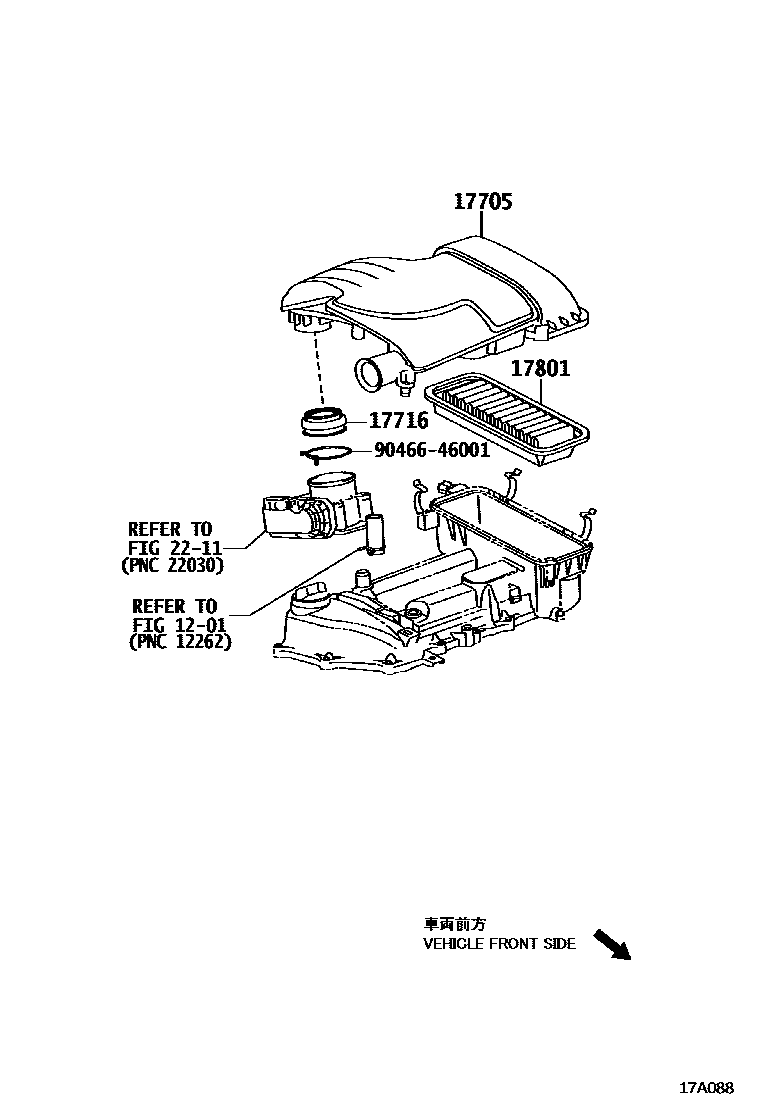

Toyota YARIS Air Cleaner — Figure 1703
Toyota YARIS EPC diagram 1703, Air Cleaner, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17700 | air filter assembly | 17700-47151 |
| 17701 | Air filter housing sub-assembly | 17701-47070 |
| 17705 | Air filter cover sub-assembly | 17705-0Q020 · 17705-40110 · 17705-47102 |
| 17716 | Air filter cover bracket | 17716-40031 |
| 17751 | No. 1 air filter air inlet | 17751-47060 |
| 17801 | Air filter element sub-assembly | 17801-0J020 · 17801-21030 · 17801-23030 |
| 17881 | No. 1 air cleaner hose | 17881-47060 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 |
