Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 6 PNC and OE references.

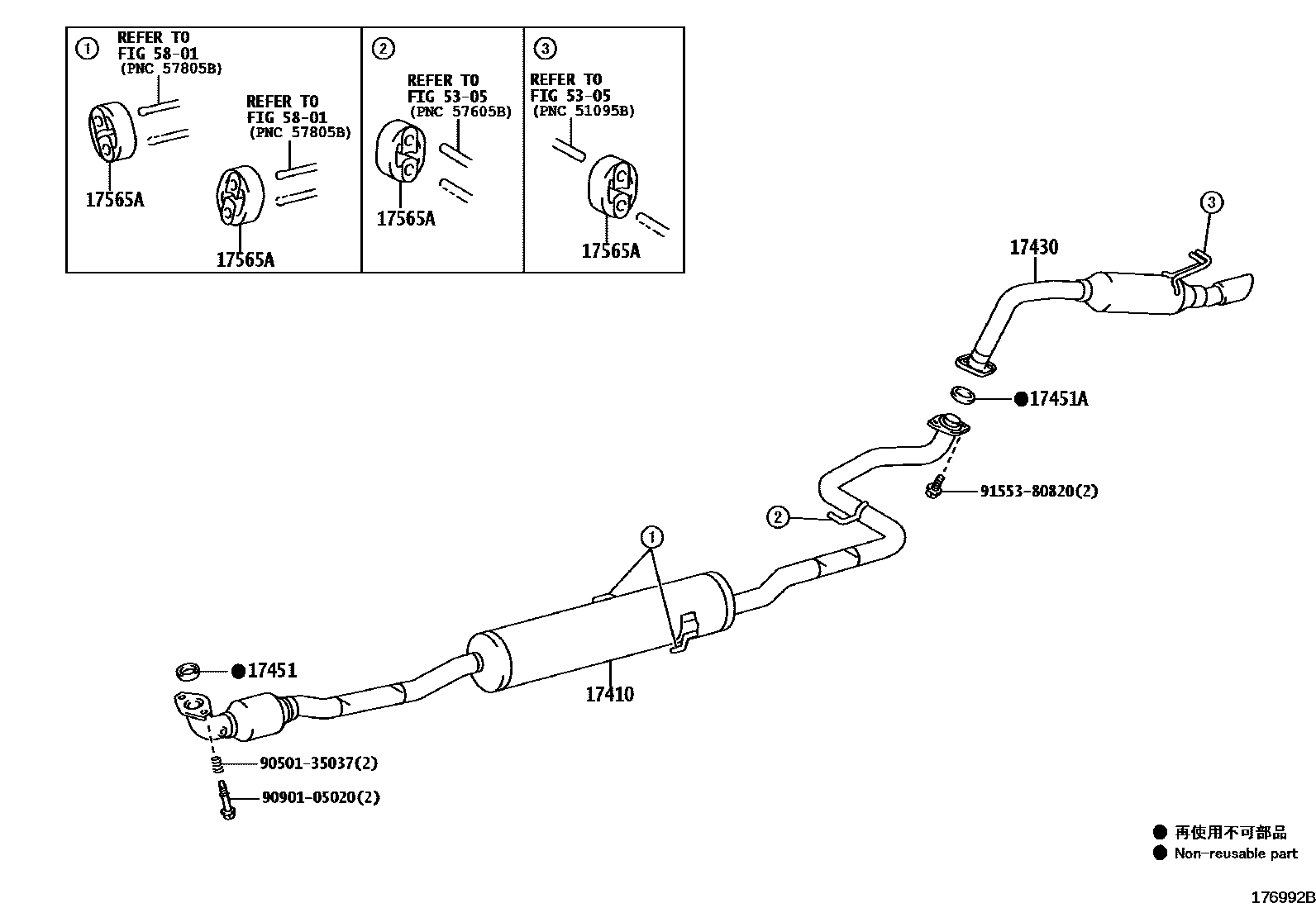

Toyota YARIS Exhaust Pipe EPC diagram — 176992B
Exhaust Pipe — 176992B (201108 – 999999)

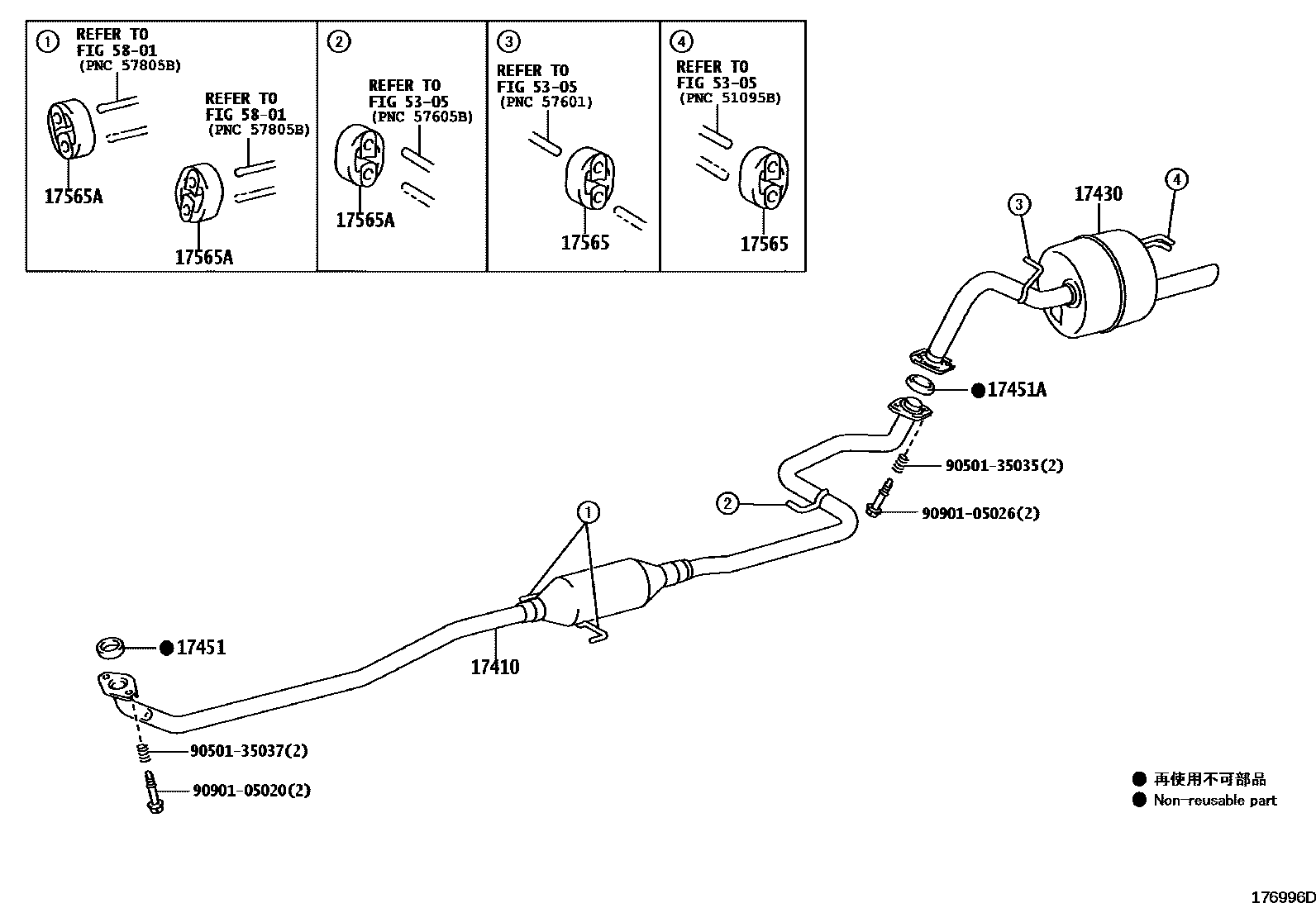

Toyota YARIS Exhaust Pipe EPC diagram — 176996D
Exhaust Pipe — 176996D (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-40190 · 17410-47150
17430Exhaust tailpipe assembly17430-40110 · 17430-47100
17451Exhaust pipe gasket17451-21070 · 17451-40010
17451ANo. 2 exhaust pipe gasket17451-40032 · 90917-06039
17565No. 5 exhaust pipe lifting lug17565-47010
17565ANo. 4 exhaust pipe lifting lug17565-47010
