Toyota YARIS Manifold — Figure 1701

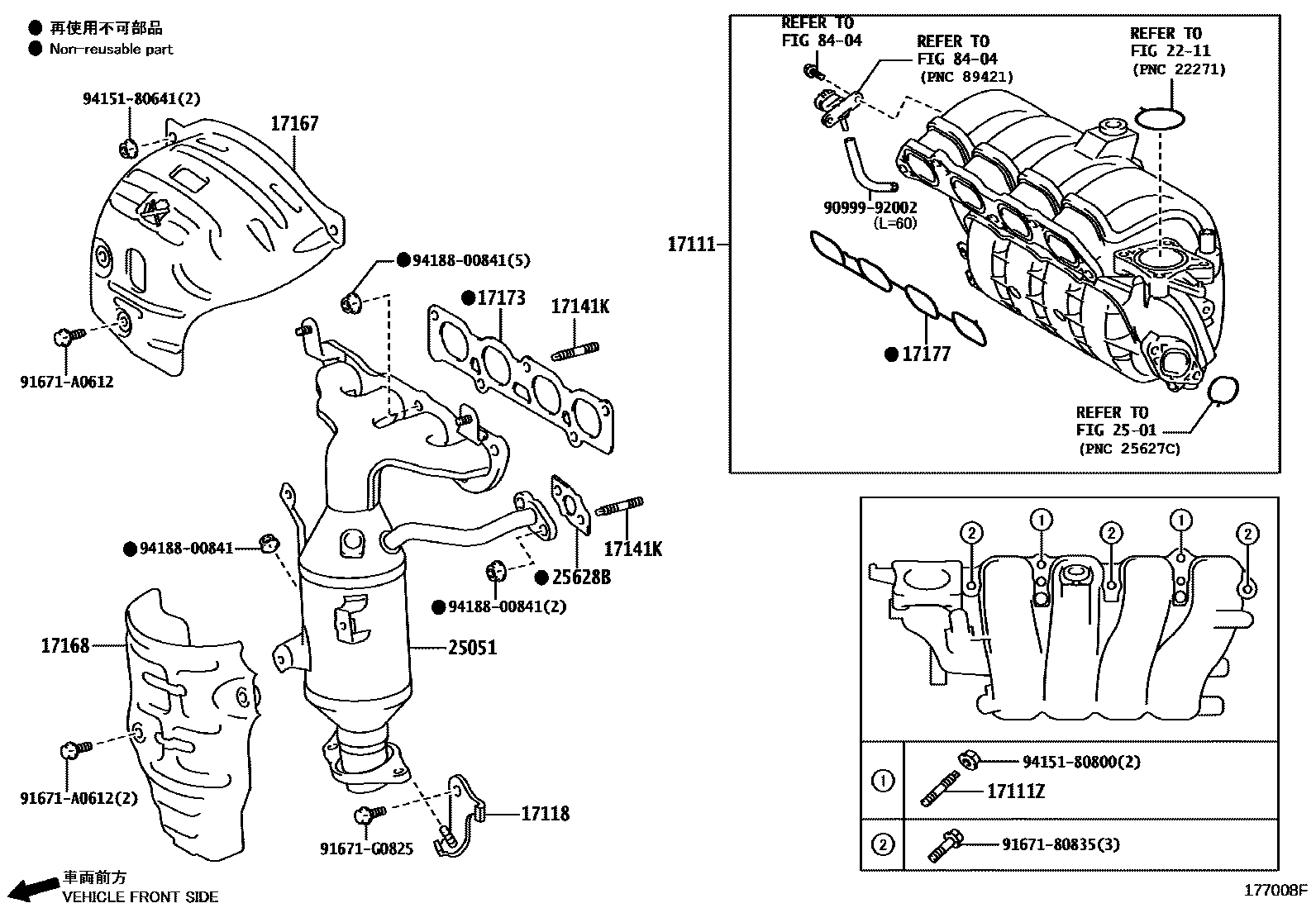

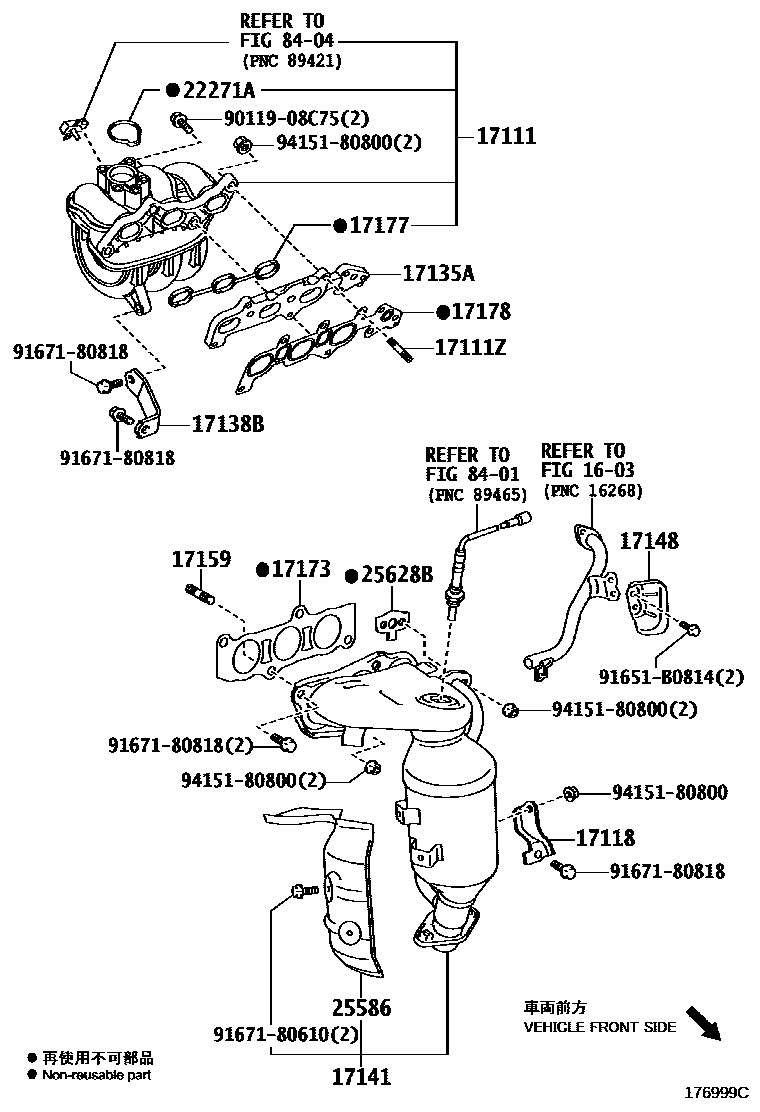

Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-0Q030 · 17120-47031 · 17120-47032 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08060 · 92122-80845 |
| 17118 | Manifold stays | 17118-0Q010 · 17118-40010 · 17118-47010 |
| 17135A | Intake manifold No. 1 heat shield | 17135-40020 |
| 17138B | Intake manifold stay | 17138-0Q010 · 17138-40040 |
| 17141 | exhaust manifold | 17140-40070 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08063 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-40020 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08055 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-47011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-47030 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-40020 · 17173-47021 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0Q020 · 17177-40020 · 17177-47010 · 17177-47011 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-40020 |
| 22271A | Throttle body gasket | 22271-40010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-47070 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-40040 |
| 25628B | EGR air intake gasket | 25628-0Q010 · 25628-40020 · 25628-47010 |
