Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

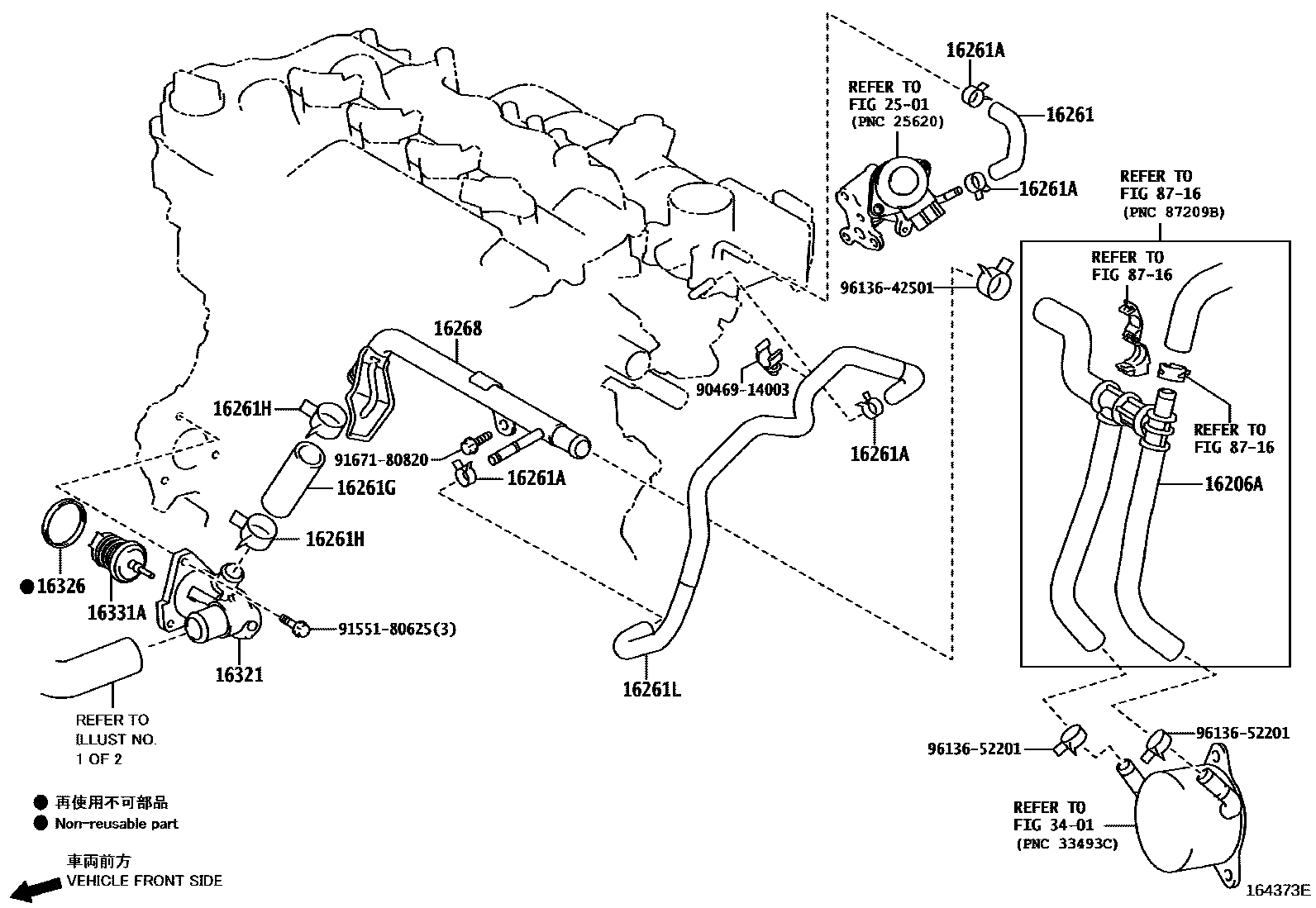

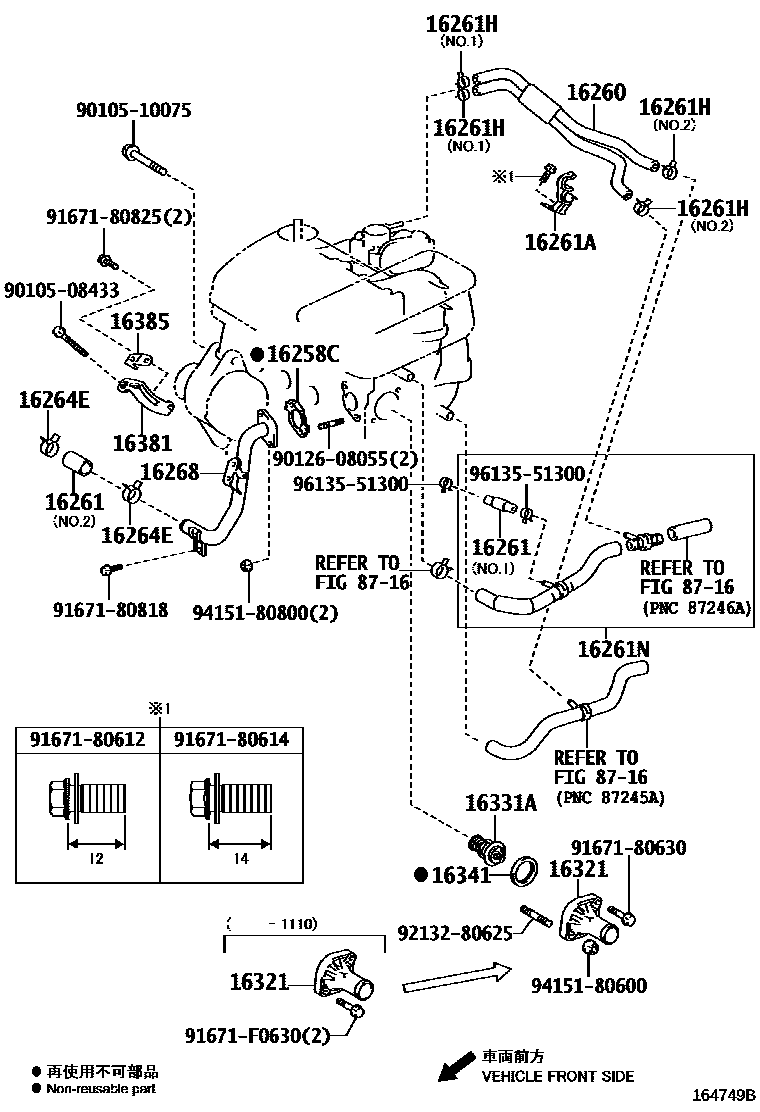

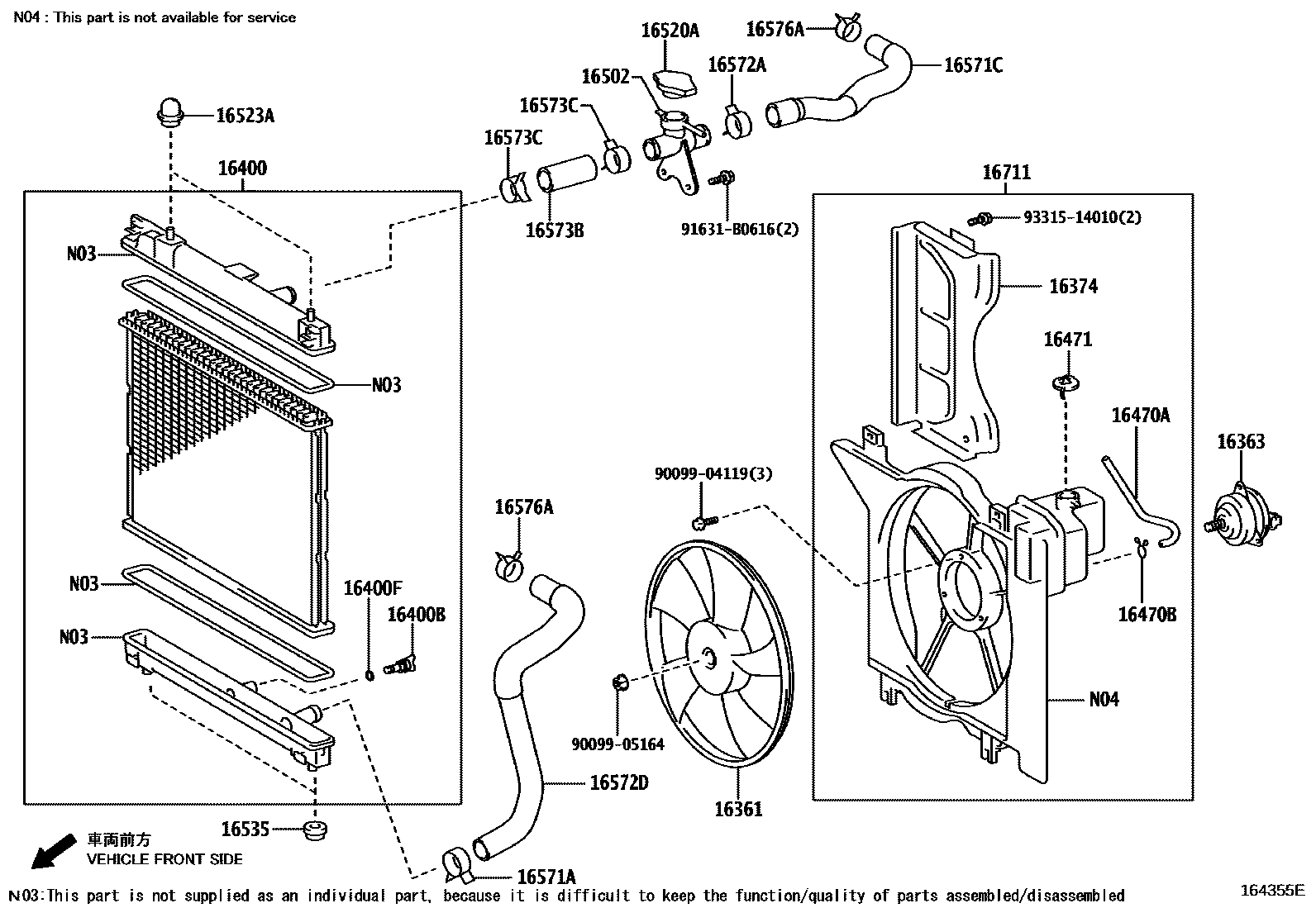

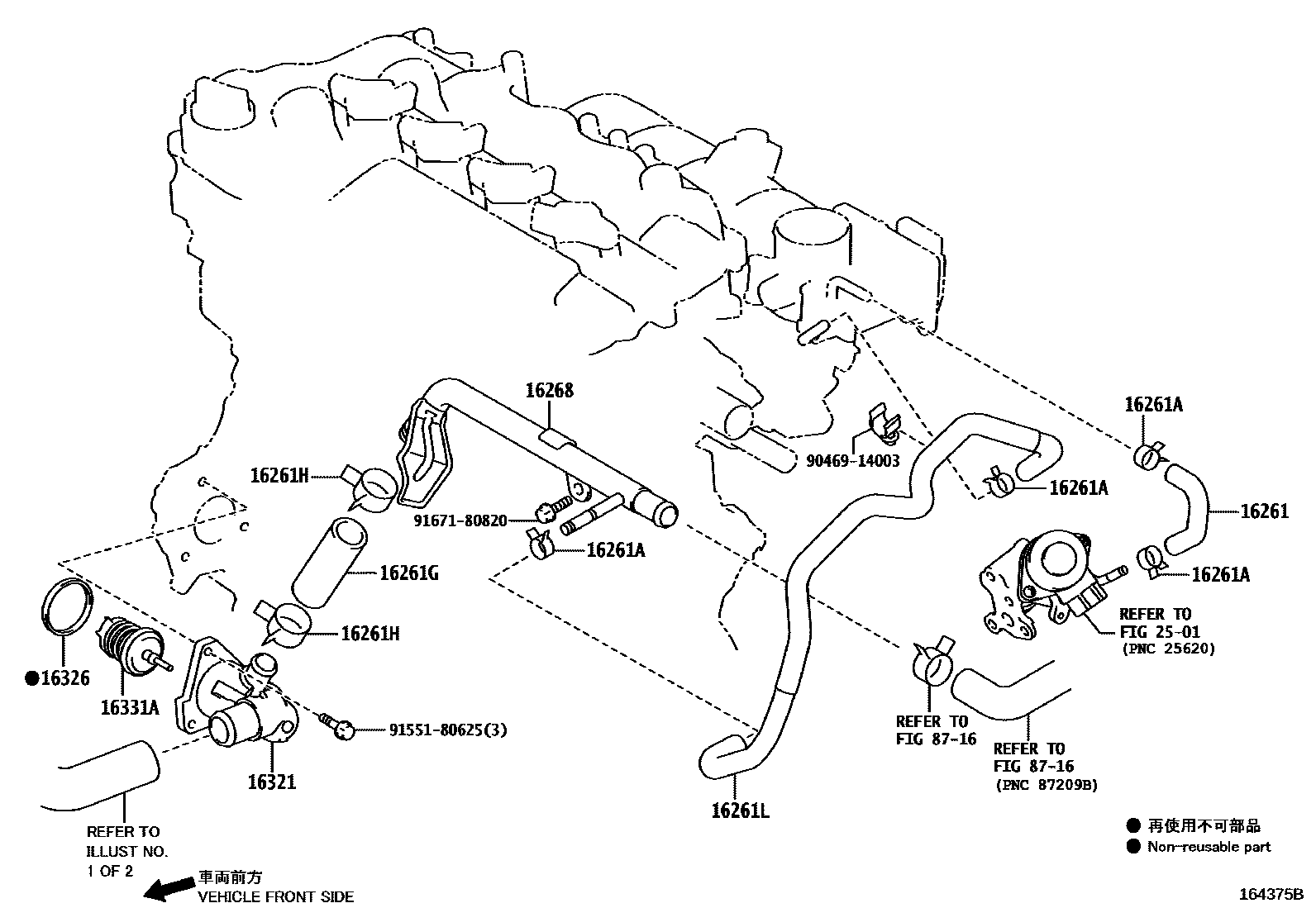

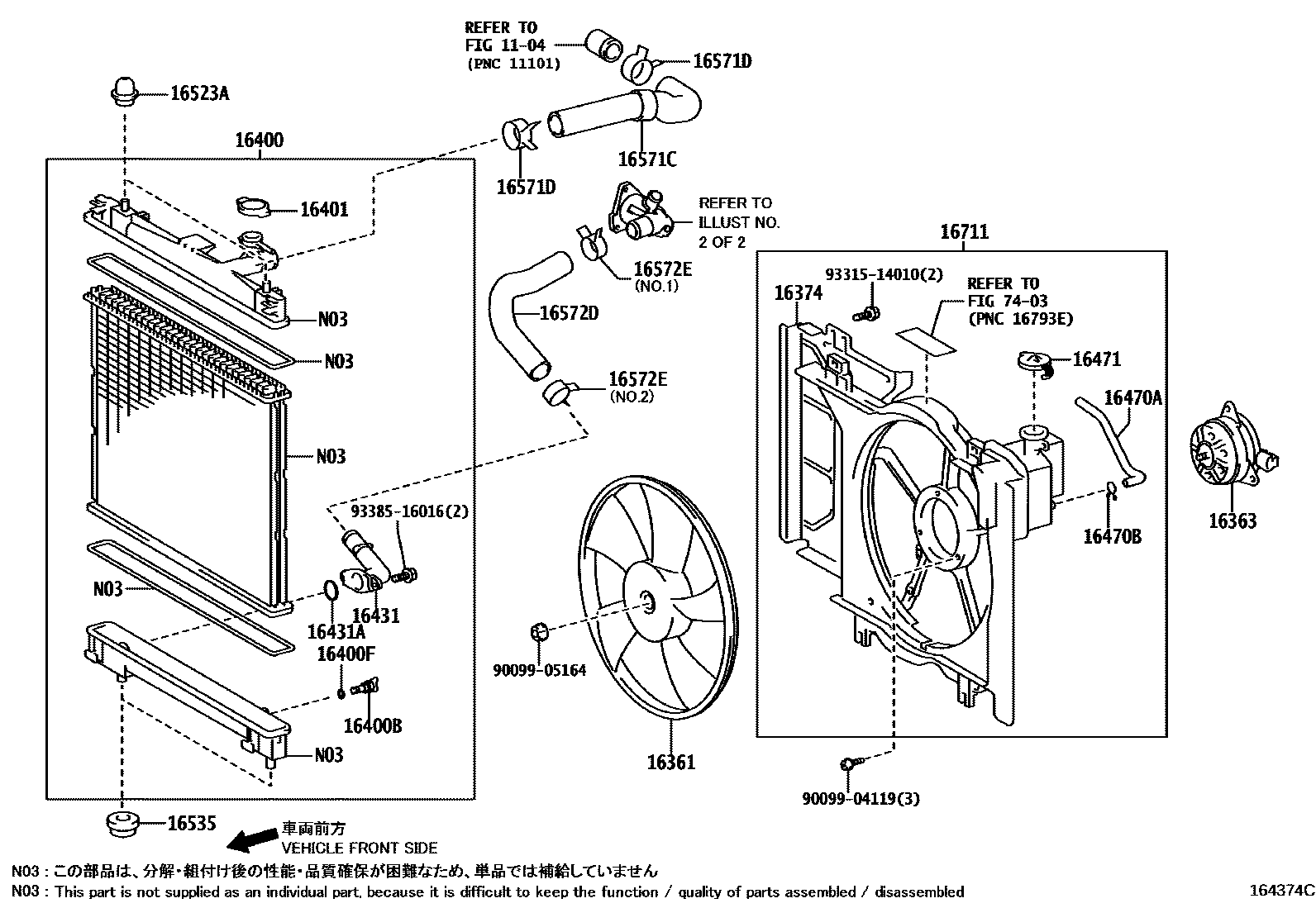

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16206A | No. 2 water bypass pipe sub-assembly | 16260-47091 |
| 16258C | Gasket (for water bypass pipe) | 16258-40020 |
| 16260 | Water bypass hose assembly | 16260-40040 |
| 16261 | HOSE, WATER BY-PASS | 16261-40061 · 16261-40111 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 16581-40010 · 96136-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-W0002 · 90466-W0003 · 96135-51300 · 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16260-40012 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-30001 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-40050 · 16268-47031 |
| 16321 | water inlet | 16321-40010 · 16321-47011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47010 |
| 16331A | thermostat | 90916-03134 · 90916-03147 |
| 16341 | GASKET, WATER OUTLET | 16341-35010 |
| 16361 | Fan | 16361-23070 |
| 16363 | cooling fan motor | 16363-28200 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-40010 |
| 16381 | Fan belt adjustment lever | 16381-40070 |
| 16385 | Fan belt adjustment slider | 16385-40011 |
| 16400 | Radiator assembly | 16400-23170 · 16400-47090 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31520 |
| 16431 | Radiator water inlet | 16431-47090 |
| 16431A | O-ring (for radiator water inlet) | 16492-6A300 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-47020 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23030 |
| 16502 | Water injection port sub-assembly | 16502-23010 |
| 16520A | Water injection port cover sub-assembly | 16401-31520 |
| 16523A | Radiator bracket cushion | 16523-21030 |
| 16535 | Radiator lower support | 90480-22025 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34004 |
| 16571C | Radiator hose No. 1 | 16571-40040 · 16571-47080 |
| 16571D | No. 1 radiator hose clip | 90467-33006 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-33006 |
| 16572D | Radiator hose No. 2 | 16572-40040 · 16572-47070 |
| 16572E | No. 2 radiator hose clip | 90467-33006 · 90467-34004 |
| 16573B | Radiator hose No. 3 | 16573-23010 |
| 16573C | No. 3 radiator hose clamp or clip | 90467-33006 |
| 16576A | No. 6 radiator hose clip | 90466-30001 |
| 16711 | fan cover | 16711-47050 |
