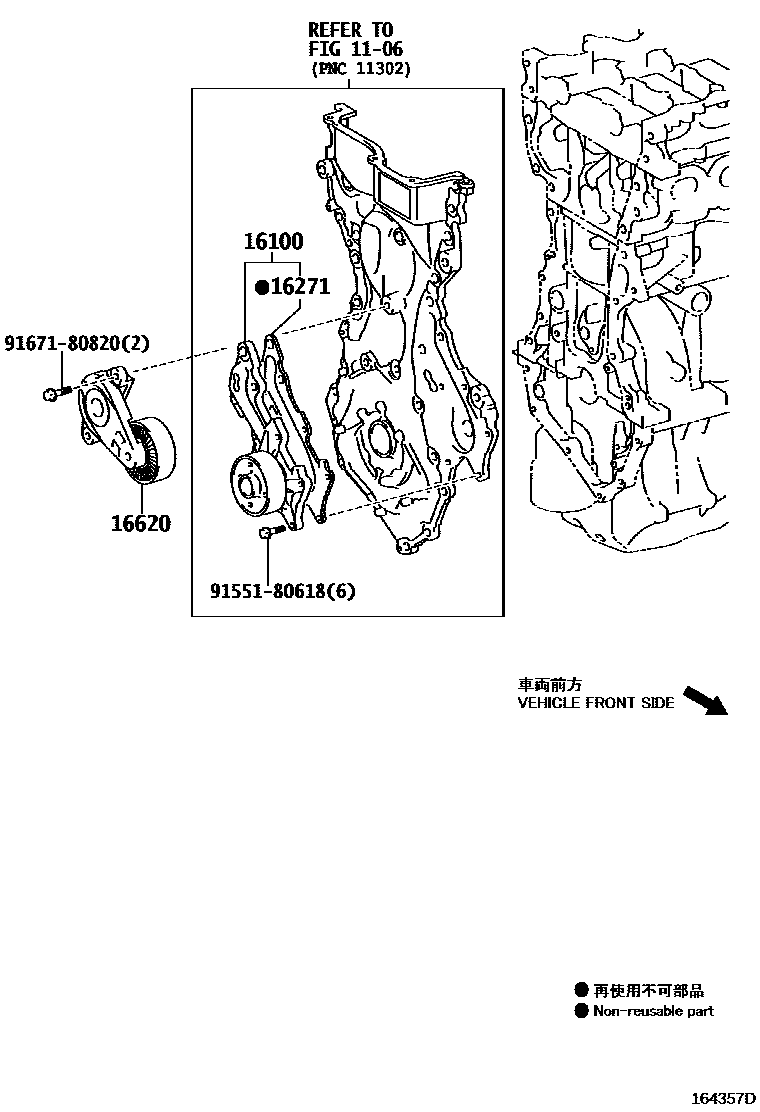

Toyota YARIS Water Pump — Figure 1601
Toyota YARIS EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-80004 · 16100-80007 · 16100-80010 |
| 16271 | water pump gasket | 16271-40020 · 16271-47031 |
| 16620 | Poly V-belt tensioner assembly | 16620-47030 |
