Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 8 PNC and OE references.

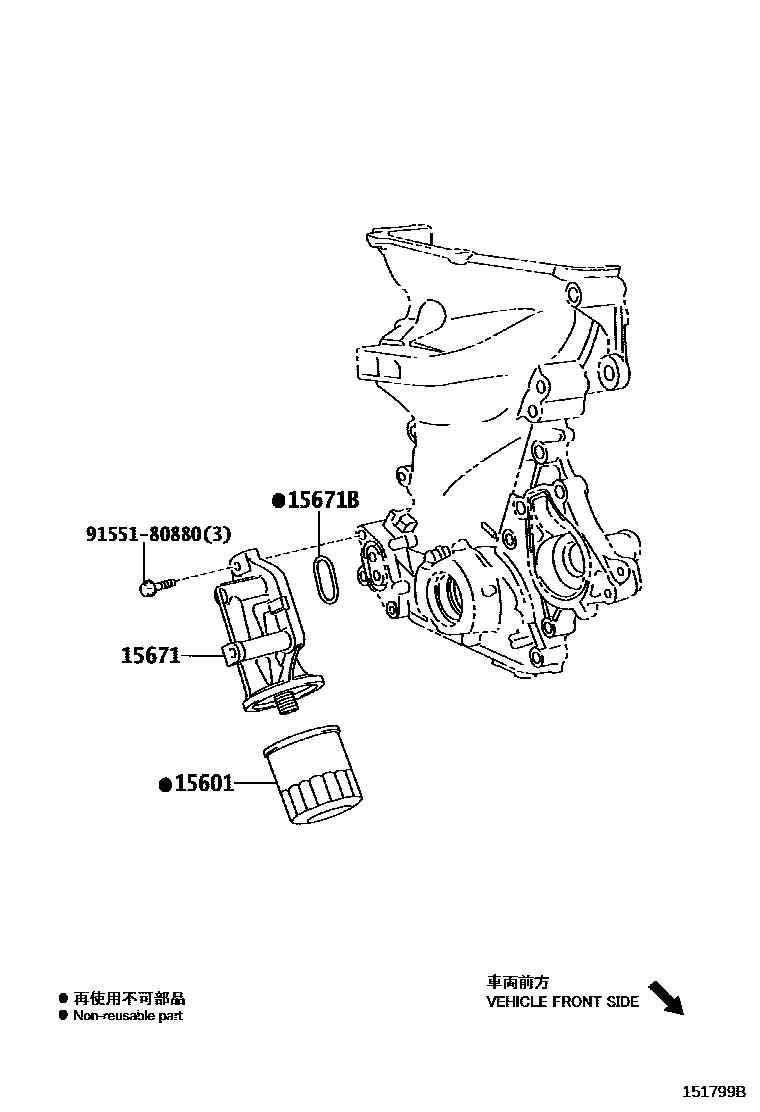

Toyota YARIS Oil Filter EPC diagram — 151799B
Oil Filter — 151799B (201108 – 999999)

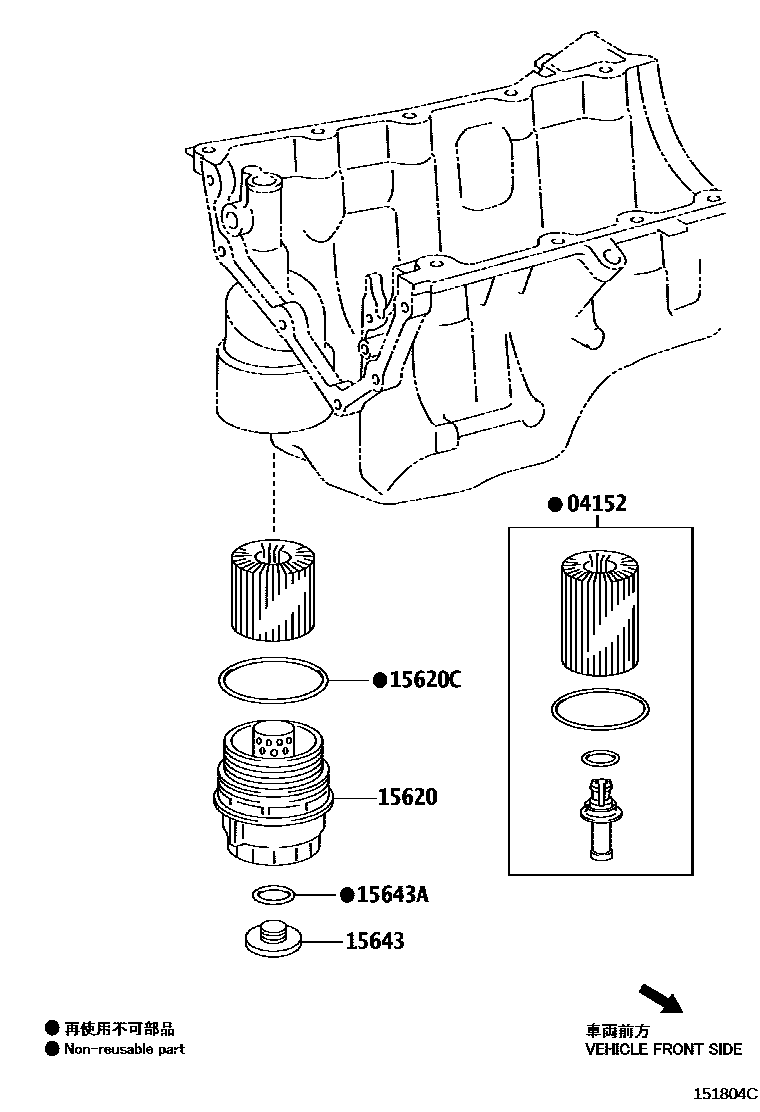

Toyota YARIS Oil Filter EPC diagram — 151804C
Oil Filter — 151804C (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-40060
15601Oil filter sub-assembly90915-10003
15620Oil filter cover assembly15620-40030
15620CGasket (for oil filter cover)90301-69011
15643Oil filter drain plug15643-31050
15643AO-ring (for oil filter drain plug)96723-35028
15671Oil filter bracket15671-0Q010
15671BOil filter holder gasket15691-40020
