Toyota YARIS Engine Oil Pump — Figure 1501

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 2 images and 3 PNC and OE references.

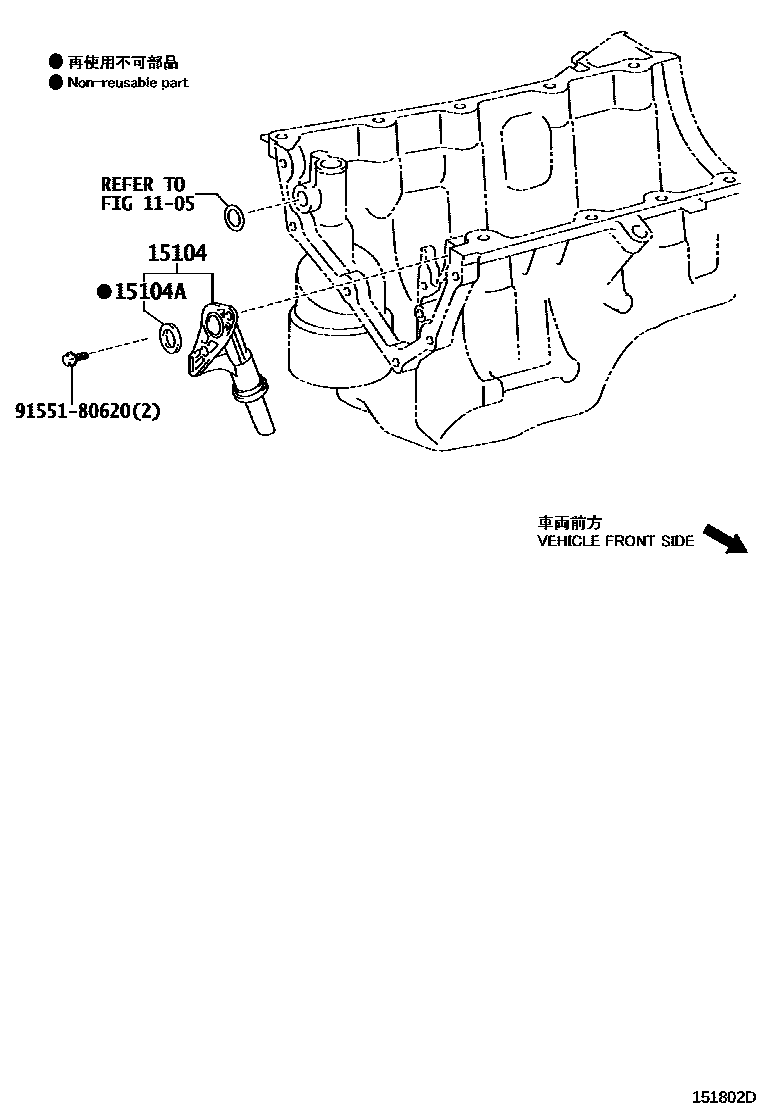

Toyota YARIS Engine Oil Pump EPC diagram — 151802D
Engine Oil Pump — 151802D (201108 – 999999)

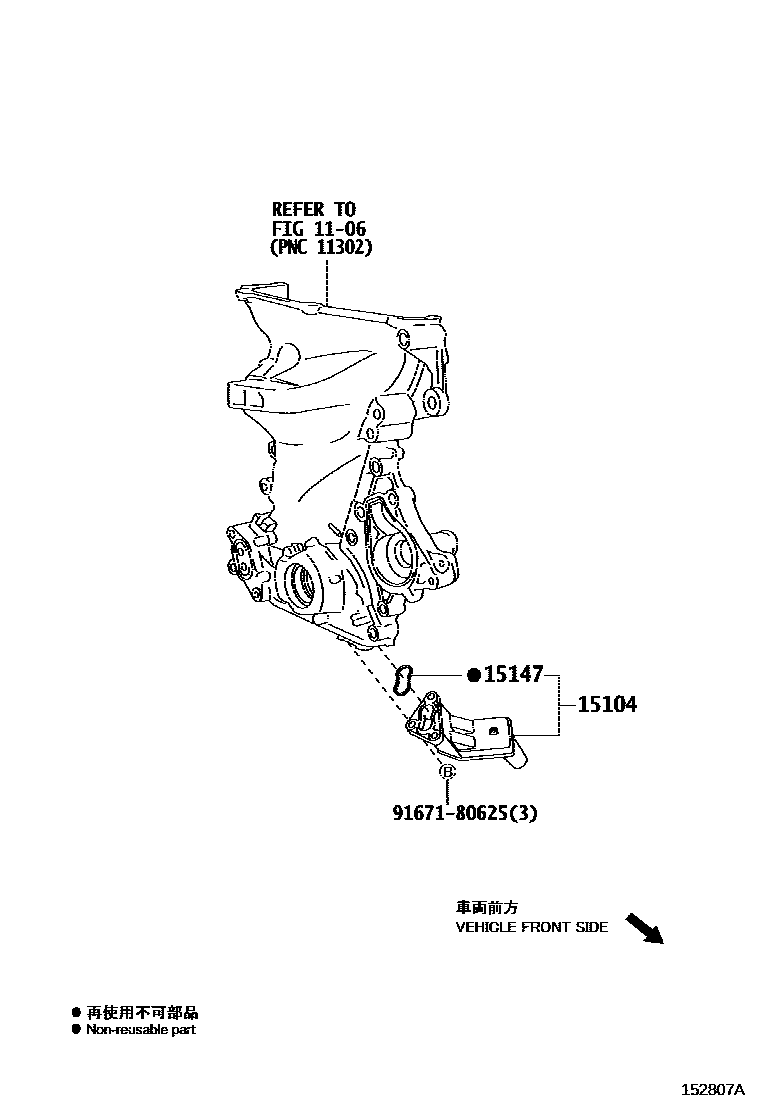

Toyota YARIS Engine Oil Pump EPC diagram — 152807A
Engine Oil Pump — 152807A (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
15104Oil filter sub-assembly15104-0Q010 · 15104-40030 · 15104-47040
15104AO-ring (for oil filter)90301-22018
15147Oil filter gasket15147-40030 · 15147-40040
