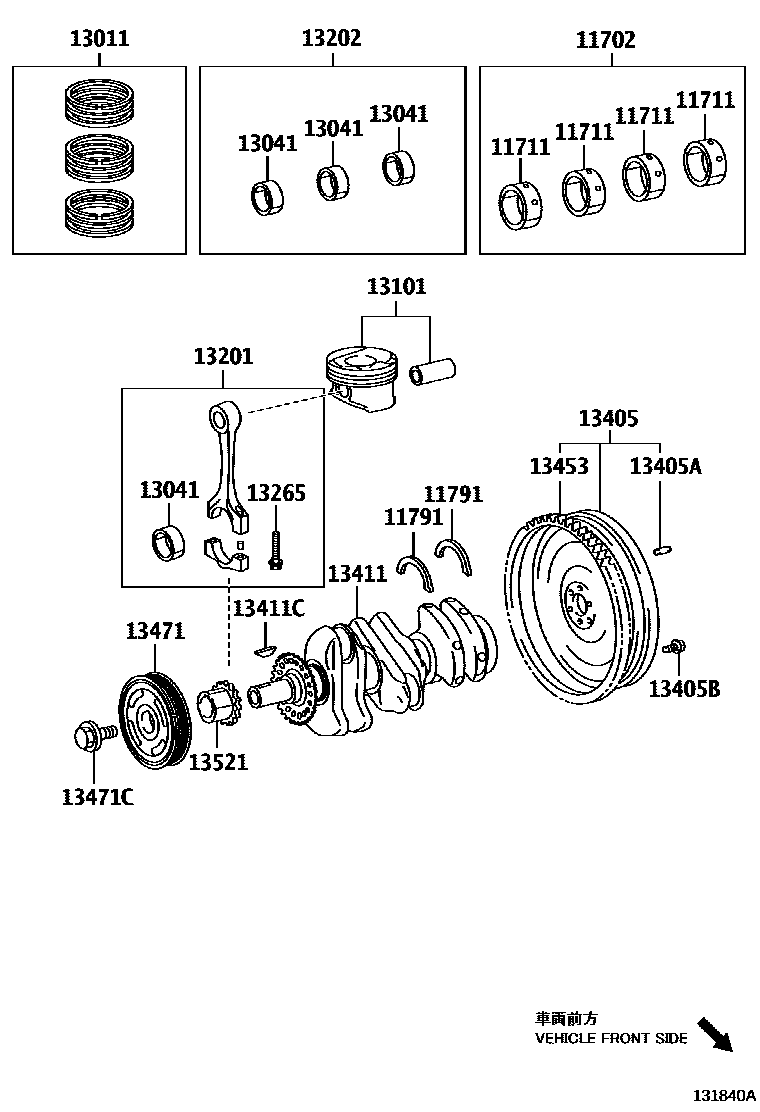

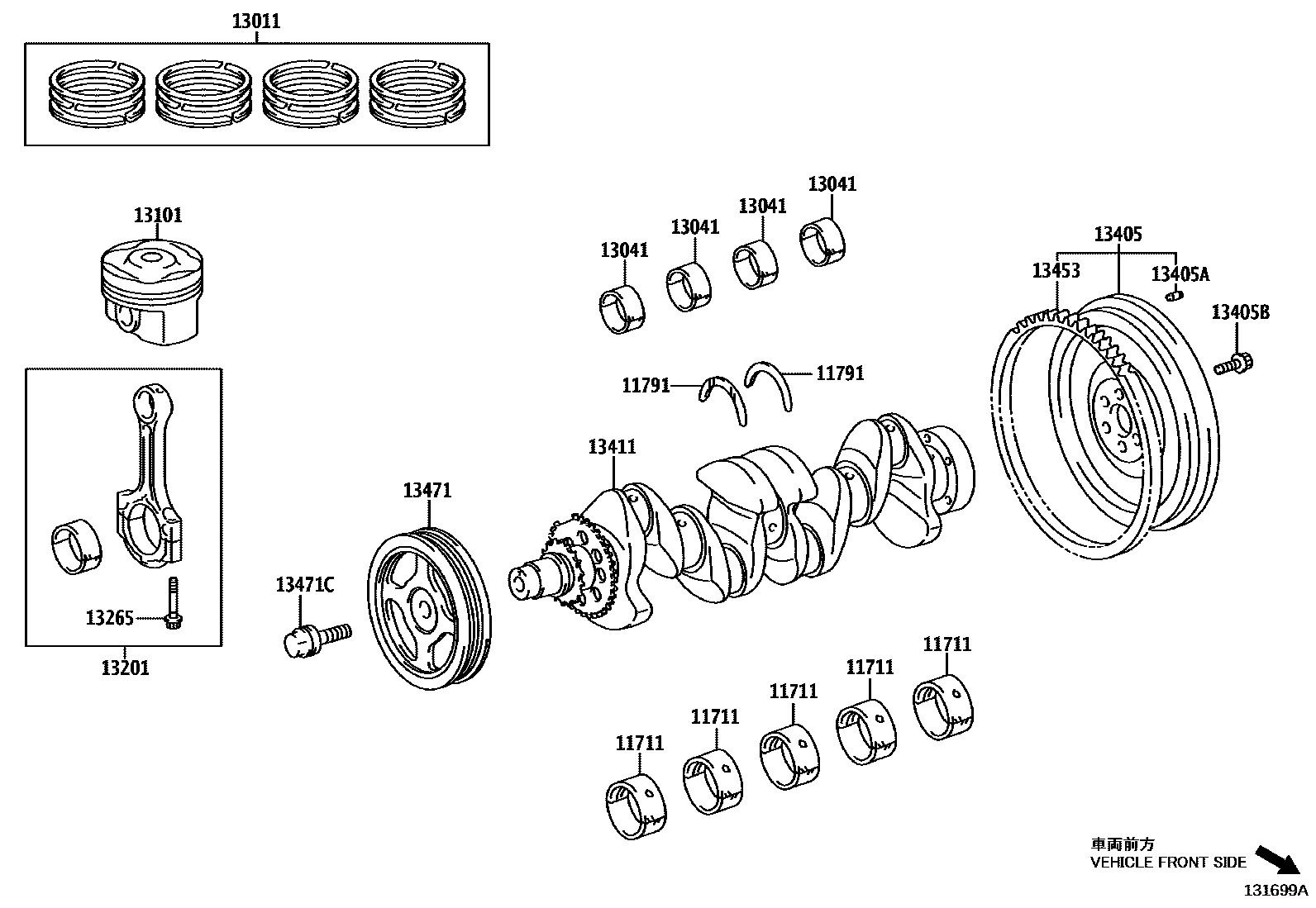

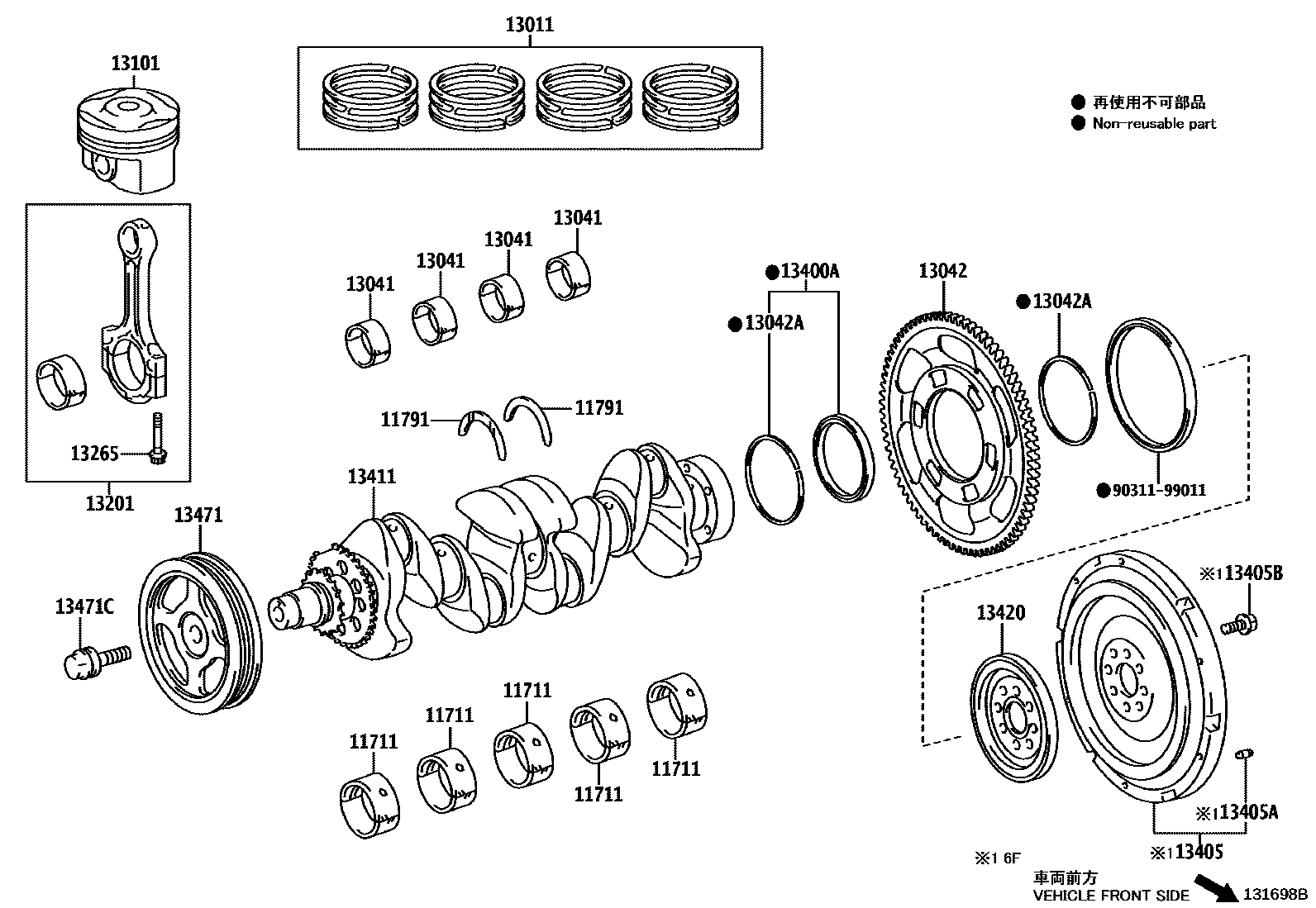

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-40040 |
| 11791 | Thrust washer on crankshaft | 11791-40020 · 11791-47010 · 11791-47030 · 11792-40020 · 11793-40020 |
| 13011 | Piston ring assembly | 13011-40052 · 13011-47030 · 13011-47031 · 13011-47032 · 13011-47033 |
| 13042 | ERS ring gear sub-assembly | 13042-47011 |
| 13042A | Snap ring (for ring gear) | 90520-95001 |
| 13101 | Piston sub-assembly with pin | 13101-40050 · 13101-47020 · 13101-47021 · 13101-47022 · 13101-47110 |
| 13201 | Connecting rod sub-assembly | 13201-49077 · 13201-49085 · 13201-49086 |
| 13202 | Connecting rod bearing assembly | 13204-40031 |
| 13265 | Connecting rod bolts | 13265-21020 |
| 13400A | Bearings (for crankshaft) | 90369-78001 |
| 13405 | Flywheel sub-assembly | 13405-40070 · 13405-47050 · 13405-47060 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10463 · 90913-01029 |
| 13411 | crankshaft | 13401-0Q010 · 13401-40030 · 13401-47020 |
| 13411C | Direct sales (for crankshaft) | 90280-04001 |
| 13420 | ERS one-way clutch assembly | 13420-47011 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-23020 |
| 13471 | crankshaft pulley | 13470-0Q010 · 13470-40040 · 13470-47070 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-14106 |
| 13521 | Crankshaft timing gear or sprocket | 13521-40020 |
