Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 8 PNC and OE references.

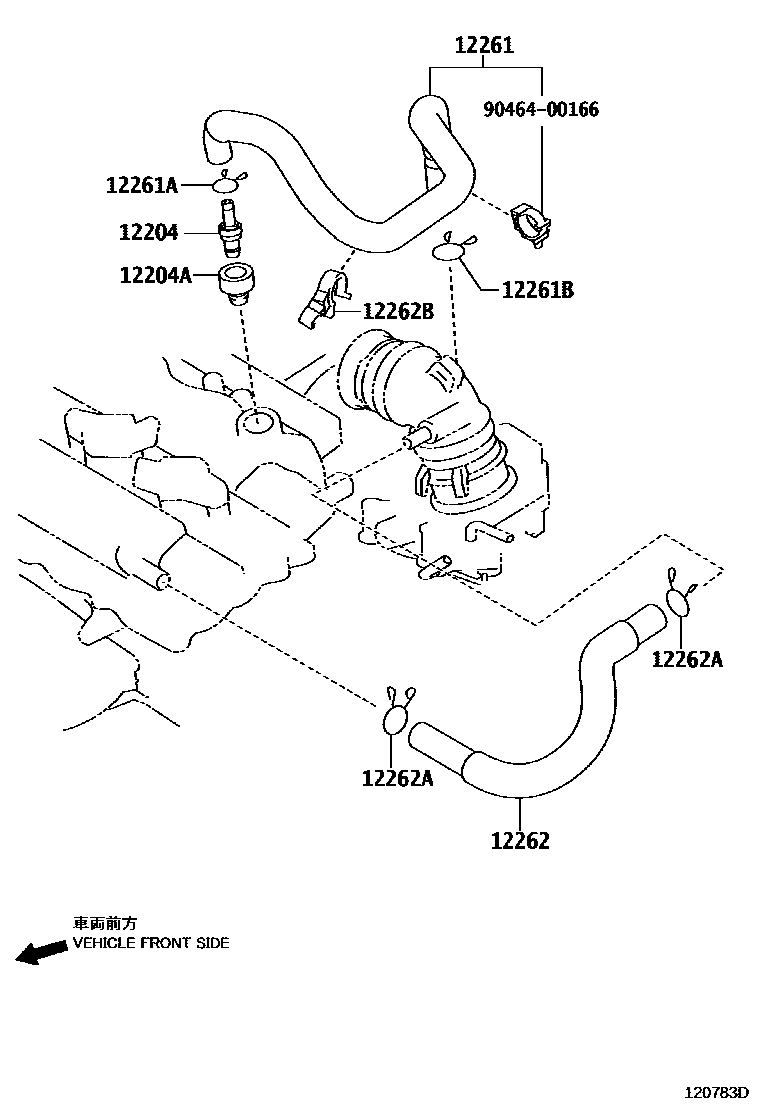

Toyota YARIS Ventilation Hose EPC diagram — 120783D
Ventilation Hose — 120783D (201108 – 999999)

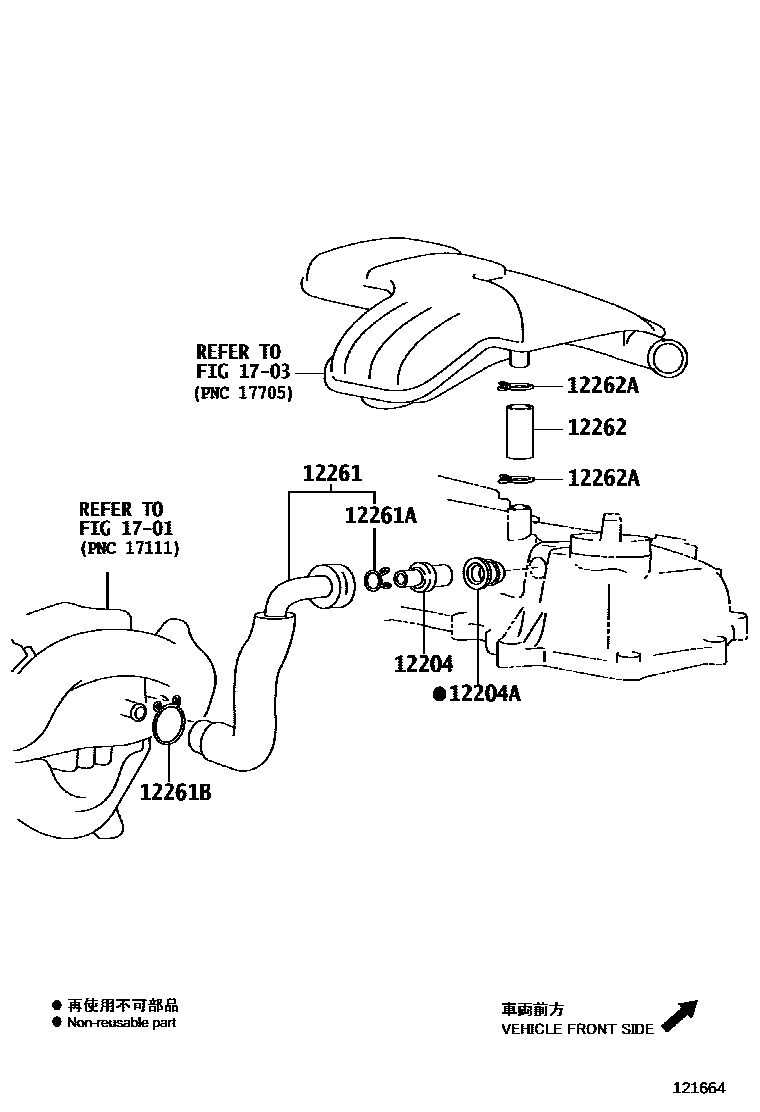

Toyota YARIS Ventilation Hose EPC diagram — 121664
Ventilation Hose — 121664 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-40030 · 12204-47010
12204AGasket (for ventilation system)90480-18014 · 90480-18016
12261Ventilation Hose12261-40020 · 12261-47010
12261AClip or clip (for vent hose)90467-15120 · 90467-16035
12261BClip or clip (for vent hose)90467-22010 · 96137-52501
12262Ventilation hose No. 212262-40020 · 12262-47010
12262AClamp (for vent hose No. 2)90467-21004 · 90467-23002
12262BClamp (for ventilation hose)16581-47020
