Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 8 PNC and OE references.

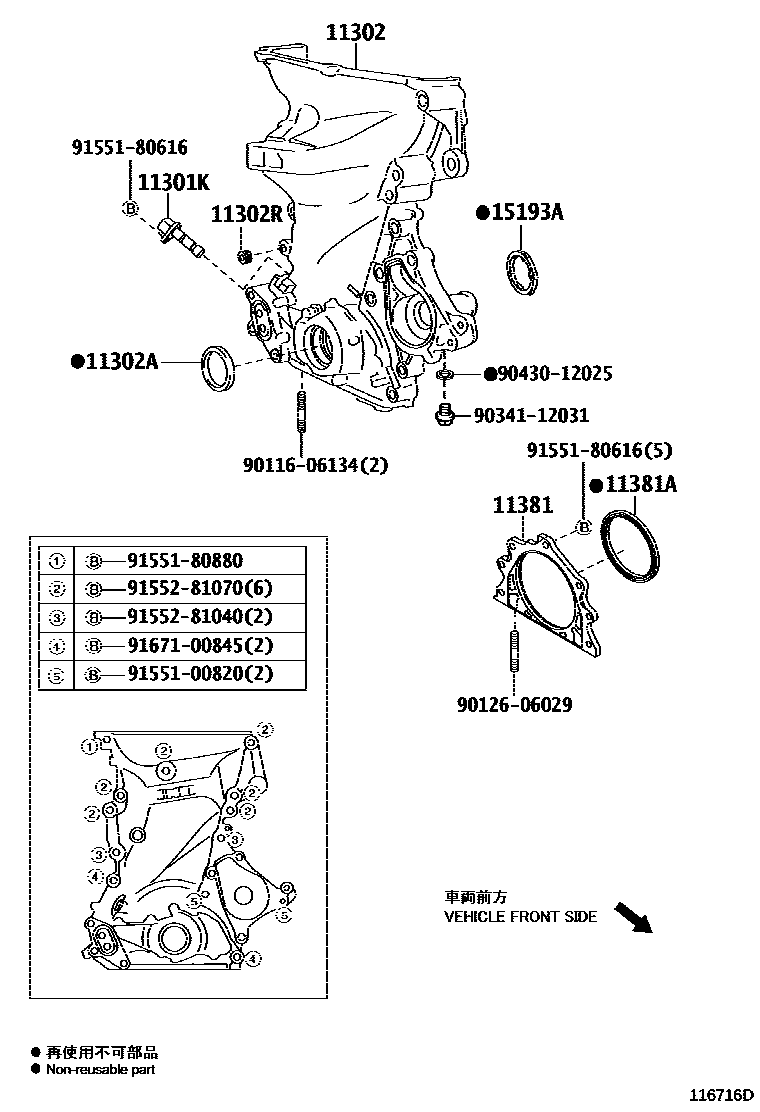

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 116716D
Timing Gear Cover & Rear End Plate — 116716D (201108 – 999999)

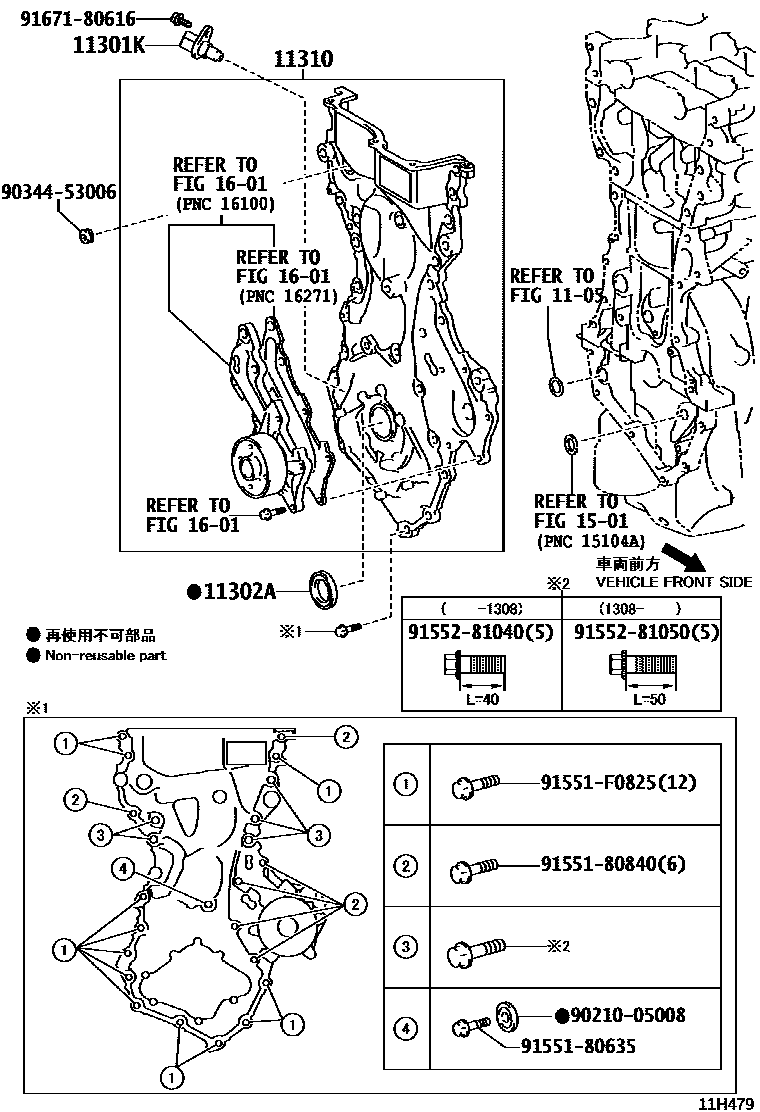

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11H479
Timing Gear Cover & Rear End Plate — 11H479 (201108 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05062 · 90919-05073 · 90919-05079 · 90919-W5002
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-40041
11302AOil seal (for timing chain or timing belt cover)90311-25021 · 90311-25032 · 90311-38092
11302RNo. 1 sealing plug (for timing gear cover)90344-53006
11310ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION11310-47040 · 11310-47041
11381RETAINER, ENGINE REAR OIL SEAL11381-40010
11381ASEAL, ENGINE REAR OIL90311-73004
15193Aoil pump gasket15193-40010
