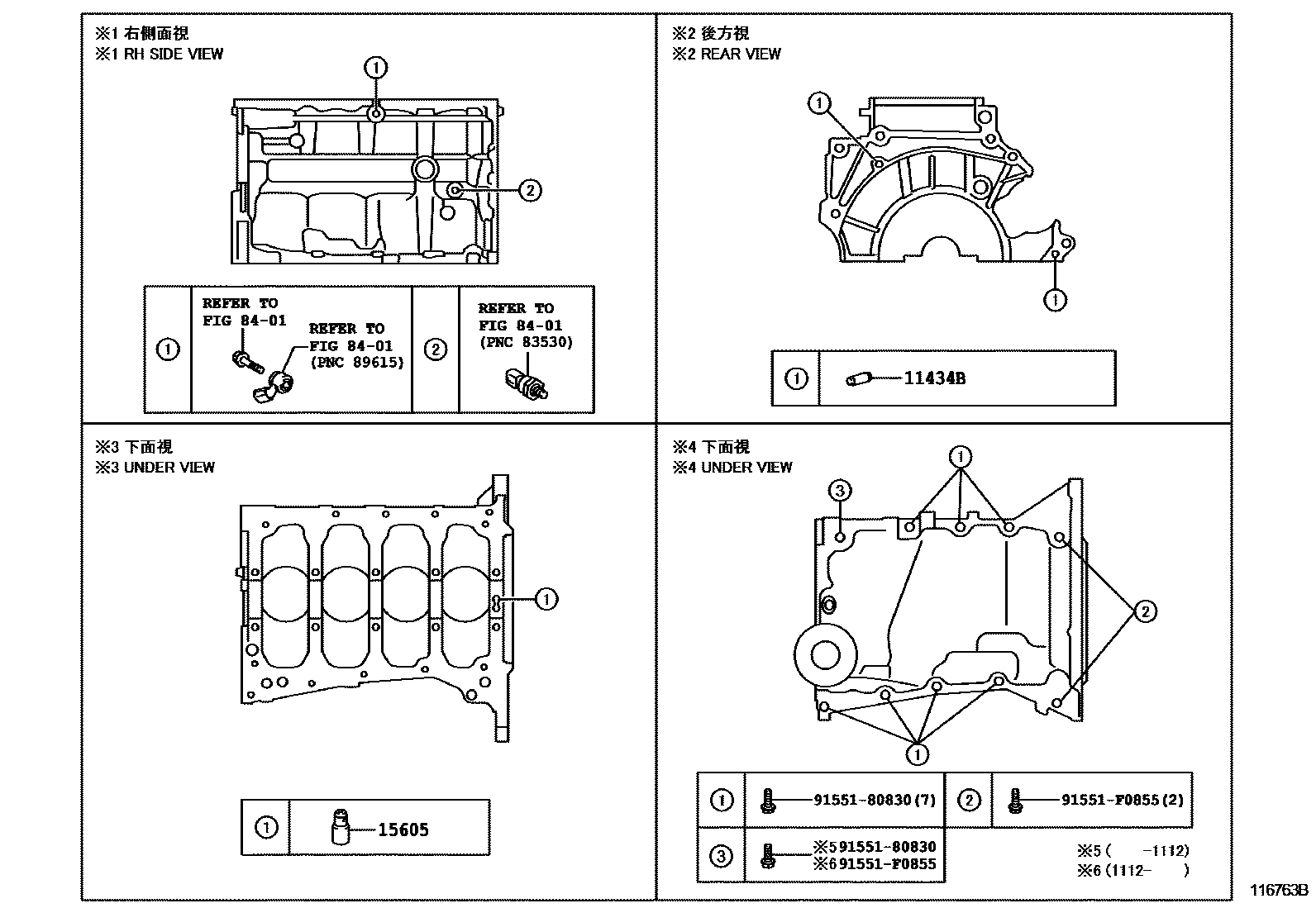

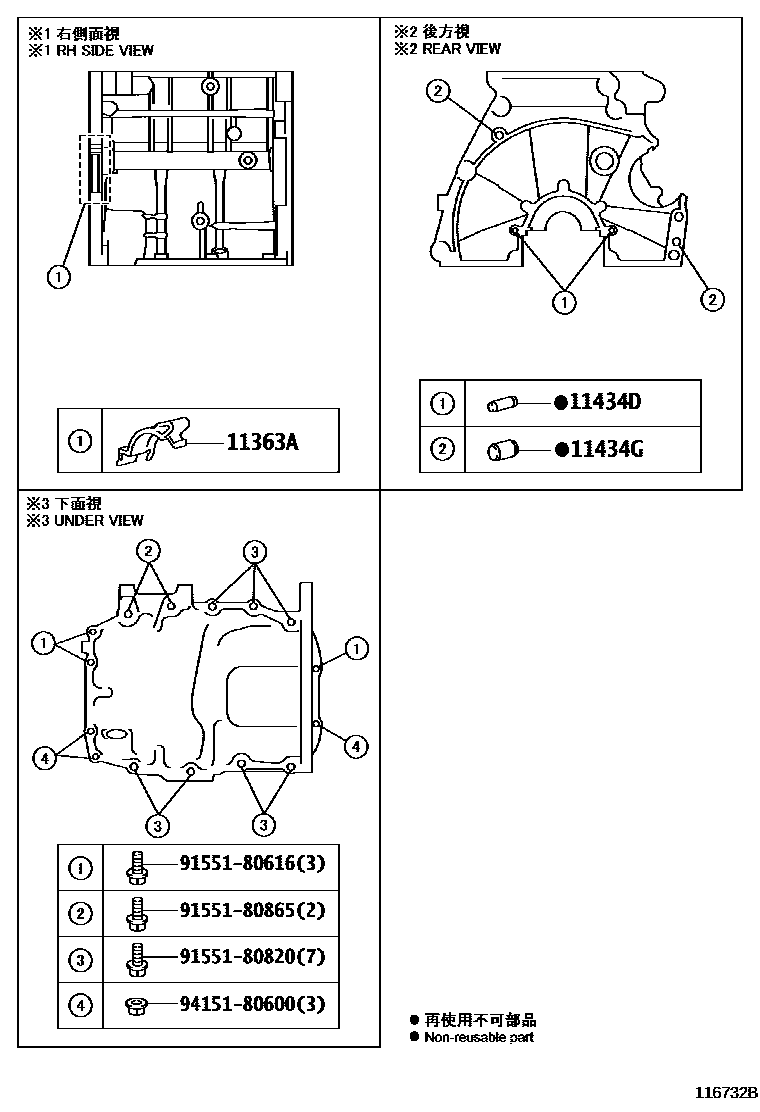

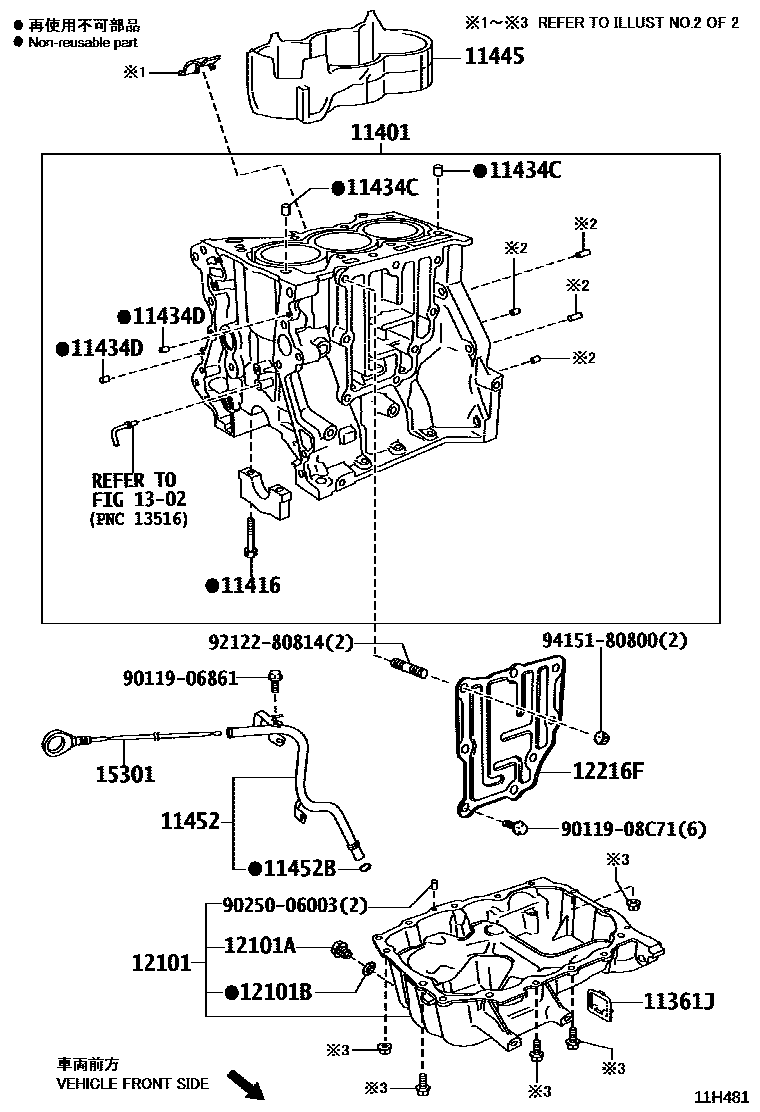

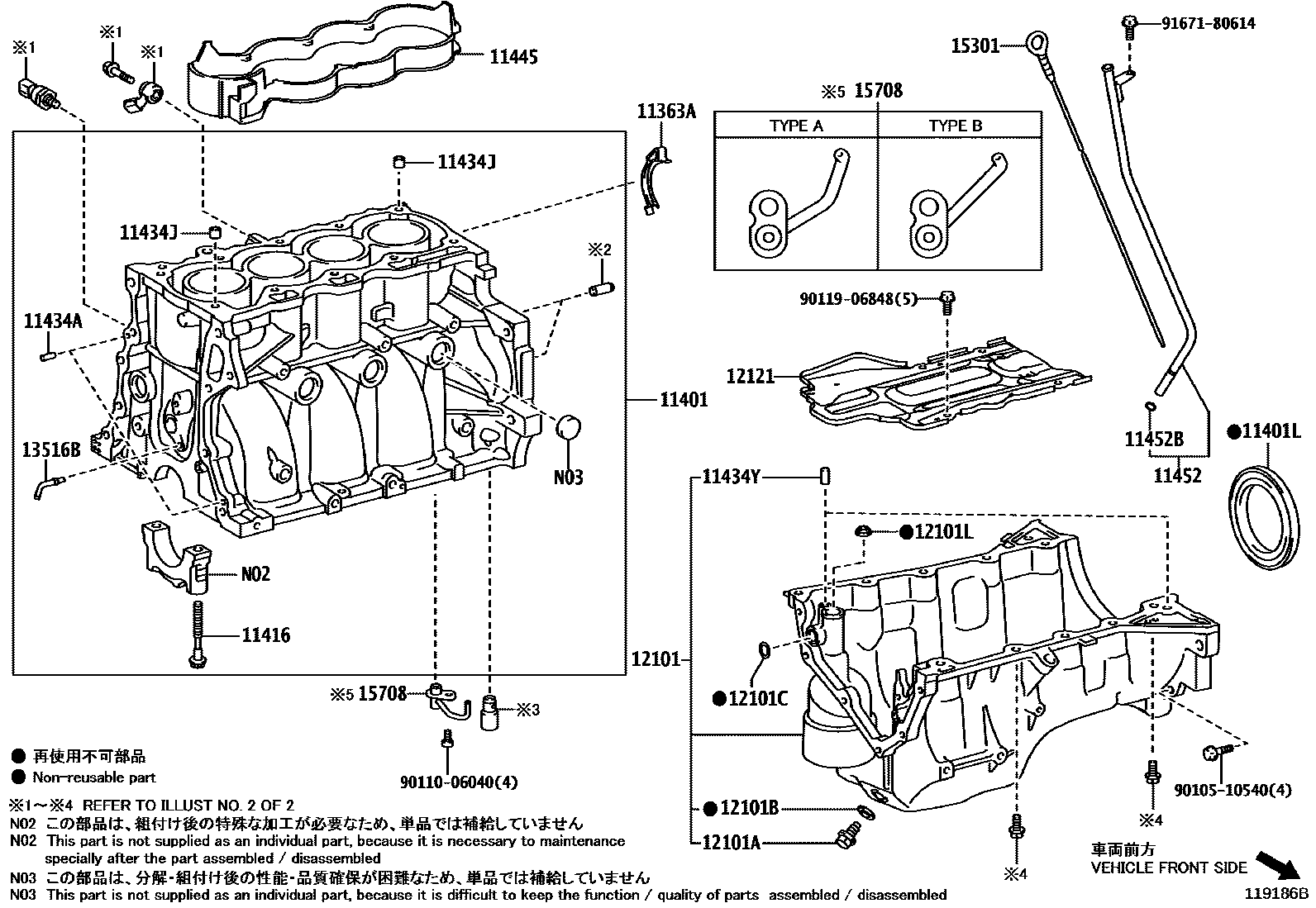

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-23020 |
| 11363A | Flywheel housing side cover | 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11401-40041 · 11410-49025 · 11410-49026 · 11410-49028 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-78003 · 90311-78005 · 90311-99012 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10531 · 90910-02175 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-12002 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11434G | Direct sales (for end plates) | 90250-10232 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 |
| 11445 | Cylinder block water jacket spacer | 11445-40010 · 11445-47010 |
| 11452 | Engine oil level gauge guide | 11409-40060 · 11409-47011 · 11409-47012 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-40100 · 12101-47100 · 12101-47101 · 12101-47120 · 12101-47121 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-19023 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-12039 |
| 12121 | No. 1 oil pan baffle | 12121-B1060 |
| 12216F | ventilation baffle | 12216-40020 |
| 13516B | oil nozzle | 13516-40010 |
| 15301 | Engine oil level scoring assembly | 15301-40100 · 15301-47050 |
| 15605 | Oil check valve sub-assembly | 15703-47010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-47030 · 15708-47031 · 15708-47040 · 15708-47060 |
