Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

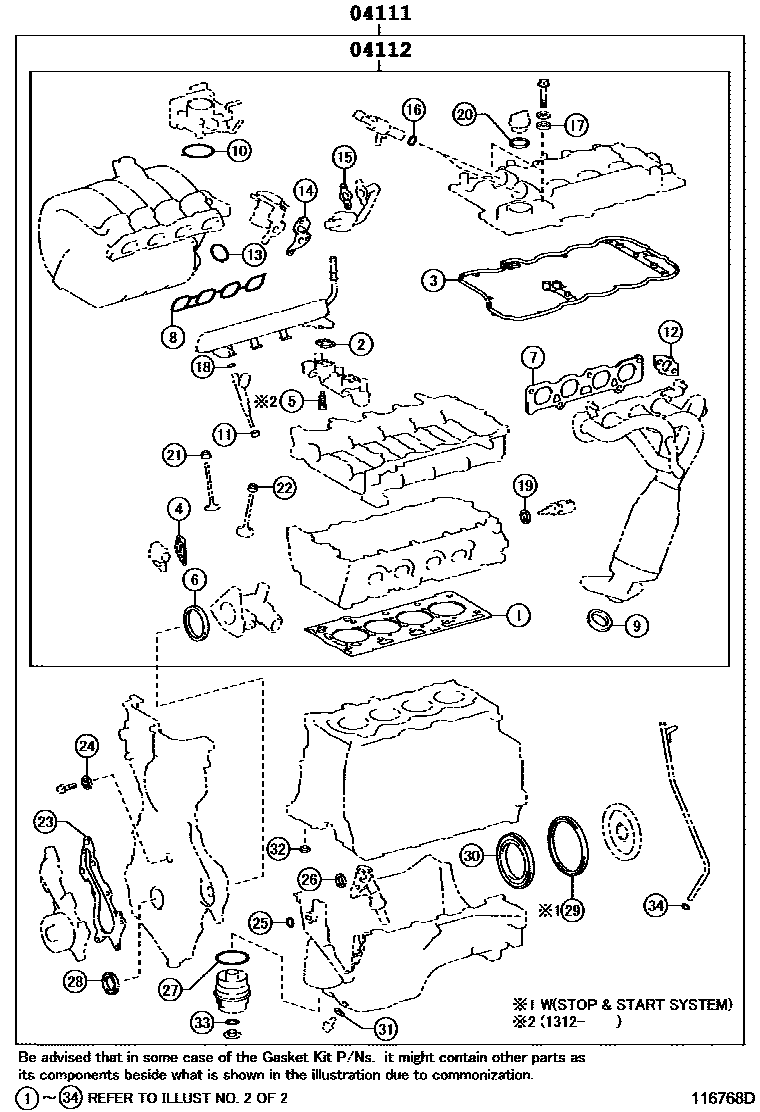

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 116768D
Engine Overhaul Gasket Kit — 116768D (201108 – 999999)

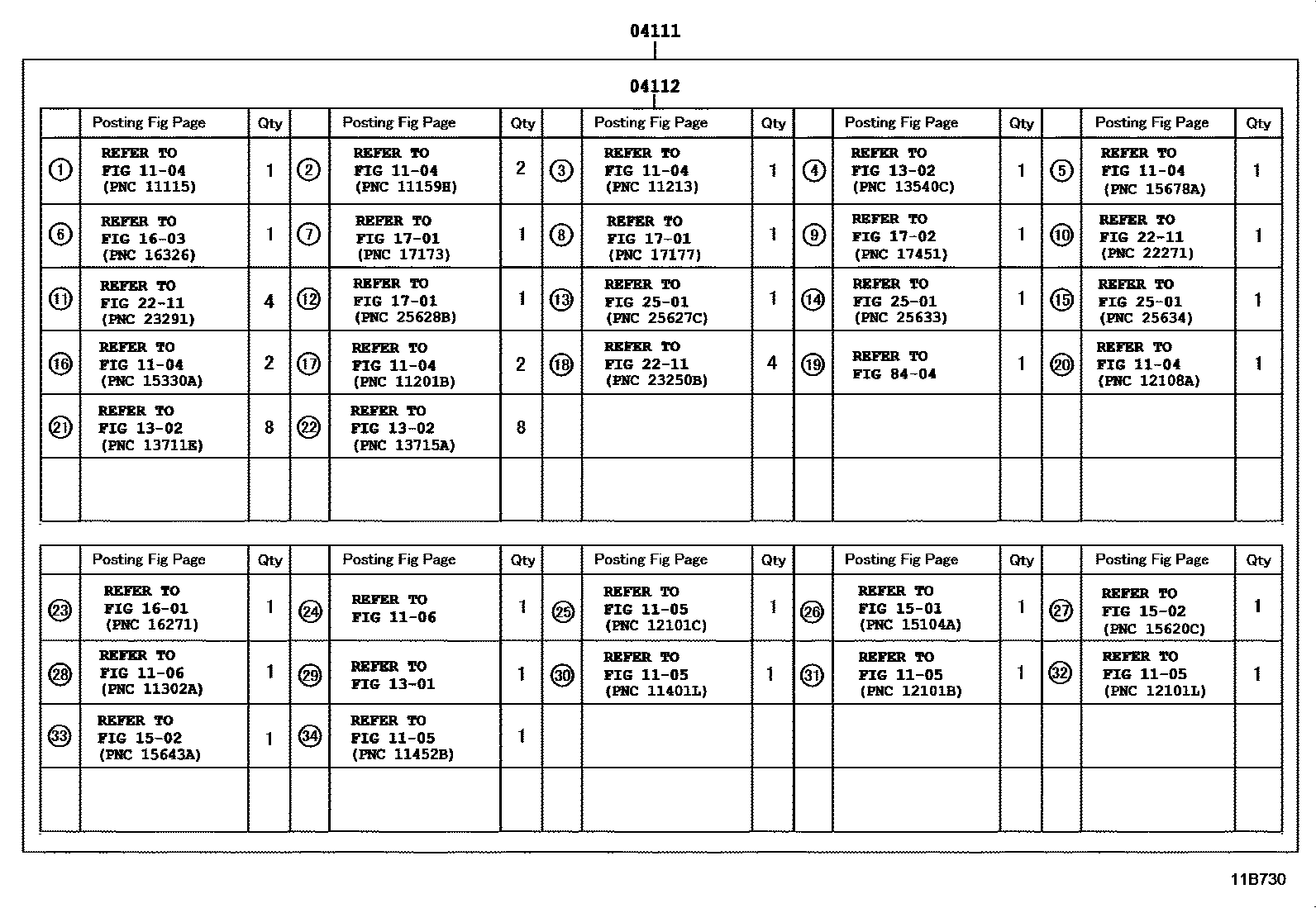

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B730
Engine Overhaul Gasket Kit — 11B730 (201108 – 999999)

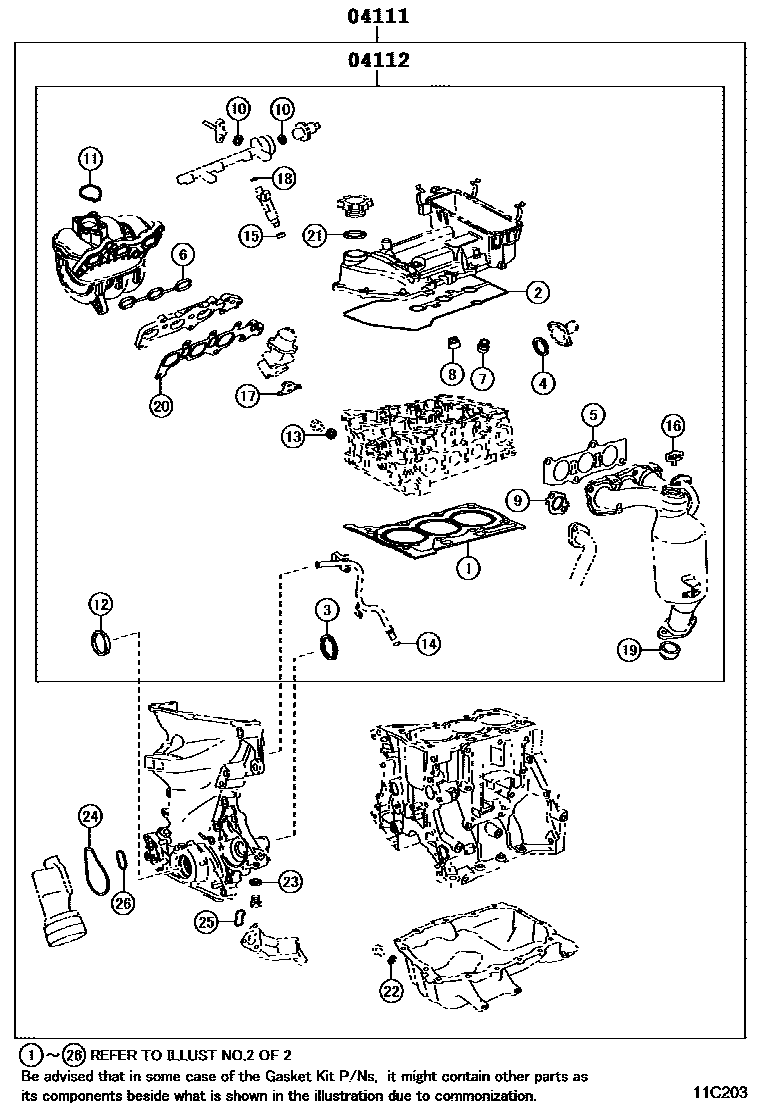

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C203
Engine Overhaul Gasket Kit — 11C203 (201108 – 201208)

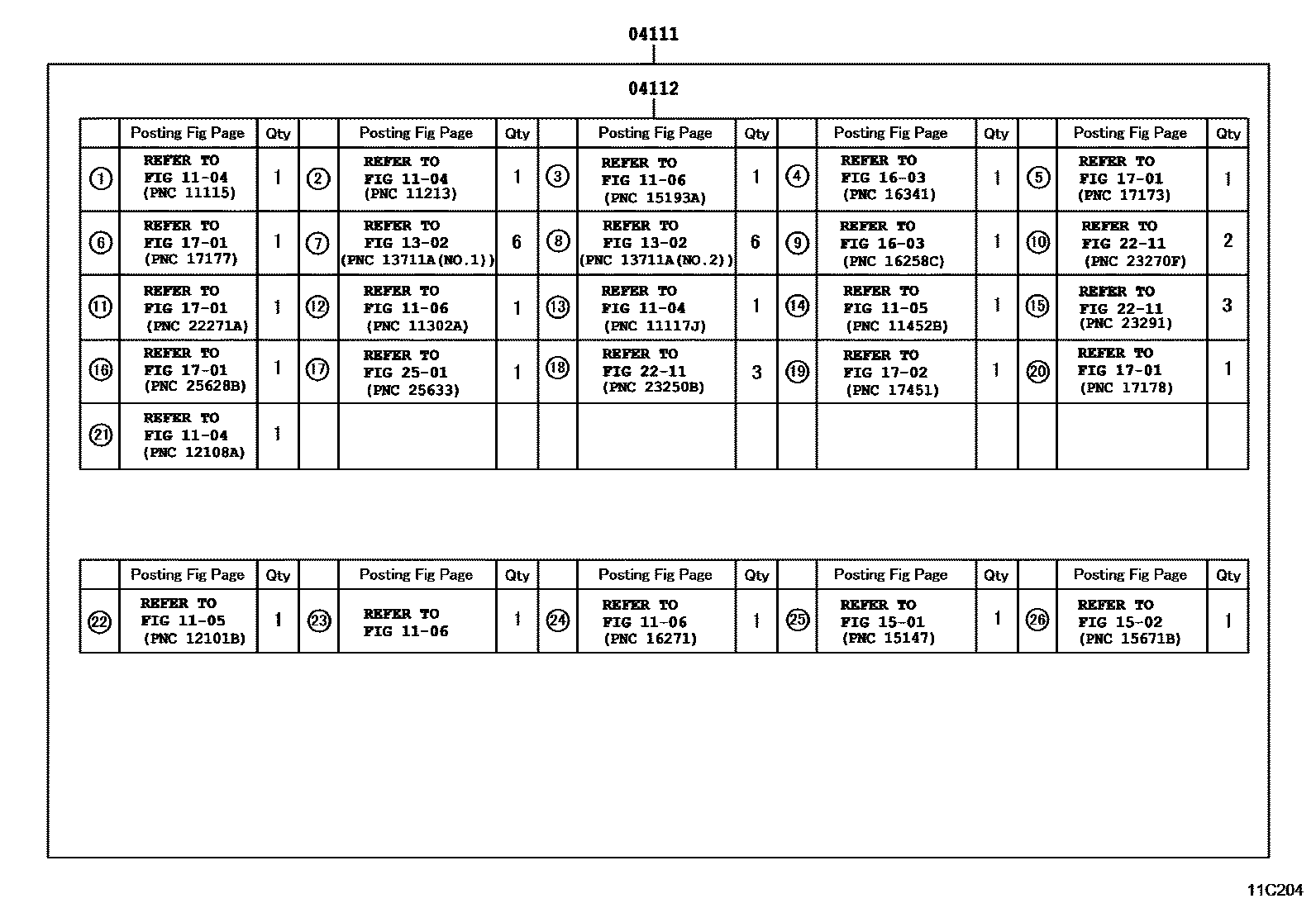

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C204
Engine Overhaul Gasket Kit — 11C204 (201108 – 201208)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-40073 · 04111-47044 · 04111-47045 · 04111-47054 · 04111-47055 · 04111-47056 · 04111-47057 · 04111-47170
04112Engine valve grinding pad assembly04112-40033 · 04112-47044 · 04112-47045 · 04112-47046 · 04112-47120
