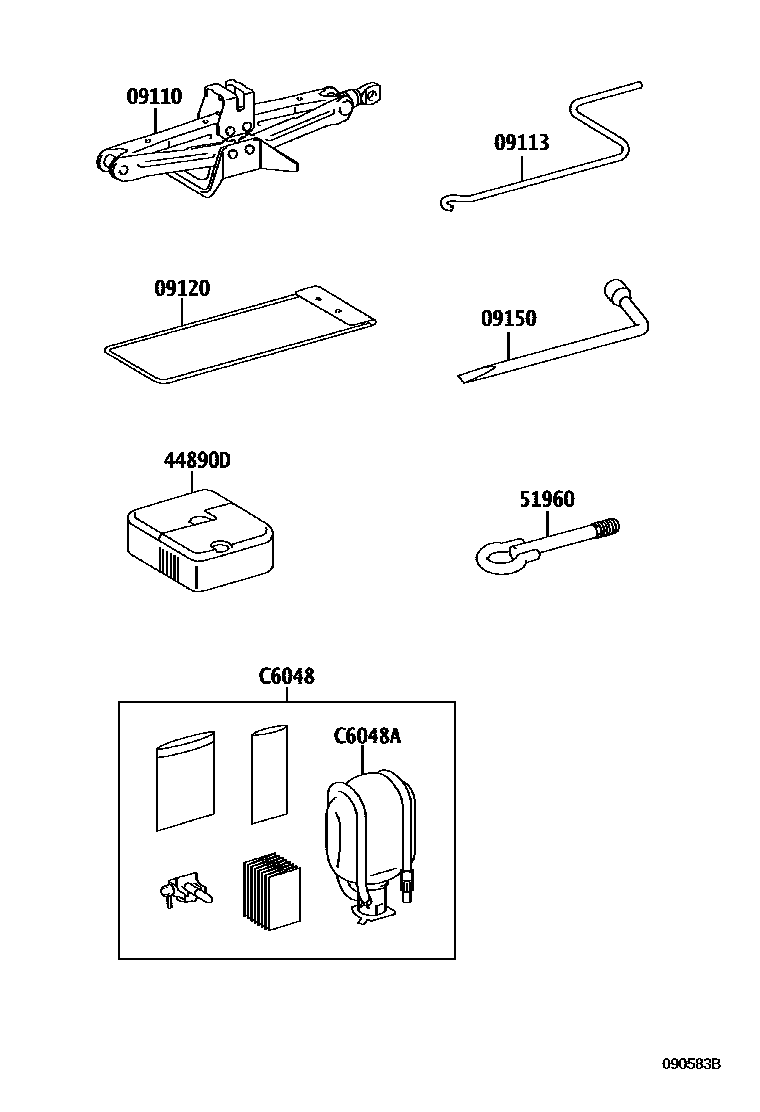

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-52060 |
| 09113 | Jack Handle | 09113-20050 · 09113-52040 |
| 09120 | Tool Bag | 09120-37030 |
| 09150 | Wheel Nut Wrench | 09150-40010 |
| 44890D | Air Compressor Assembly | 44890-52020 · 44890-52021 |
| 51960 | Front Towing Hook Assembly | 51960-47020 |
| C6048 | Tire Repair Kit | 42683-52020 · 42683-52021 |
| C6048A | Tire Repair Sealant | C6048-52020 · C6048-52021 |
