Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

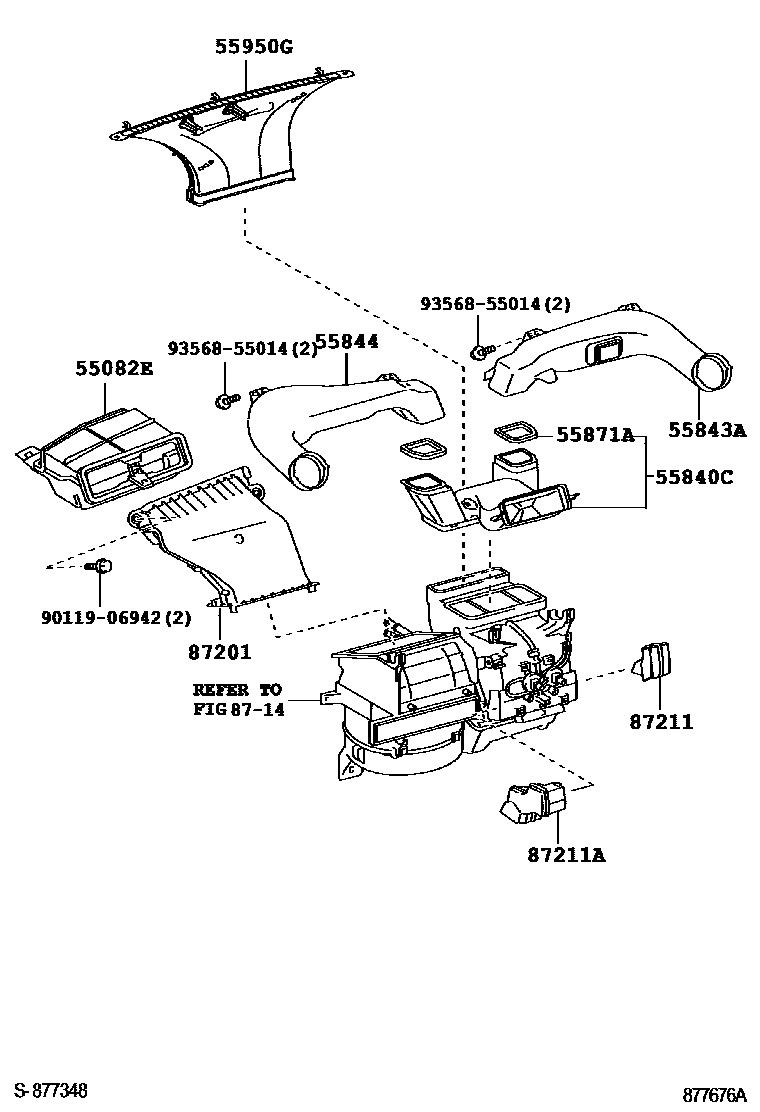

| 55082E | Air duct sub-assembly from front wall to air register No. 2 | 55081-52010 · 55082-52010 |
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-52010 · 55840-52020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-52180 · 55844-52160 |
| 55844 | Air duct No. 2 from heater to air regulator | 55843-52170 |
| 55871A | No. 1 air duct seal | 55871-52040 |

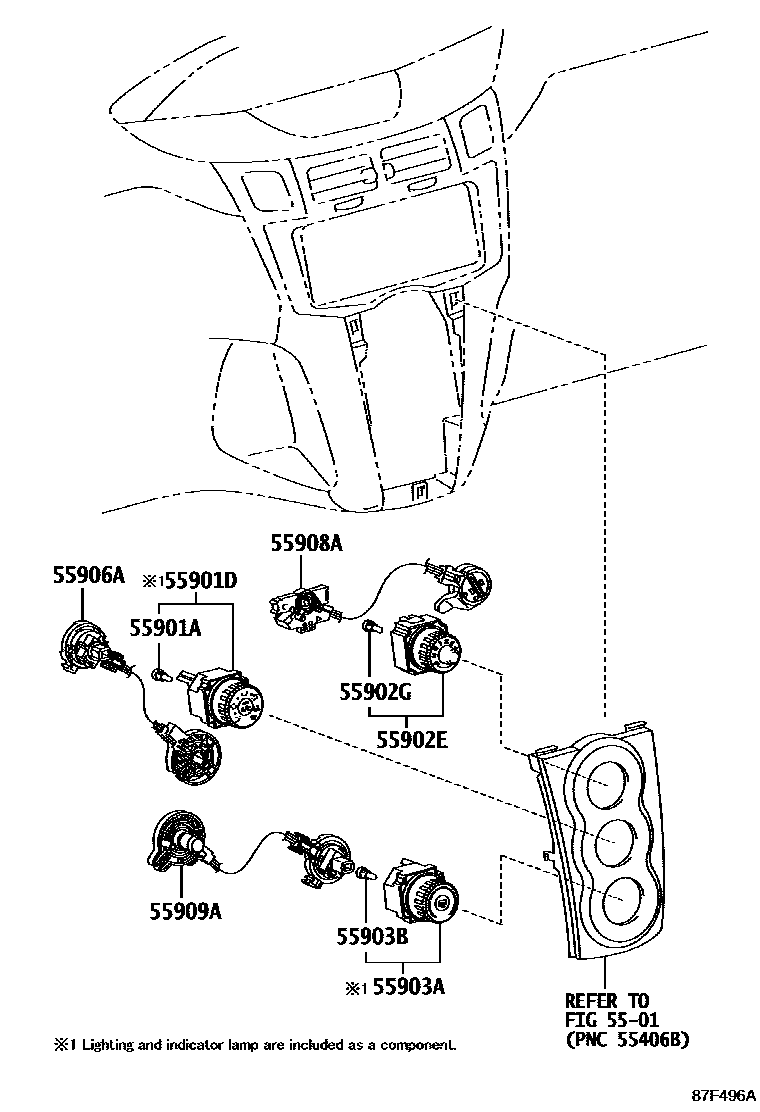

| 55901A | No. 1 heater control bulb sub-assembly | 90010-01112 · 90010-01113 |
| 55901D | No. 1 heater control sub-assembly | 55901-52090 · 55901-52100 · 55901-52130 · 55901-52150 · 55901-52250 · 55901-52260 · 55901-52270 · 55901-52300 |
| 55902E | No. 2 heater control sub-assembly | 55902-52010 · 55902-52030 · 55902-52130 · 55902-52140 |
| 55902G | No. 2 heater control bulb sub-assembly | 90010-01112 · 90010-01113 |
| 55903A | No. 3 heater control sub-assembly | 55903-52010 · 55903-52020 · 55903-52090 · 55903-52100 · 55903-52260 · 55903-52270 · 55903-52280 · 55903-52290 |
| 55903B | No. 3 heater control bulb sub-assembly | 90010-01112 · 90010-01113 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52132 |
| 55908A | Intake air valve control cable sub-assembly | 55908-52120 · 55908-52130 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |

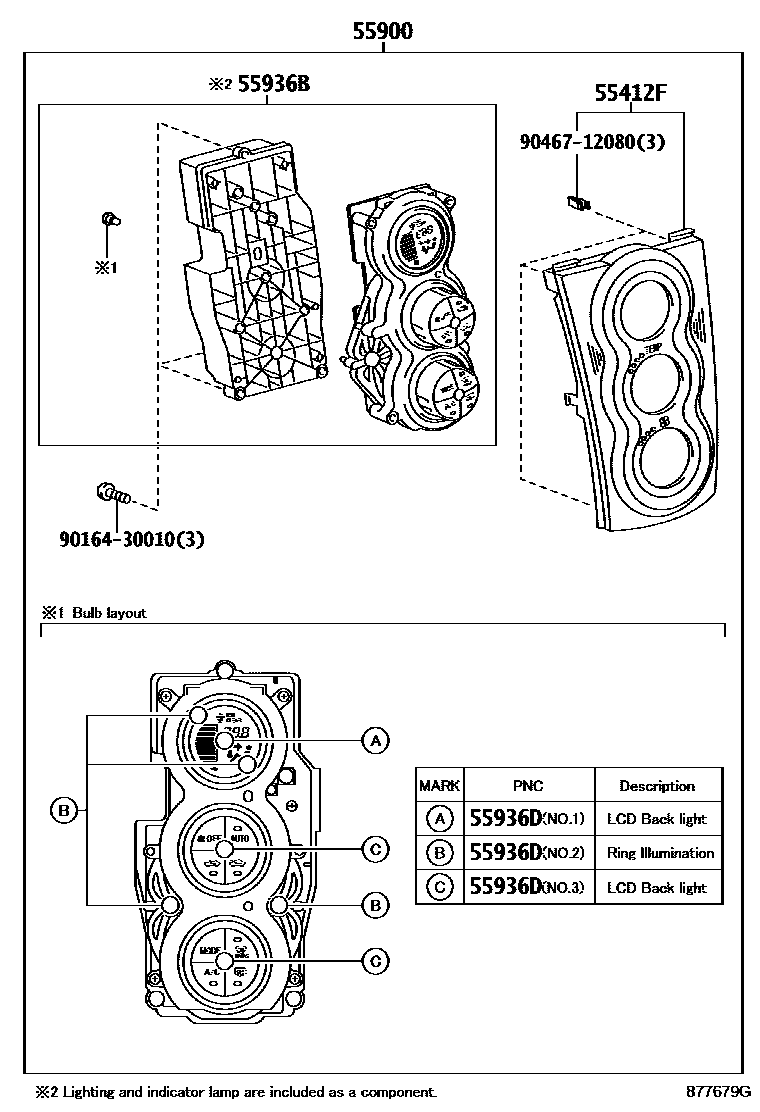

| 55936B | Central instrument cluster module switch | 55936-52170 · 55936-52200 · 55936-52310 |
| 55936D | Center instrument cluster module switch bulb | 90010-01097 · 90010-01114 · 90010-01115 · 90010-01124 · 90010-01131 · 90010-01132 · 90010-01144 |
| 55950G | Defroster nozzle assembly | 55950-52120 |

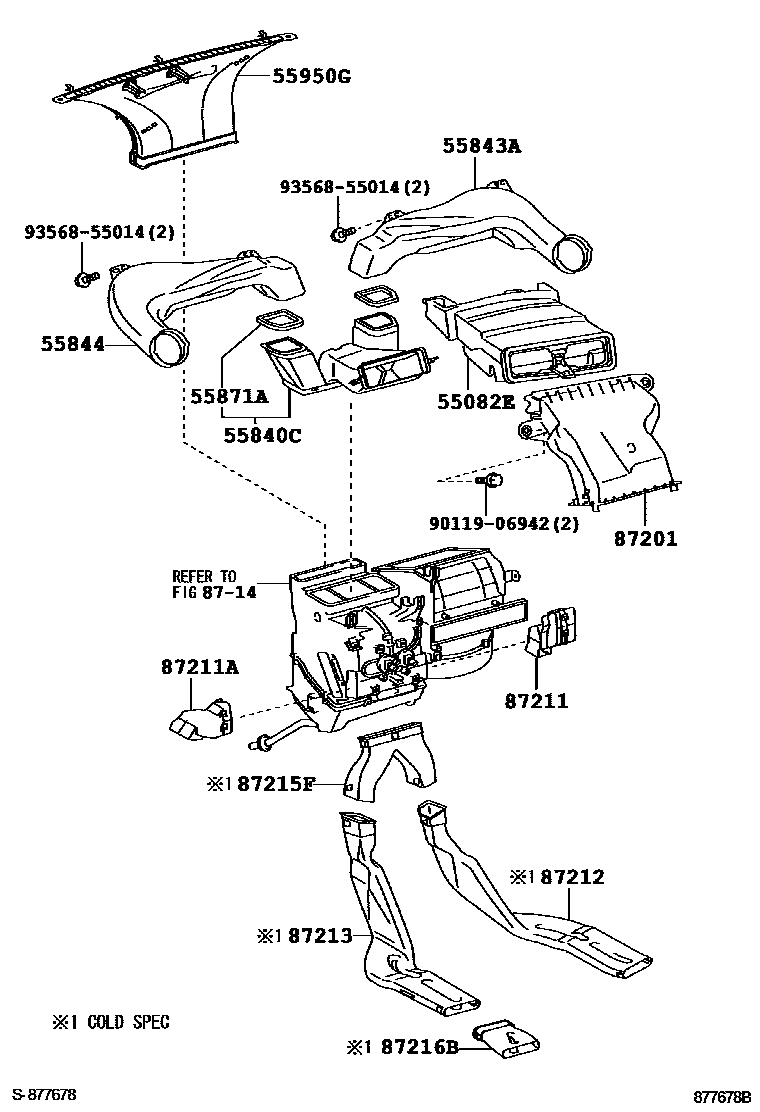

| 87201 | No. 1 air duct sub-assembly | 87201-52020 · 87201-52030 |
| 87211 | No. 1 air duct | 87211-52010 · 87211-52040 |
| 87211A | Duct No. 2 | 87211-52020 · 87211-52030 |
| 87212 | No. 1 rear air duct | 87212-52100 |
| 87213 | No. 2 rear air duct | 87213-52070 |
| 87215F | No. 3 rear air duct | 87215-52050 |
| 87216B | No. 4 rear air duct | 87216-52040 |

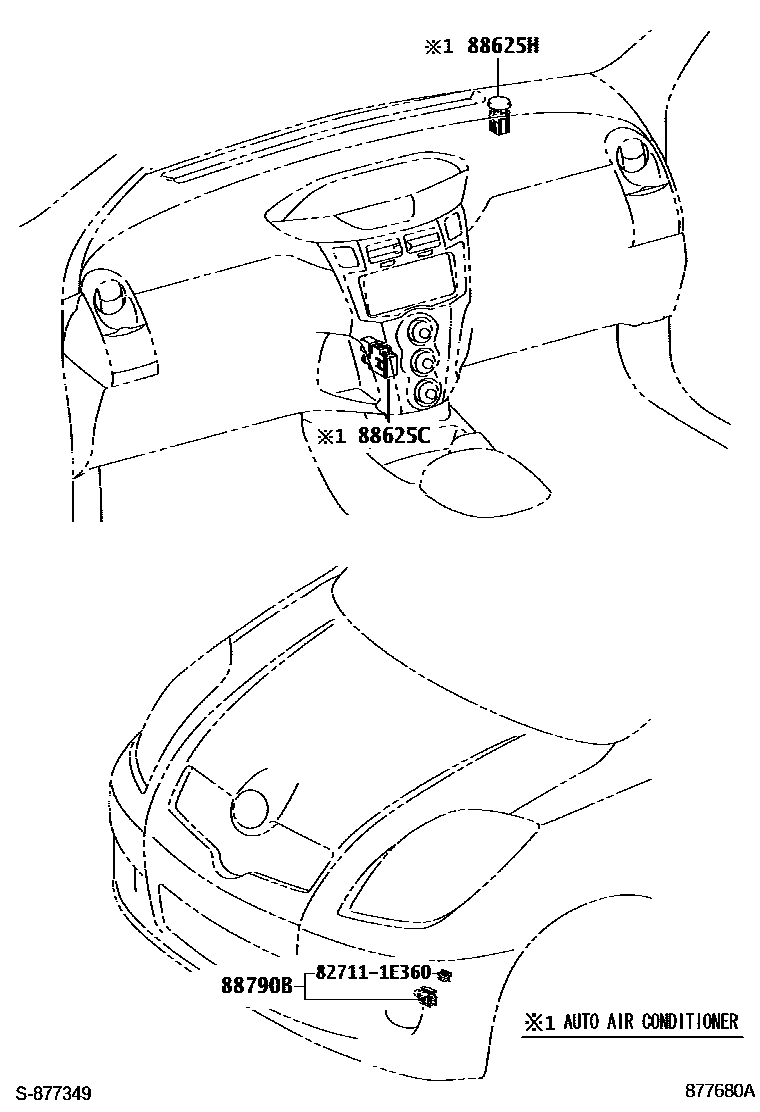

| 88625C | Cooler thermistor | 88625-47021 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88790B | Thermistor assembly | 88790-22131 |
