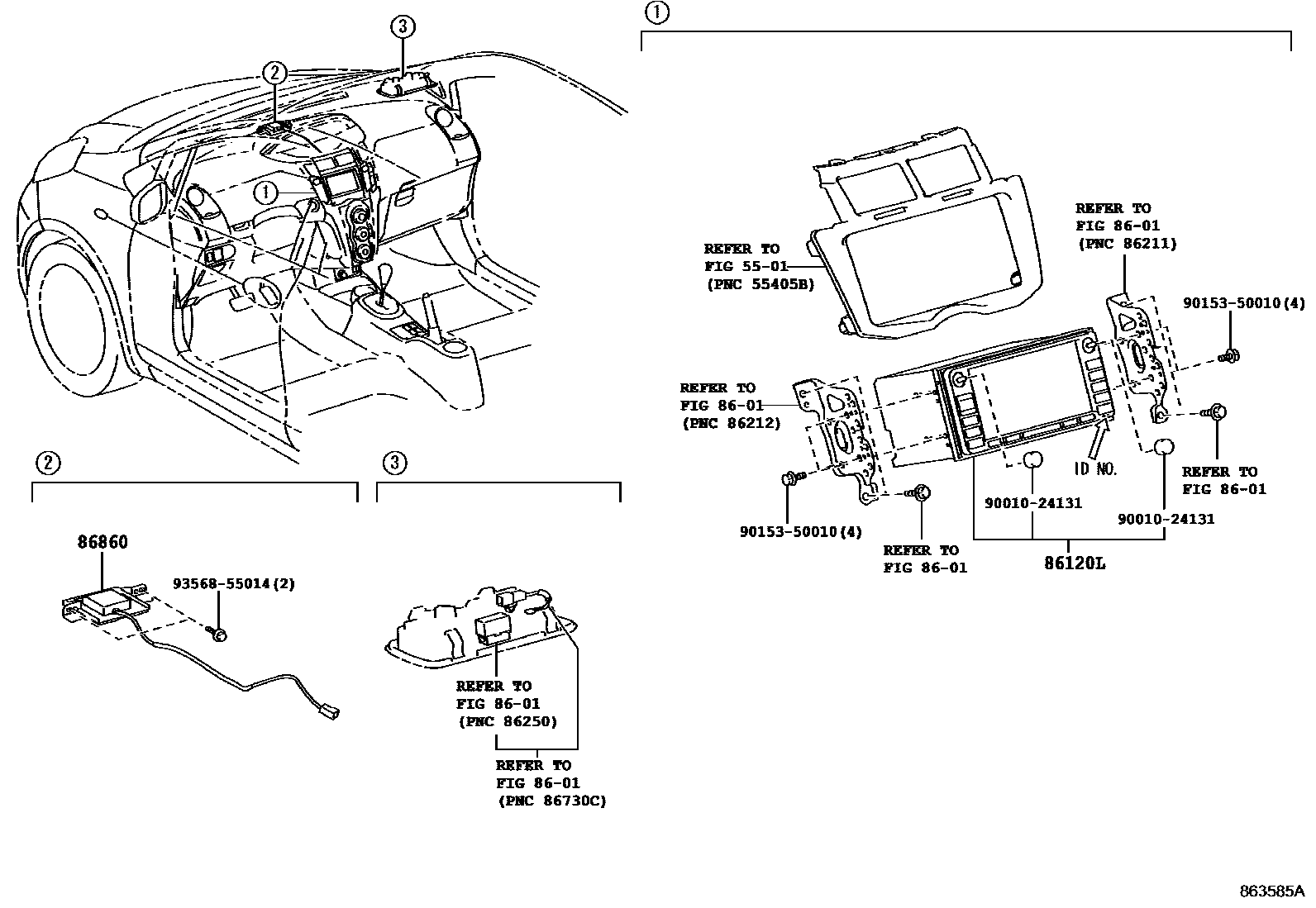

Toyota YARIS 导航和前监视器显示屏 — Figure 8603
Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-20A90 |
| 86860 | Navigation antenna assembly | 86860-52080 |
