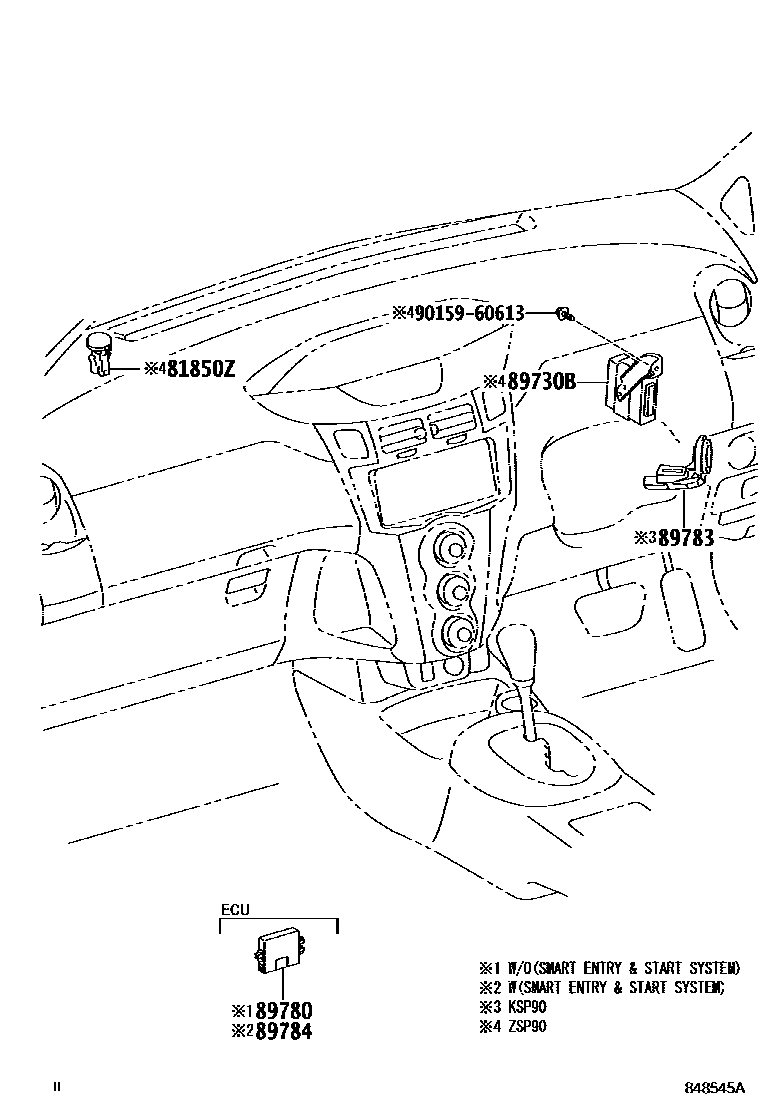

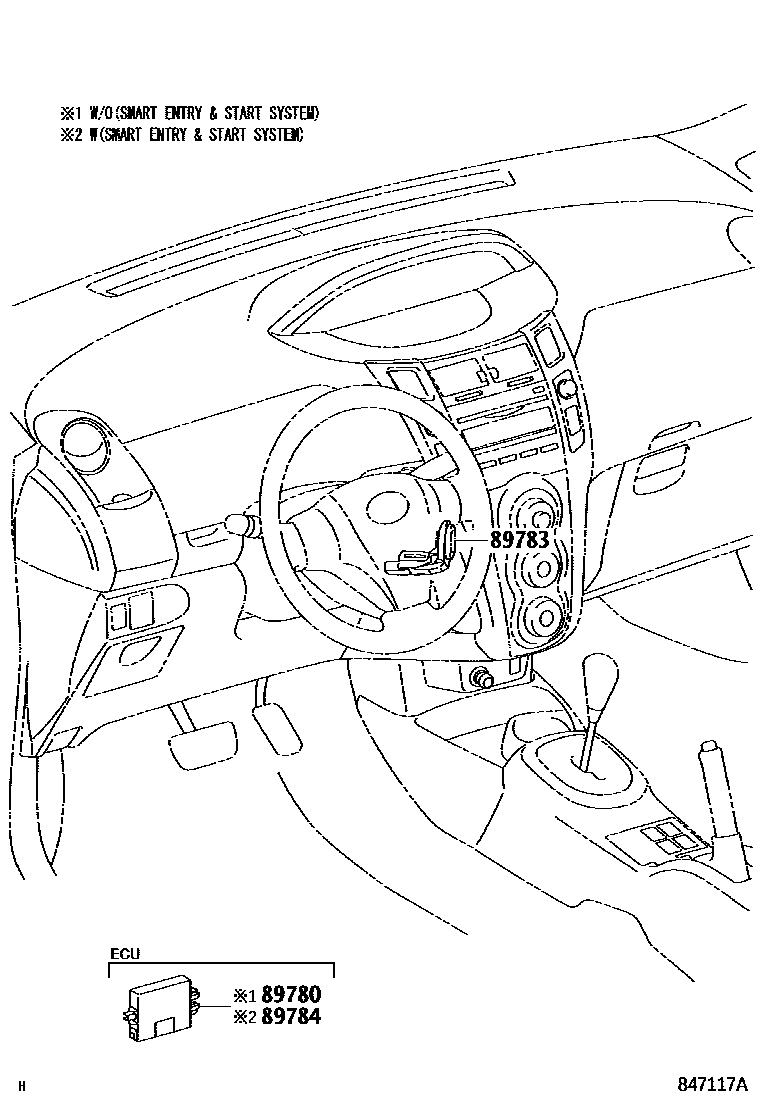

Toyota YARIS 防盗装置 — Figure 8424
Toyota YARIS EPC diagram 8424, 防盗装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-52010 |
| 89730B | Anti-theft warning ECU assembly | 89730-52050 · 89730-52060 |
| 89780 | Transceiver key ECU assembly | 89780-52070 · 89780-52071 · 89780-52090 · 89780-52091 |
| 89783 | transceiver key amplifier | 89783-52050 · 89783-71020 · 89783-71021 |
| 89784 | Shutdown code system ECU | 89784-52010 · 89784-52011 |
