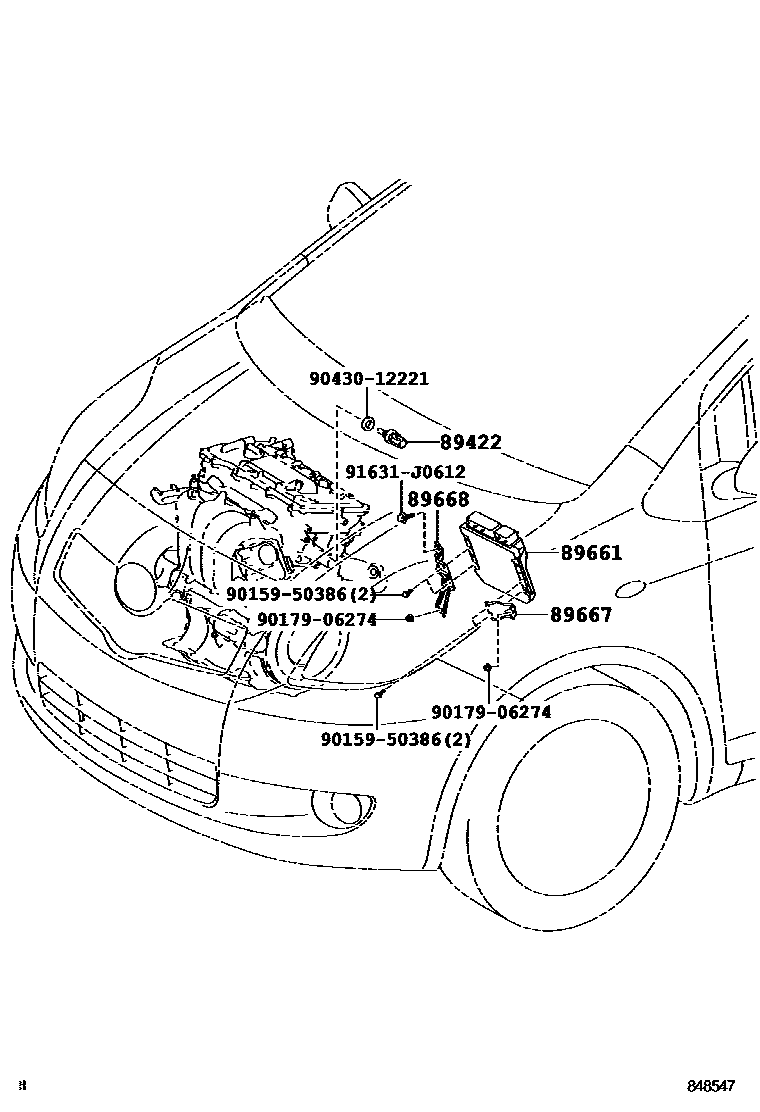

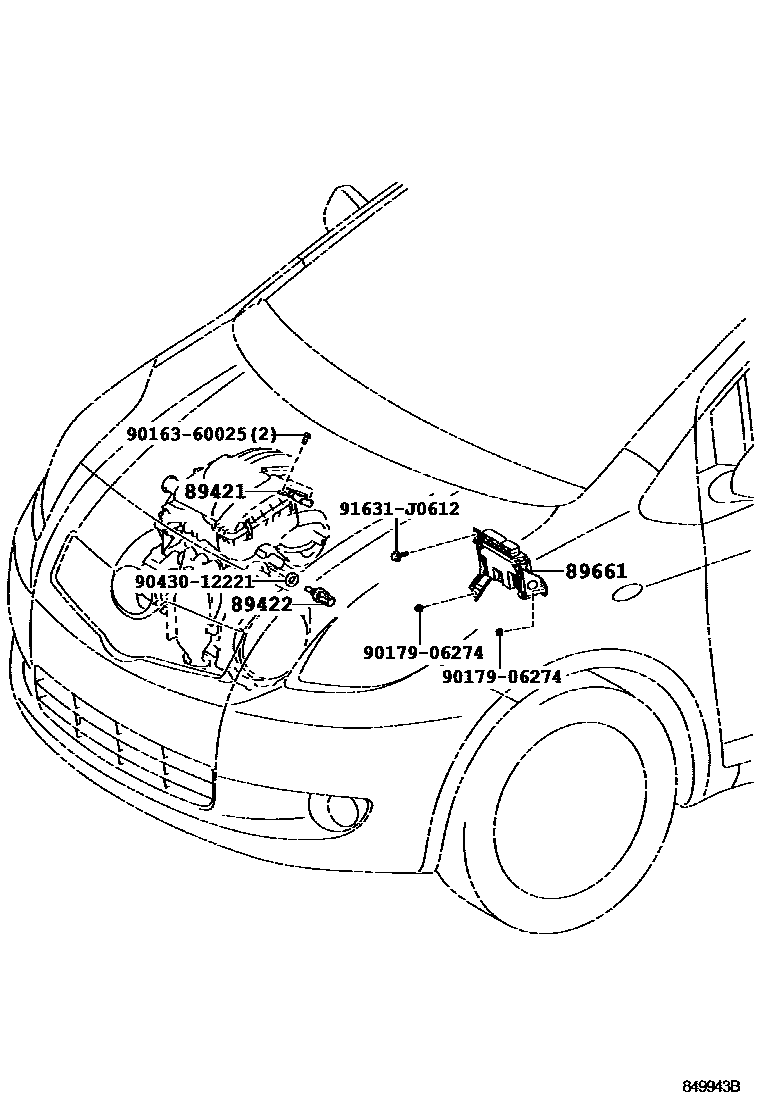

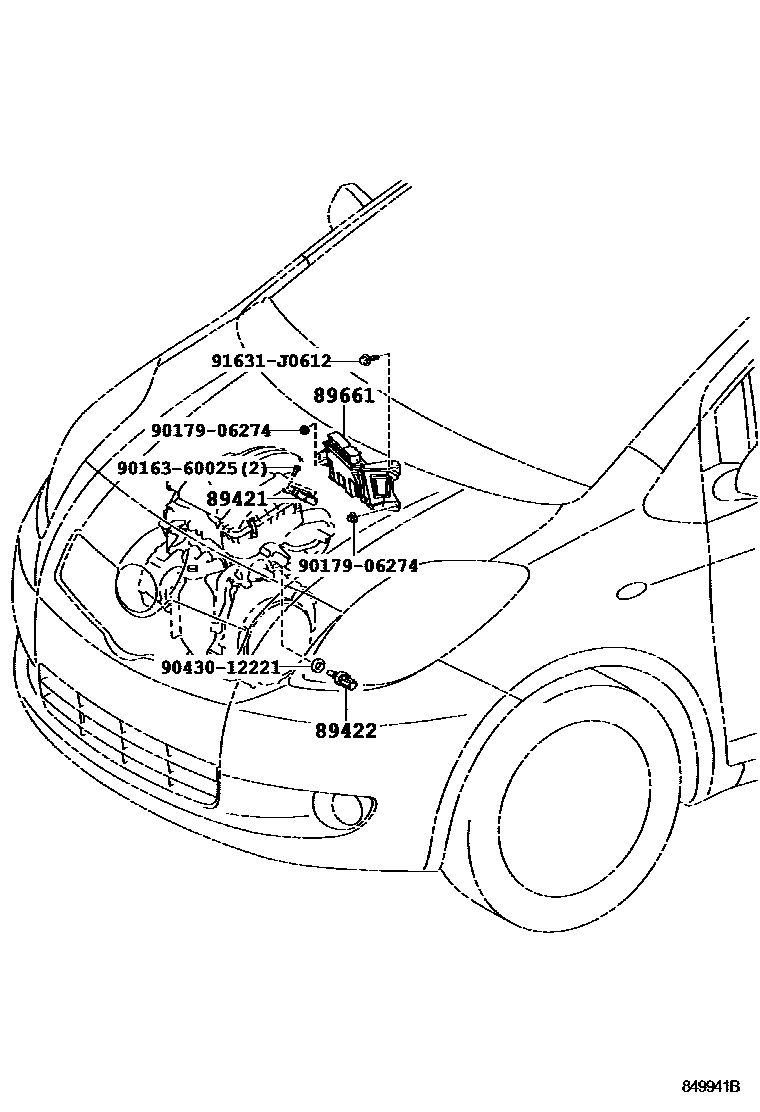

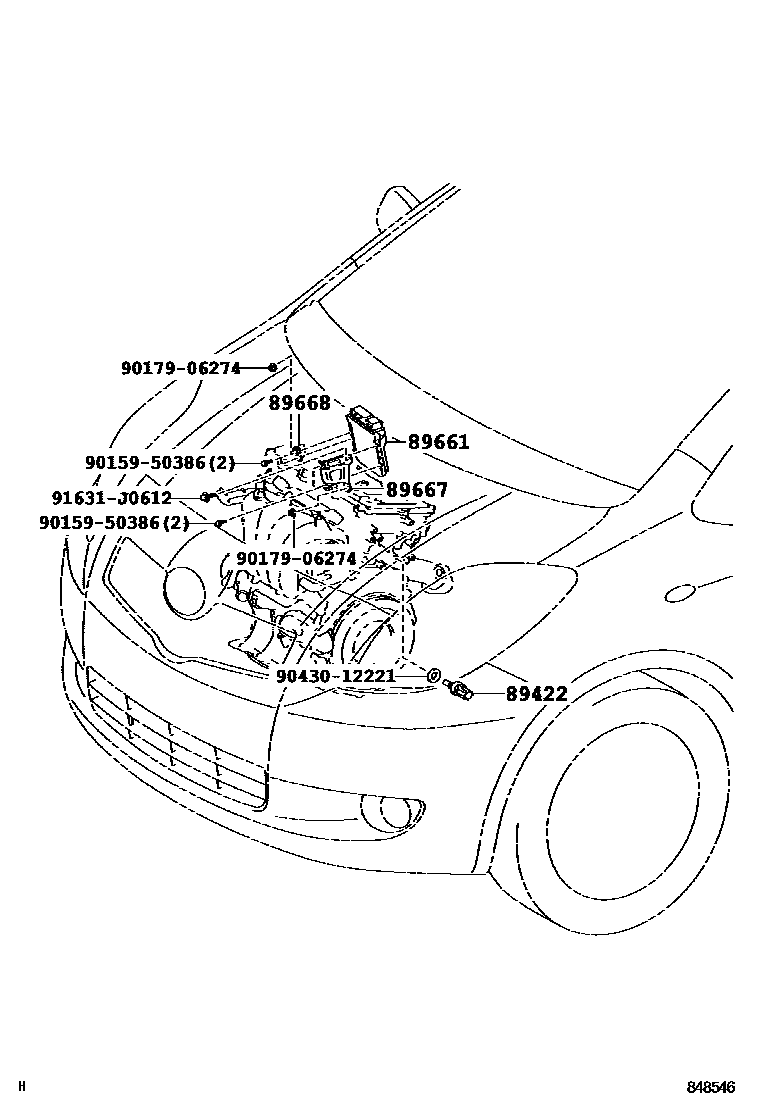

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-52010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89661 | Engine control ECU | 89660-0D390 · 89660-0D400 · 89660-0D430 · 89660-0D730 · 89660-52M00 · 89660-52M30 · 89661-52F30 · 89661-52F40 · 89661-52J60 · 89661-52J70 |
| 89667 | Engine control ECU bracket | 89667-52190 · 89667-52200 |
| 89668 | No. 2 engine control ECU bracket | 89668-52210 · 89668-52220 |
