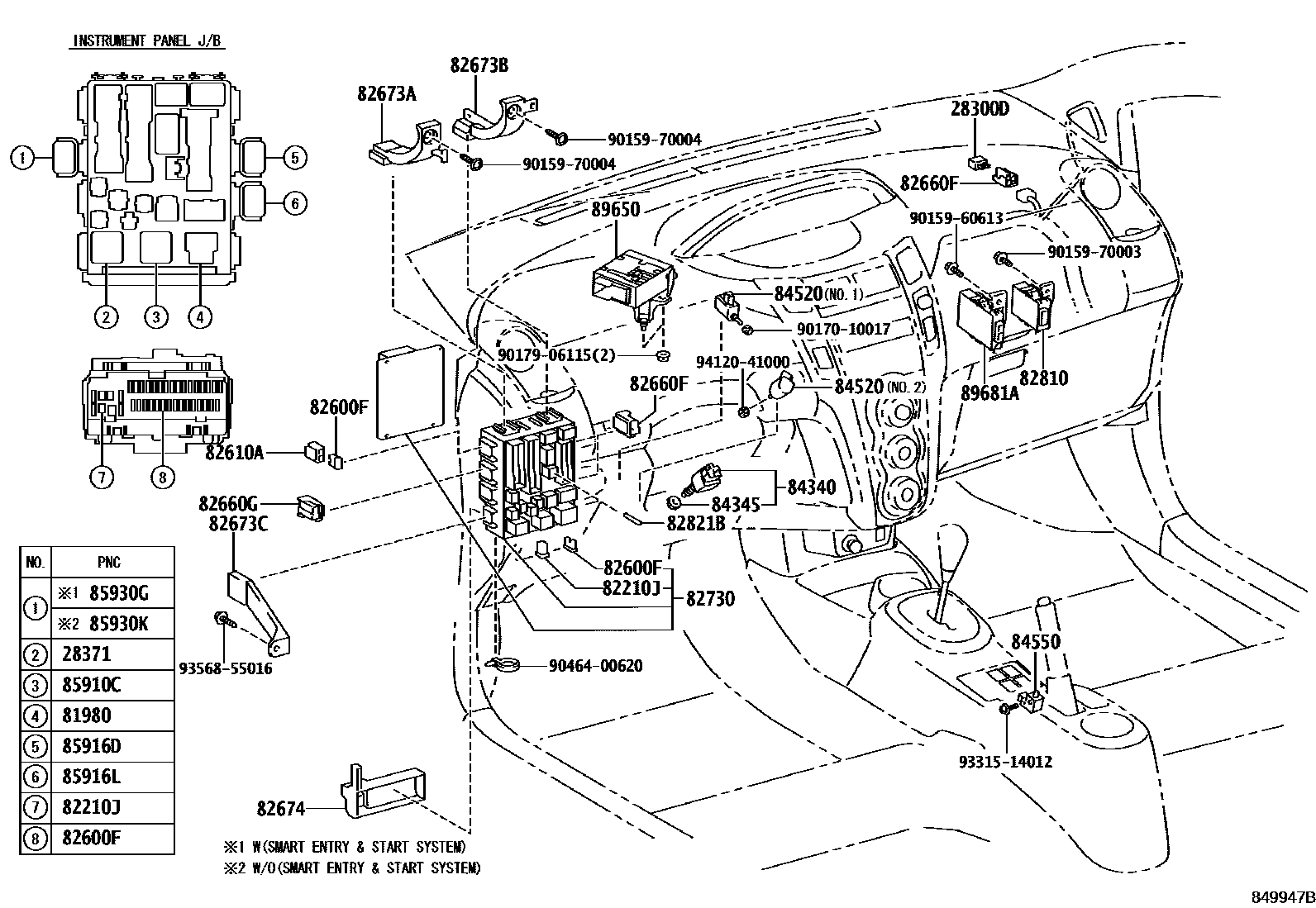

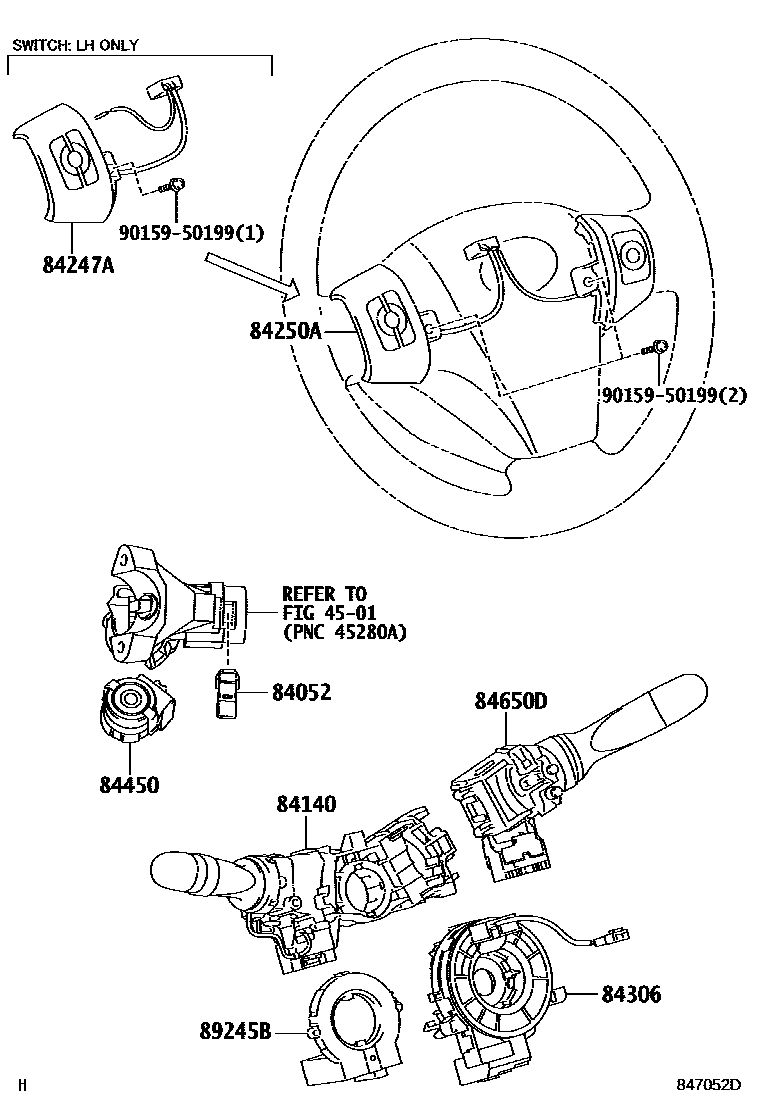

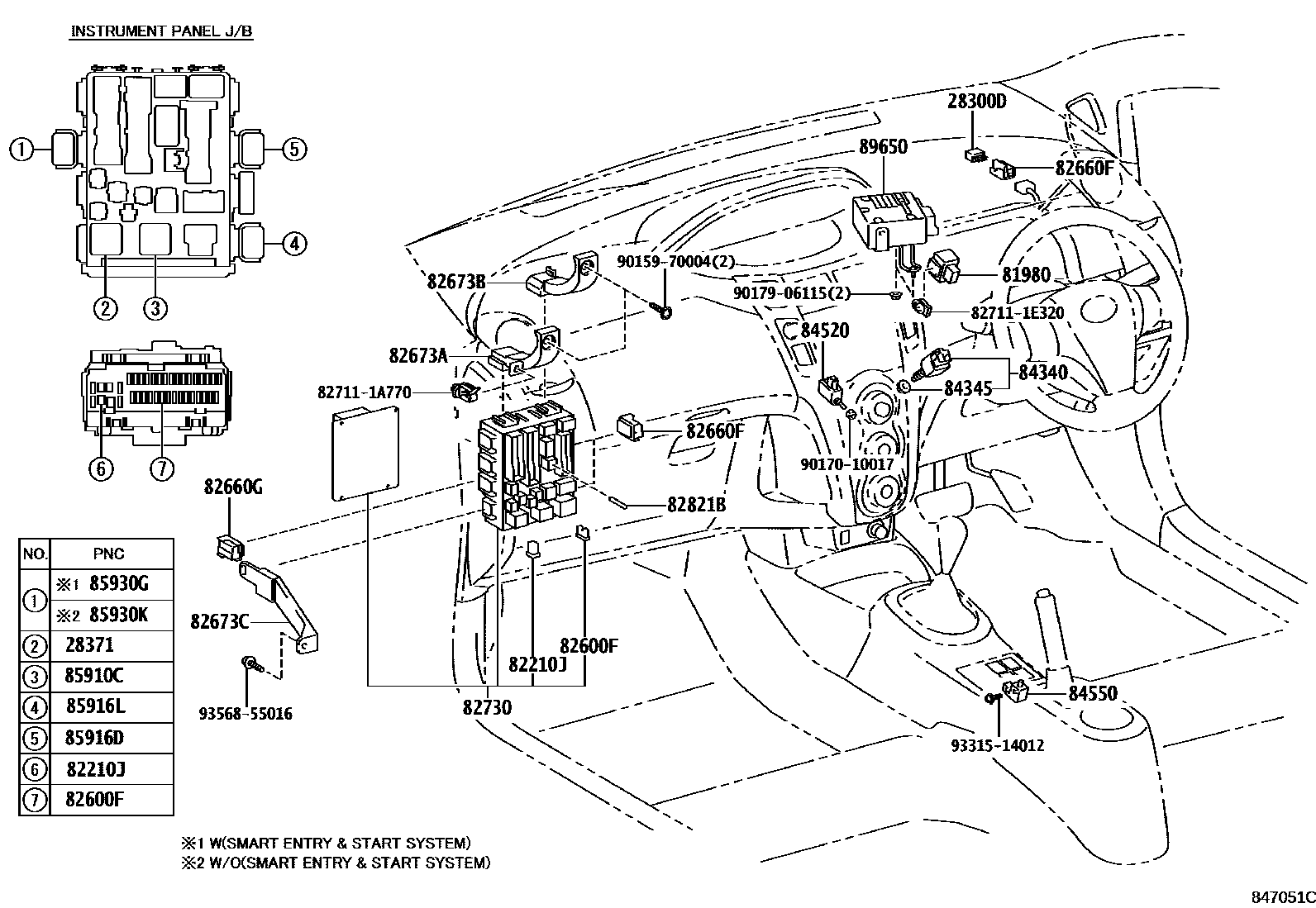

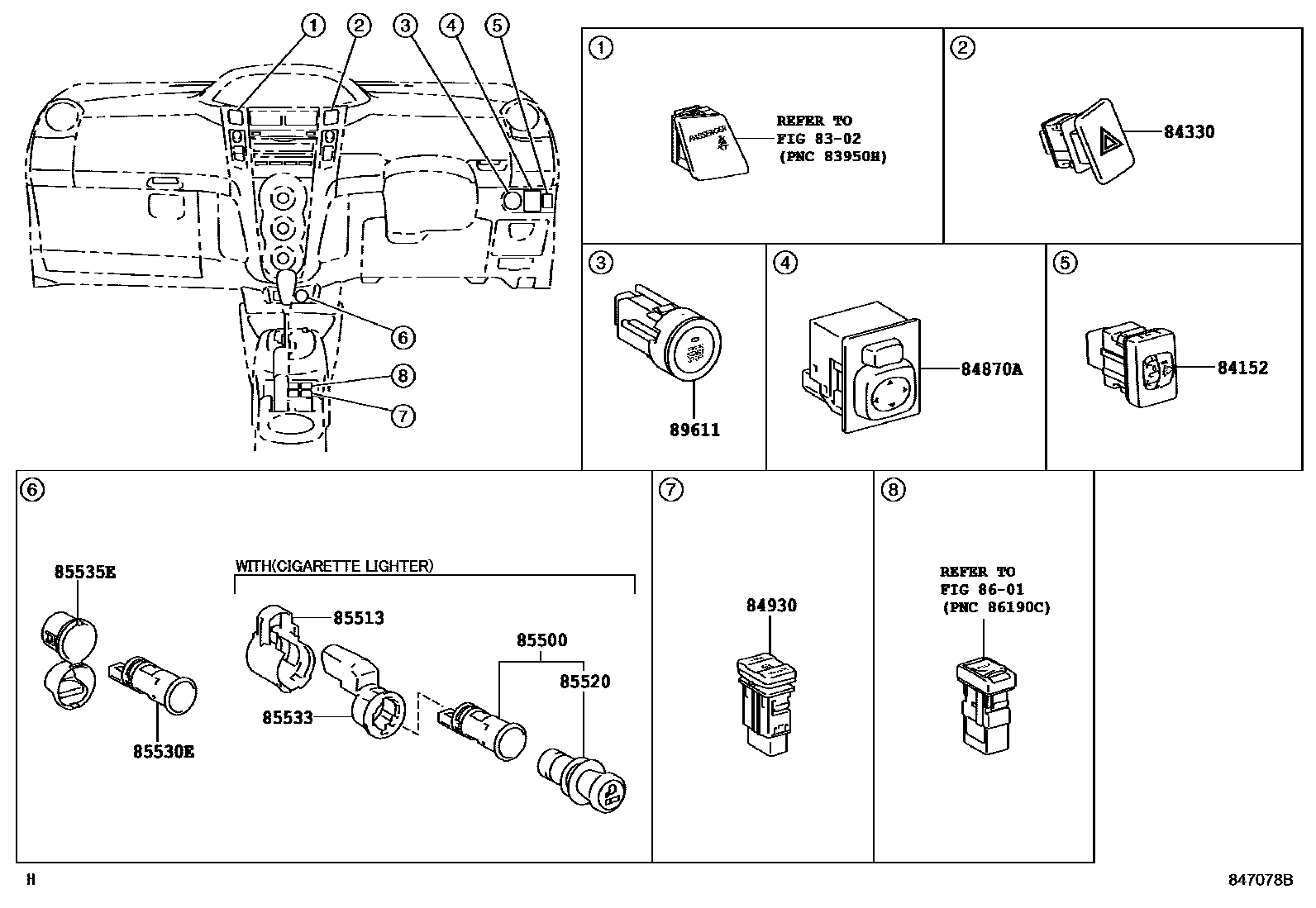

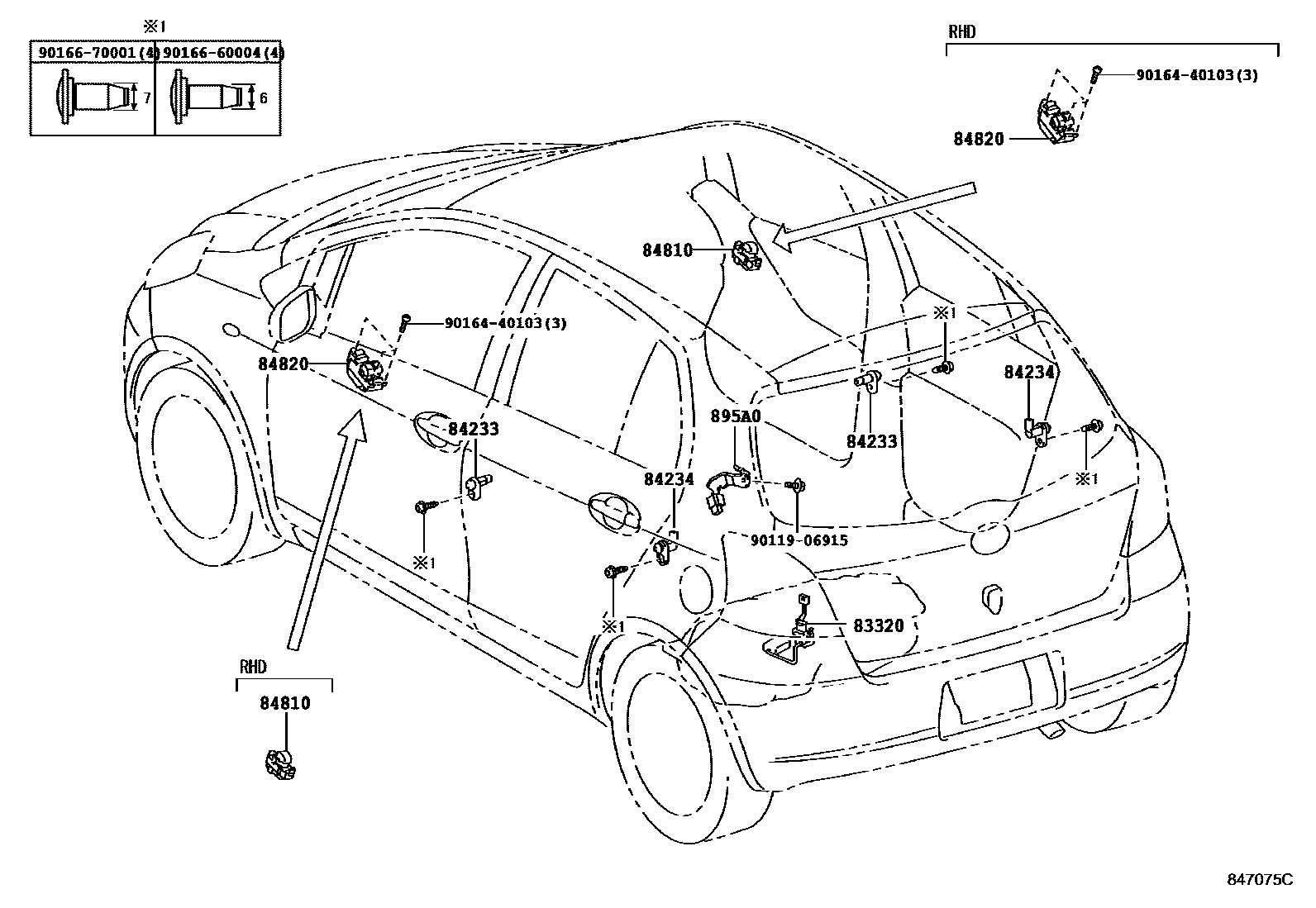

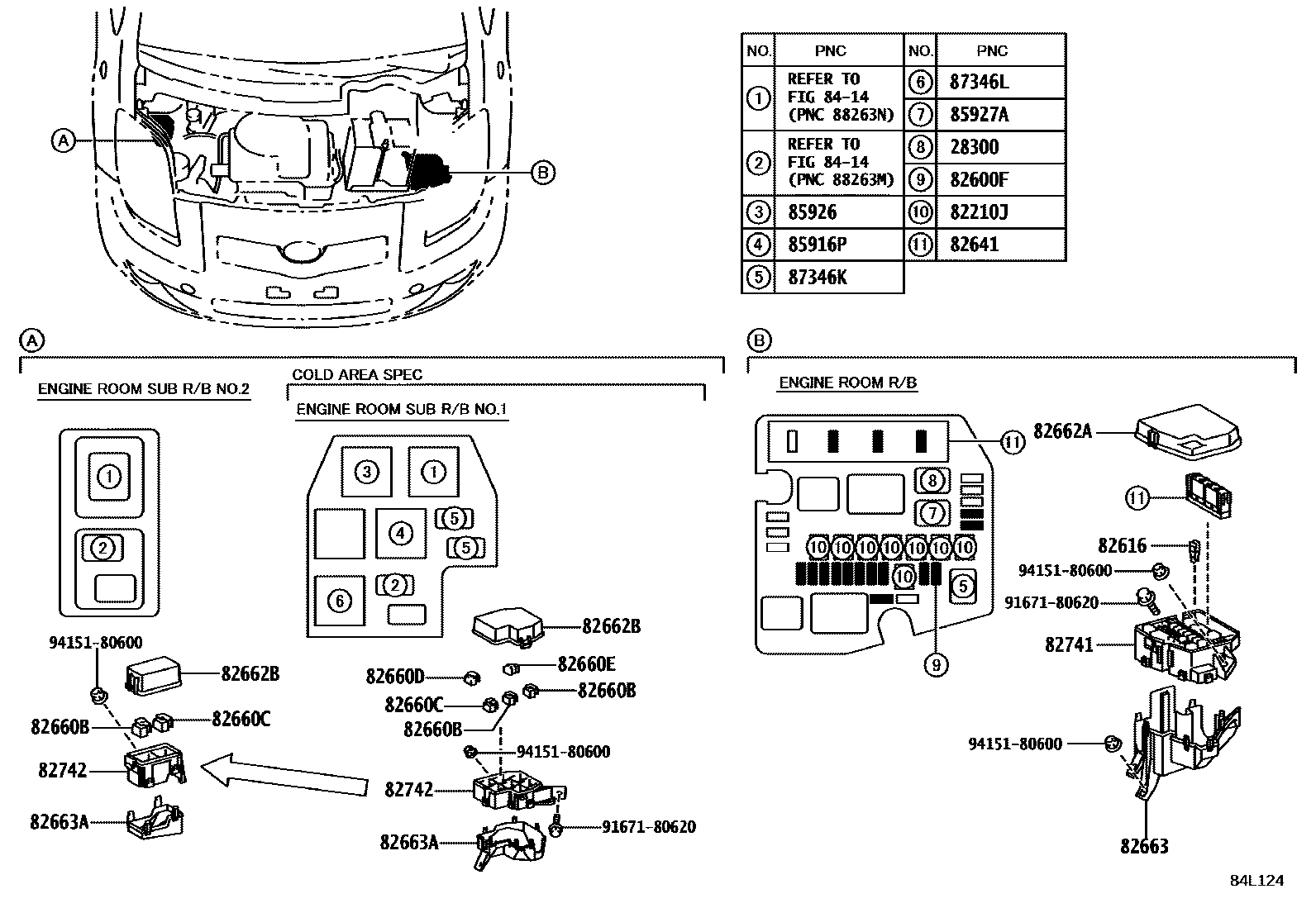

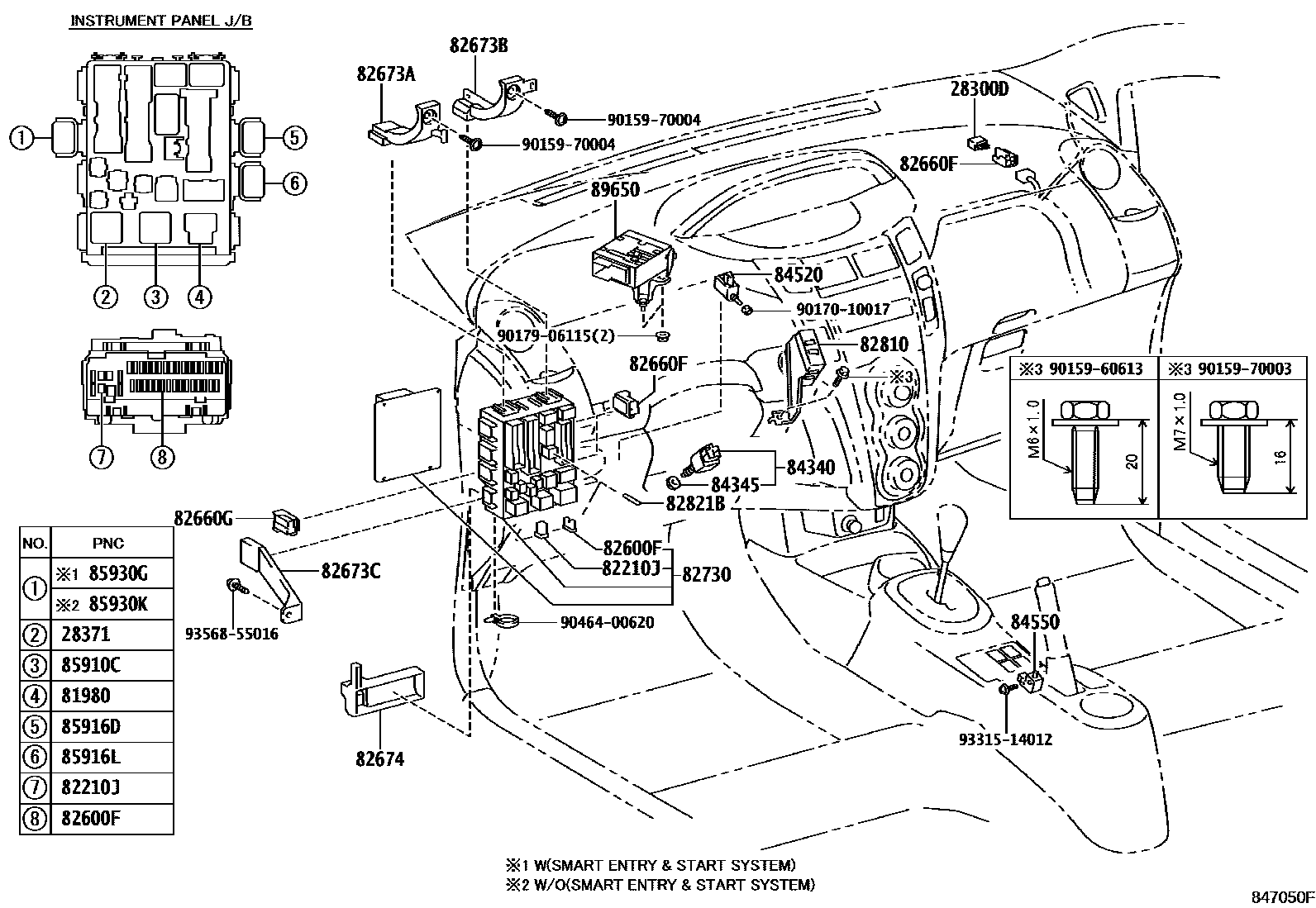

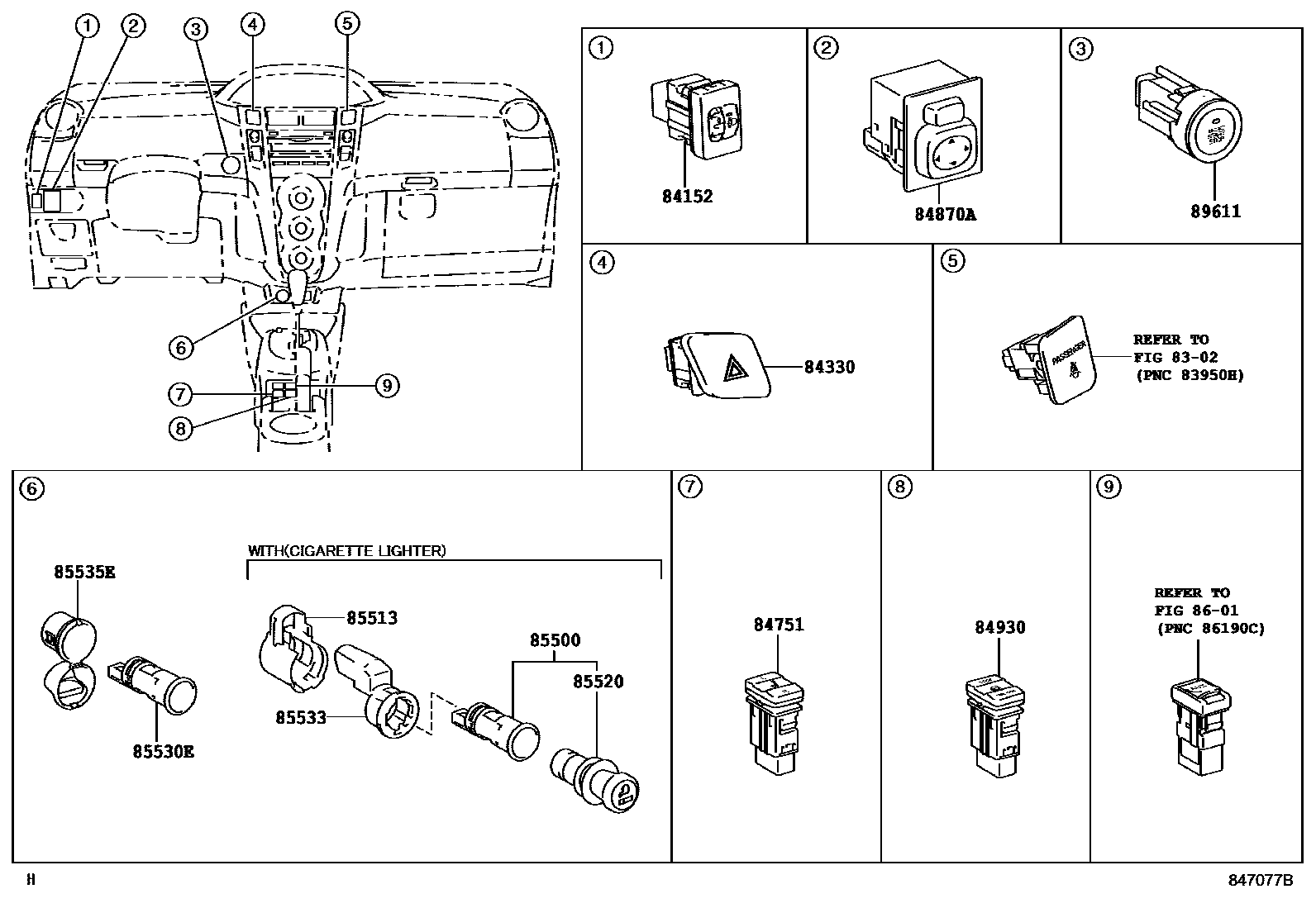

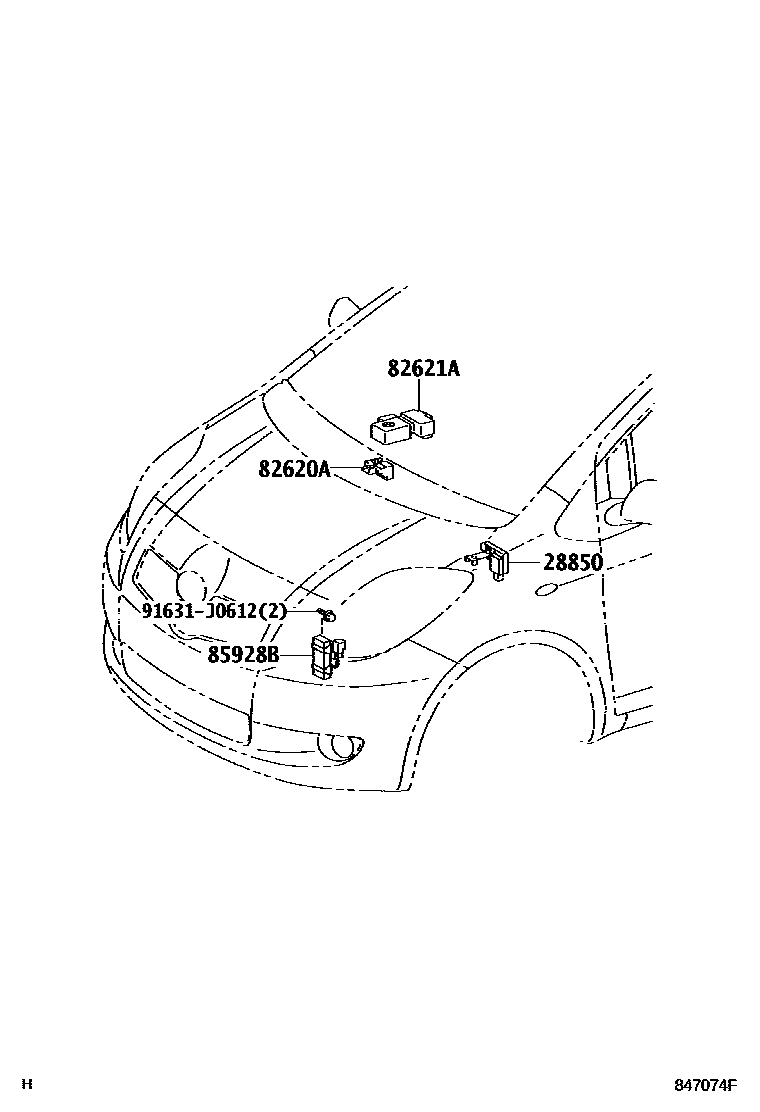

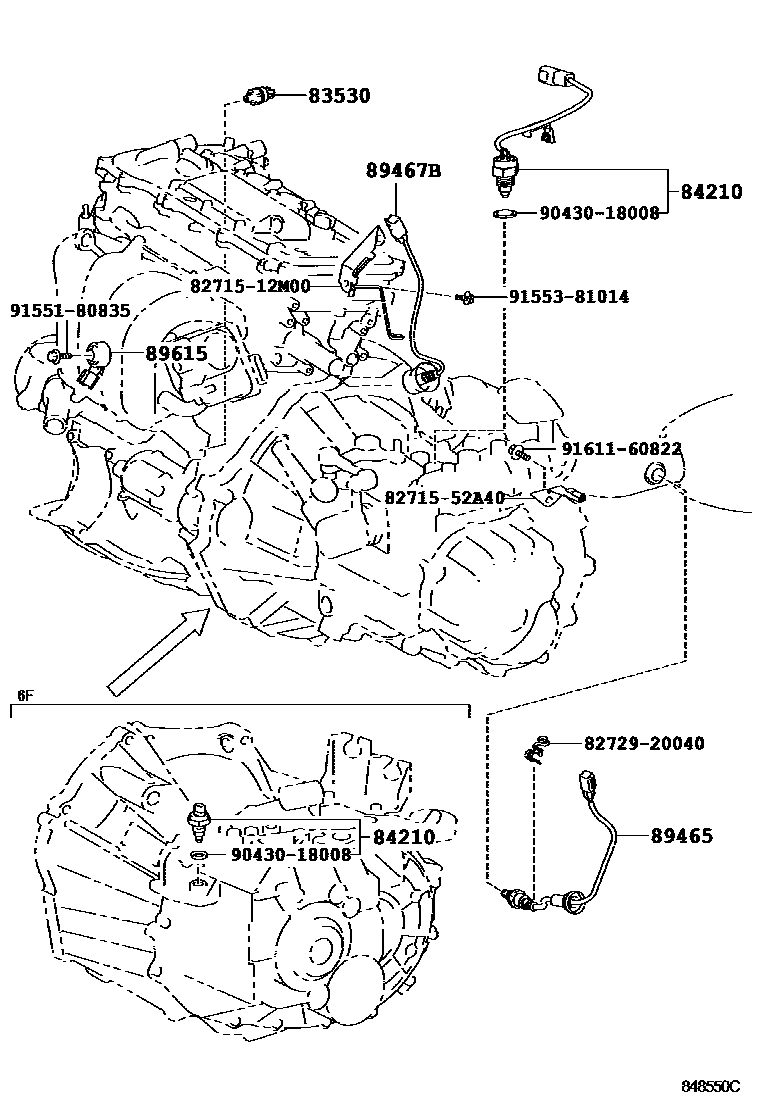

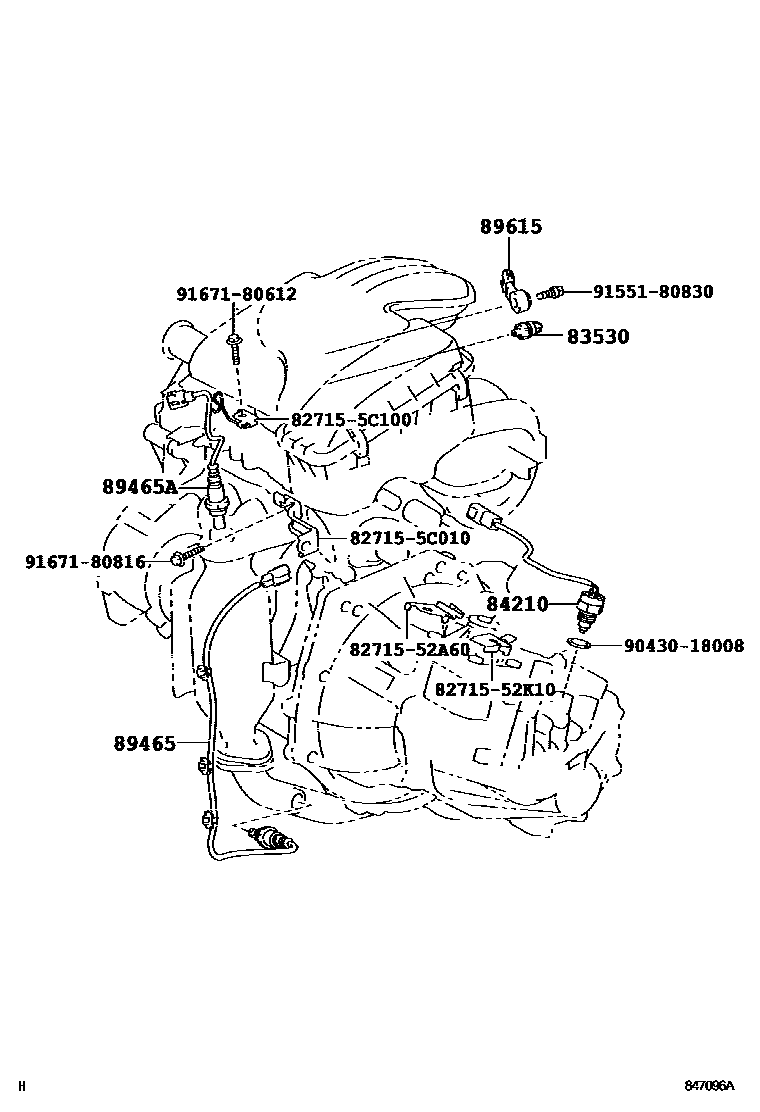

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 12 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 |
| 28850 | Battery current sensor assembly | 28850-40010 |
| 81980 | Turn signal flasher relay assembly | 81980-46010 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-52010 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-52050 |
| 82621A | Fuse cover | 82621-52120 · 82621-52140 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-52020 |
| 82660D | Relay assembly | 82660-52010 |
| 82660E | Relay assembly | 82660-26270 |
| 82660F | Relay assembly | 82660-52030 |
| 82660G | Relay assembly | 82660-52030 · 82660-52040 |
| 82662A | No. 1 relay box upper cover | 82662-52301 · 82662-52330 · 82662-52570 |
| 82662B | No. 2 relay box upper cover | 82662-52320 · 82662-52350 · 82662-52610 |
| 82663 | Relay box lower cover | 82663-52031 |
| 82663A | No. 2 relay box lower cover | 82663-52060 · 82663-52070 |
| 82673A | Junction box bracket | 82673-52050 · 82673-52080 |
| 82673B | Junction box bracket | 82673-52060 · 82673-52090 |
| 82673C | Junction box bracket | 82673-52070 · 82673-52100 |
| 82674 | Junction box lower cover | 82674-46010 |
| 82730 | Instrument panel junction box assembly | 82730-52291 · 82730-52341 · 82730-52511 · 82730-52521 · 82730-52541 · 82730-52551 · 82730-52591 · 82730-52601 · 82730-52770 · 82730-52780 · 82730-52D60 · 82730-52D70 · 82730-52D80 · 82730-52D90 · 82730-52E00 · 82730-52F10 · 82730-52J50 · 82730-52J60 · 82730-52J70 · 82730-52J80 · 82730-52J90 · 82730-52K00 · 82730-52K10 |
| 82741 | Engine room relay box | 82741-52031 · 82741-52041 |
| 82742 | Engine room No. 2 relay box | 82741-52050 · 82741-52060 |
| 82810 | Driving light relay assembly | 82810-52050 · 82810-52060 |
| 82821B | Connector cover | 82821-52020 |
| 83320 | Fuel gauge sensor assembly | 83320-52180 · 83320-52181 · 83320-52260 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-52160 · 84140-52161 · 84140-52170 · 84140-52171 |
| 84152 | Headlight beam height adjustment switch | 84152-52070 · 84152-52080 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52030 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 |
| 84306 | Spiral cable sub-assembly | 84306-52090 · 84306-52100 |
| 84330 | Hazard warning signal switch assembly | 84332-52020 · 84332-52030 |
| 84340 | brake light switch assembly | 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-71010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-52210 · 84652-52211 |
| 84751 | Seat heater switch | 84751-42040 · 84751-52030 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-12500 · 84820-12510 · 84820-52210 · 84820-52240 · 84820-52320 · 84820-52330 · 84820-52380 · 84820-52390 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84930 | Door control switch assembly | 84930-52040 |
| 85500 | Cigarette lighter assembly | 85500-28080 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530E | No. 3 power socket assembly | 85530-42010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85535E | No. 2 power outlet cover | 85535-52050 · 85535-52051 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916L | Rear fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-04010 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52030 |
| 85930G | ACC relay | 90987-02027 |
| 85930K | No. 2 ACC relay | 90987-04004 |
| 87346K | PTC heater relay | 90987-02027 |
| 87346L | PTC heater relay | 90987-02025 |
| 89245B | steering sensor | 89245-52030 |
| 89465 | oxygen sensor | 89465-0D130 · 89465-52450 |
| 89465A | Oxygen sensor No. 2 | 89465-0H010 |
| 89467B | air fuel ratio sensor | 89467-12030 |
| 895A0 | Brake light control relay assembly | 895A0-52010 · 895A0-52011 |
| 89611 | push button start switch | 89611-52010 · 89611-52011 · 89611-52020 · 89611-52021 |
| 89615 | knock control sensor | 89615-0H010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52050 · 89650-52061 · 89650-52280 · 89650-52290 · 89650-52330 · 89650-52340 · 89650-52370 · 89650-52380 · 89650-52390 · 89650-52400 |
| 89681A | Power management control ECU | 89690-52010 · 89690-52020 |
