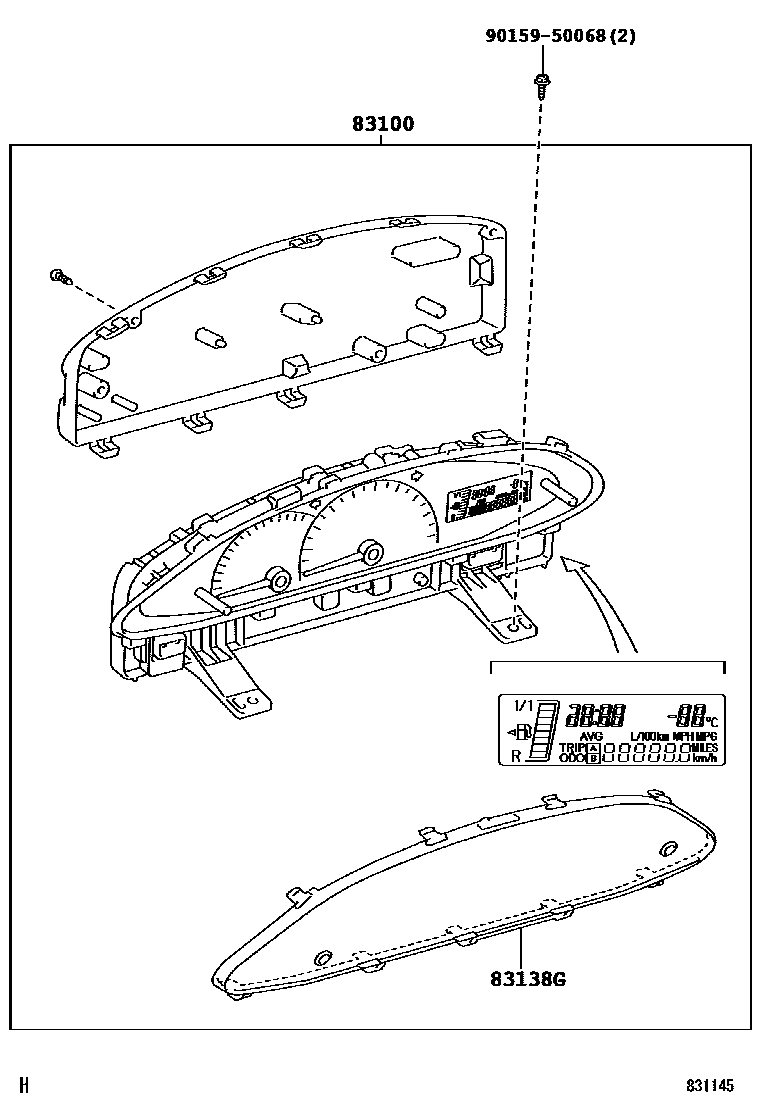

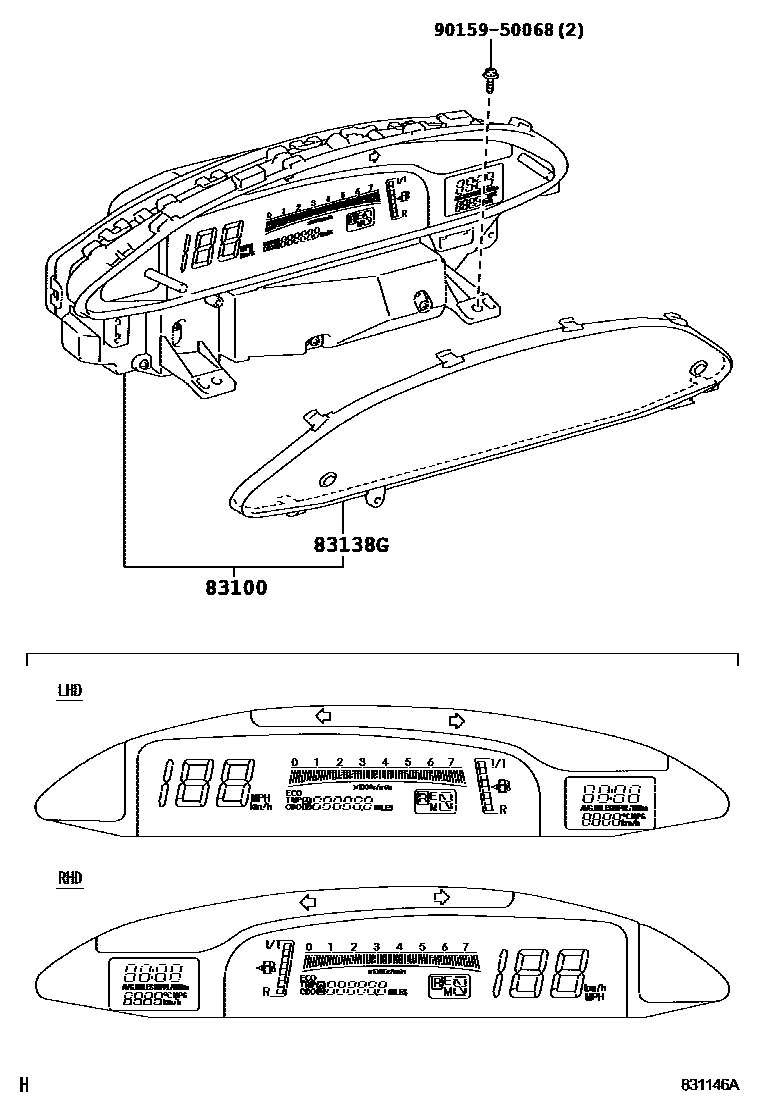

Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-52A70 · 83800-52A71 · 83800-52A80 · 83800-52A81 · 83800-52A90 · 83800-52A91 · 83800-52M00 · 83800-52M01 · 83800-52M10 · 83800-52M11 · 83800-52M20 · 83800-52M21 · 83800-52W20 · 83800-52W30 · 83800-52W40 |
| 83138G | Instrument cluster glass | 83852-52A00 · 83852-52A70 · 83852-52A71 · 83852-52A80 · 83852-52A81 |
