Toyota YARIS 后组合灯 — Figure 8111

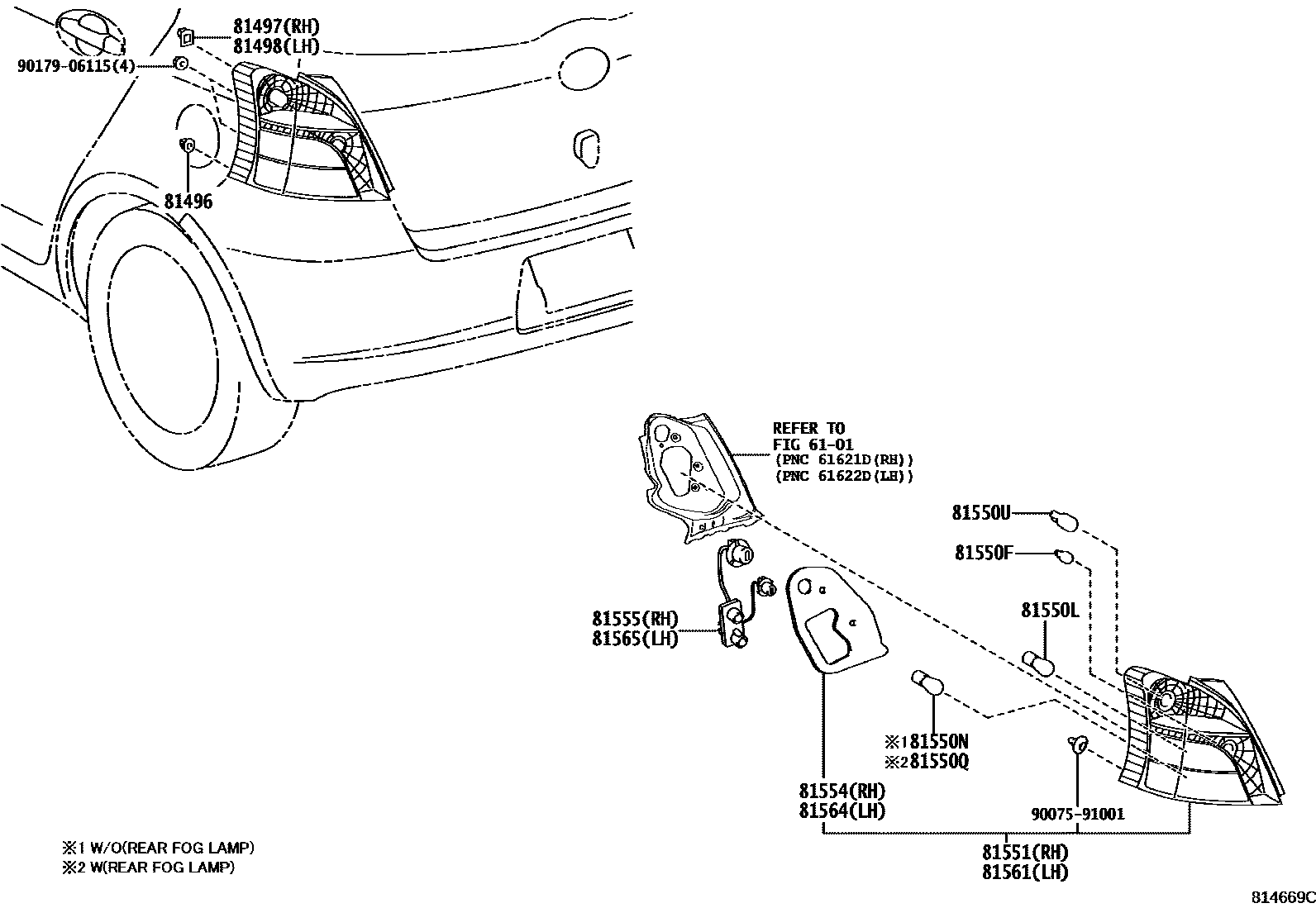

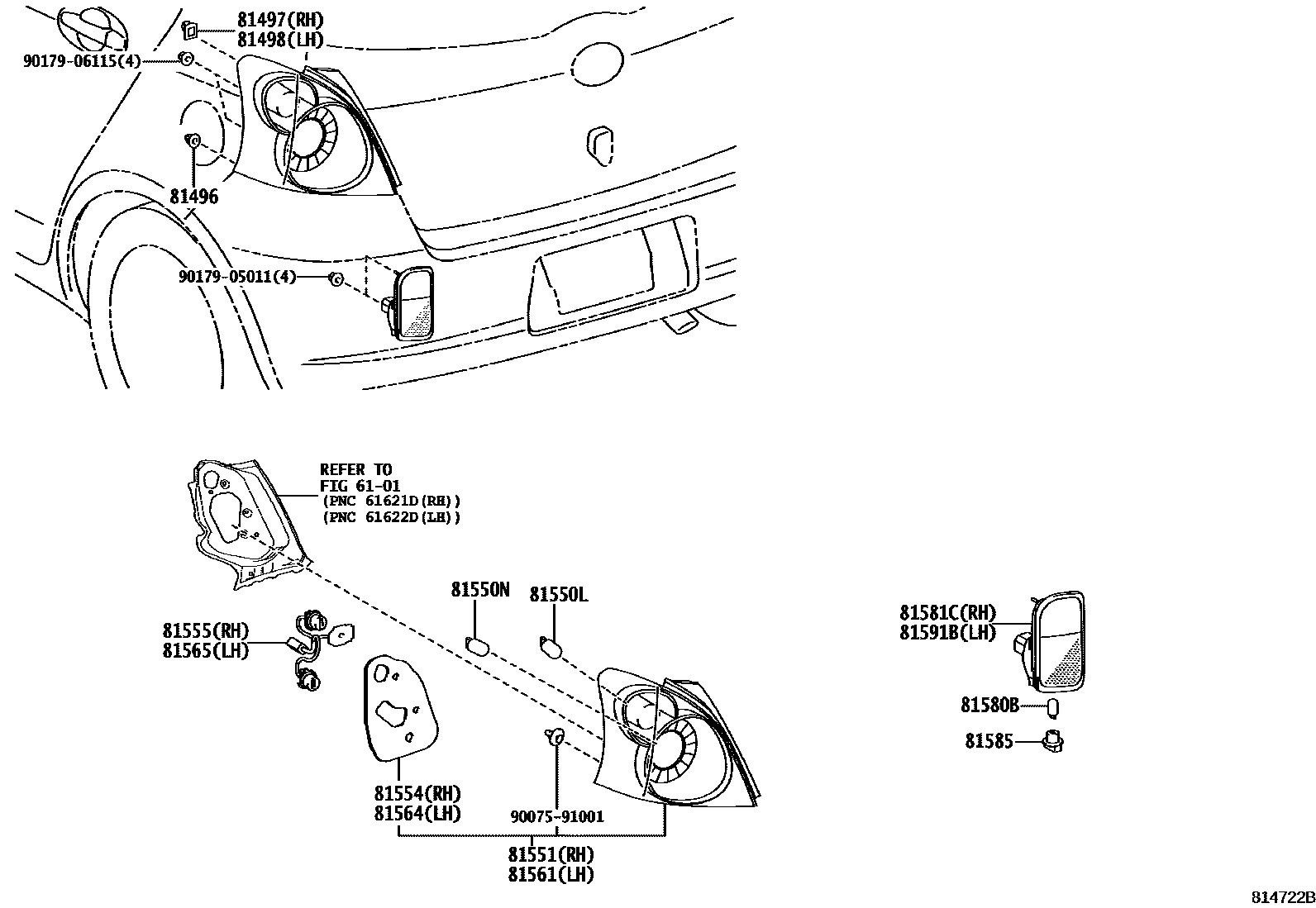

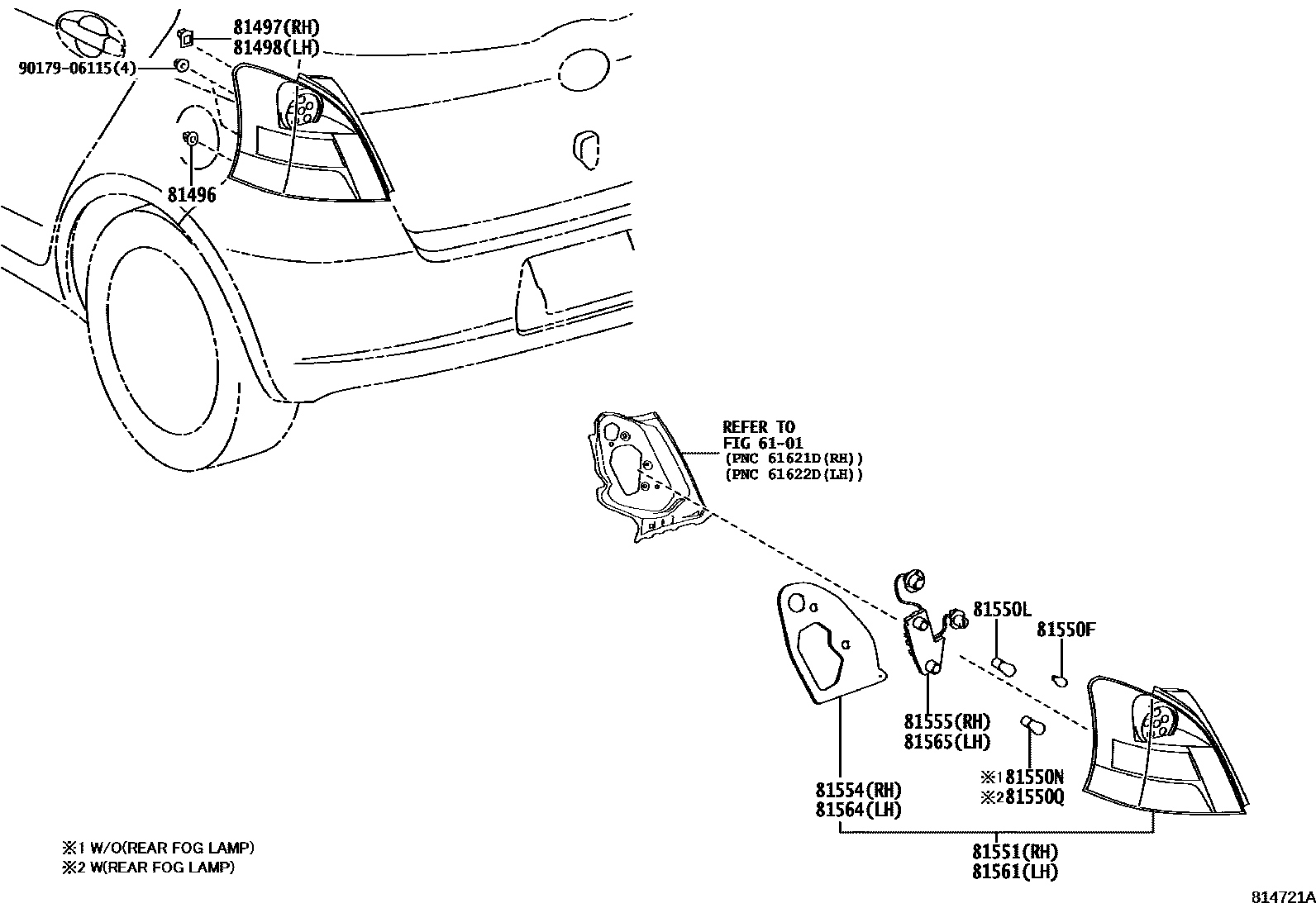

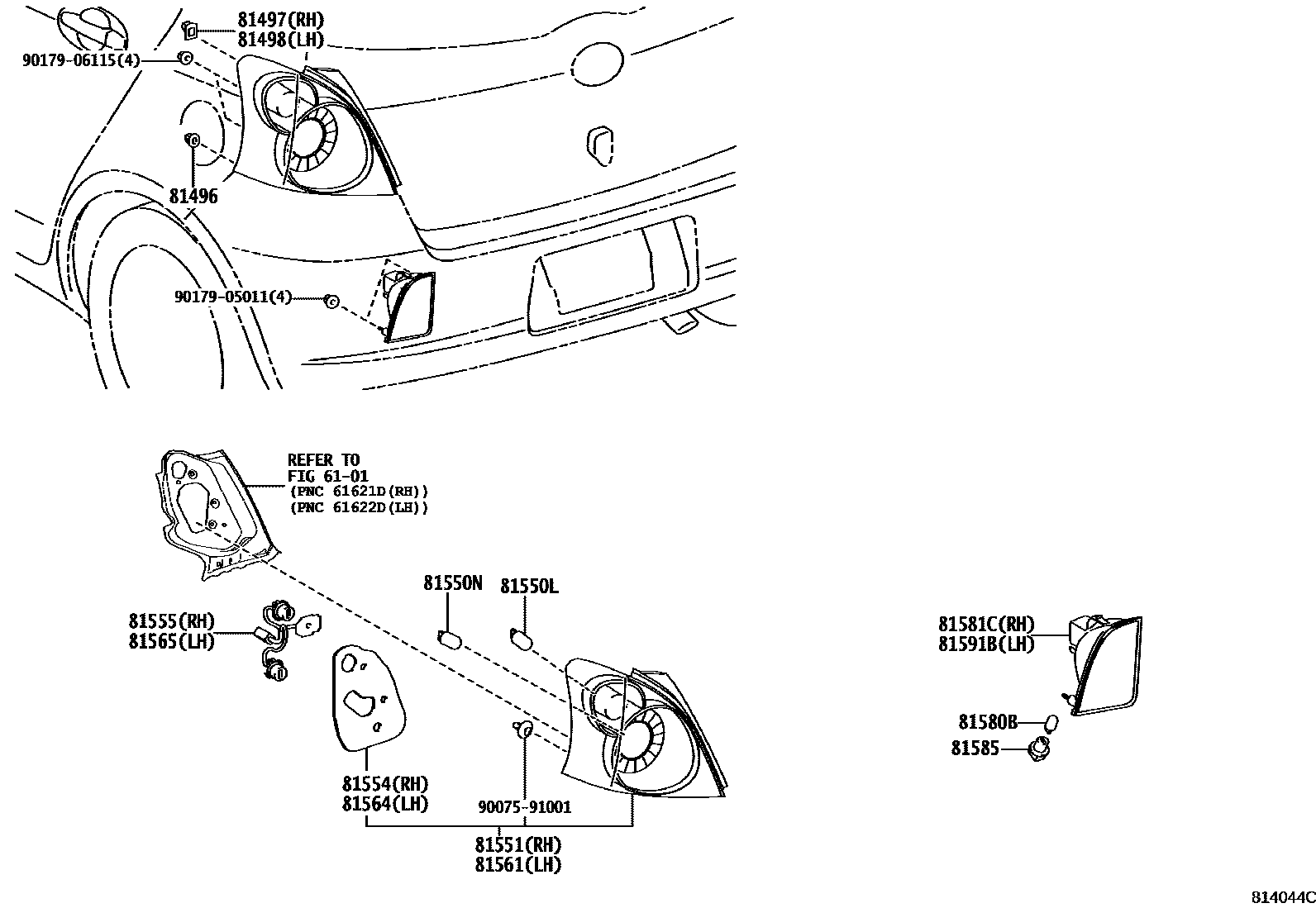

Toyota YARIS EPC diagram 8111, 后组合灯, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81497 | Right rear combination lamp cover | 81497-52020 |
| 81498 | Left rear combination lamp cover | 81497-52020 |
| 81550F | tail light bulb | 99132-12050 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15009 · 99132-11210 |
| 81550N | reversing light bulb | 90981-13043 · 99132-11210 |
| 81550Q | Rear fog light bulb No. 1 | 99132-11210 |
| 81550U | brake light bulb | 90981-13043 |
| 81551 | Right rear combination lamp shade | 81551-52550 · 81551-52560 · 81551-52570 · 81551-52700 · 81551-52710 |
| 81554 | Right rear combination lamp body gasket | 81552-52710 · 81554-52530 · 81554-52570 · 81554-52710 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52550 · 81555-52560 · 81555-52570 · 81555-52700 · 81555-52710 |
| 81561 | Left rear combination lamp shade | 81561-52480 · 81561-52490 · 81561-52500 · 81561-52630 · 81561-52710 |
| 81564 | Left rear combination lamp body gasket | 81562-52630 · 81564-52470 · 81564-52500 · 81564-52630 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-52570 · 81565-52480 · 81565-52490 · 81565-52630 · 81565-52710 |
| 81580B | Bulb (for rear light) | 90981-13043 |
| 81581C | Right rear light lampshade and lamp body | 81581-52160 · 81581-52210 |
| 81585 | Rear lamp holder and wiring harness | 90075-99080 |
| 81591B | Left rear light shade and body | 81591-52090 · 81591-52110 |
