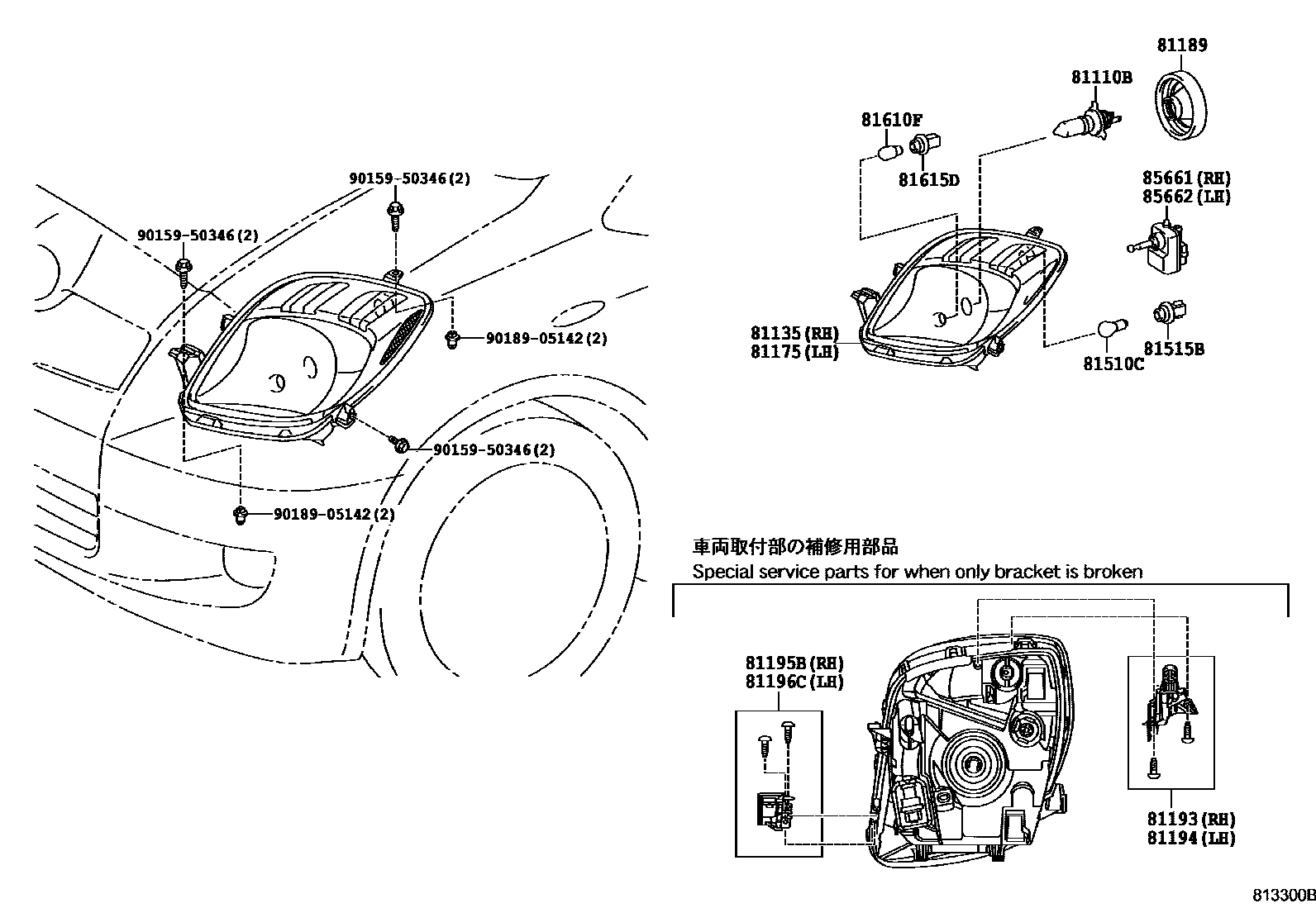

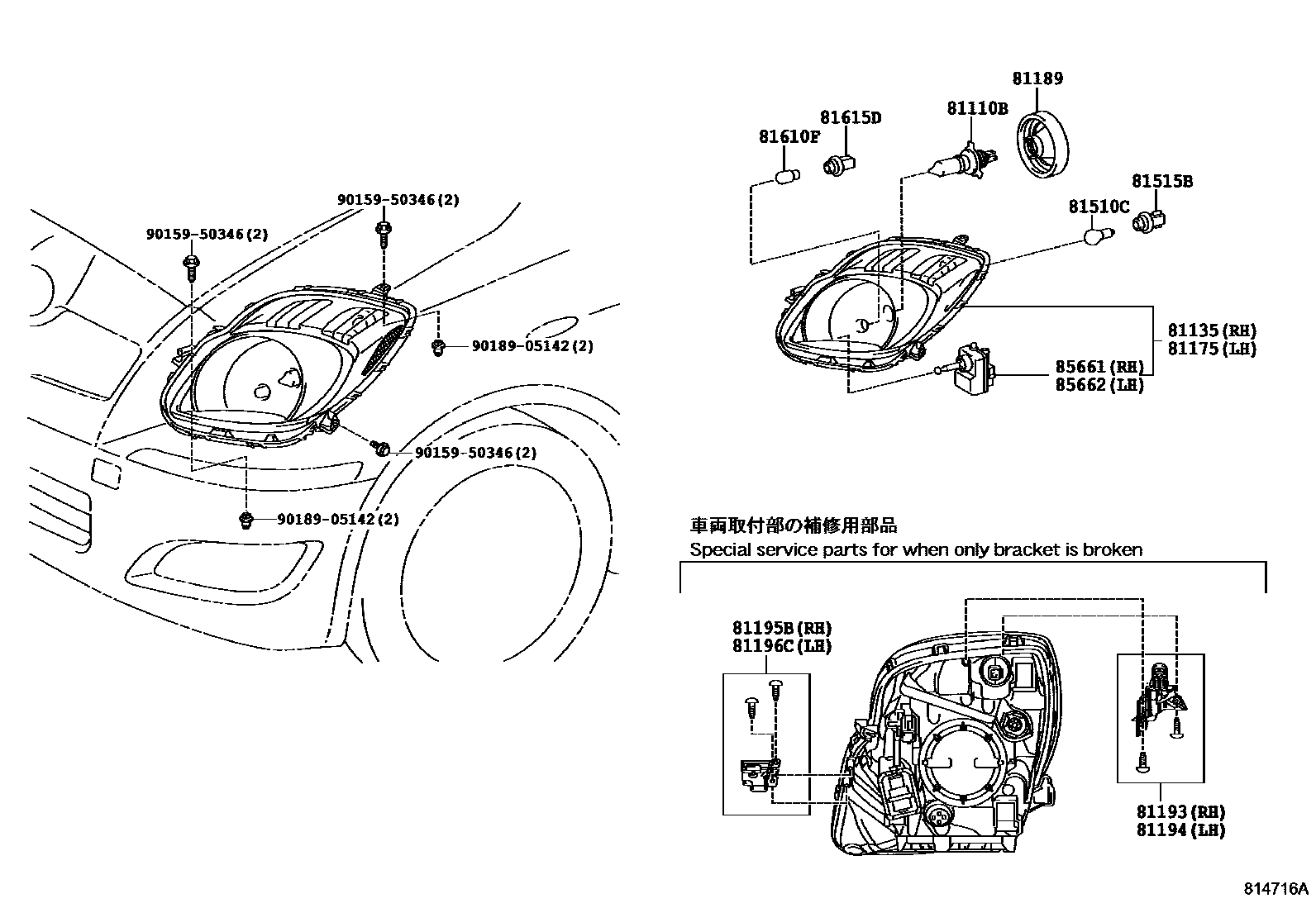

Toyota YARIS Headlamp — Figure 8101
Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90981-13058 |
| 81135 | Right headlight assembly | 81130-52580 · 81130-52590 · 81130-52850 · 81130-52860 · 81130-52A10 · 81130-52B30 · 81130-52B80 · 81130-52B90 |
| 81175 | Left headlight assembly | 81170-52570 · 81170-52580 · 81170-52840 · 81170-52850 · 81170-52A00 · 81170-52B20 · 81170-52B70 · 81170-52B80 |
| 81189 | headlight cover | 81139-52570 |
| 81193 | Right headlight upper protective ring | 81193-52080 |
| 81194 | Left headlight upper protective ring | 81194-52080 |
| 81195B | Right headlight lower right protection piece | 81195-52050 · 81195-52110 |
| 81196C | Left headlight lower left protection piece | 81196-52050 · 81196-52110 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15020 |
| 81515B | Front turn signal lamp holder | 81515-52570 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-52570 |
| 85661 | Right headlight beam height adjustment motor | 85661-52010 |
| 85662 | Left headlight beam height adjustment motor | 85661-52010 |
