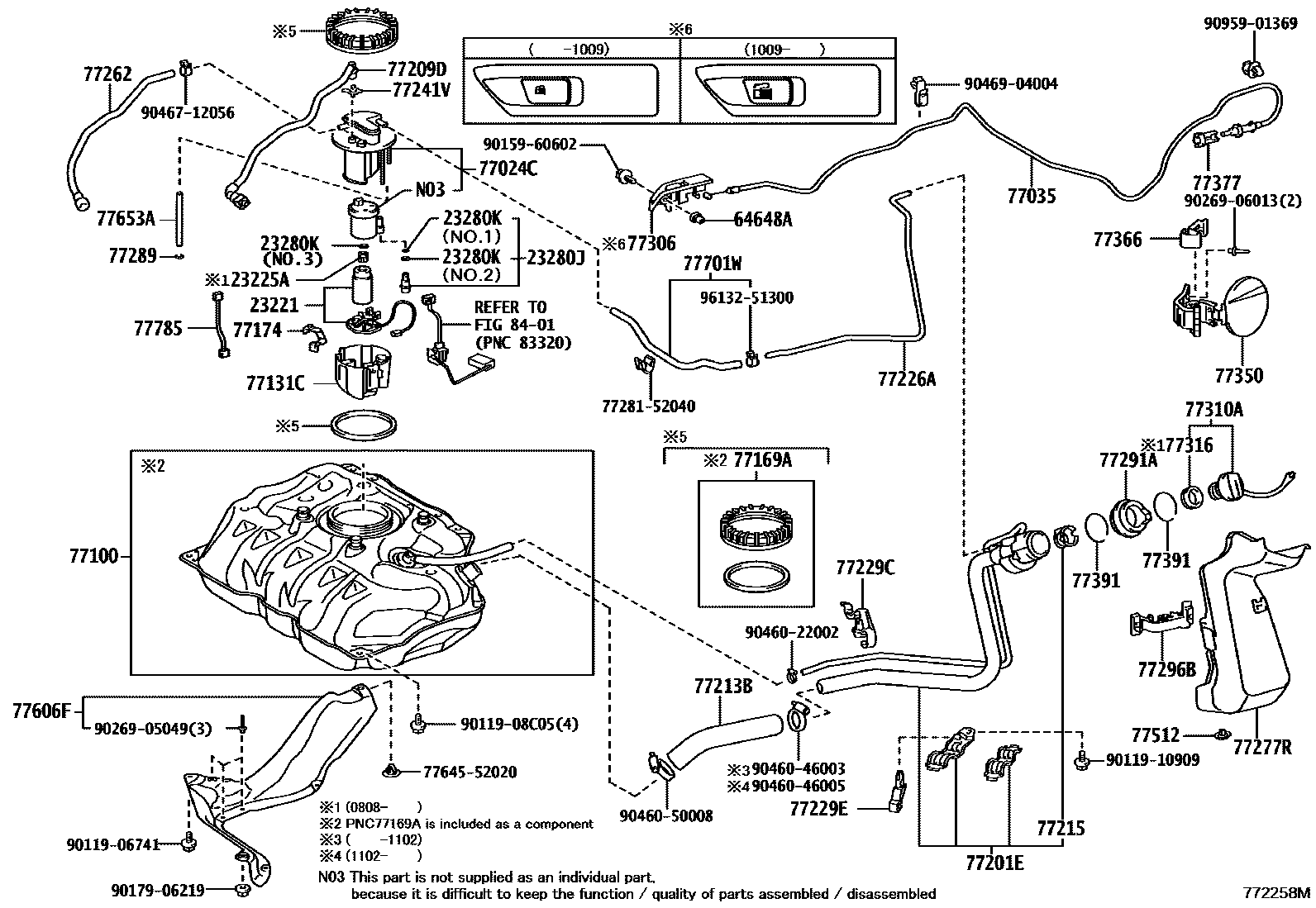

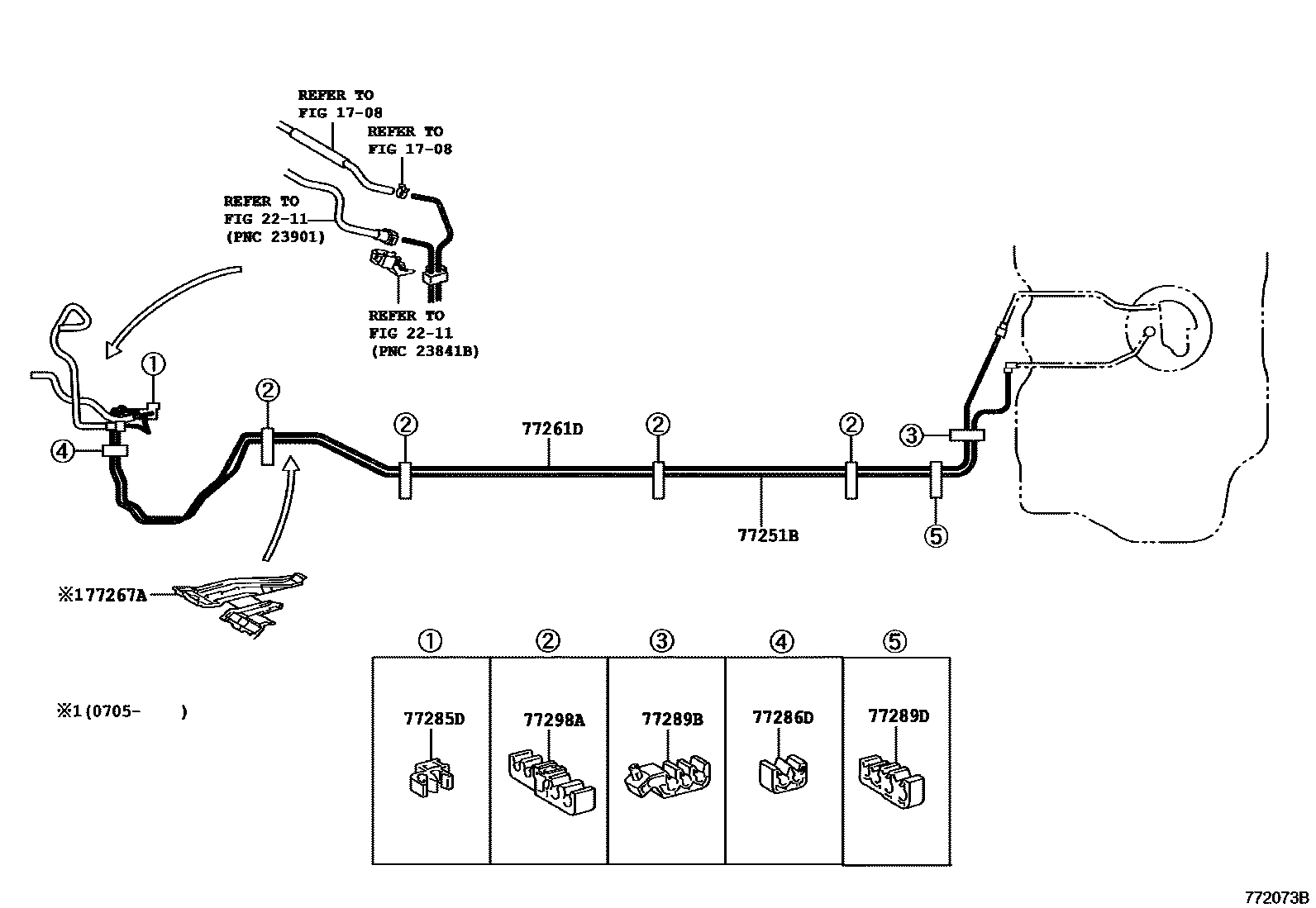

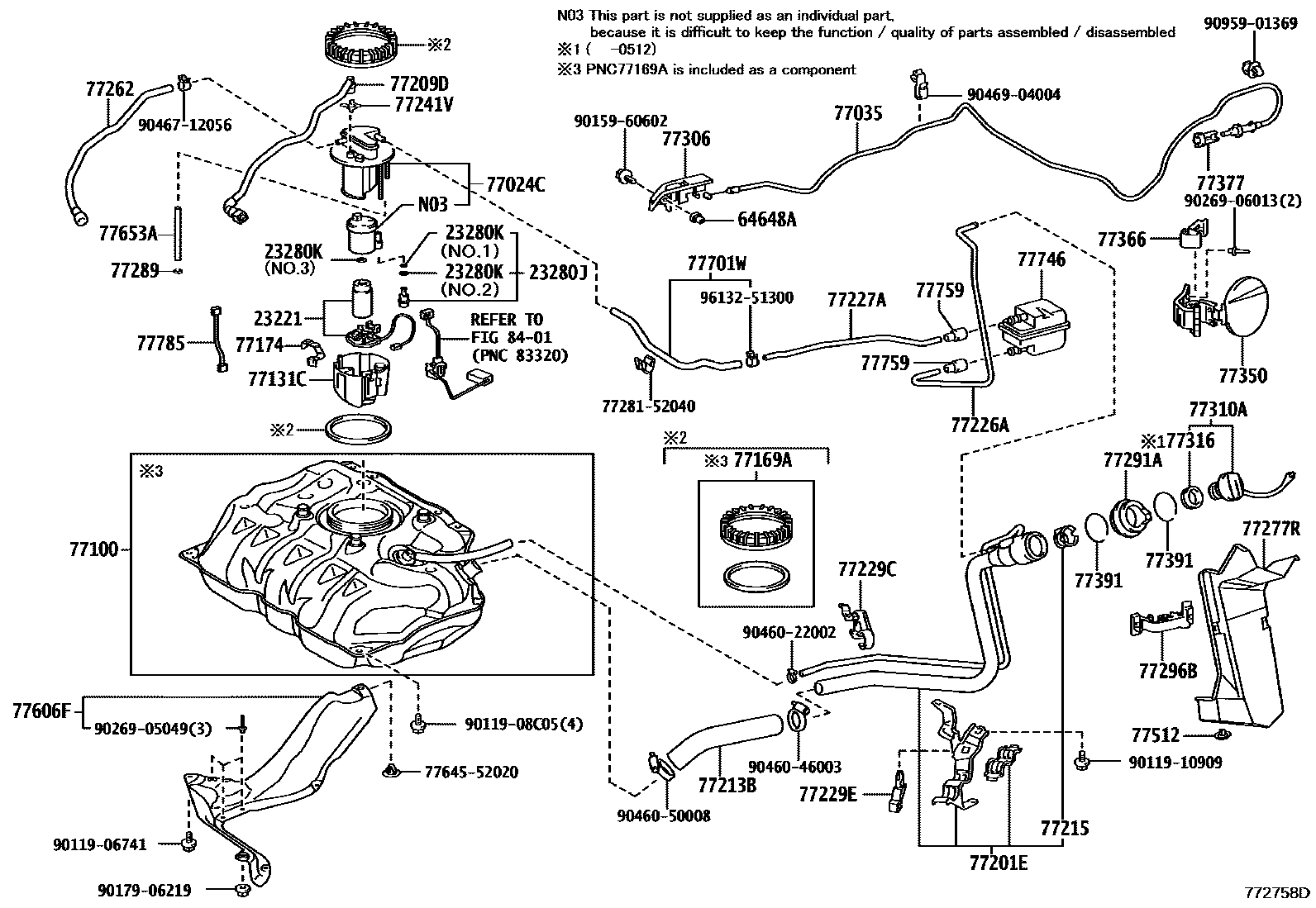

Toyota YARIS 燃油箱和燃油管 — Figure 7701
Toyota YARIS EPC diagram 7701, 燃油箱和燃油管, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-21131 · 23220-21132 · 23220-21200 · 23220-21210 · 23220-37080 · 23220-37100 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-21020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-08020 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-32020 |
| 77024C | SOUS-ENS PLAQUE, ASPI CARBURANT AVEC FILTRE A CARB | 77024-52120 · 77024-52121 · 77024-52170 · 77024-52171 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-52161 · 77035-52201 |
| 77100 | fuel tank assembly | 77001-52200 · 77001-52201 |
| 77131C | No. 1 auxiliary fuel tank | 77131-52071 |
| 77169A | Fuel suction pipe fixed gasket | 77169-52040 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52050 · 77174-52070 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-52210 · 77201-52211 · 77201-52220 · 77201-52221 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-52090 · 77209-52091 |
| 77213B | Fuel tank to filler pipe hose | 77213-52130 · 77213-52190 |
| 77215 | Fuel tank filler pipe flange piece | 77215-51010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-52050 · 77226-52051 |
| 77227A | fuel tank evaporation vent pipe | 77227-52020 |
| 77229C | Snorkel clamp | 77285-52080 |
| 77229E | Snorkel clamp | 77229-52040 |
| 77241V | Pipe joint clip | 77241-33011 · 77241-60320 |
| 77251B | main fuel pipe | 77251-52250 · 77251-52310 · 77251-52350 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-52250 · 77261-52320 · 77261-52360 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77028-52010 · 77028-52020 |
| 77267A | No. 2 fuel pipe protection device | 77267-52050 |
| 77277R | Fuel tank filler pipe protection device | 77277-52030 · 77277-52031 |
| 77285D | No. 1 fuel pipe clamp | 77285-52060 |
| 77286D | No. 2 fuel pipe clamp | 77286-52100 |
| 77289 | Fuel tank pipe holder | 77289-52110 |
| 77289B | No. 3 fuel pipe clamp | 77289-52060 |
| 77289D | No. 5 fuel pipe clamp | 77299-52070 |
| 77291A | Fuel tank filler pipe cover | 77291-52010 |
| 77296B | No. 1 fuel line protector bracket | 77296-52030 |
| 77298A | No. 4 fuel pipe clamp | 77298-52070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-52030 · 77306-52040 · 77306-52050 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52020 · 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-52130 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-52020 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-52060 |
| 77653A | No. 3 fuel tank liner | 77652-52040 |
| 77701W | No. 1 carbon canister outlet hose sub-assembly | 77701-52010 |
| 77746 | No.2 carbon canister filter | 77746-33010 |
| 77759 | Carbon canister hose | 77759-52010 |
| 77785 | fuel pump wiring harness | 77785-52060 |
