Toyota YARIS 挡泥板和扰流板 — Figure 7601

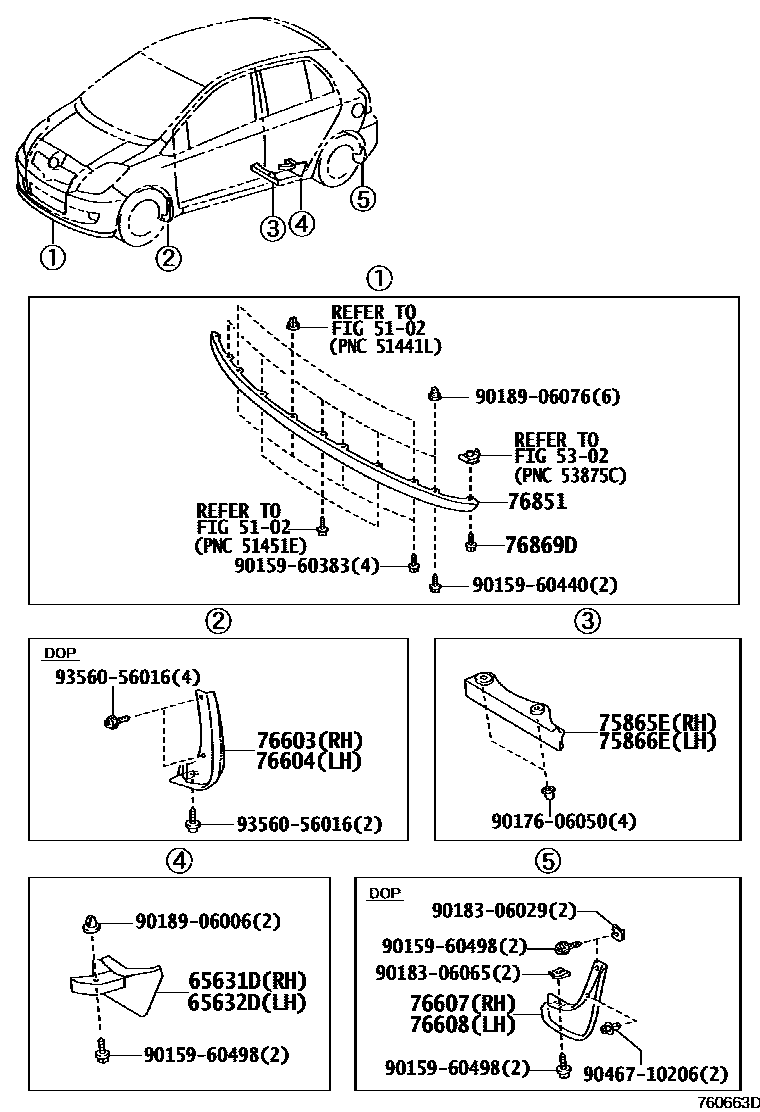

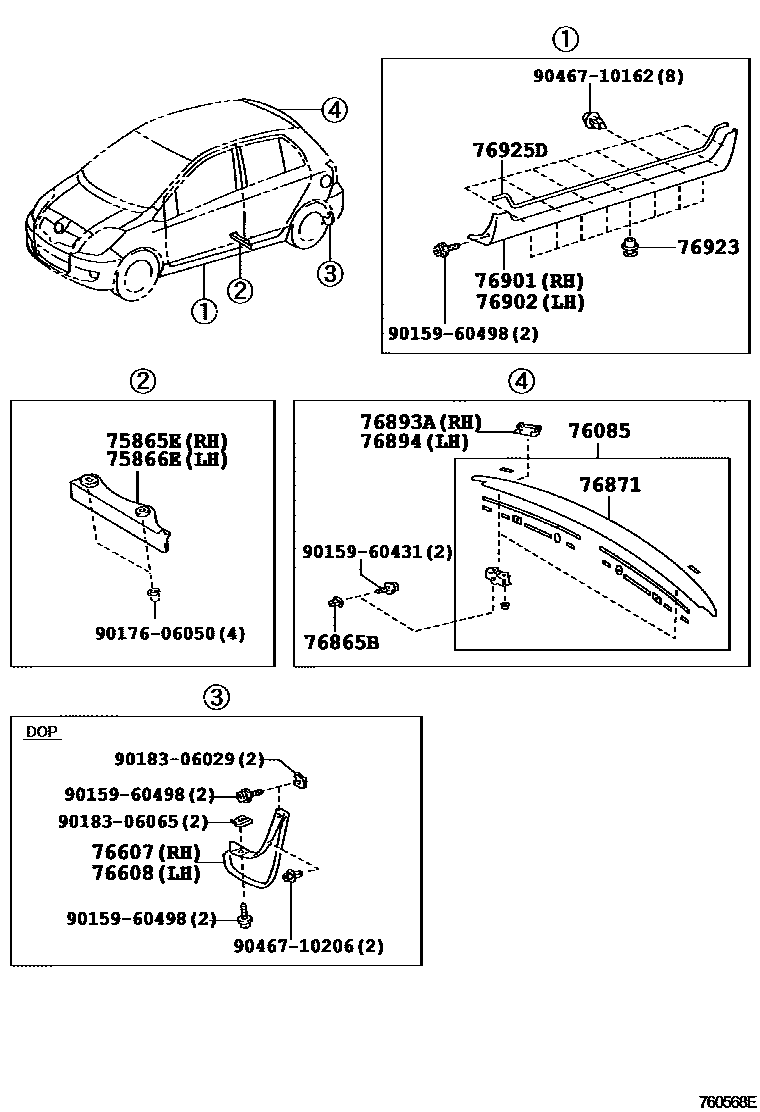

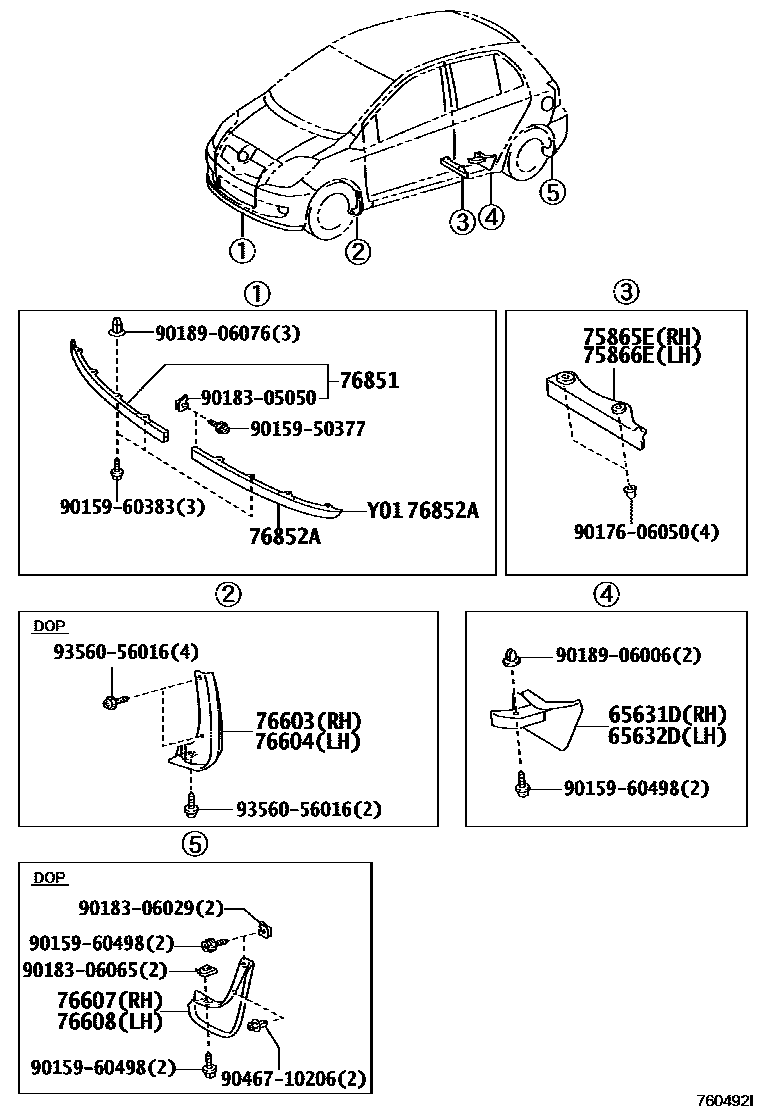

Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-52050 · 65631-52100 |
| 65632D | Left rear wheel house front panel | 65632-52050 · 65632-52100 |
| 75865E | Right side door sill panel protective strip protective cover | 75865-52030 · 75865-52031 |
| 75866E | Left side door sill panel protective strip protective cover | 75866-52030 · 75866-52031 |
| 76603 | Right front fender fender sub-assembly | 76621-52060 |
| 76604 | Left front fender fender sub-assembly | 76622-52060 |
| 76607 | Right rear side fender sub-assembly | 76625-52090 · 76625-52110 · 76625-52160 · 76625-52170 |
| 76608 | Left rear side fender sub-assembly | 76626-52090 · 76626-52110 · 76626-52160 · 76626-52170 |
| 76851 | front spoiler cover | 76851-52100 · 76851-52160 |
| 76852A | Left front spoiler cover | 76852-52070 |
| 76865B | Rear spoiler fixings | 76865-52030 |
| 76869D | VIS, NO.2 | 90159-60352 |
| 76901 | Right fender sub-assembly | 76915-52901 |
| 76902 | Left fender sub-assembly | 76916-52901 |
| 76923 | Side fender fixings | 76923-52021 |
