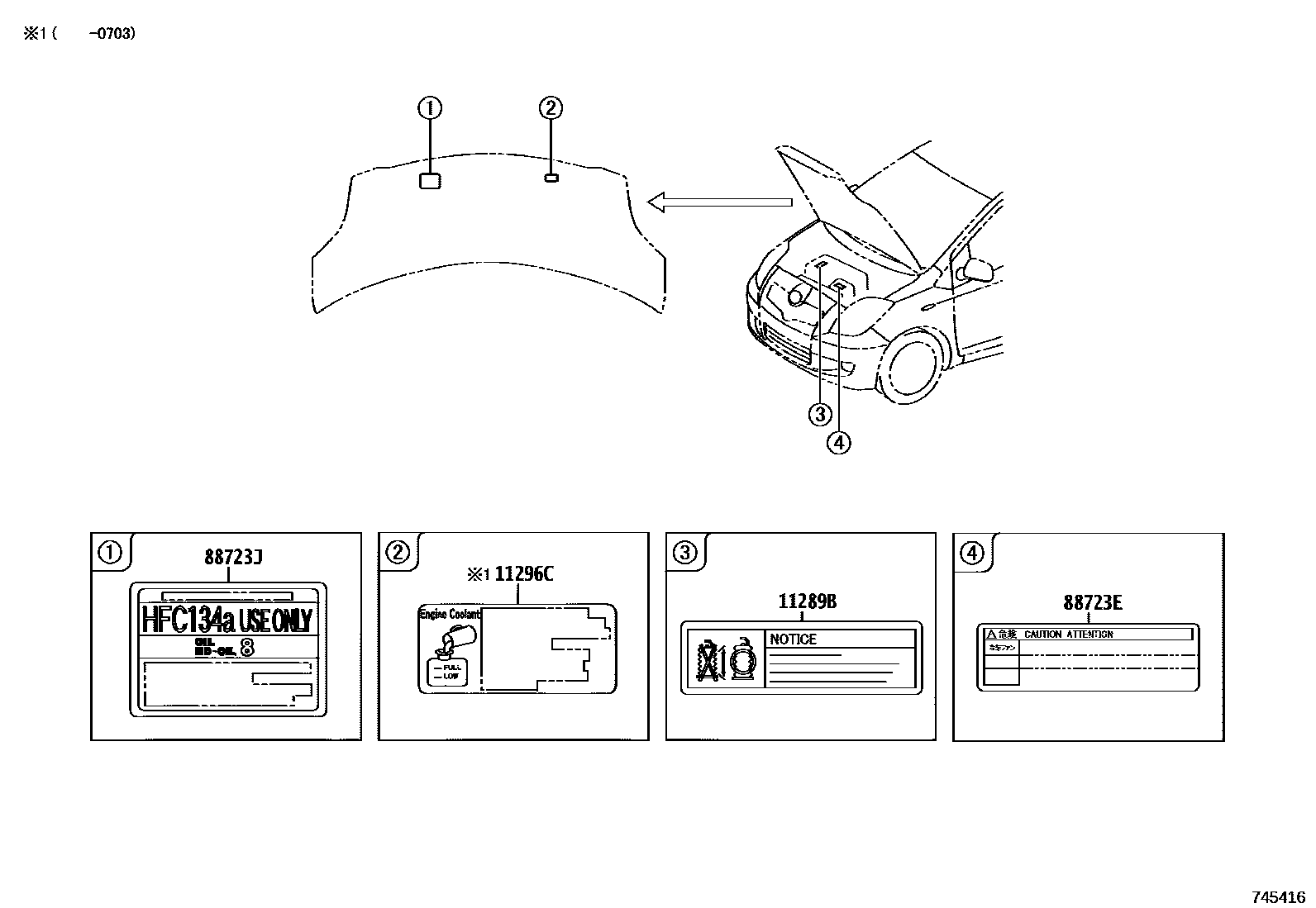

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-0Q010 · 11289-40010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 74511F | Nameplate (laser identification label) | 74511-48010 · 74511-48020 · 74511-48050 · 74511-60480 |
| 74515A | Anti-theft warning nameplate | 74515-47010 · 74515-52010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559B | fuel information label | 74559-14050 |
| 74596A | Side air bag warning label | 74596-12020 · 74596-53010 |
| 74598A | Passenger air bag warning label | 74598-30080 |
| 74751 | tire pressure information label | 42661-52510 · 42661-52520 · 42661-52530 · 42661-52540 · 42661-52570 · 42661-52640 · 42661-52650 · 42661-52750 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-20081 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-28220 |
| 89616 | Button start information label | 89616-52030 · 89616-52040 · 89616-52080 · 89616-53010 |
