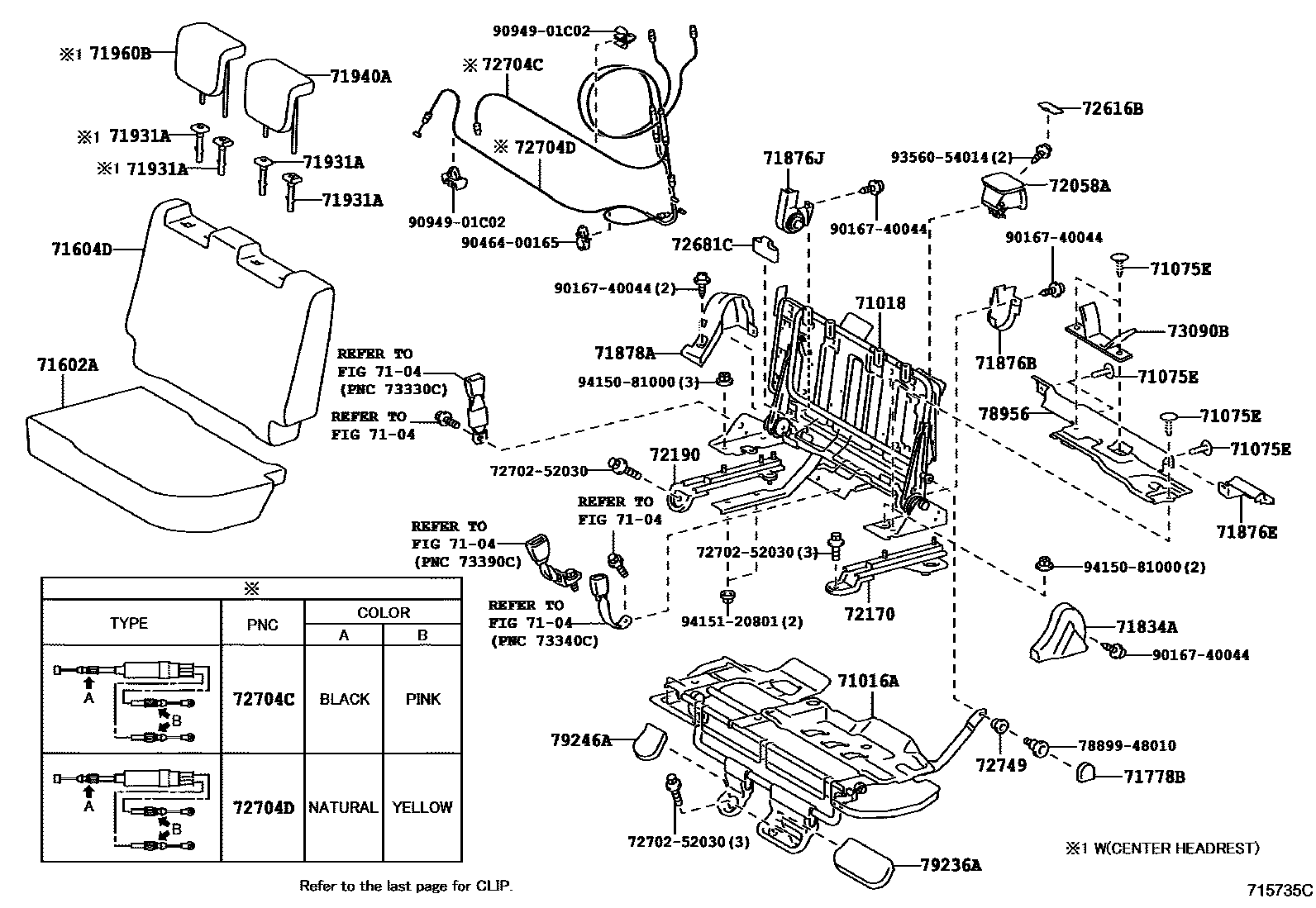

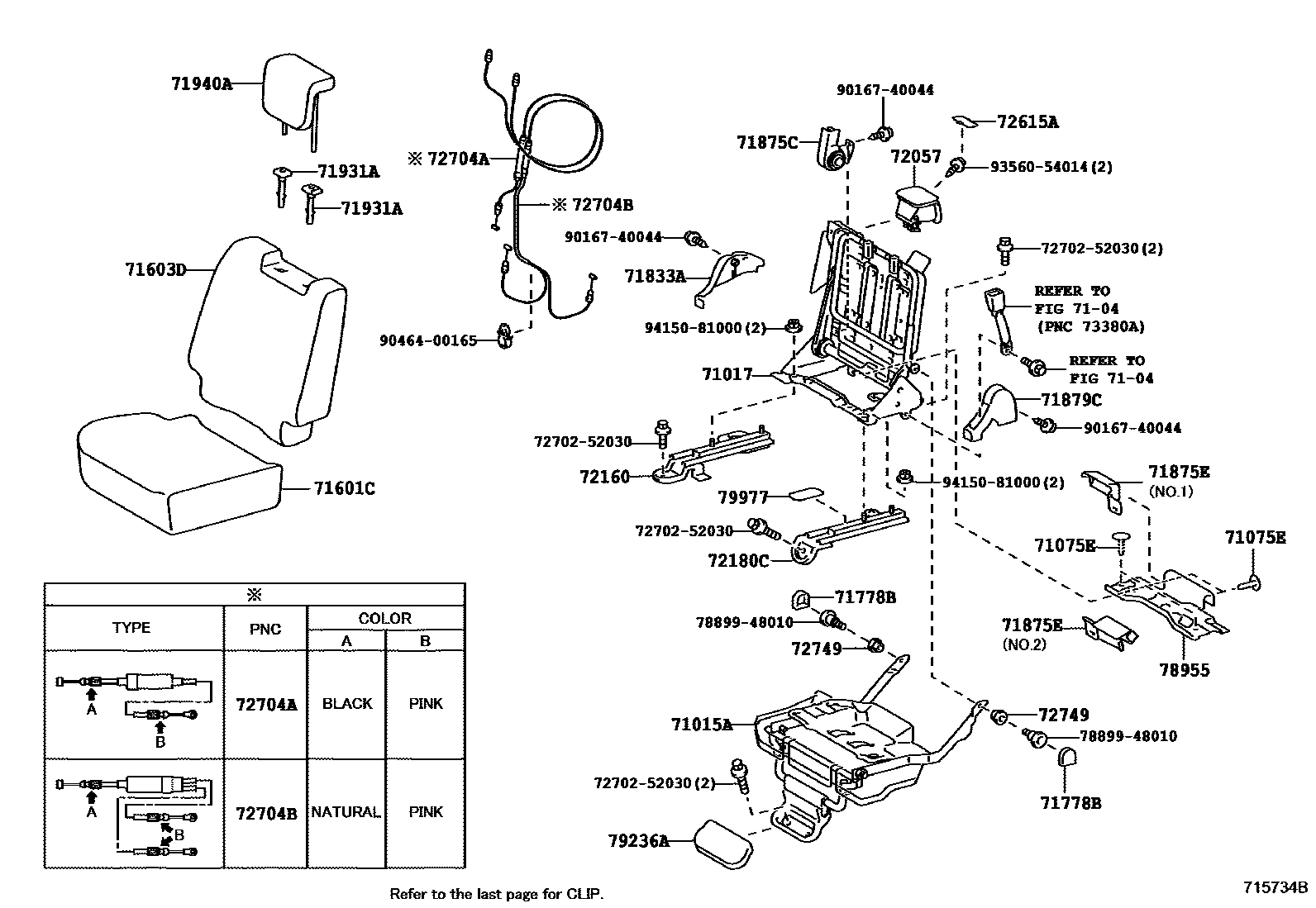

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-52310 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-52060 |
| 71017 | Right rear seat back frame sub-assembly | 71017-52400 · 71017-52401 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52310 · 71018-52311 · 71018-52330 · 71018-52331 |
| 72160 | Rear right seat outer slide rail assembly | 72160-52020 |
| 72170 | Rear left seat outer slide rail assembly | 72170-52030 |
| 72180C | Rear right seat inner slide rail assembly | 72170-52020 |
| 72190 | Rear left seat inner slide rail assembly | 72160-52030 |
| 72681C | Rear seat backrest lower hook | 72681-52010 |
| 72704A | Rear seat backrest tilt control cable | 72704-52030 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-52050 |
| 72704C | Rear No. 2 seat backrest inclination control cable | 72704-52040 |
| 72704D | Rear No. 2 seat backrest inclination control cable | 72704-52060 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 73090B | Seat belt anchor plate assembly | 73090-52010 |
| 78955 | Rear right seat bottom cover | 78955-52010 |
| 78956 | Rear left seat bottom cover | 78955-52020 |
| 79977 | Seat back felt pad | 79977-52060 |
