Toyota YARIS 锁芯组件 — Figure 6712

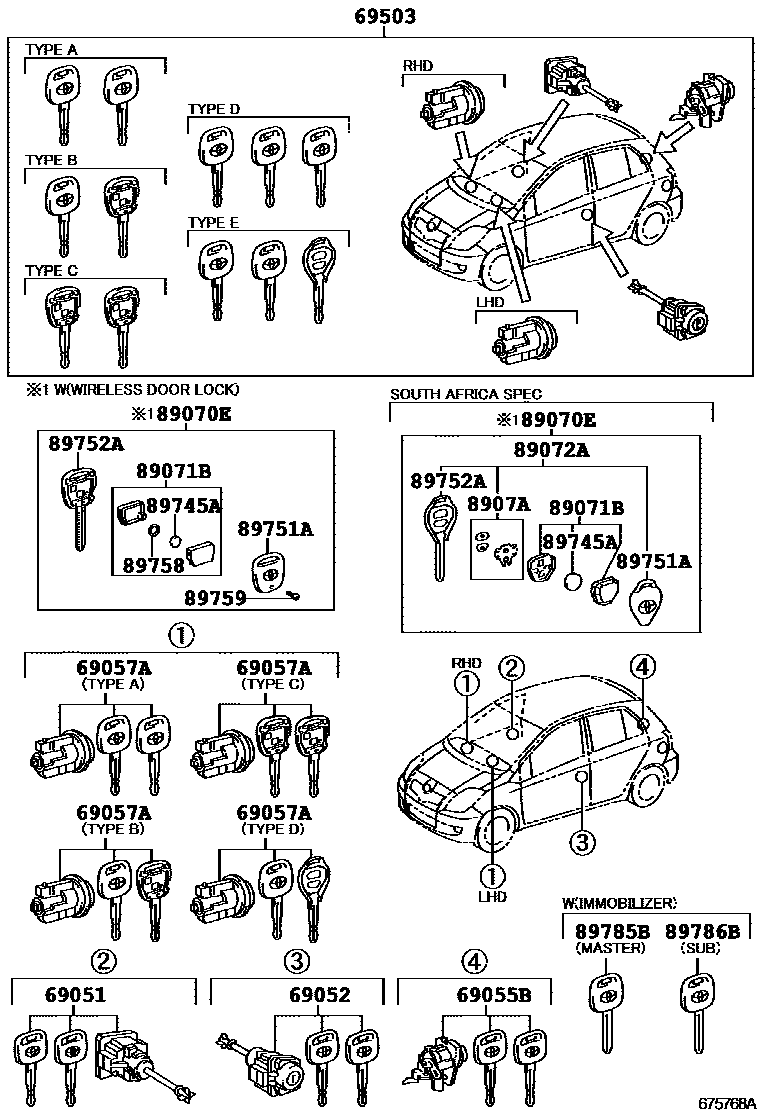

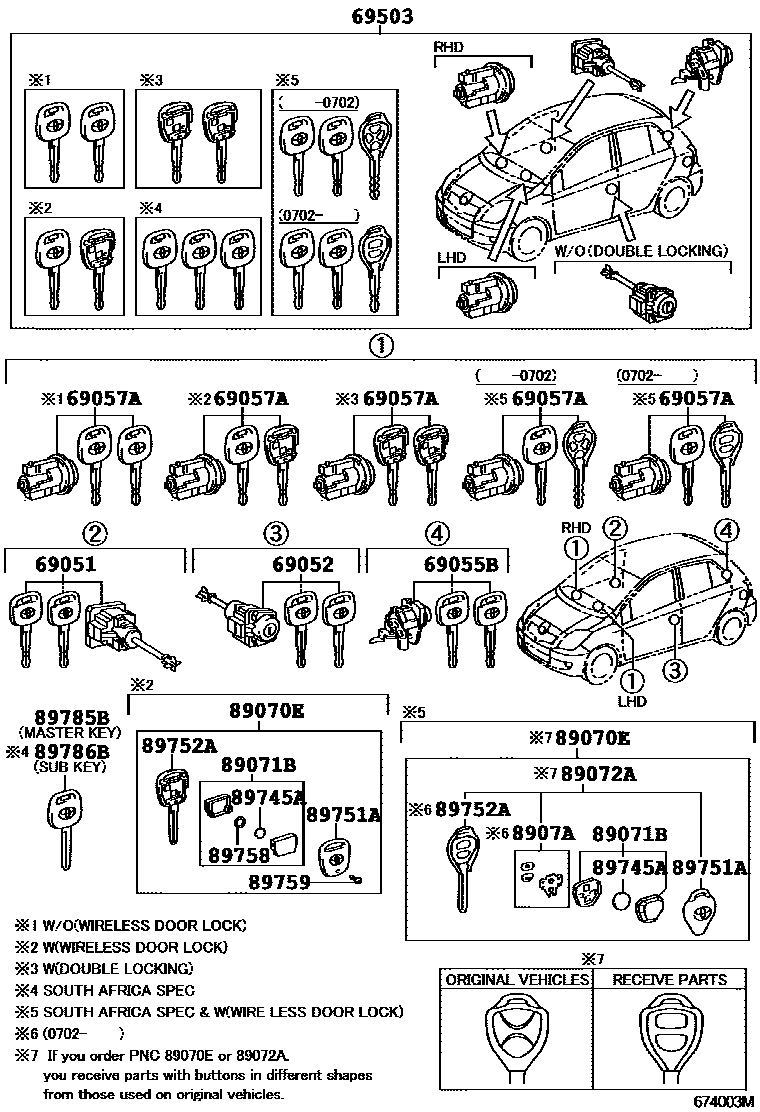

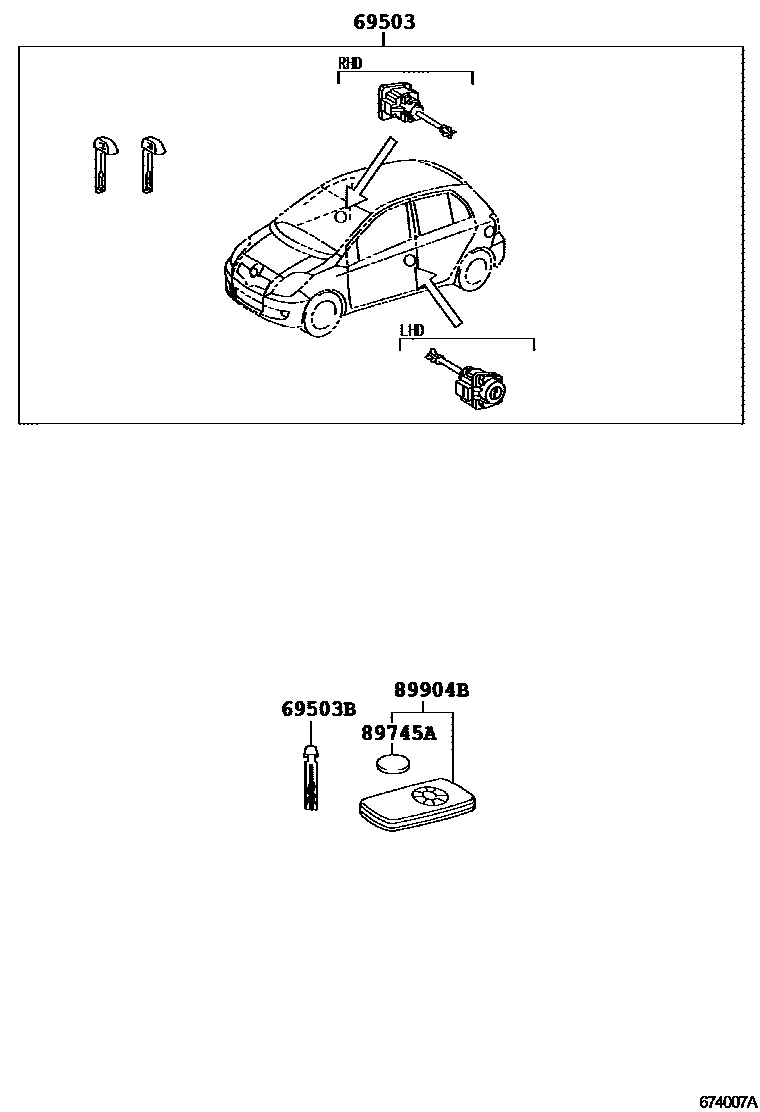

Toyota YARIS EPC diagram 6712, 锁芯组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52400 |
| 69052 | Left door lock cylinder and key assembly | 69052-52330 |
| 69055B | Rear door lock cylinder and key assembly | 69055-52450 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12730 · 69057-52510 · 69057-52520 · 69057-52550 · 69057-52551 · 69057-52570 · 69057-52571 |
| 69503 | Door lock cylinder components | 69005-52A50 · 69005-52A60 · 69005-52A61 · 69005-52A70 · 69005-52A80 · 69005-52B50 · 69005-52B51 · 69005-52B60 · 69005-52B61 · 69005-5C080 |
| 69503B | internal tooth key | 69515-52110 |
| 89070E | Remote key assembly | 89070-52570 · 89070-52571 · 89070-52572 · 89070-52750 · 89070-52751 · 89070-52752 · 89070-52E40 |
| 89071B | Remote key sub-assembly module assembly | 89071-52150 · 89071-71010 · 89071-71050 · 89071-71051 · 89071-71060 |
| 89072A | Remote key shell assembly | 89072-52470 · 89072-52760 |
| 8907A | Transmitter switch assembly | 8907A-71010 |
| 89745A | Transmitter battery | 89745-52010 · 89745-52030 · 89745-71010 |
| 89751A | Transmitter housing cover | 89751-52110 · 89751-52111 · 89751-52112 · 89751-52120 · 89751-52140 · 89751-52220 |
| 89752A | transmitter housing | 89752-13020 · 89752-28050 |
| 89758 | Remote key seal | 89758-52010 |
| 89759 | Remote key screw | 89759-41020 |
| 89785B | transceiver key master transmitter | 89785-60160 |
| 89786B | transceiver key secondary transmitter | 89786-60170 |
| 89904B | Electronic key transmitter sub-assembly | 89904-52050 · 89904-52070 · 89904-52071 |
