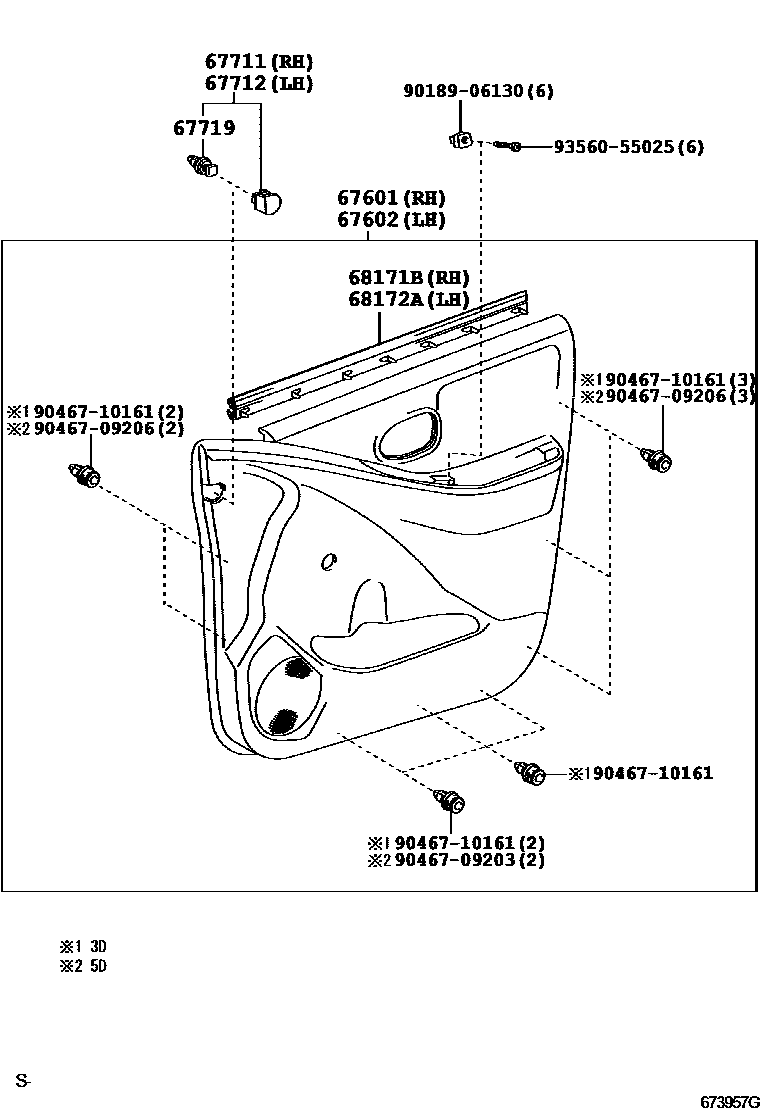

Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-52260 · 67001-52360 |
| 67001A | Front door panel cushion | 90541-09137 |
| 67002 | Left front door panel sub-assembly | 67002-52340 · 67002-52360 |
| 67111 | Outer right front door panel | 67111-52150 · 67111-52160 |
| 67112 | Outer left front door panel | 67112-52100 · 67112-52120 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-52090 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-52060 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-52160 · 67403-52161 · 67403-52170 · 67403-52171 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-52130 · 67404-52131 · 67404-52140 · 67404-52141 |
| 67481C | Front door lower door frame seal | 67481-52010 |
| 67719 | Front door decorative cover | 67719-52010 |
| 67831 | Right front door access hole cover | 67831-52280 · 67831-52300 · 67831-52350 |
| 67832 | Left front door access hole cover | 67831-52280 · 67831-52300 · 67832-52210 |
| 67861 | Right front door seal | 67861-52150 · 67861-52151 · 67861-52160 |
| 67862 | Left front door seal | 67862-52150 · 67862-52151 · 67862-52160 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52010 · 67867-52020 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-52010 · 67867-52020 |
| 68101 | Right front door glass sub-assembly | 68110-52180 · 68110-52250 · 68110-52350 |
| 68102 | Left front door glass sub-assembly | 68120-52180 · 68120-52250 · 68120-52340 |
| 68125 | Right front door fixed window glass | 68101-52030 · 68101-52031 |
| 68126 | Left front door fixed window glass | 68102-52020 · 68102-52021 |
| 68141C | Right front door glass lift channel | 68141-52170 · 68141-52180 |
| 68151C | Left front door glass lift channel | 68151-52150 · 68151-52170 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-52110 · 68160-52130 |
| 68171B | Right front door glass inner sealing strip | 68171-52150 · 68171-52160 |
| 68172A | Left front door glass inner sealing strip | 68172-52050 · 68172-52130 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-52110 · 68210-52130 |
| 68215 | Right front door fixed window seal | 68215-52010 · 68215-52011 |
| 68216 | Left front door fixed window seal | 68216-52010 · 68216-52011 |
| 68610B | Right front door opening limiter assembly | 68610-52100 · 68610-52101 |
| 68620 | Left front door opening limiter assembly | 68610-52100 · 68610-52101 |
| 75921C | No. 1 right side light-shielding film | 75921-52070 |
| 75922M | No. 1 left shading film | 75922-52070 |
