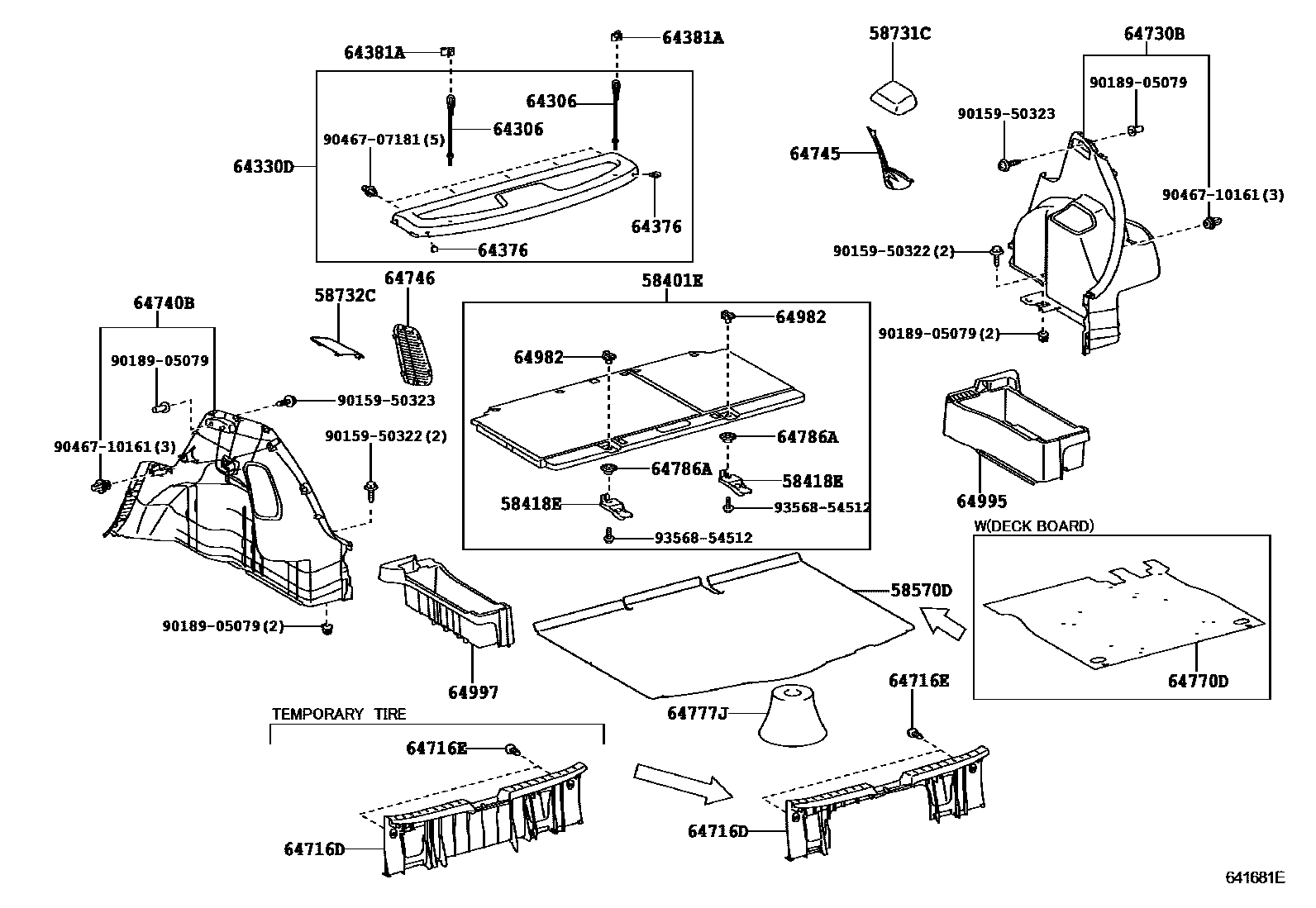

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58418E | Rear floor panel No. 4 | 58418-52011 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-52020 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-12020 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64770D | Spare tire cover assembly | 64771-52160 |
| 64777J | Spare tire cushion | 64777-52020 |
| 64786A | jack cover | 64786-20010 |
| 64995 | Bottom right floor box | 64995-52050 |
| 64997 | Bottom left floor box | 64997-52030 |
