Toyota YARIS 角窗 — Figure 6103

Toyota YARIS EPC diagram 6103, 角窗, with 1 images and 6 PNC and OE references.

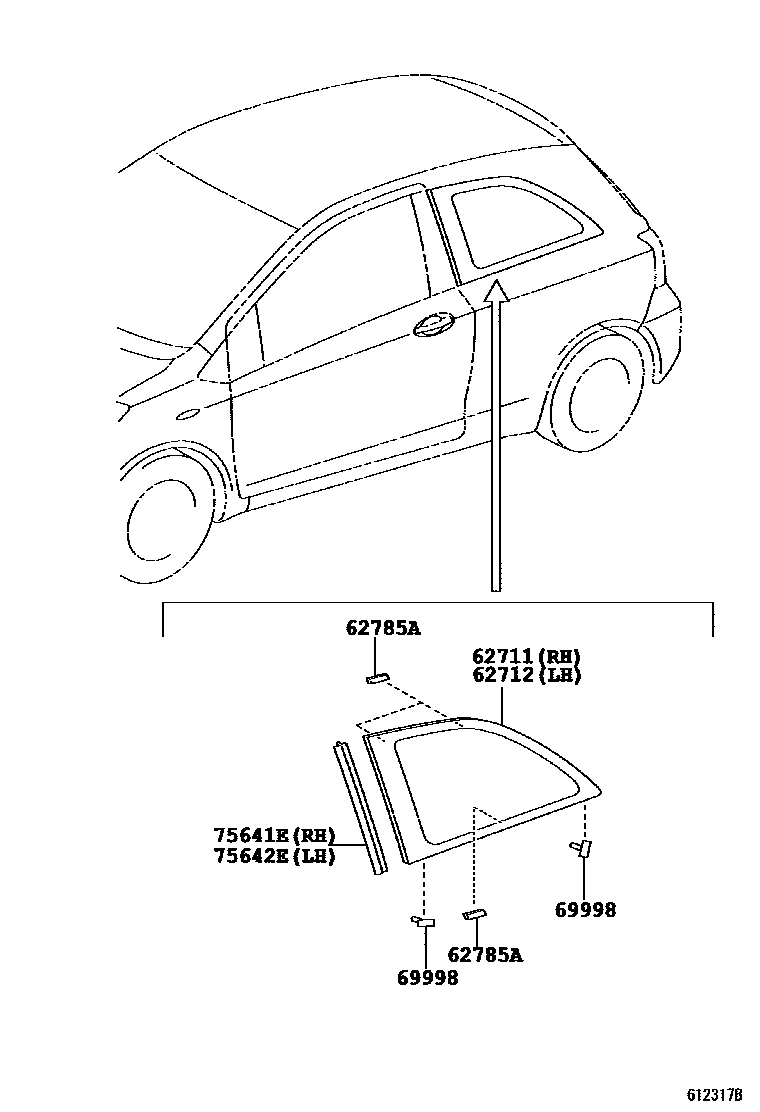

Toyota YARIS 角窗 EPC diagram — 612317B
角窗 — 612317B (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
62711Right corner window glass62711-52300 · 62711-52340
62712Left corner window glass62712-52290 · 62712-52330
62785ACorner window glass spacer62785-16030
69998No. 1 corner window glass guide channel pin69998-52030
75641ERight corner window protective strip75641-52040
75642ELeft corner window protective strip75641-52040
