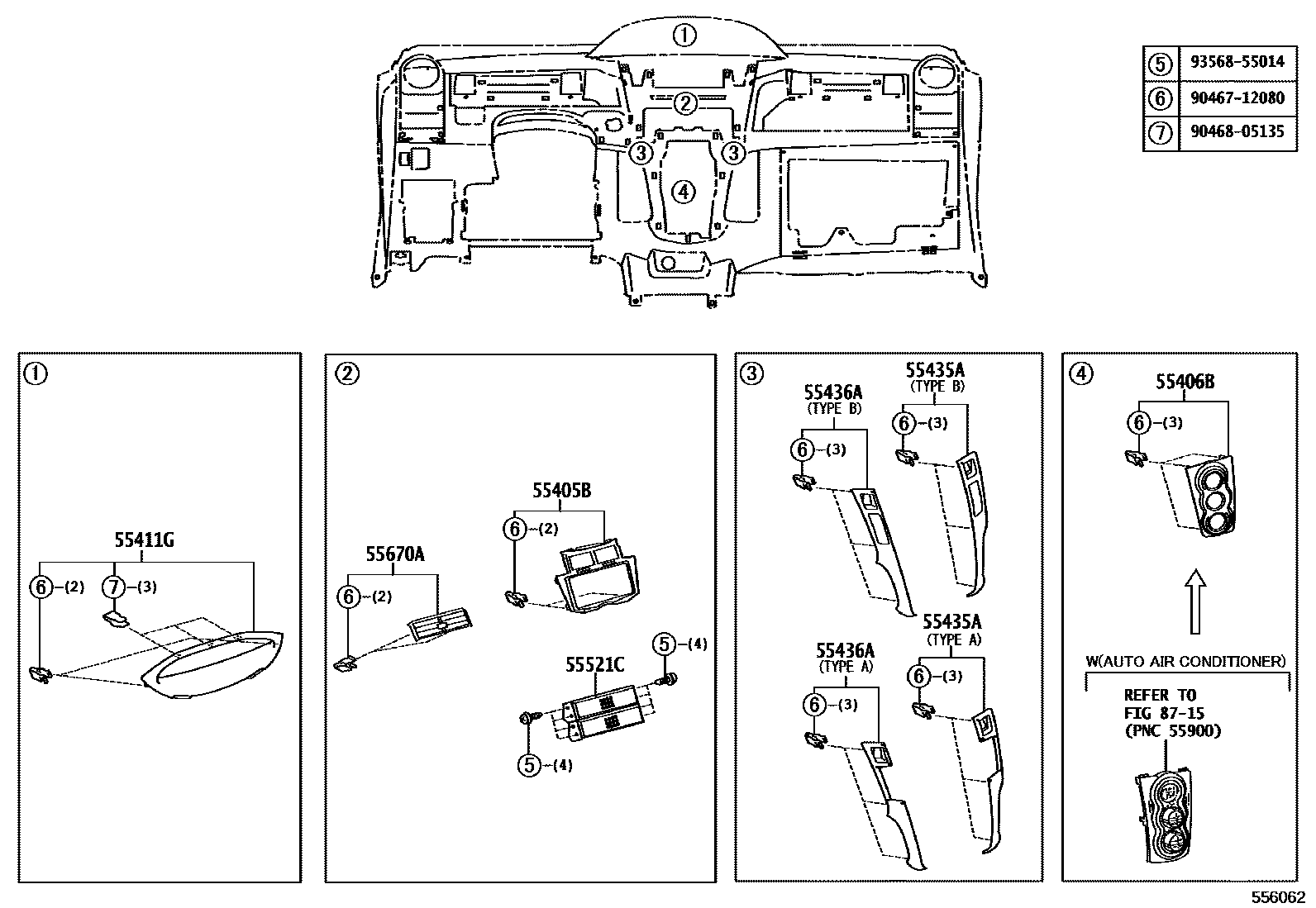

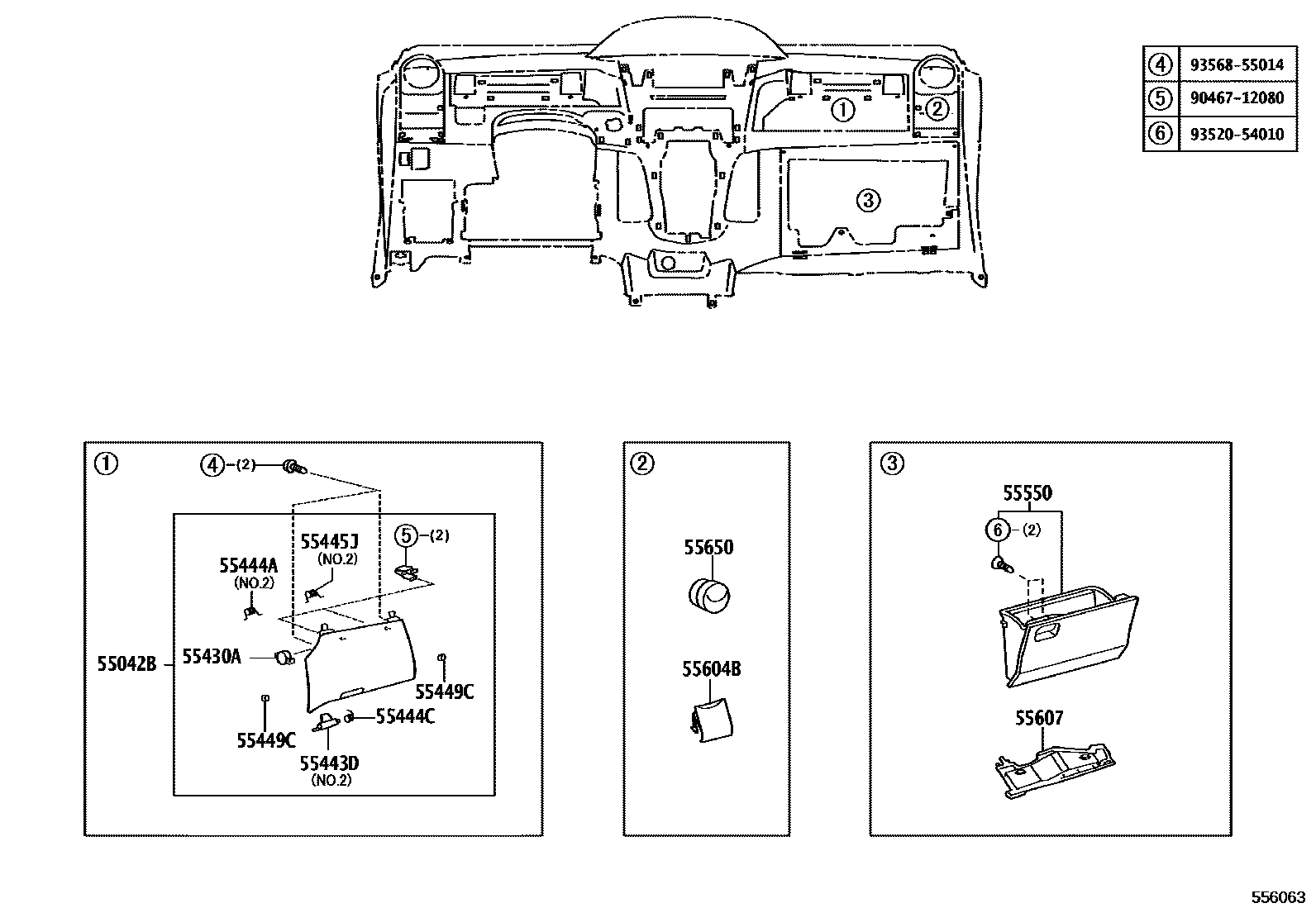

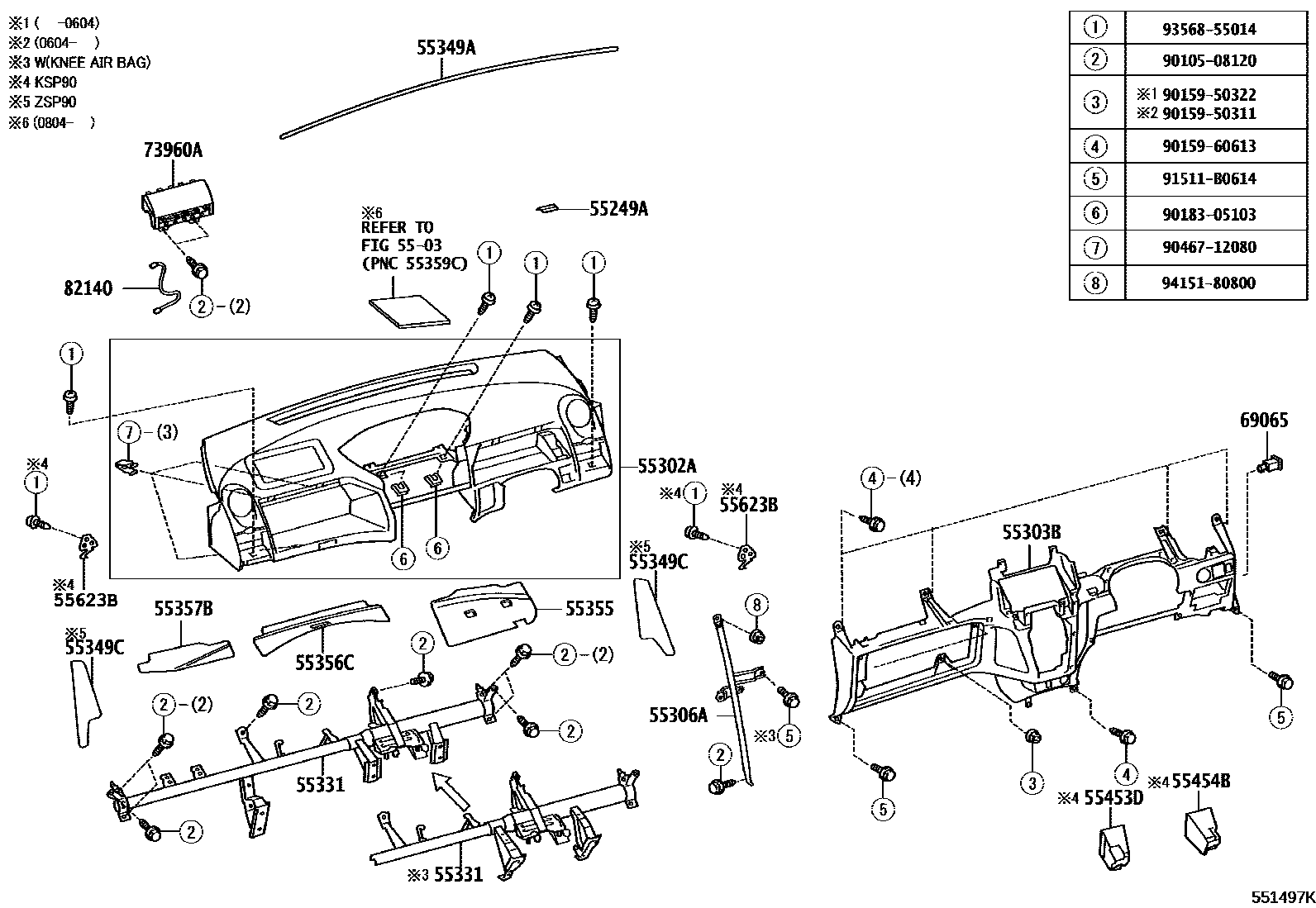

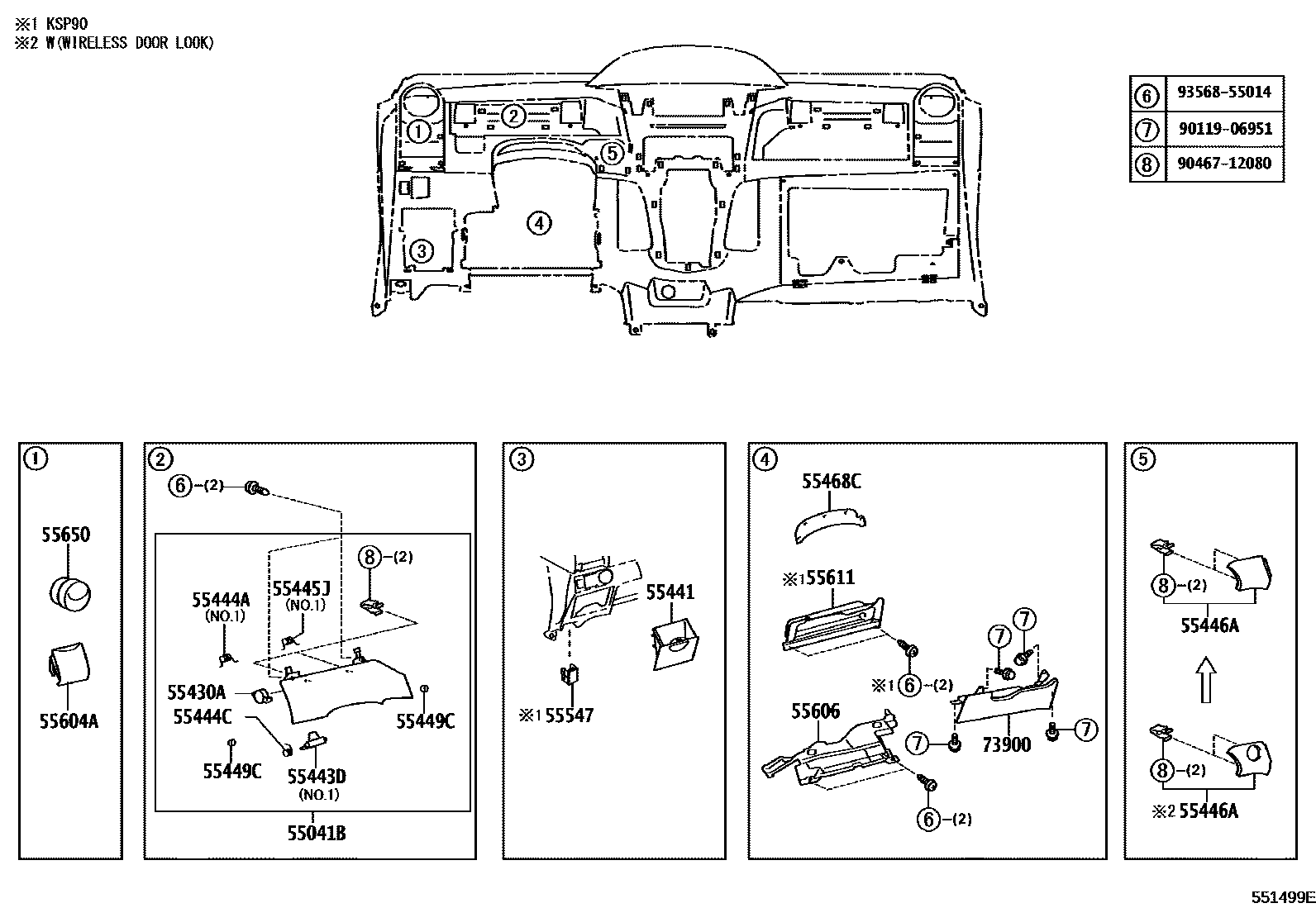

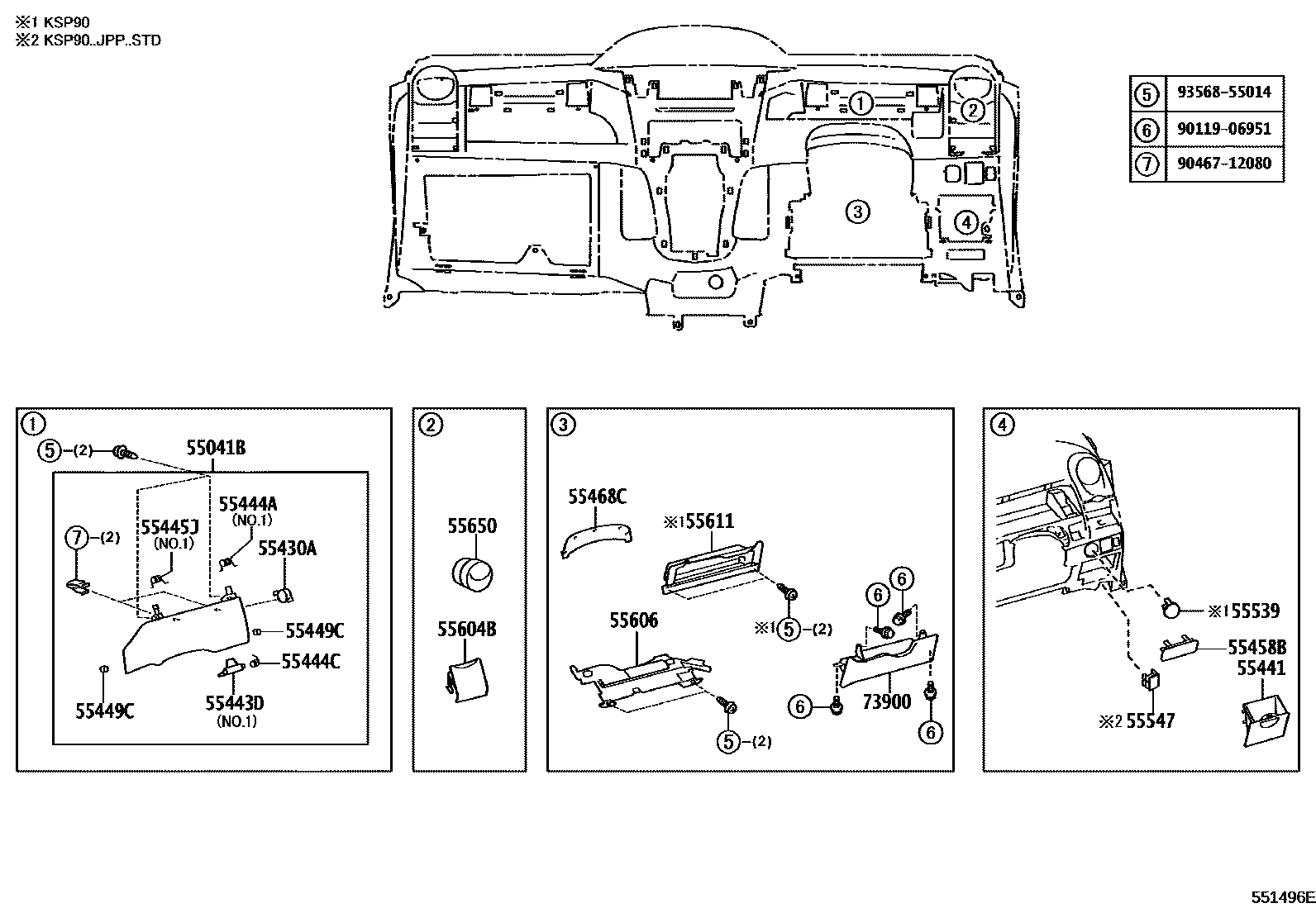

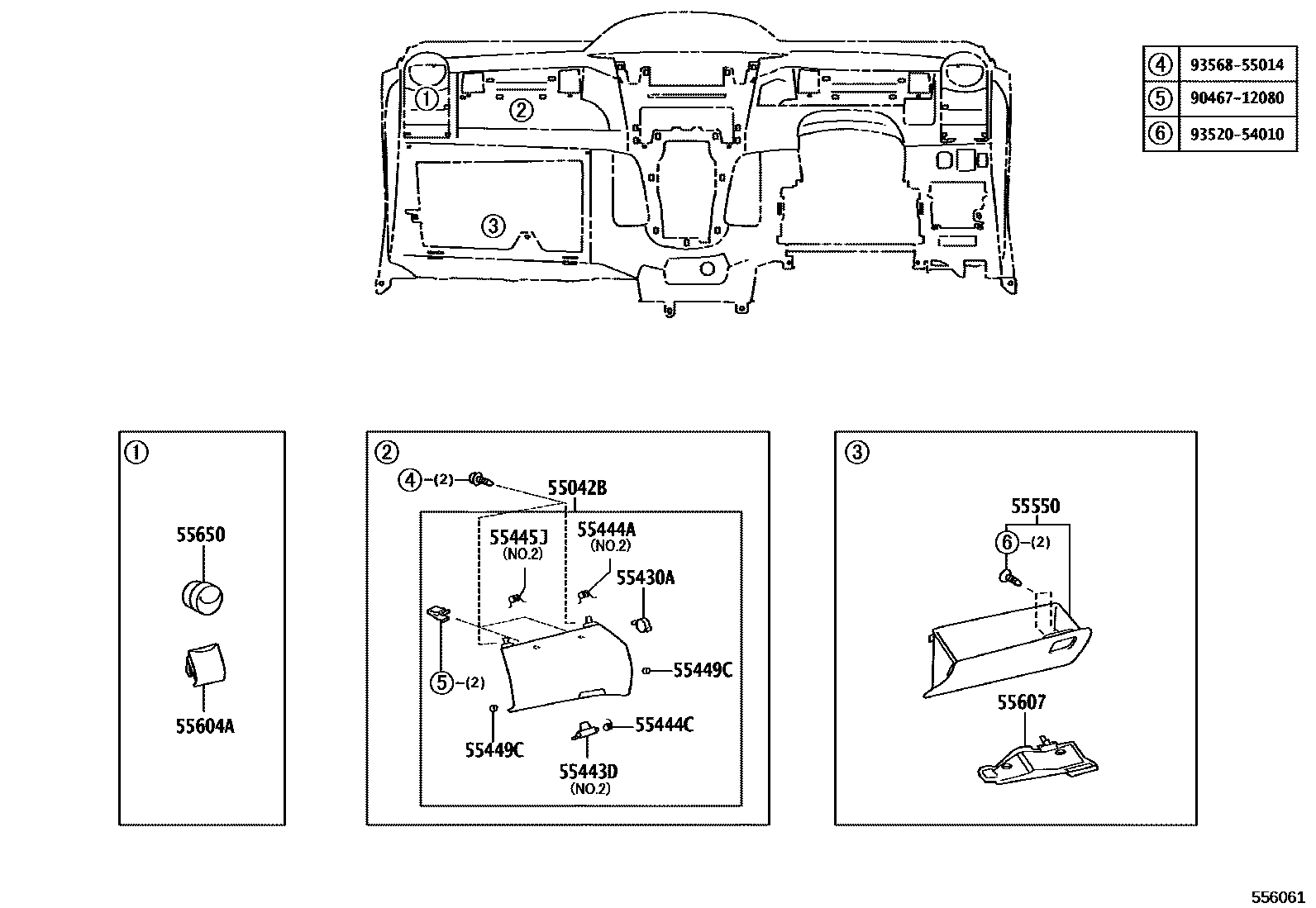

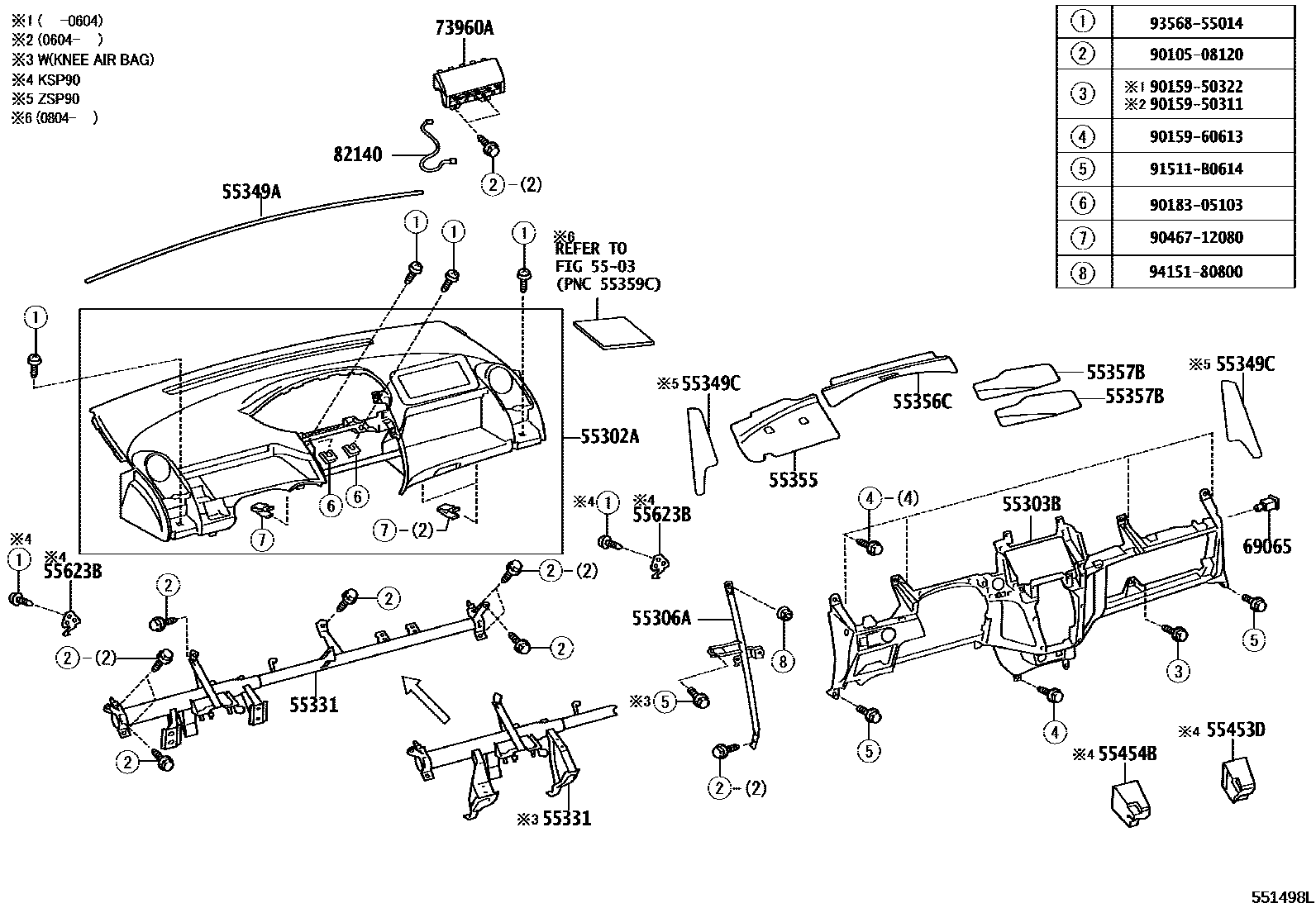

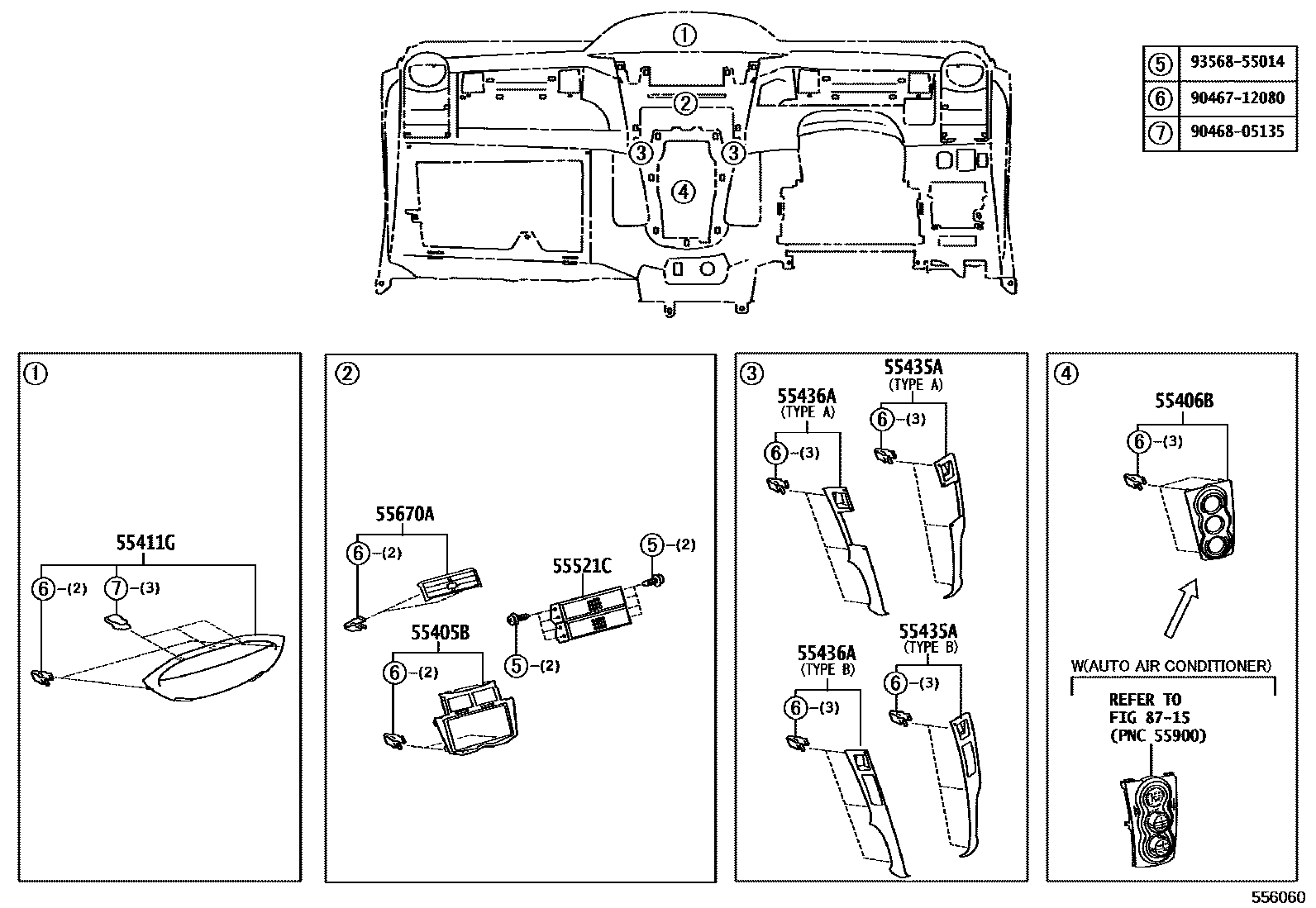

Toyota YARIS 仪表板和手套箱 — Figure 5501
Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 8 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55249A | front panel seal | 55249-52010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-52160 · 55306-52170 · 55306-52180 · 55306-52190 |
| 55331 | Dashboard reinforcement | 55330-52370 · 55330-52371 · 55330-52380 · 55330-52381 · 55330-52382 · 55330-52400 · 55330-52401 · 55330-52410 · 55330-52411 · 55330-52412 |
| 55349A | Dashboard cushion | 55349-52060 |
| 55349C | Dashboard cushion | 55349-52110 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-52100 · 55355-52170 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-52110 · 55356-52170 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-52080 · 55357-52140 |
| 55430A | Instrument cluster decorative panel damper assembly | 55430-52020 |
| 55444A | Dashboard storage box spring | 55444-52230 · 55444-52270 |
| 55444C | Dashboard storage box spring | 55478-52020 |
| 55445J | Dashboard storage box spring | 55445-52160 · 55445-52180 |
| 55449C | Dashboard No. 2 decorative panel cushion | 55449-28020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-52050 · 55453-52060 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-52040 · 55454-52050 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-52010 |
| 55521C | stereo system hole cover | 55521-20150 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-52020 · 55606-52030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-52020 · 55607-52030 |
| 55623B | Dashboard cup holder spring | 55623-52020 |
| 69065 | Air bag cut-off switch lock cylinder sub-assembly | 69065-52020 · 69065-52030 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-52050 · 73960-52101 |
| 82140 | Instrument panel wiring harness assembly | 82140-52020 |
