Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

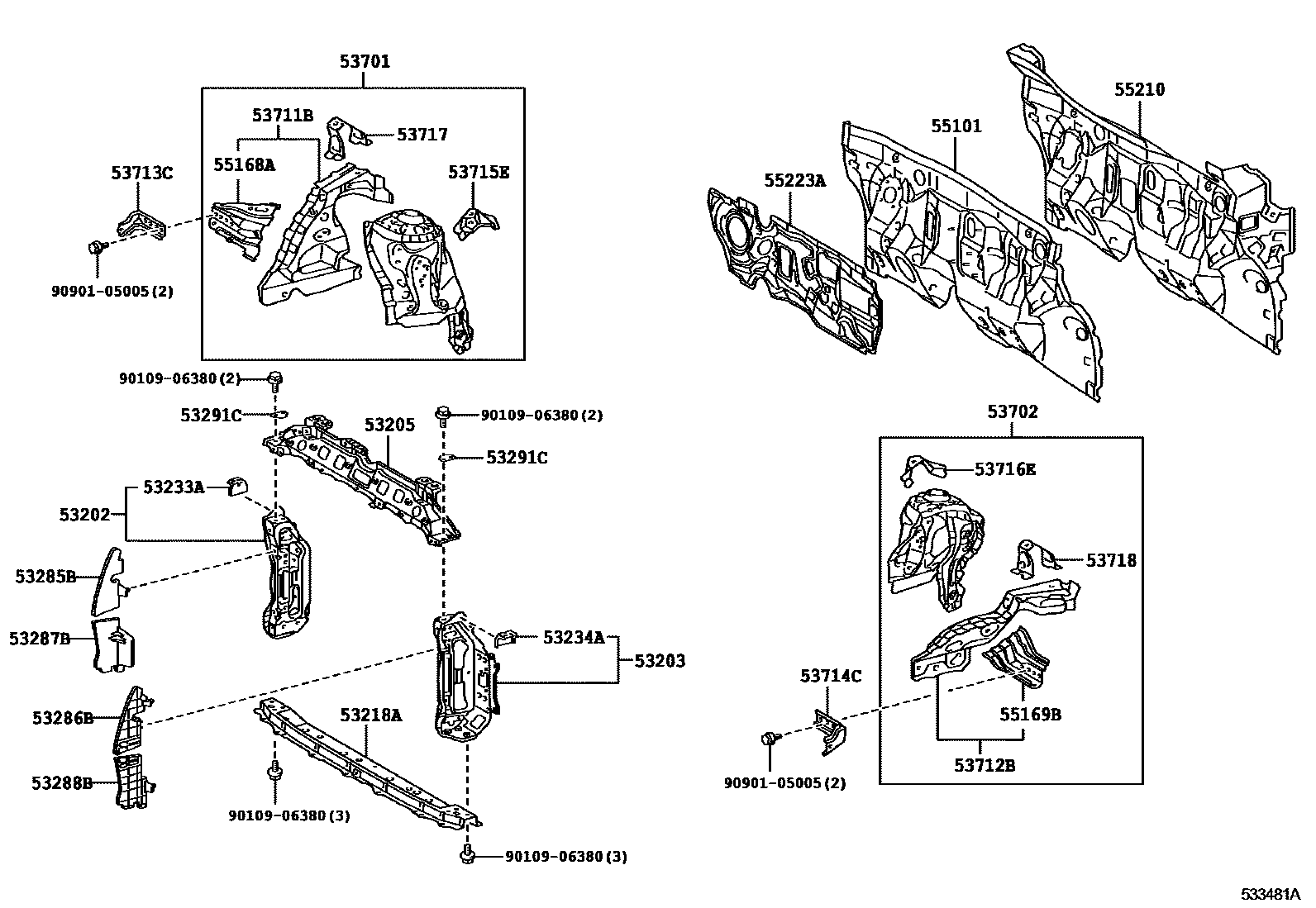

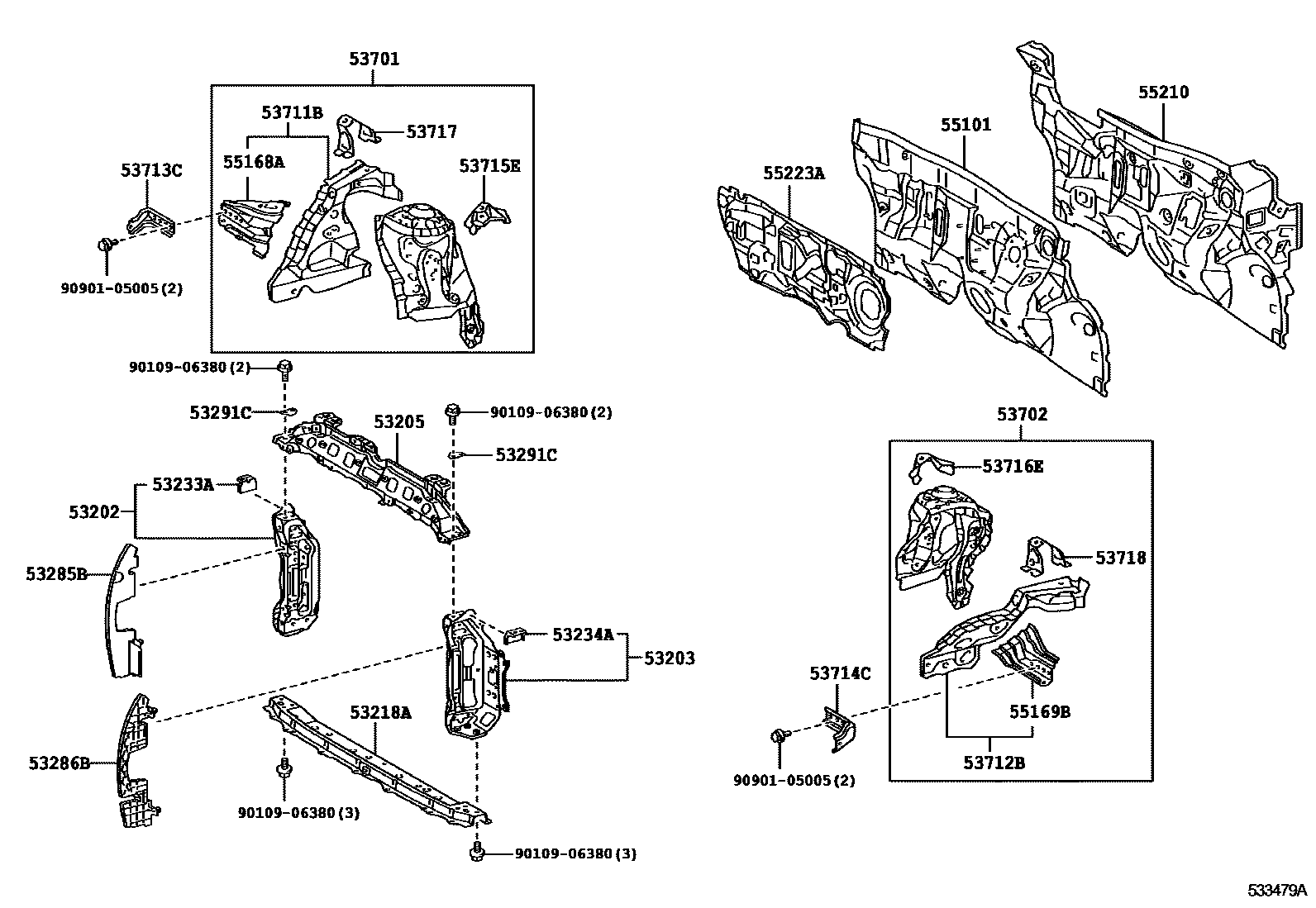

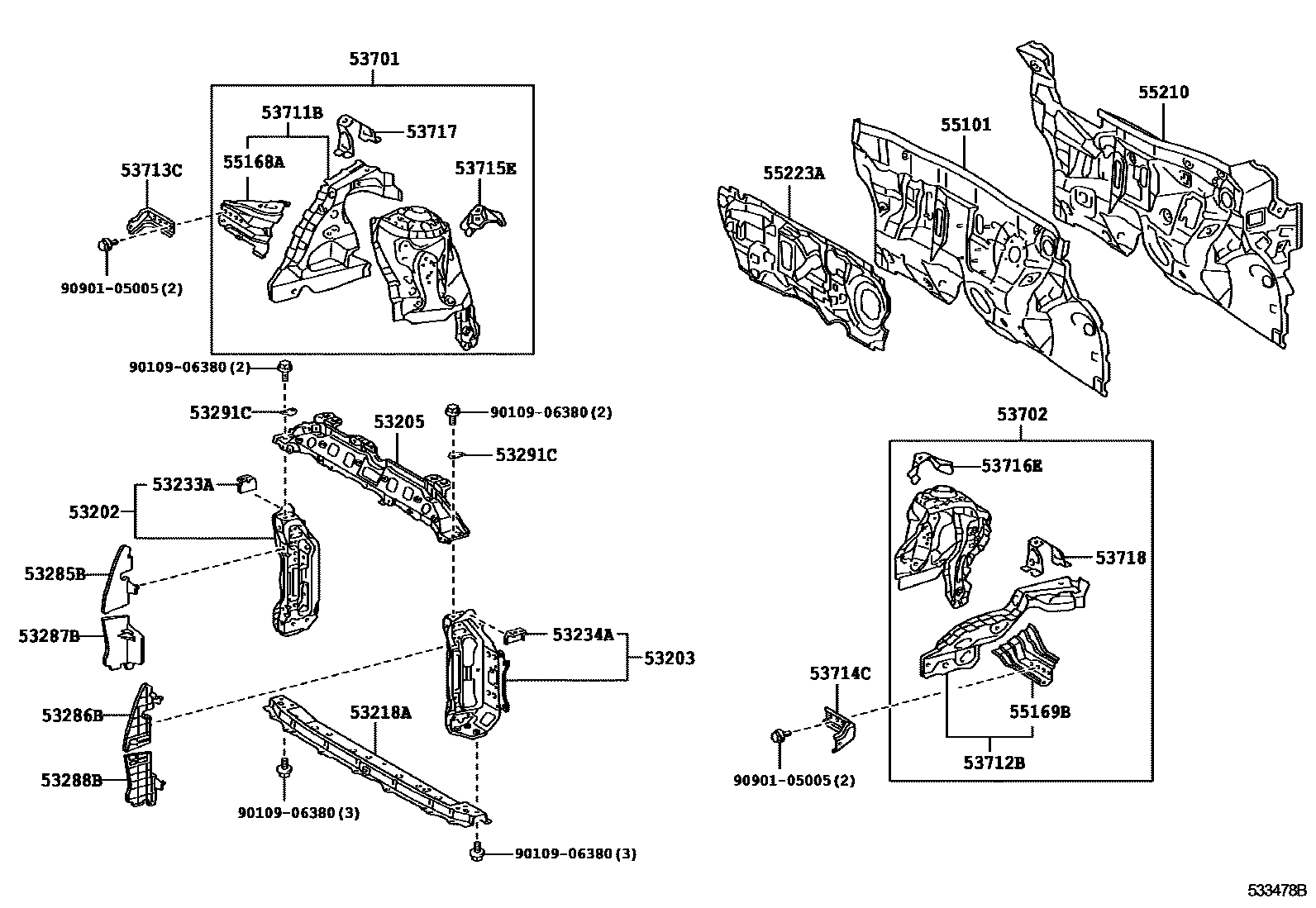

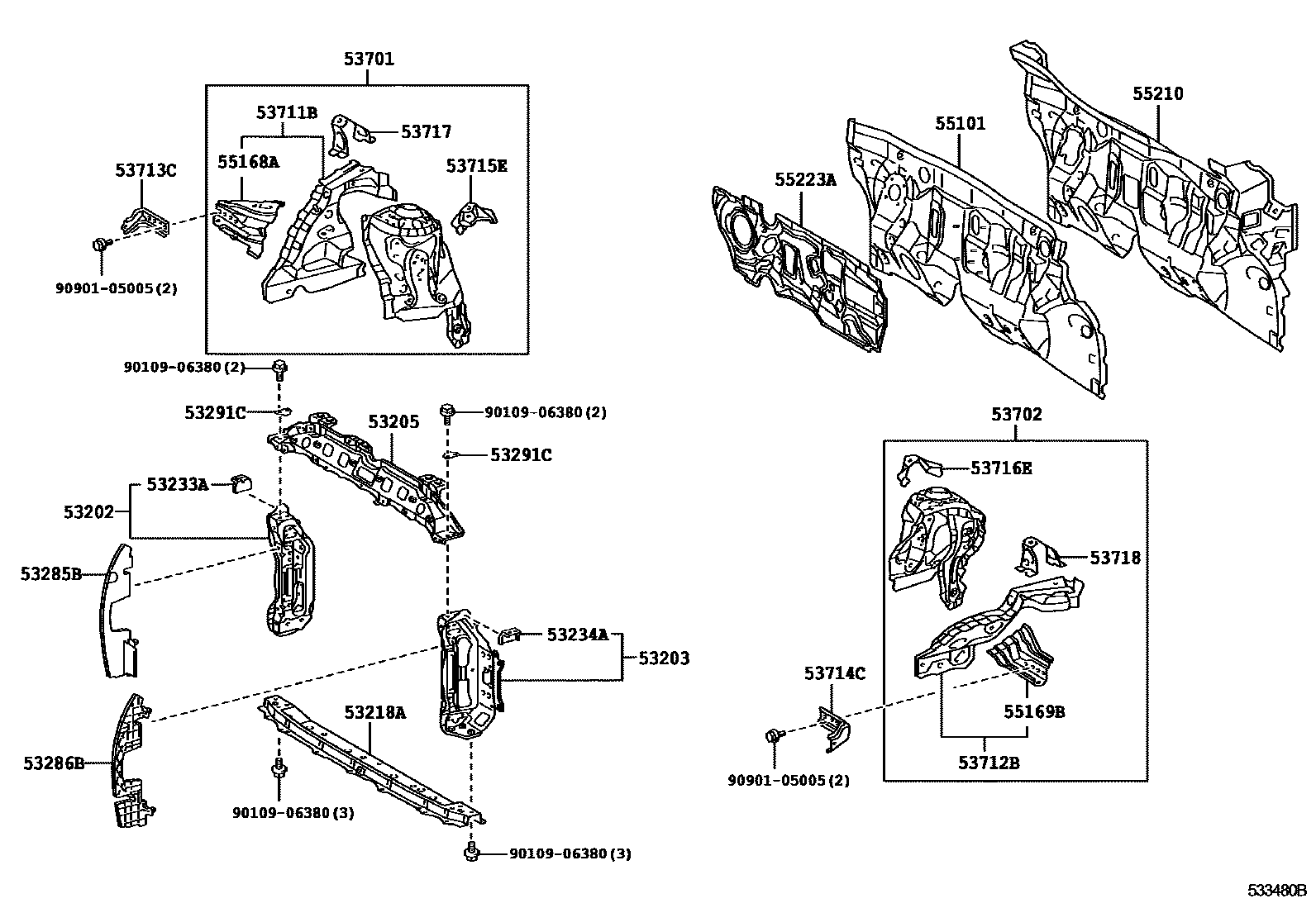

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-52901 · 53202-52905 · 53202-52910 |
| 53203 | Radiator left bracket sub-assembly | 53203-52901 · 53203-52903 · 53203-52908 |
| 53205 | Radiator upper bracket sub-assembly | 53205-52090 |
| 53218A | Radiator lower support | 53028-52070 |
| 53233A | No. 1 right headlight bracket | 53233-52010 · 53233-52030 |
| 53234A | No. 1 left headlight bracket | 53234-52020 · 53234-52040 |
| 53285B | Radiator side 1 air seal | 53285-52170 · 53285-52200 · 53285-52280 · 53285-52300 |
| 53286B | Radiator No. 2 side air seal | 53286-52100 · 53286-52140 · 53286-52220 · 53286-52240 |
| 53287B | Radiator right side bracket extension | 53287-52010 |
| 53288B | Radiator left bracket extension | 53288-52010 |
| 53291C | Radiator bracket to frame seal | 53291-52070 |
| 53701 | Right front fender fender sub-assembly | 53701-52150 |
| 53702 | Left front fender fender sub-assembly | 53702-52150 |
| 53711B | Right front fender front fender | 53707-52030 |
| 53712B | Left front fender front fender | 53708-52030 |
| 53713C | Right front fender fender front extension | 53713-52010 |
| 53714C | Left front fender fender front extension | 53714-52020 |
| 53715E | Right front fender fender rear extension | 53715-52030 |
| 53716E | Left front fender fender rear extension | 53716-52030 |
| 53717 | Right fender fender side panel | 53717-52080 |
| 53718 | Left fender fender side panel | 53718-52080 |
| 55101 | Front apron sub-assembly | 55101-52490 · 55101-52690 |
| 55168A | Right front fender mounting bracket | 55168-52130 |
| 55169B | Left front fender mounting bracket | 55169-52130 |
| 55210 | Front wall insulation pad assembly | 55210-52170 · 55210-52171 · 55210-52172 · 55210-52180 |
| 55223A | Front wall outer heat insulation pad | 55223-52080 · 55223-52090 · 55223-52100 · 55223-52110 |
