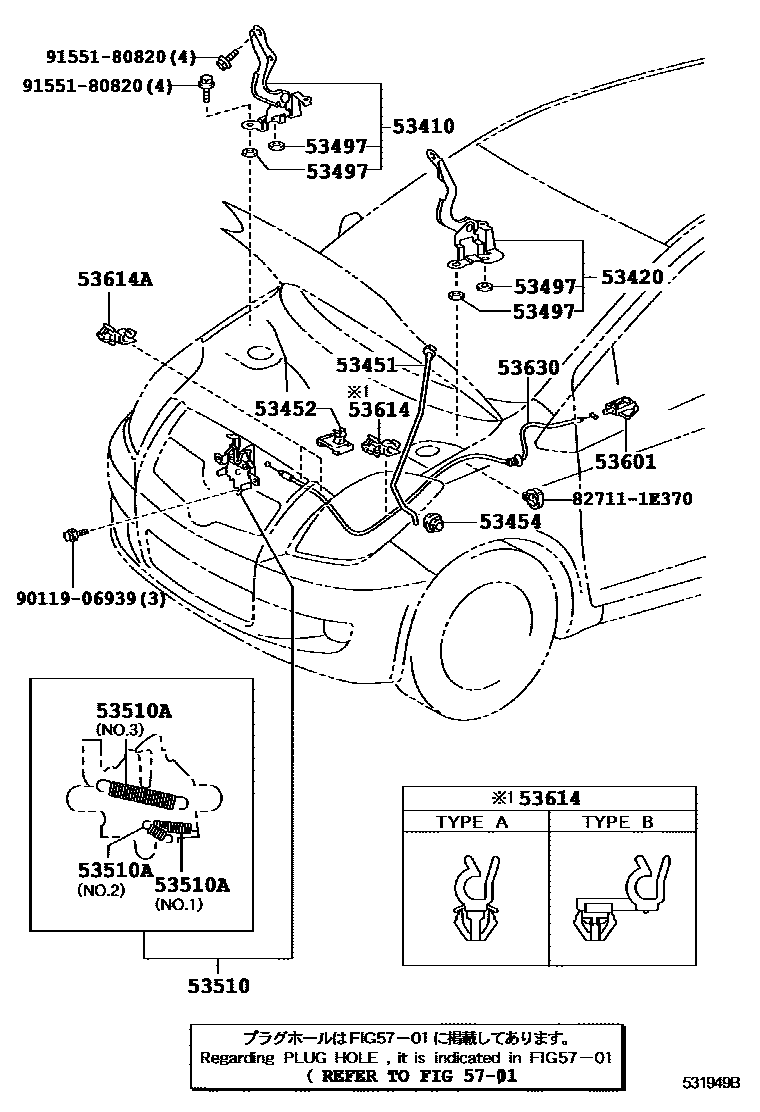

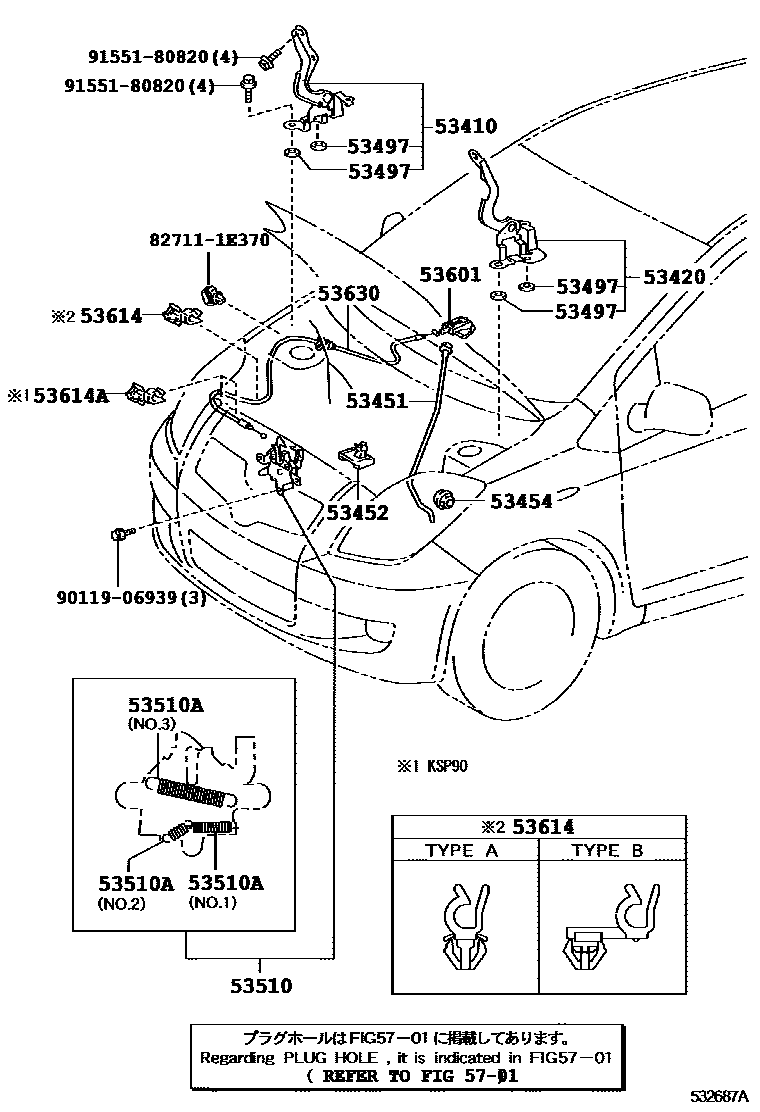

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-52180 |
| 53420 | Engine cover left hinge assembly | 53420-52180 |
| 53451 | Engine cover support rod | 53440-52140 |
| 53452 | Engine cover stay rod fixing | 53452-52010 |
| 53454 | Engine cover support rod clip | 53454-52020 |
| 53497 | No. 1 engine cover hinge gasket | 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-52290 · 53510-52300 · 53510-52440 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-12063 · 90506-14085 |
| 53614 | Engine hood lock control cable clip | 53614-52010 · 53614-52020 |
| 53614A | No. 1 hood lock control cable clip | 53614-52010 |
| 53630 | Engine hood lock control cable assembly | 53630-52110 · 53630-52140 |
