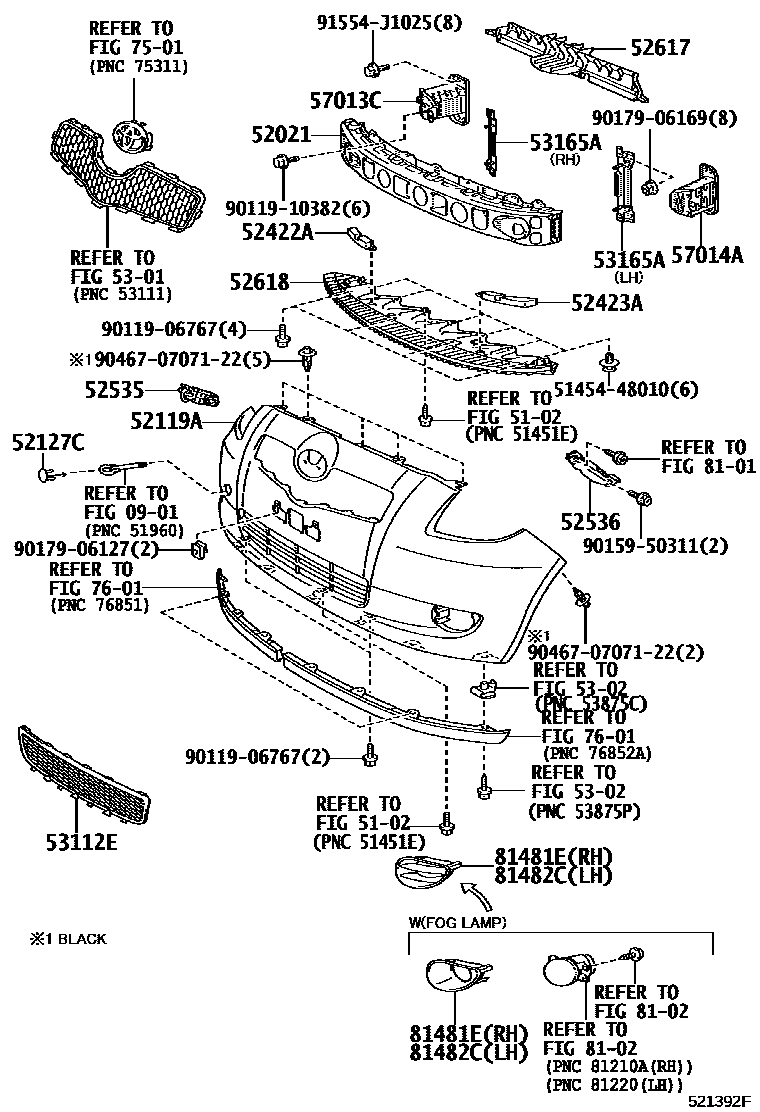

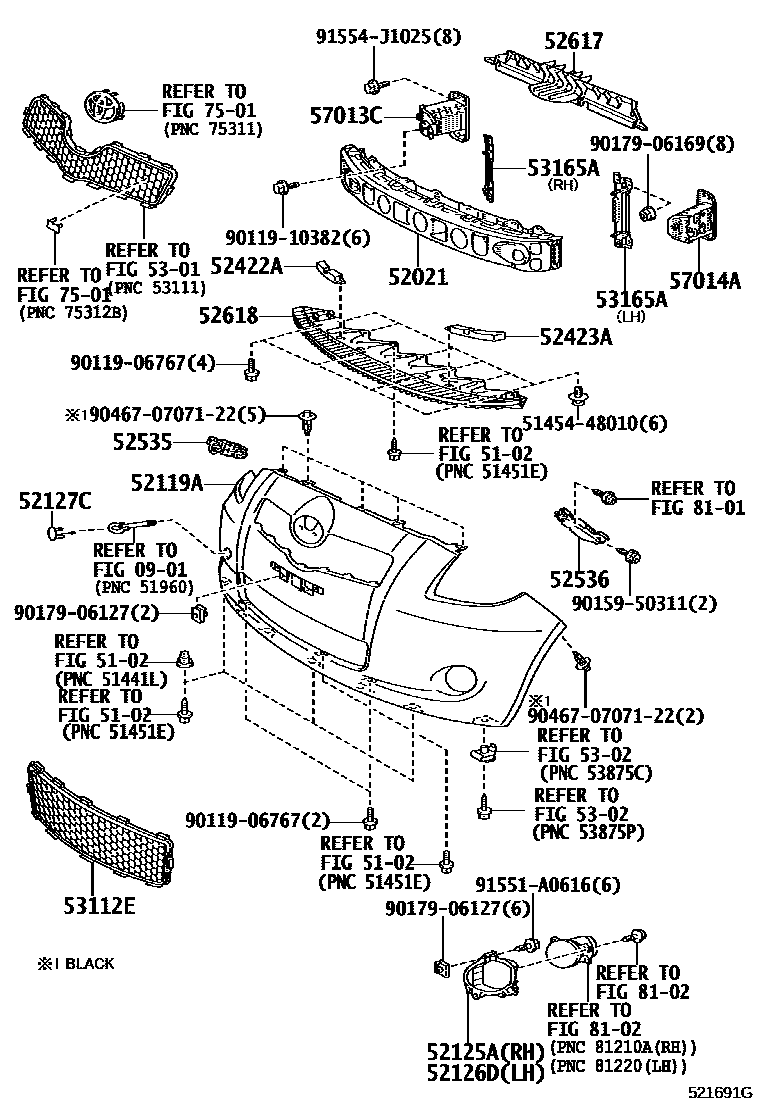

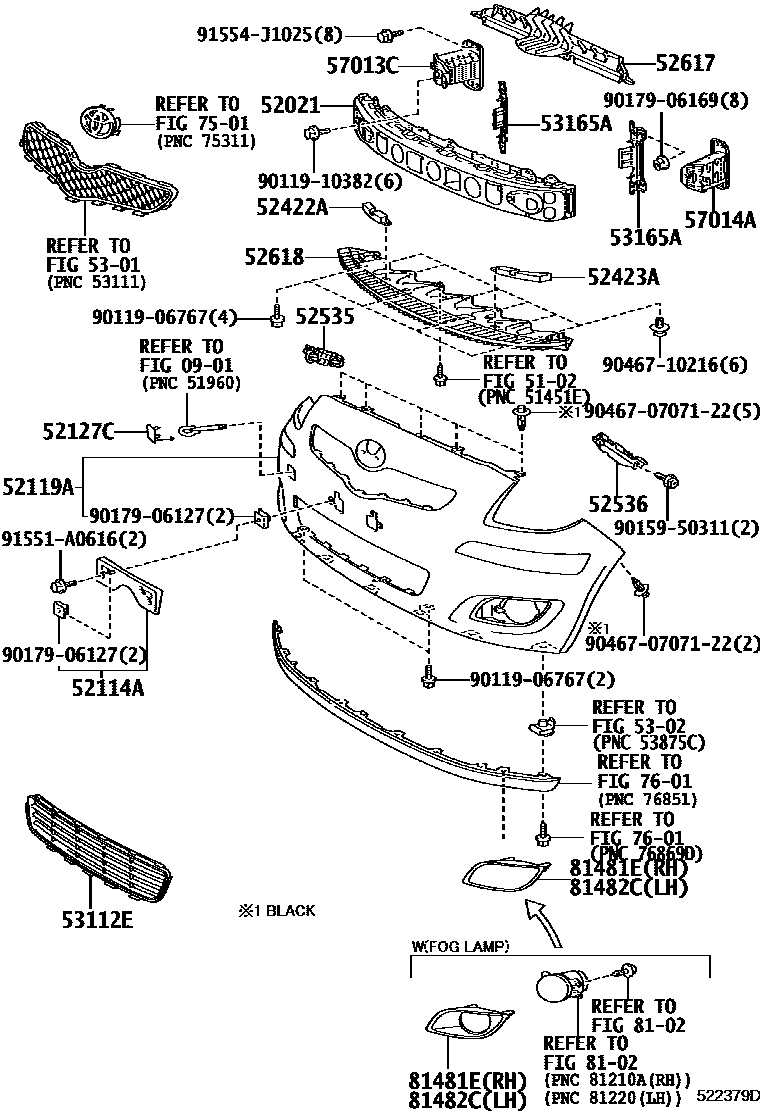

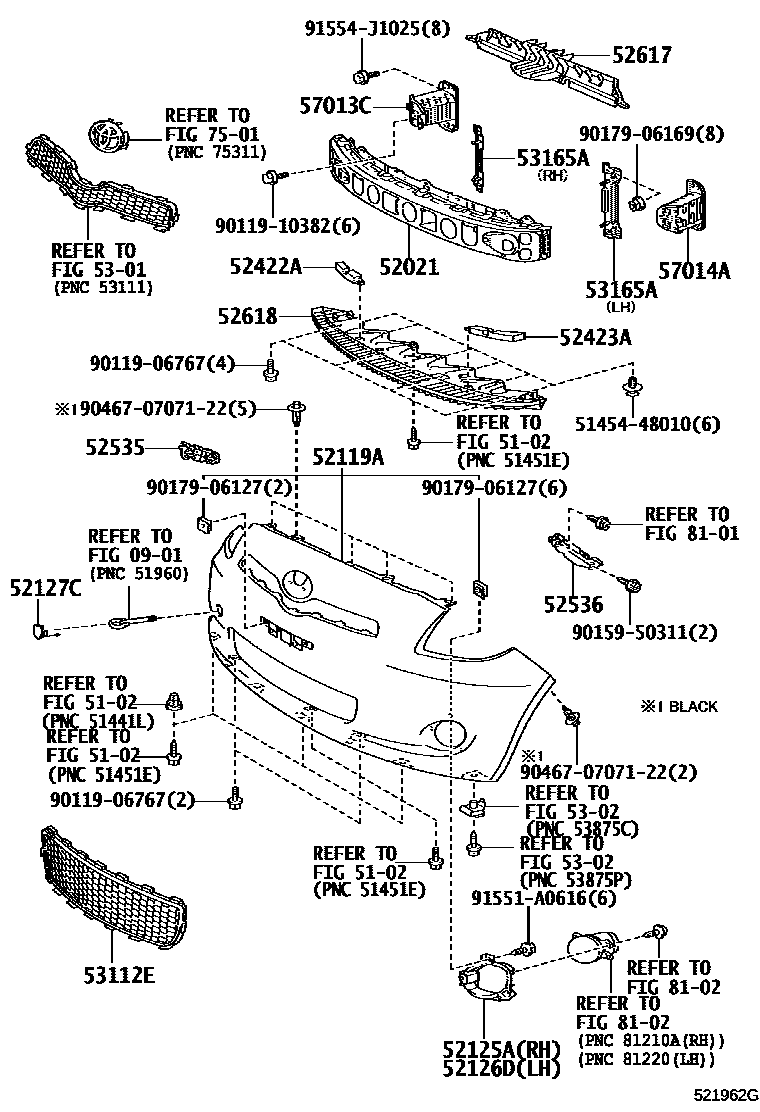

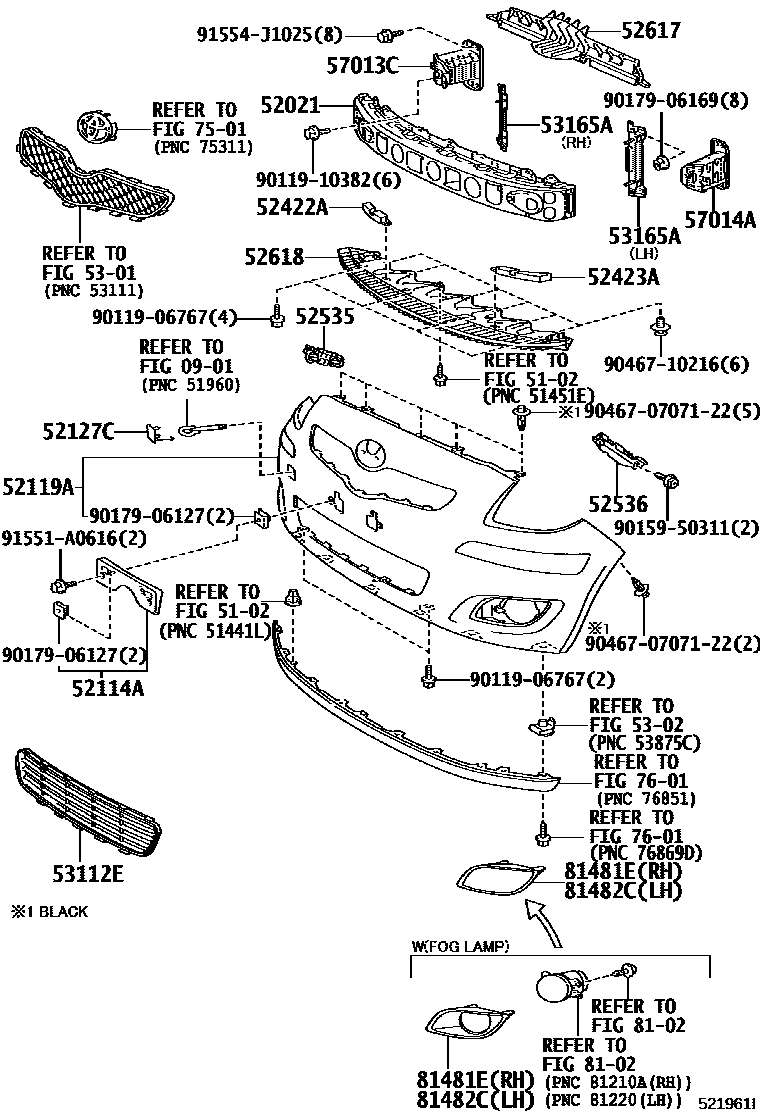

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 5 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-52050 |
| 52114A | Front bumper extension mounting bracket | 52114-52060 |
| 52119A | front bumper cover | 52119-52922 · 52119-52938 · 52119-52946 · 52119-52960 |
| 52125A | Right fog light mounting bracket | 52125-52030 · 52125-52050 |
| 52126D | Left fog light mounting bracket | 52126-52030 · 52126-52050 |
| 52127C | Front bumper hole cover | 52127-52907 · 52127-52908 · 52127-52925 · 52127-52928 |
| 52422A | Front bumper right side lining | 52422-52010 |
| 52423A | Front bumper left lining | 52423-52010 |
| 52535 | Front bumper right side fixing bracket | 52535-52060 |
| 52536 | Front bumper left fixed bracket | 52536-52050 |
| 52617 | Radiator upper bracket shock absorber | 52617-52020 |
| 52618 | Front bumper lower shock absorber | 52618-52010 · 52618-52030 |
| 53112E | No. 1 radiator lower grille | 53112-0D160 · 53112-52160 · 53112-52170 · 53112-52350 |
| 53165A | Front bumper baffle No. 1 bracket | 53164-52010 · 53164-52060 · 53165-52020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-52010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-52010 |
| 81481E | Right fog light cover | 81481-52110 · 81481-52150 · 81481-52320 · 81481-52330 |
| 81482C | Left fog light cover | 81482-52100 · 81482-52110 · 81482-52250 · 81482-52260 |
