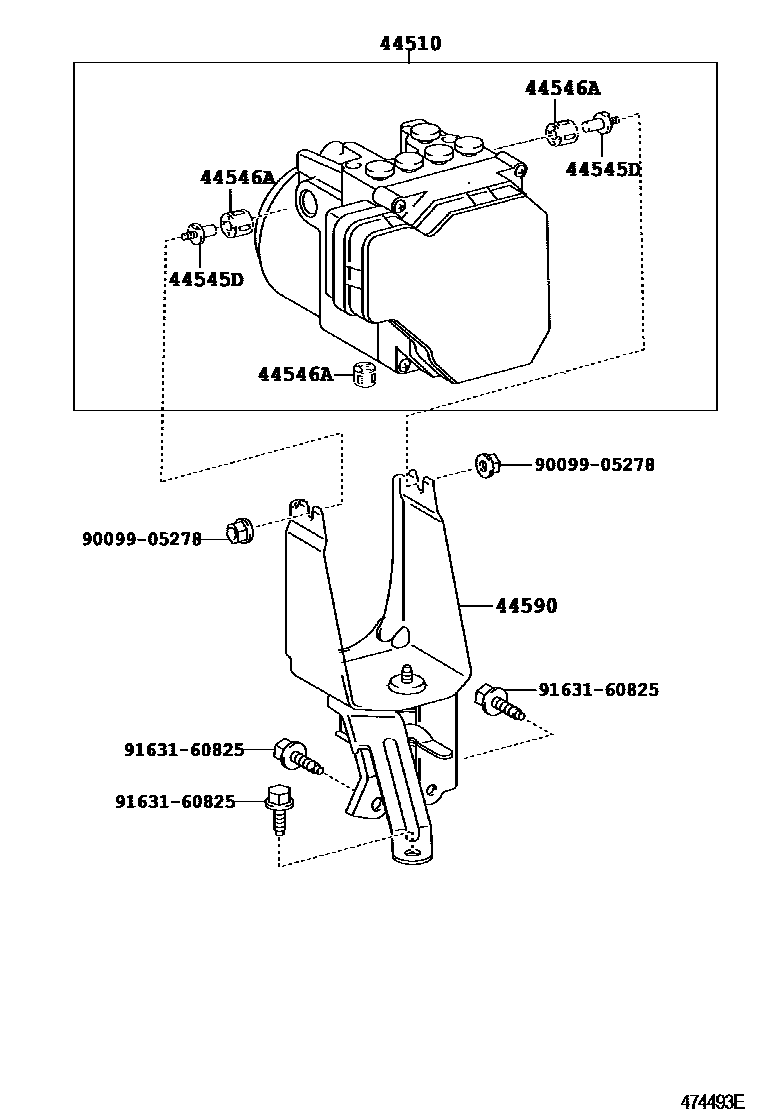

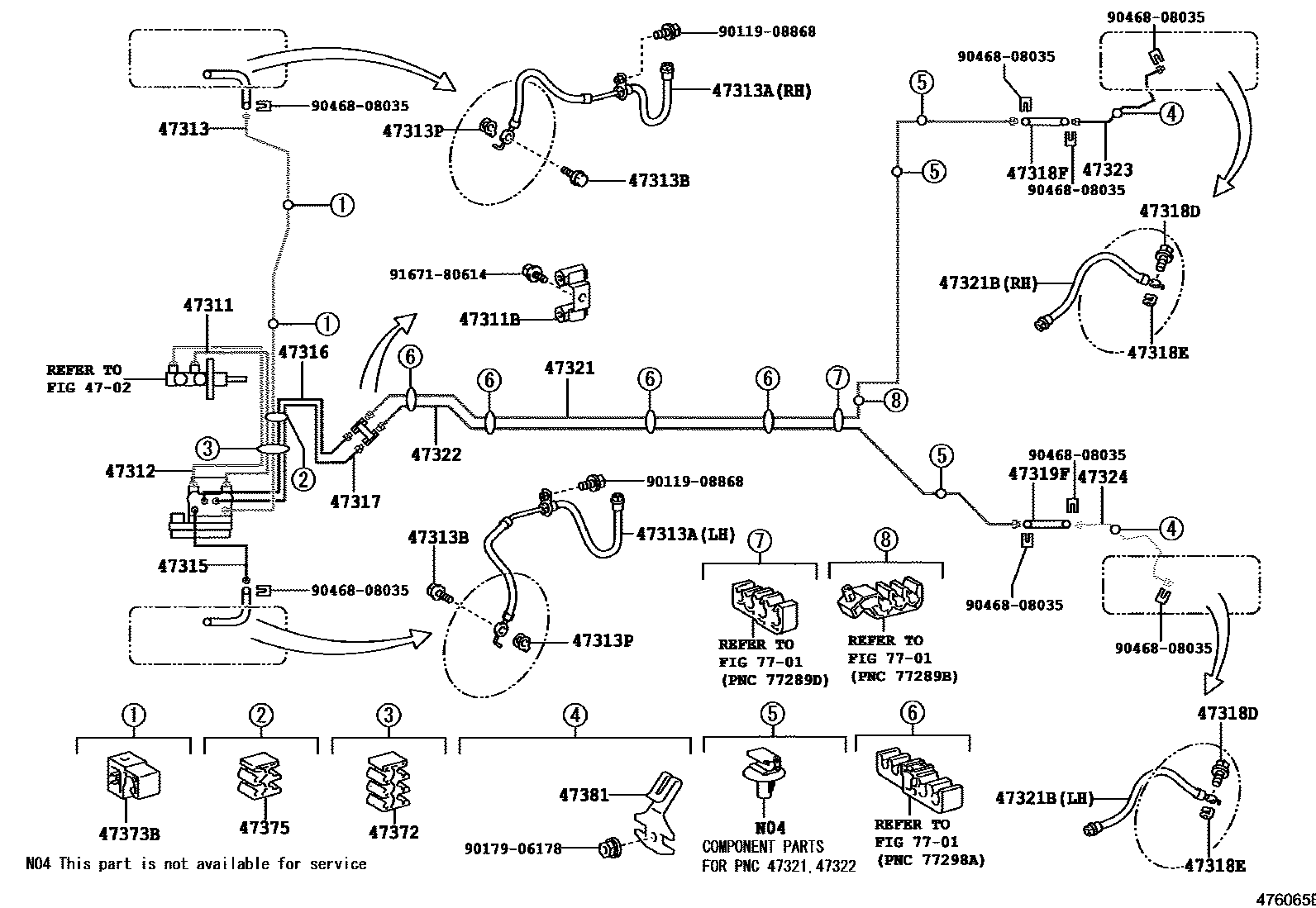

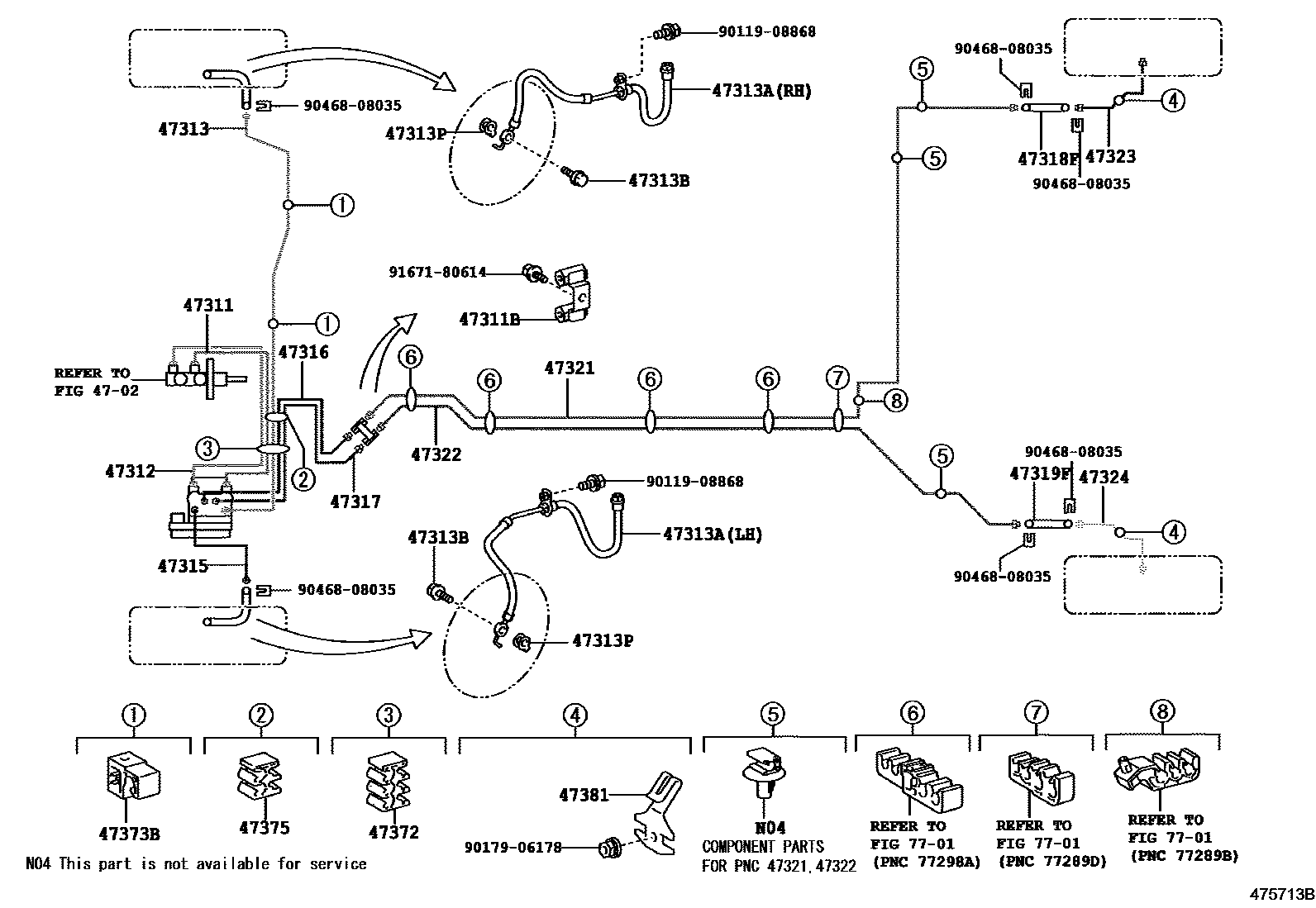

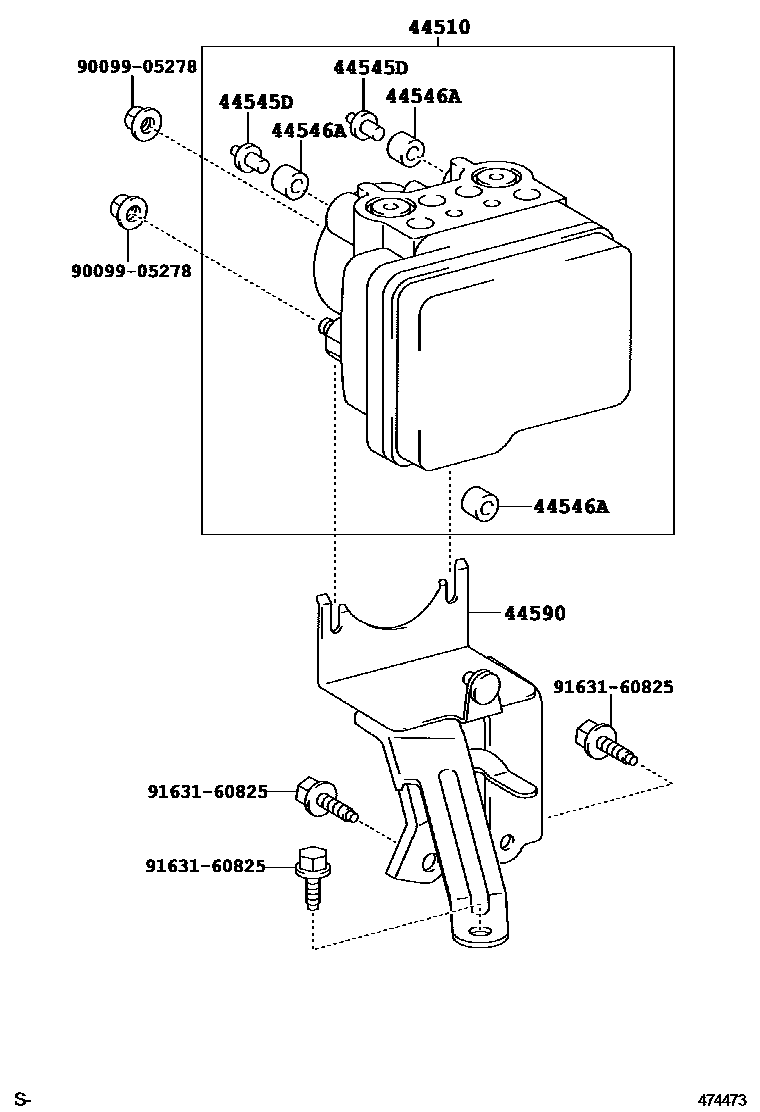

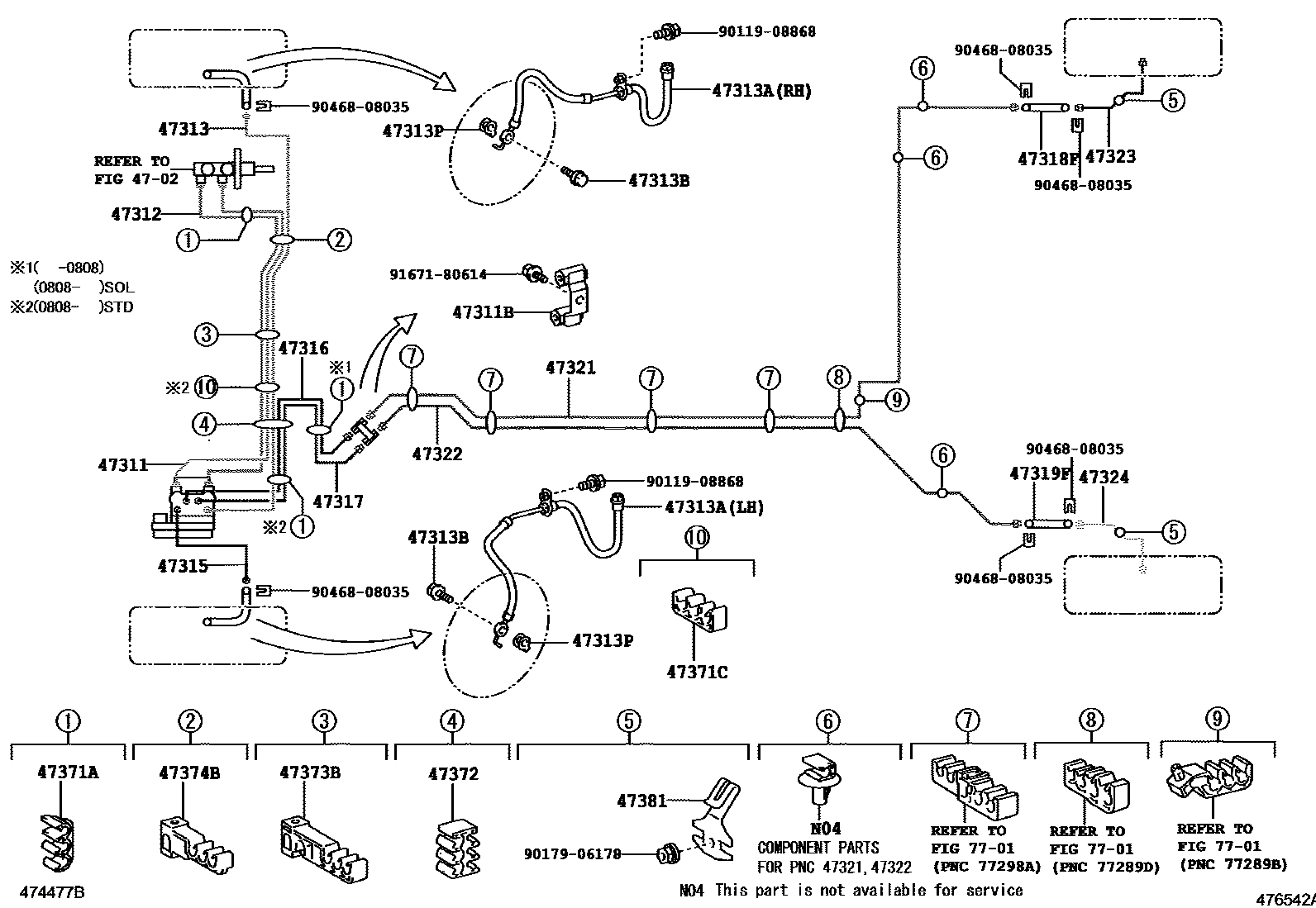

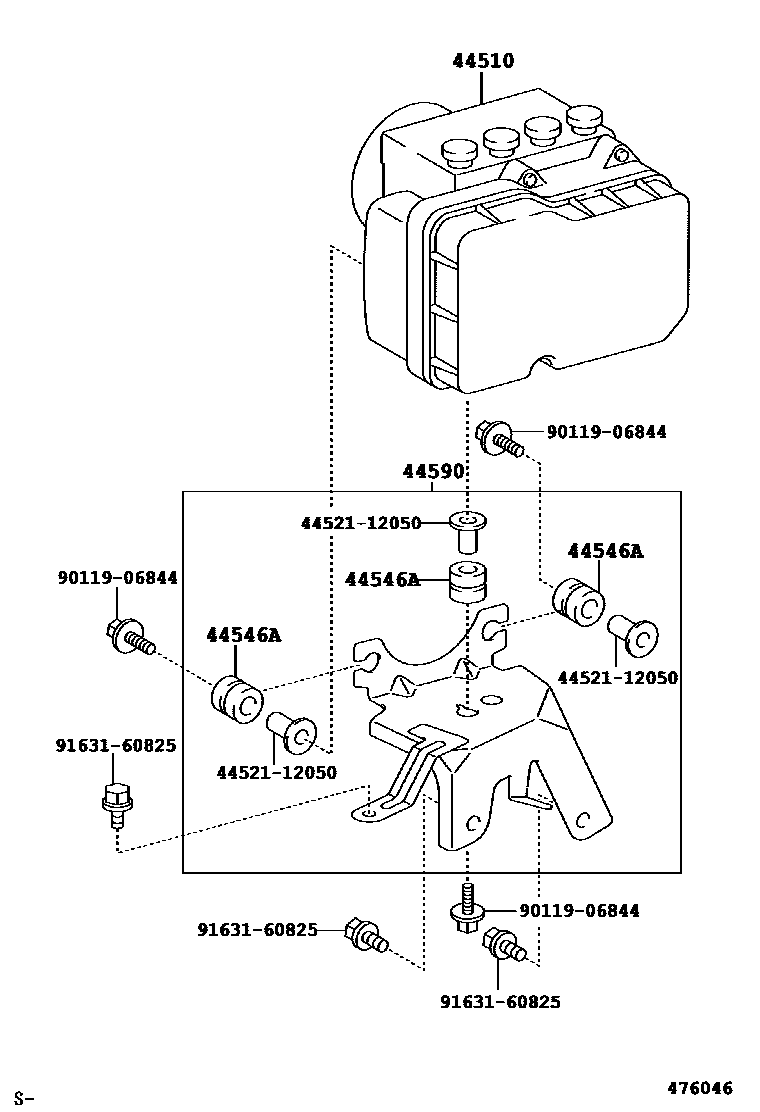

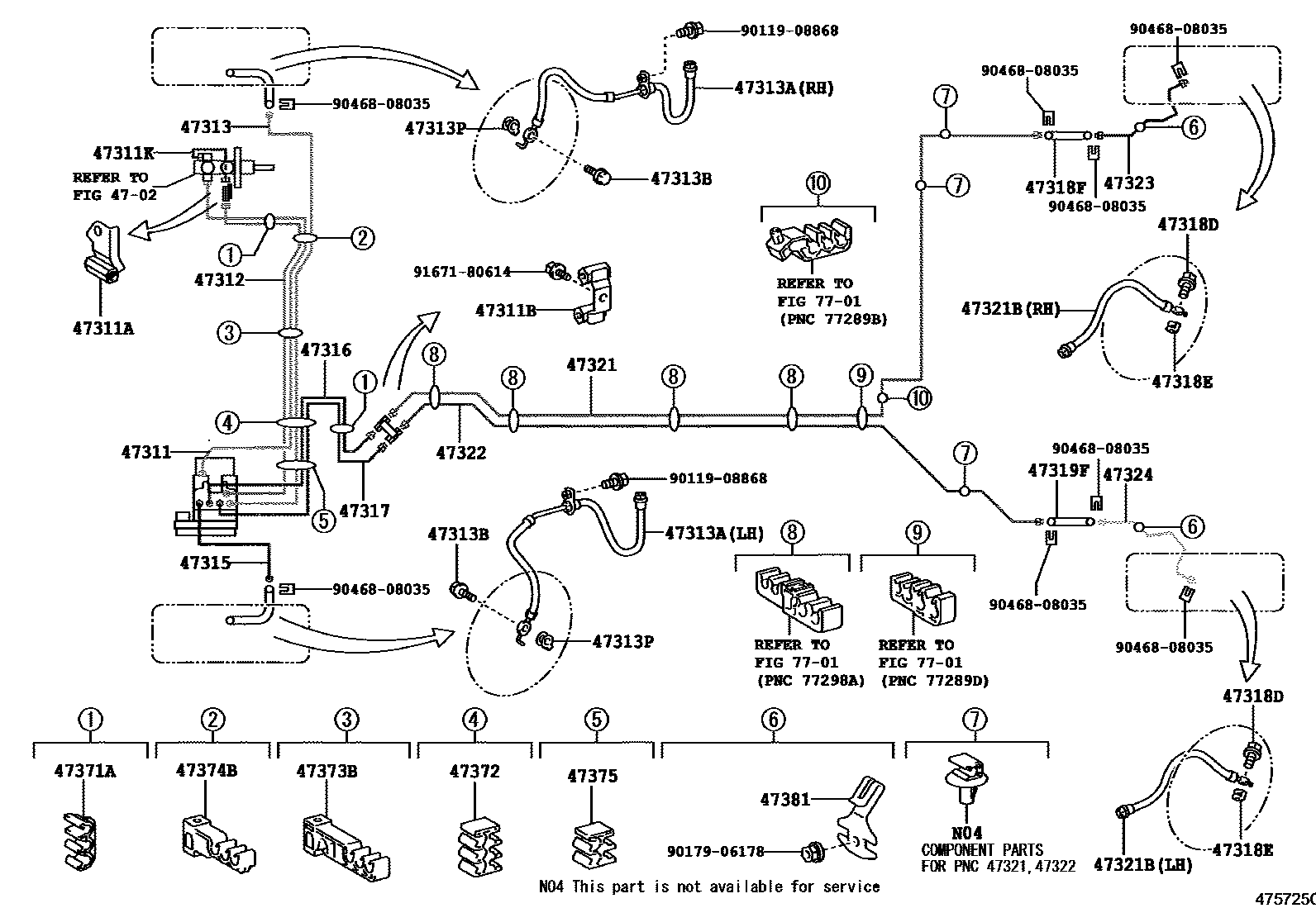

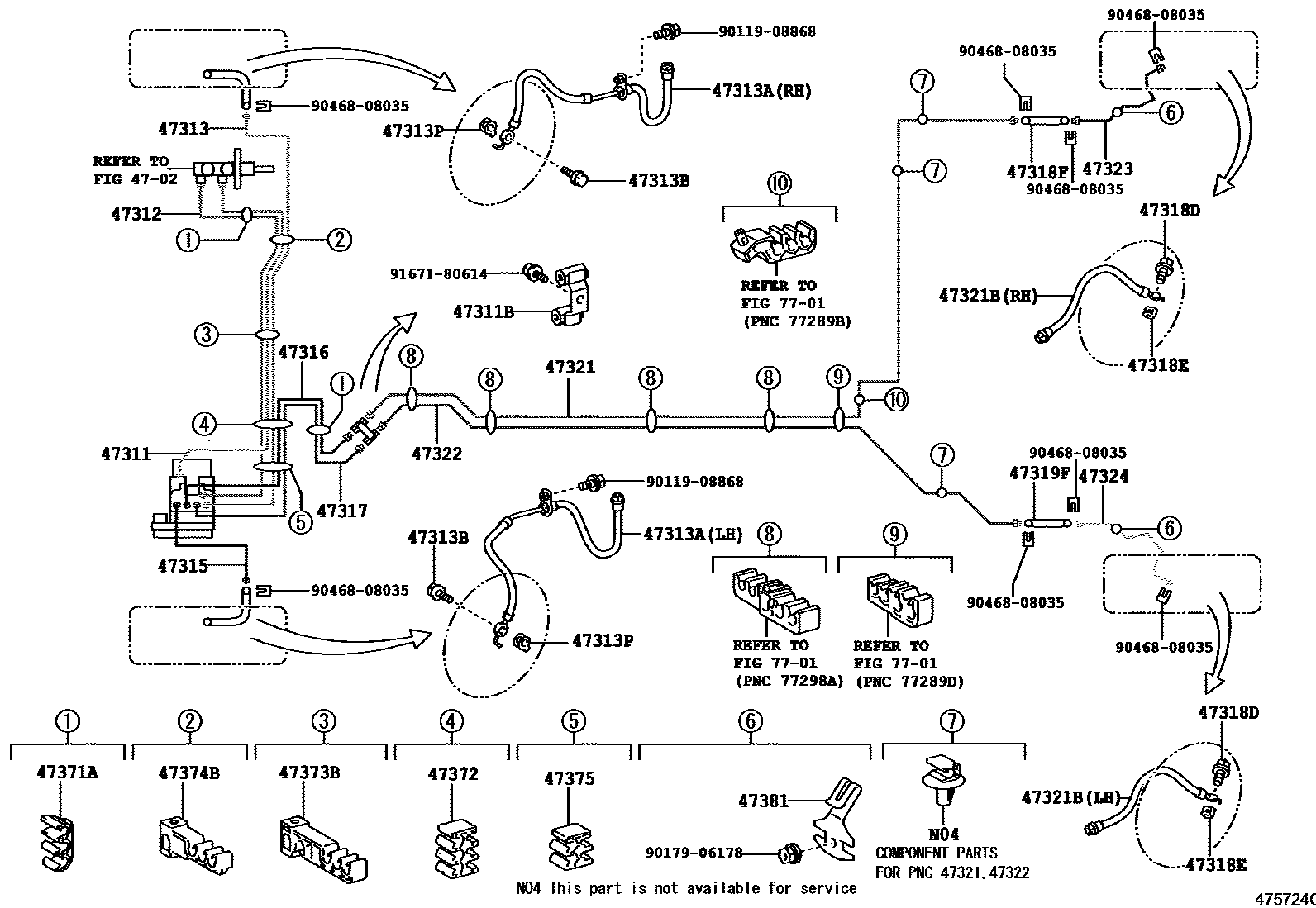

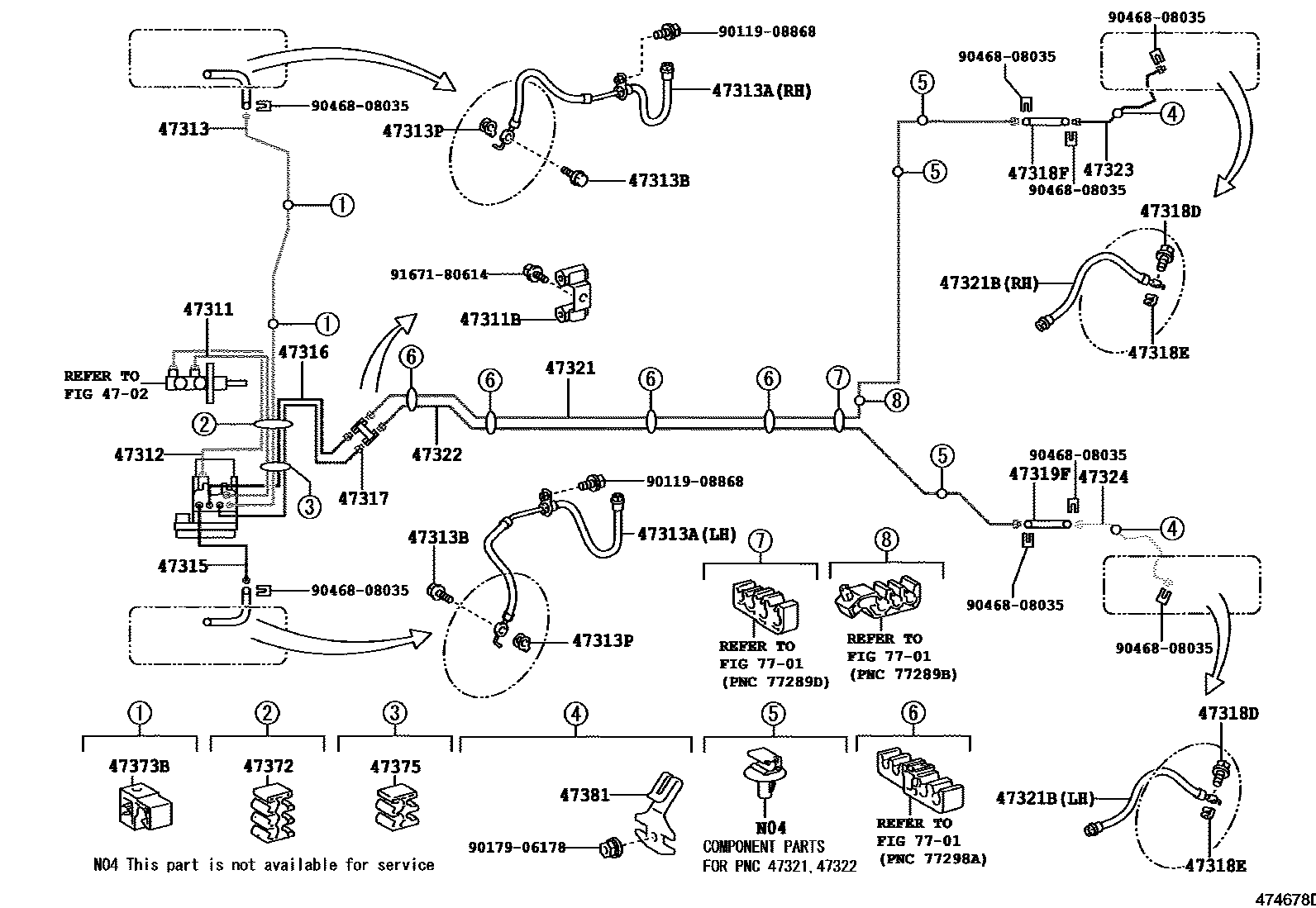

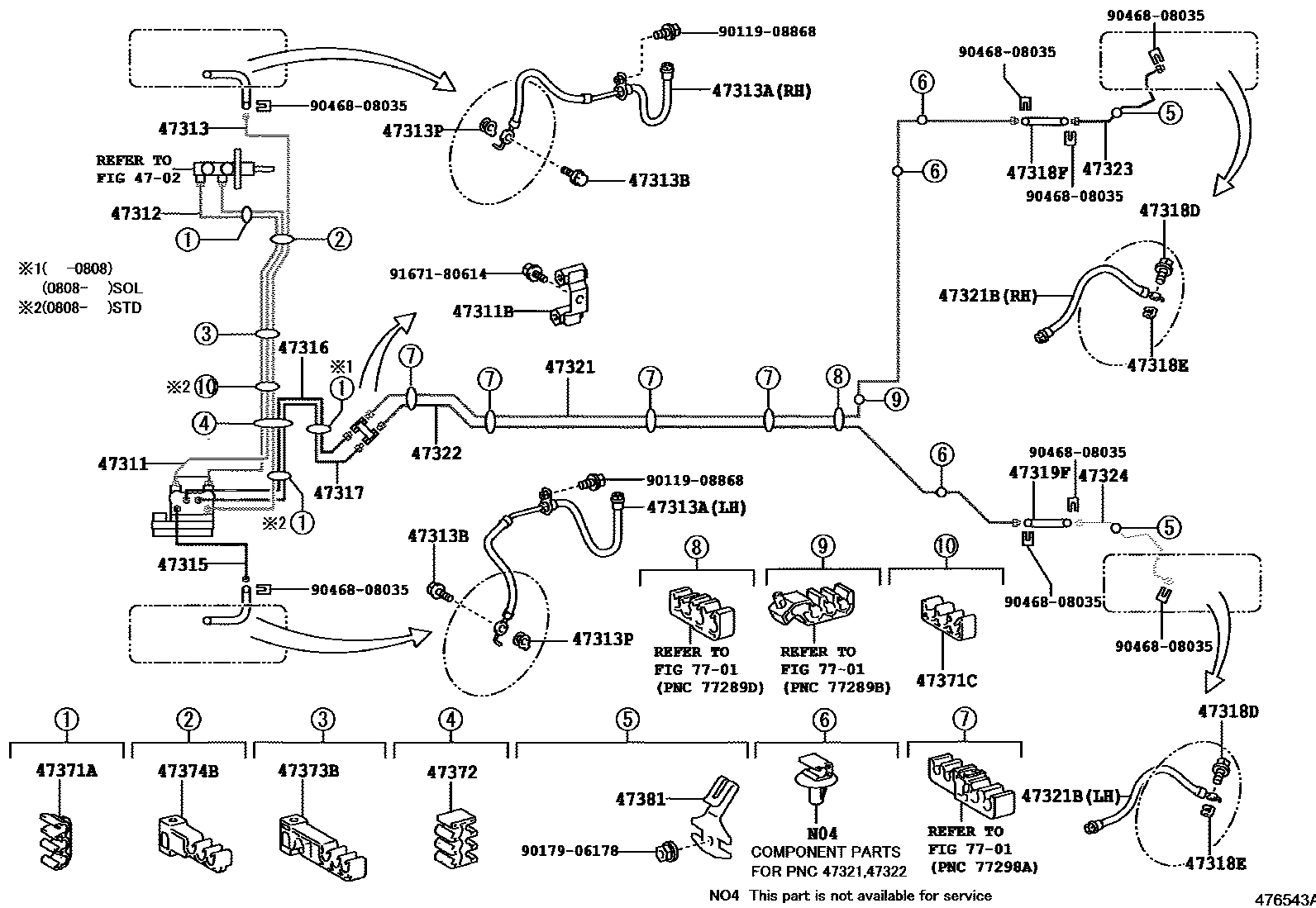

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 12 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-52490 · 44050-52560 · 44050-52640 · 44050-52780 · 44050-52781 · 44050-52A10 · 44050-52A20 |
| 44545D | Brake actuator bolt mount | 44545-42090 · 44545-63010 |
| 44546A | Brake actuator bolt cushion | 44546-12110 · 44546-17050 · 44546-63010 |
| 44590 | Brake actuator bracket assembly | 44590-52120 · 44590-52130 · 44590-52150 · 44590-52160 · 44590-52161 · 44590-52170 · 44590-52180 |
| 47311 | No. 1 front brake pipe | 47311-52221 · 47311-52231 · 47311-52240 · 47311-52250 · 47311-52251 · 47311-52290 · 47311-52370 · 47311-52390 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10273 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-52300 |
| 47312 | No. 2 front brake pipe | 47312-52201 · 47312-52211 · 47312-52220 · 47312-52230 · 47312-52231 · 47312-52260 · 47312-52330 · 47312-52350 |
| 47313 | No. 3 front brake pipe | 47313-52110 · 47313-52120 · 47313-52130 · 47313-52140 · 47313-52141 · 47313-52160 · 47313-52190 |
| 47313A | No. 1 front flexible hose | 90947-02E07 · 90947-02E08 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47315 | No. 5 front brake pipe | 47315-52140 · 47315-52150 · 47315-52160 · 47315-52170 · 47315-52171 · 47315-52190 · 47315-52210 |
| 47316 | No. 6 front brake pipe | 47316-52100 · 47316-52110 · 47316-52120 · 47316-52130 · 47316-52131 · 47316-52150 · 47316-52180 |
| 47317 | No. 7 front brake pipe | 47317-52100 · 47317-52110 · 47317-52120 · 47317-52130 · 47317-52131 · 47317-52150 · 47317-52180 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E09 |
| 47319F | Left rear flexible hose | 90947-02E10 |
| 47321 | No. 1 rear brake pipe | 47321-52270 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-02E11 |
| 47322 | No. 2 rear brake pipe | 47322-52250 |
| 47323 | No. 3 rear brake pipe | 47323-52100 · 47323-52110 |
| 47324 | No. 4 rear brake pipe | 47324-52090 · 47324-52100 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371C | No. 7 brake pipe clamp | 90464-00857 |
| 47372 | No. 2 brake pipe clamp | 90949-01969 |
| 47373B | No. 3 brake pipe clamp | 90949-01C82 · 90949-01D27 |
| 47374B | No. 4 brake pipe clamp | 90949-01D02 |
| 47375 | No. 5 brake pipe clamp | 90464-00883 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-52020 |
