Toyota YARIS 制动总泵 — Figure 4702

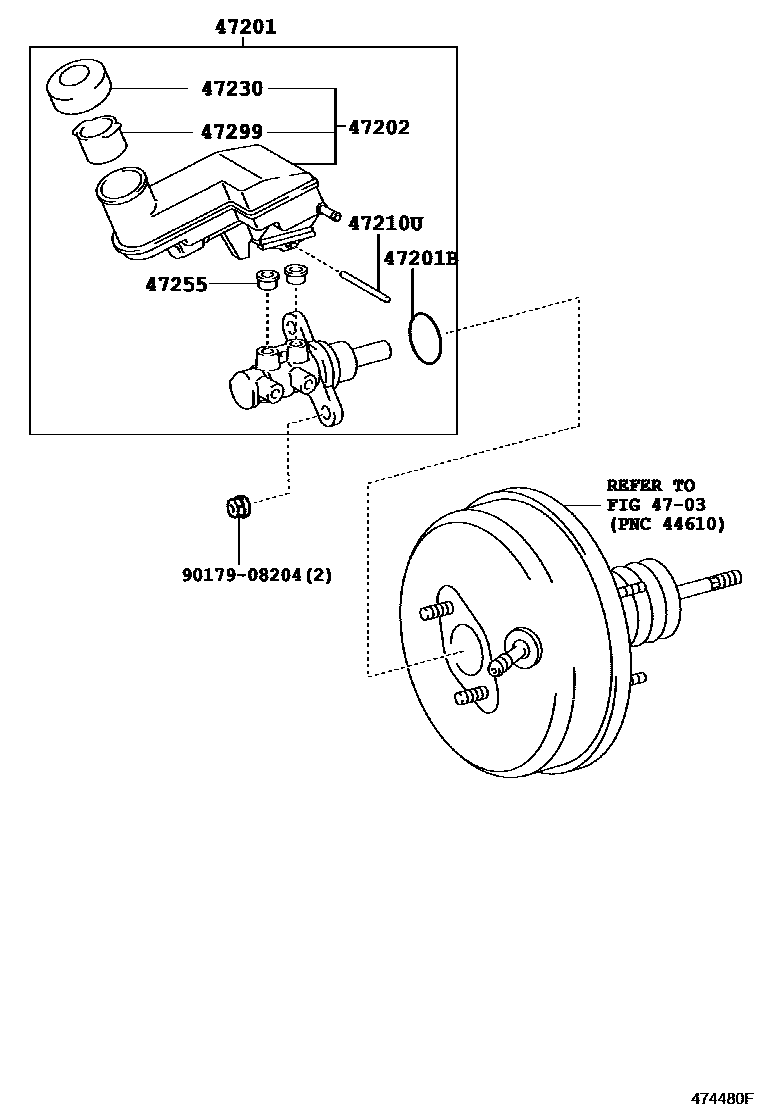

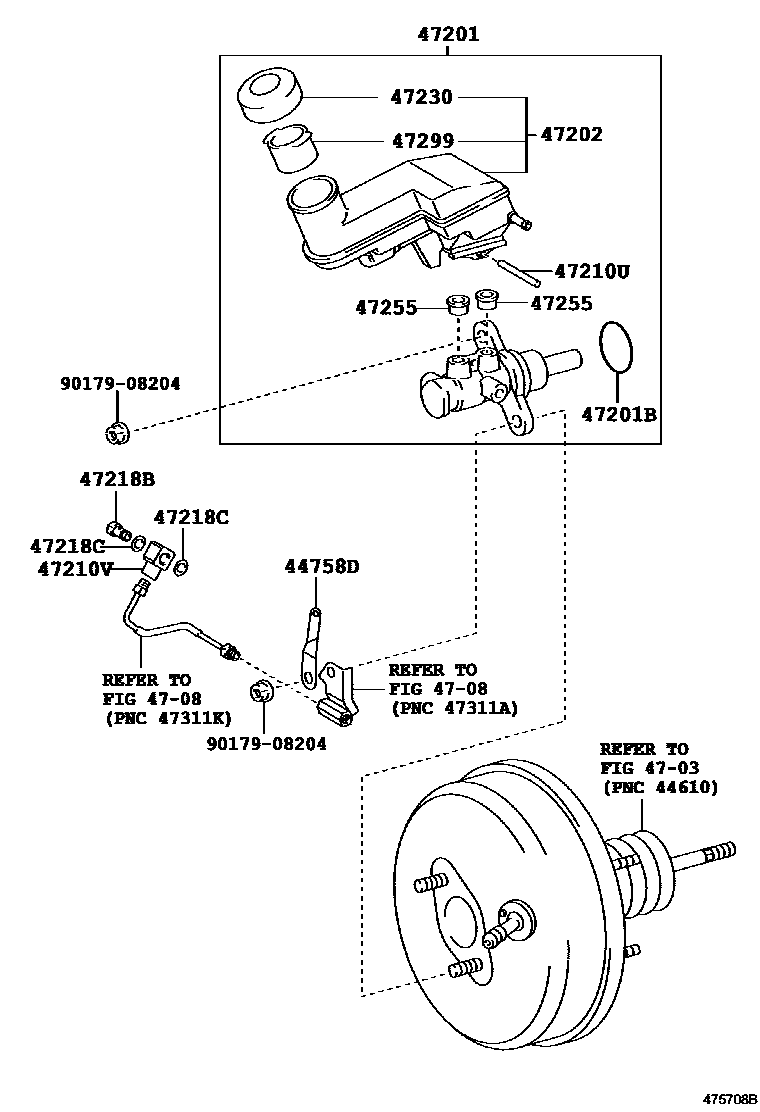

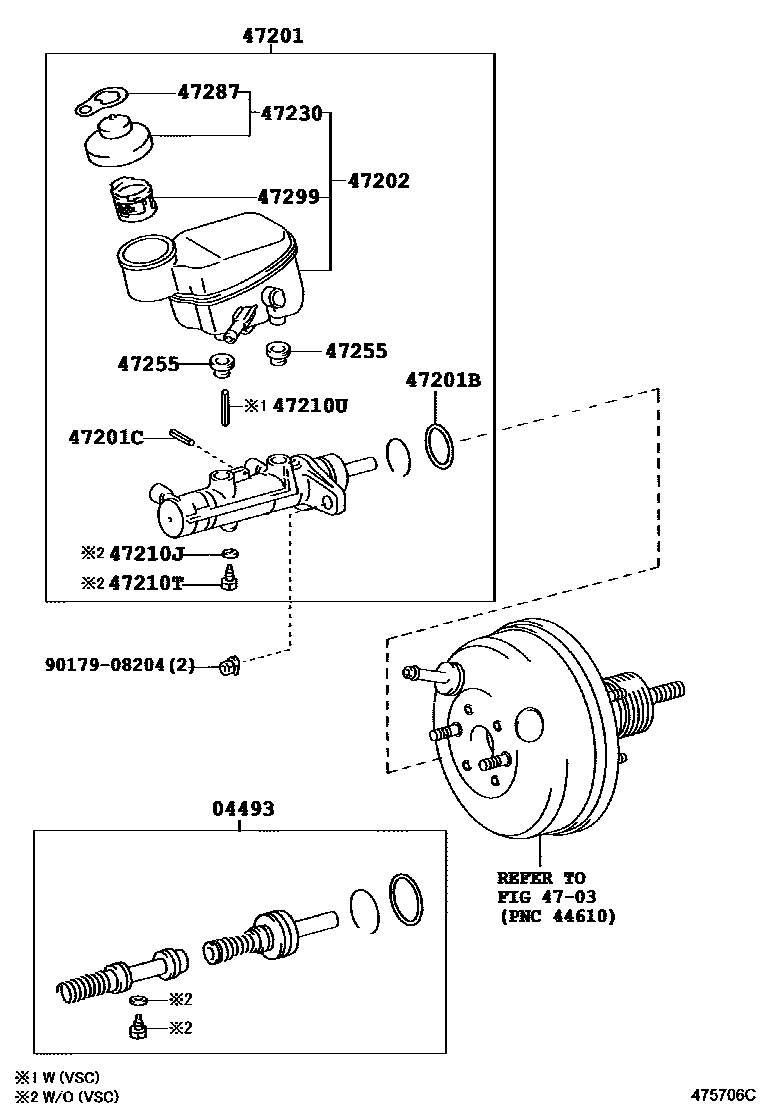

Toyota YARIS EPC diagram 4702, 制动总泵, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-52070 · 04493-52090 · 04493-52100 |
| 44758D | Vacuum check valve bracket | 44758-52020 |
| 47201 | Brake master cylinder sub-assembly | 47201-52280 · 47201-52310 · 47201-52330 · 47201-52340 · 47201-52350 · 47201-52390 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH001 · 90029-20059 |
| 47201C | Brake master cylinder ring pin | 90029-15804 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-52140 · 47220-52170 |
| 47210J | Gasket (for master cylinder) | 90029-43001 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 · 90029-14204 |
| 47210V | Connector (for brake master cylinder) | 90405-10073 |
| 47218B | Connector bolt (for brake master cylinder fluid outlet) | 90401-10012 |
| 47218C | Pad (for brake master cylinder outlet) | 90430-10074 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-28240 · 47230-33071 · 47230-52030 |
| 47255 | Master pump reservoir seal | 31417-35010 · 90015-AT001 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 · 47299-52110 |
