Toyota YARIS Brake Pedal & Bracket — Figure 4701

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.

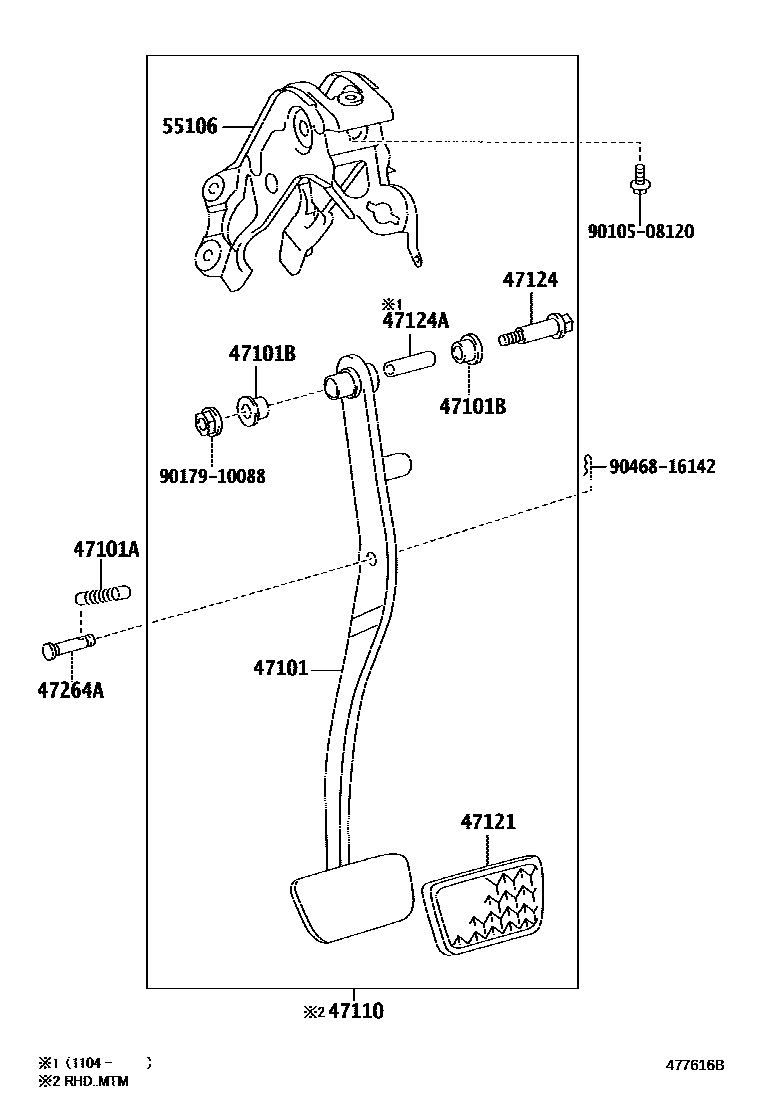

Toyota YARIS Brake Pedal & Bracket EPC diagram — 477616B
Brake Pedal & Bracket — 477616B (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
47101Brake pedal sub-assembly47101-52230 · 47101-52250
47101ASpring (for brake pedal return)90506-14077
47101BBushing (for brake pedal)90386-13015
47110Brake pedal bracket assembly47110-52260
47121brake pedal pad31321-52010
47124brake pedal shaft90105-10444 · 90109-10167
47124ACollar (for brake pedal shaft)90387-10003
47264APin (for push rod)90249-08051
55106Brake pedal bracket sub-assembly55106-52130 · 55106-52131 · 55106-52160
